Bush with Collar for Shaft Bore Reduction – milling cutters, drums, and rotary parts

SKU:BRG32*30*10

90,00 RON

Sale Sold out

Taxes included. Shipping calculated at checkout.

Dimensions L*W*H 32*30*5 35*30*13 40*30*15 40*35*15

Low stock: 10 left

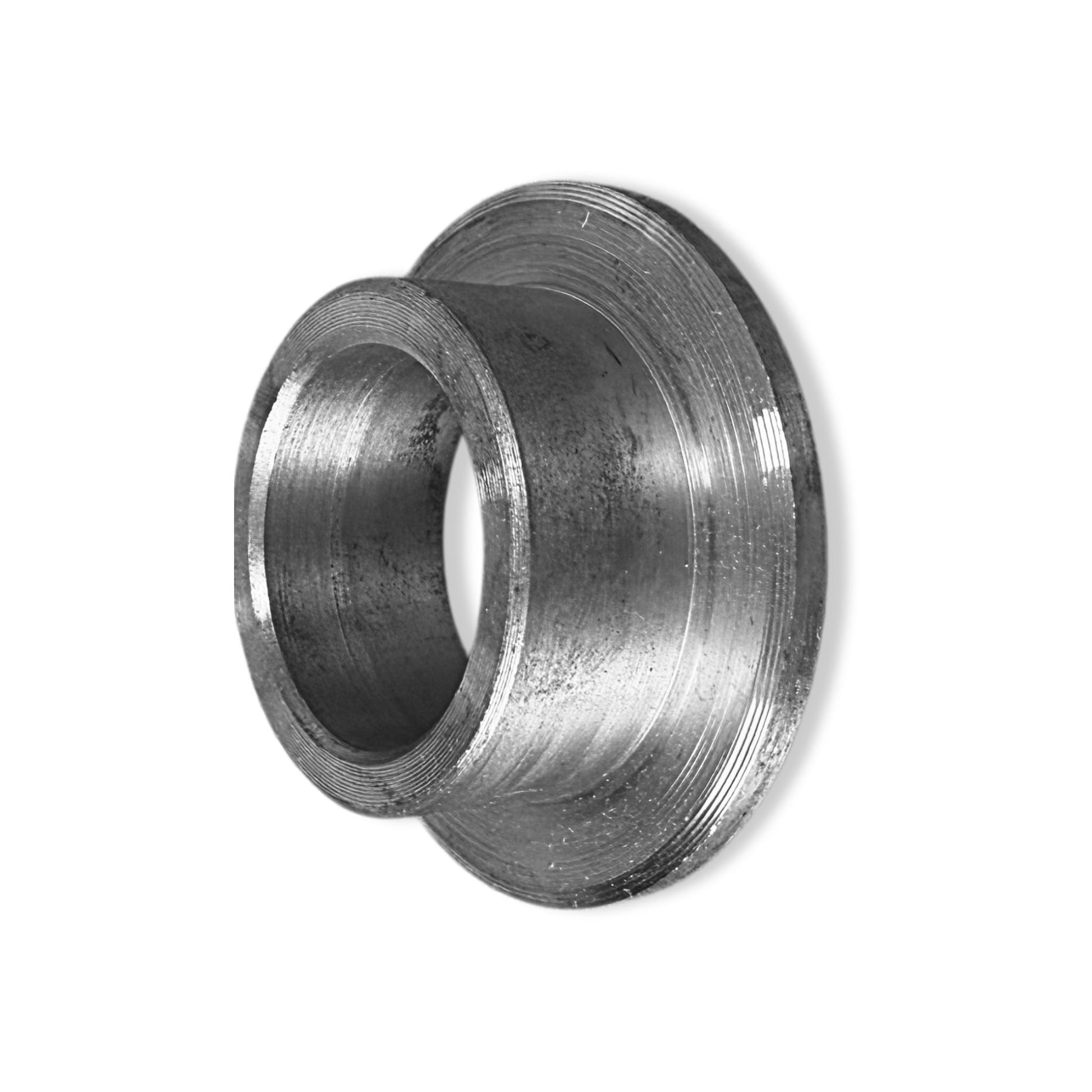

Flanged Reduction Bushing / Ring for Woodworking Cutters

⚠️ IMPORTANT NOTE: This product is sold individually. The displayed price is for one reduction bushing. Please select the desired size from the options below before adding the item to your cart.

Accessory Type	Calibrated reduction bushing with safety flange
Functional Role	Allows adaptation and use of large bore cutters on smaller diameter shafts
Construction / Profile	Monoblock with profiled flange (Prevents cutter from slipping or passing over the ring)
Material	High-strength alloy steel, ground to micrometric tolerances
Available Variants	4 standard options to choose from (See dimensional table below)
Country of manufacture	Ukraine

✨ WHY CHOOSE THE FLANGED (SHOULDERED PROFILE) VARIANT?

Absolute Centering and Stability: Unlike simple reduction rings (plain inserts), the flanged bushing provides an extremely solid, rigid, and perfectly concentric position for the cutter on the machine shaft, completely eliminating axial play.
Increased Work Safety: The outer flange (bushing shoulder) acts as a precise mechanical stop. It prevents the cutter from slipping or moving vertically during high loads in the cutting phase.
Thread and Shaft Protection: The fine grinding of the internal and external surfaces ensures quick mounting and dismounting without scratching the shaper machine shaft or the inside of the tool's bore.
Maximum Workshop Versatility: Allows you to reuse old cutters or cutters purchased with a large bore on newer machines (or vice versa), saving substantial costs on new tool acquisitions.

📐 The 4 Available Dimensional Variants (To Choose From)

Consult the dimensions below and choose the bushing that perfectly fits between your machine's shaft and the cutter's bore:

Model Code	From Cutter Bore (Outer)	To Machine Spindle Diameter (Inner)

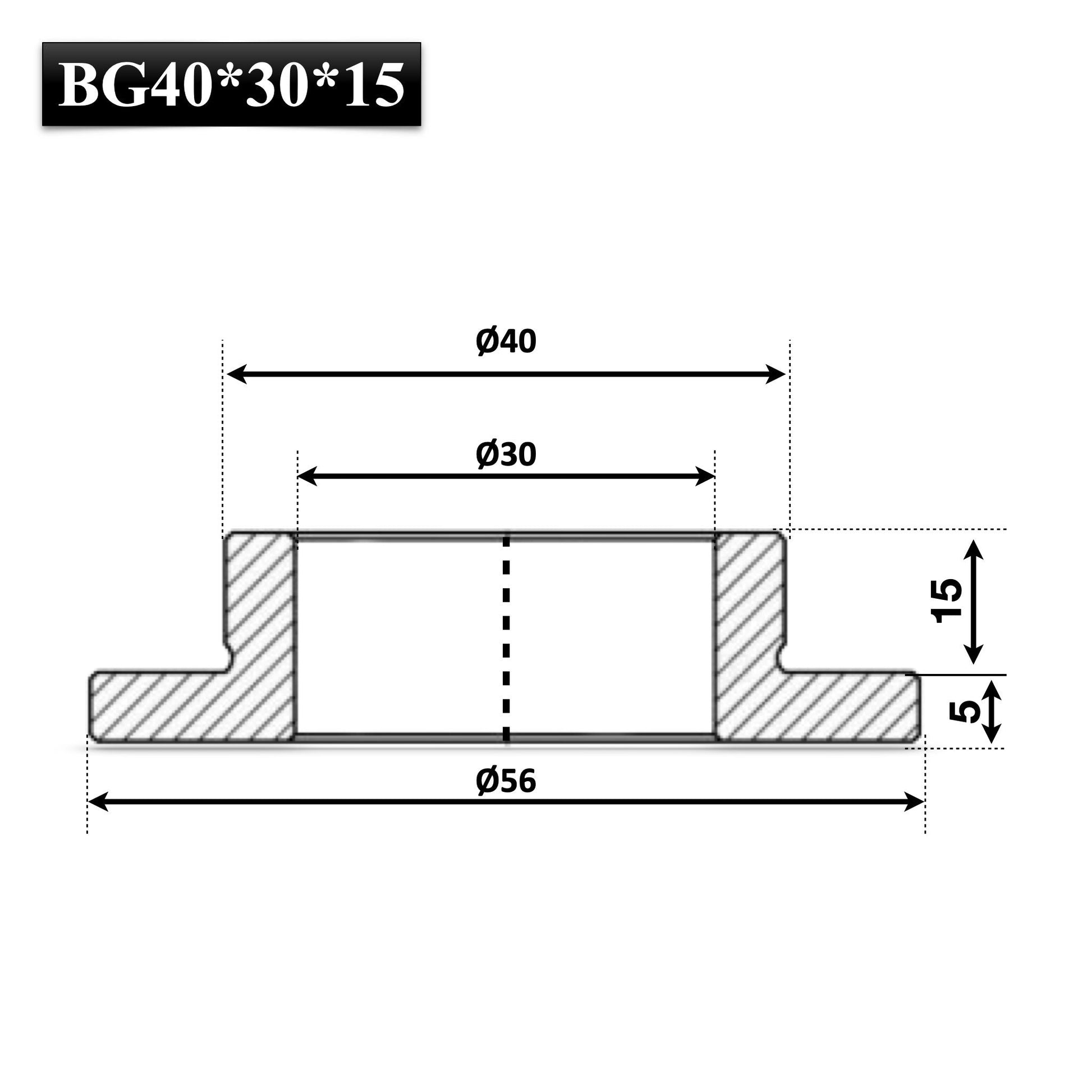

Variant 1	Ø 40 mm	➔ Ø 30 mm
Variant 2	Ø 40 mm	➔ Ø 35 mm

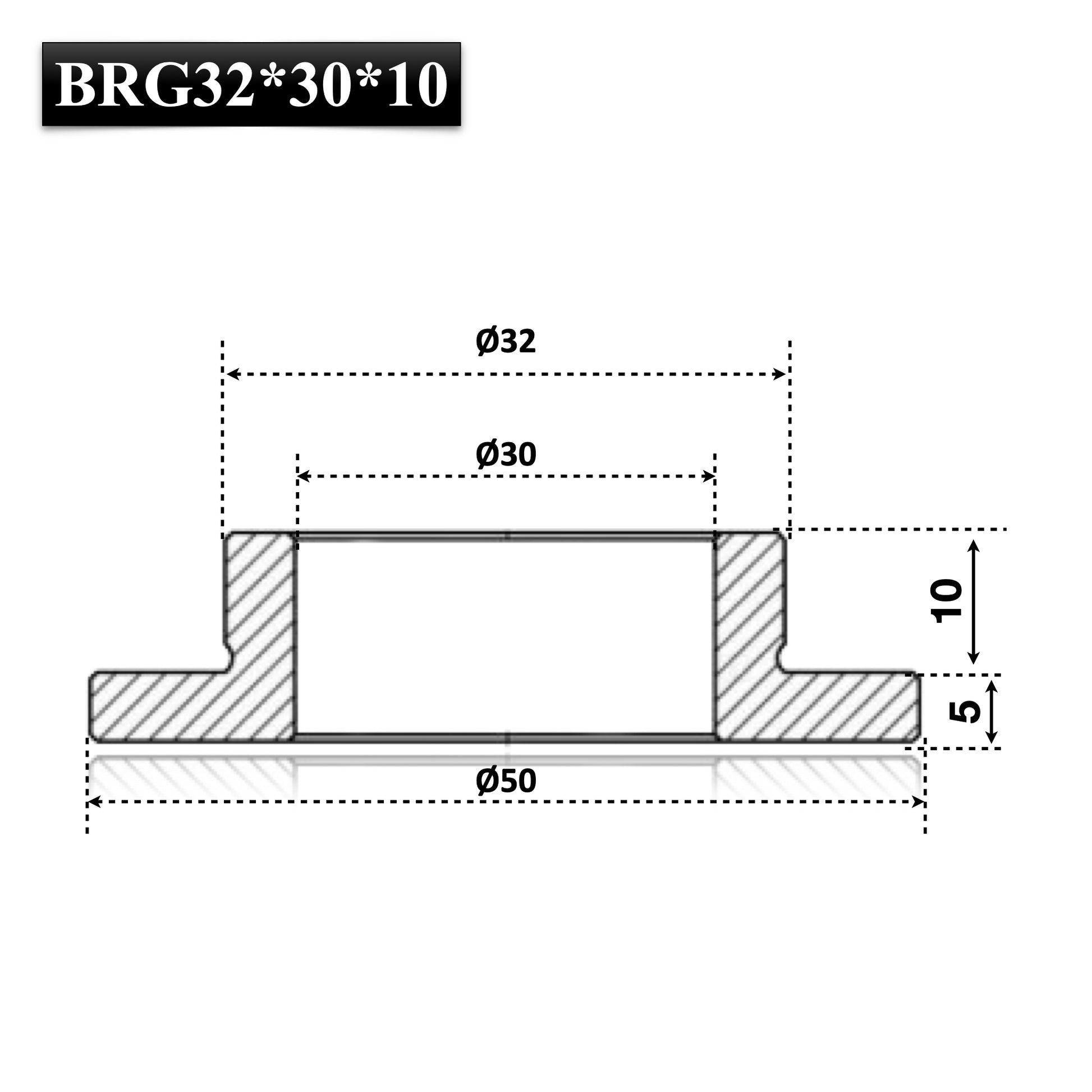

Variant 3	Ø 32 mm	➔ Ø 30 mm

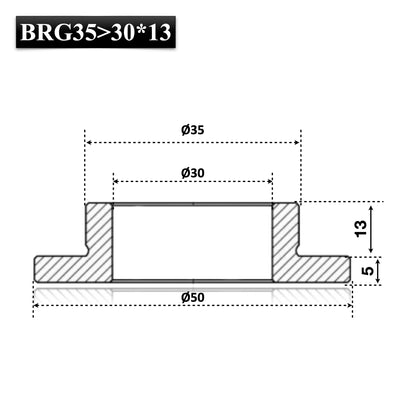

Variant 4	Ø 35 mm	➔ Ø 30 mm

🛠️ Need a different size? By order, we can also manufacture and stock other types or special configurations of flanged reduction bushings, adapted to your workshop. Contact us for details!
