Half-Round Concave Cutter for Wood R3 - R60 mm | HSS Premium
Half-Round Concave Cutter for Wood R3 - R60 mm | HSS Premium
SKU:10R8-d30
Low stock: 2 left
Couldn't load pickup availability
Concave Half-Circle Wood Cutter R4 – R25 mm – Premium HSS

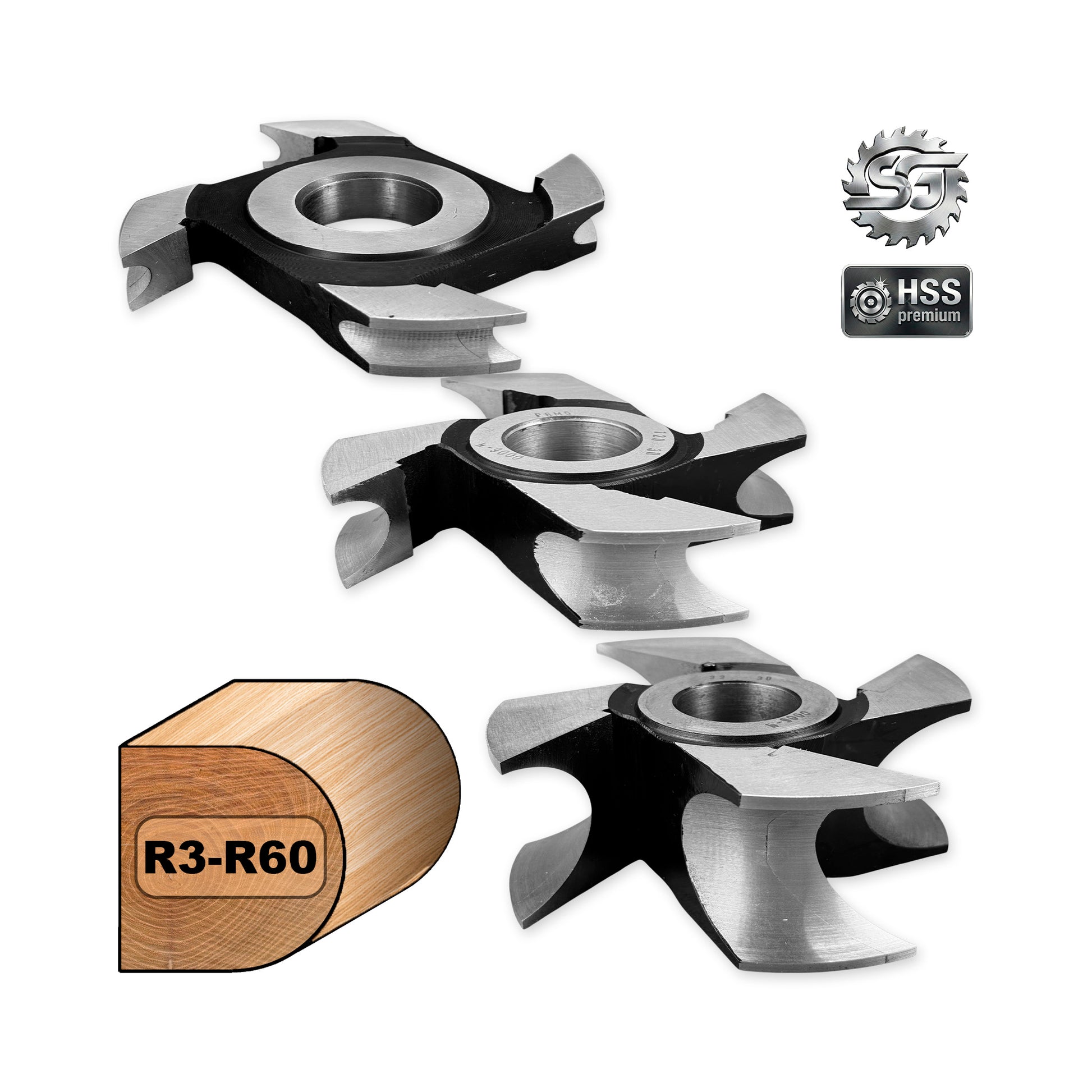

Professional bore spindle cutter for rounding wood edges with a concave half-circle profile. Available in a range of radii from R3 to R60 mm to match your project exactly – from subtle edge finishes to large-scale edge rounding on tabletops, stairs, frames, or decorative elements. Heavy-duty construction featuring 4 brazed teeth made of Premium HSS M2 (6.5% Tungsten).
| Profile | ProfileConcave, half-circle profile cut |
| Available Radii Range | Available Radii RangeR3 – R60 mm (selectable options) |
| Active Working Width | Active Working Width2 × Selected Radius (e.g., the R25 mm variant has a 50 mm working width) |

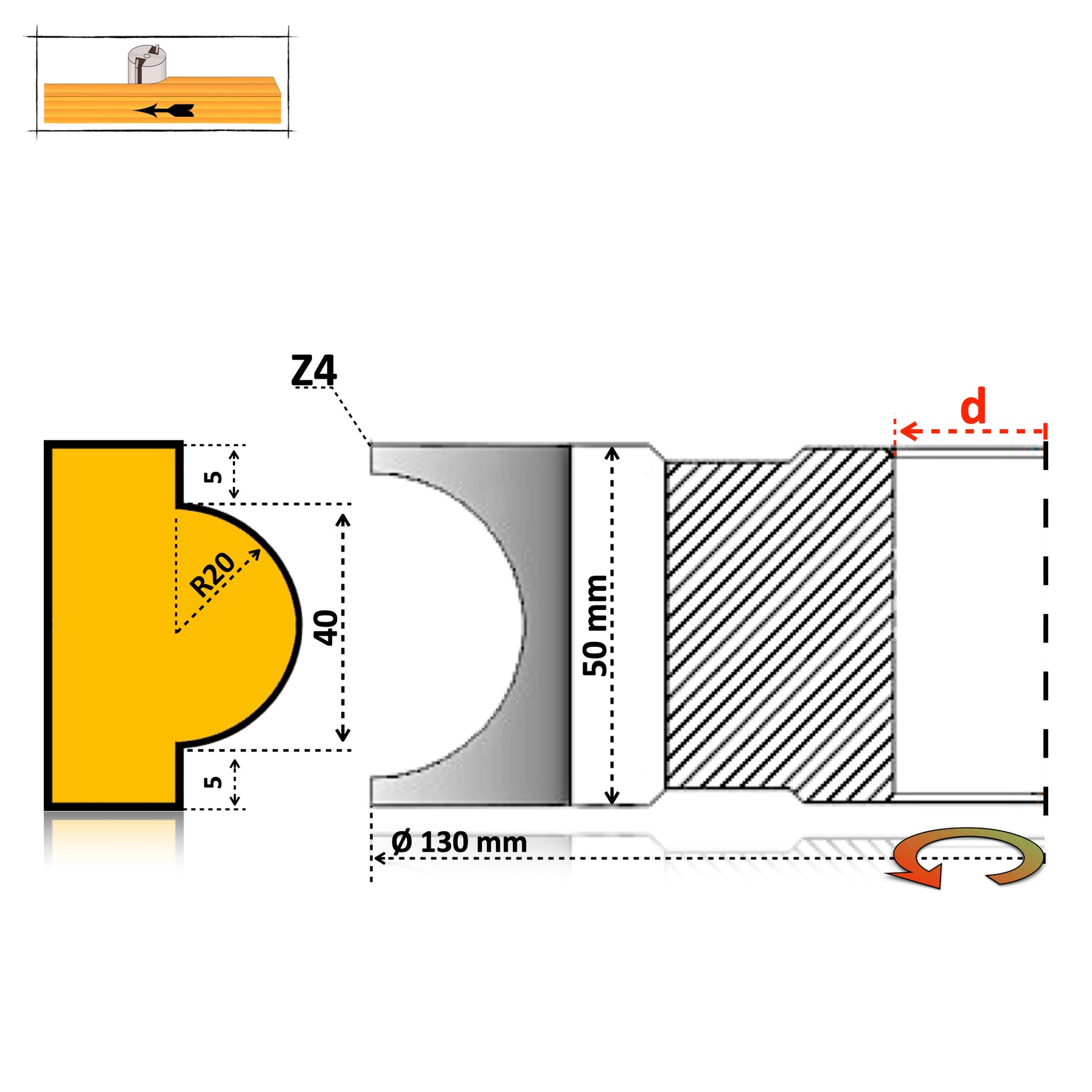

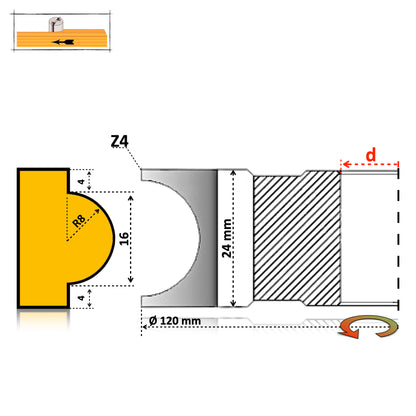

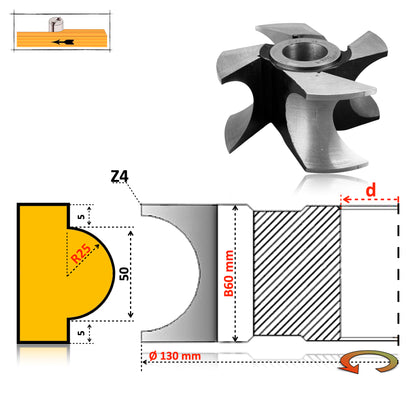

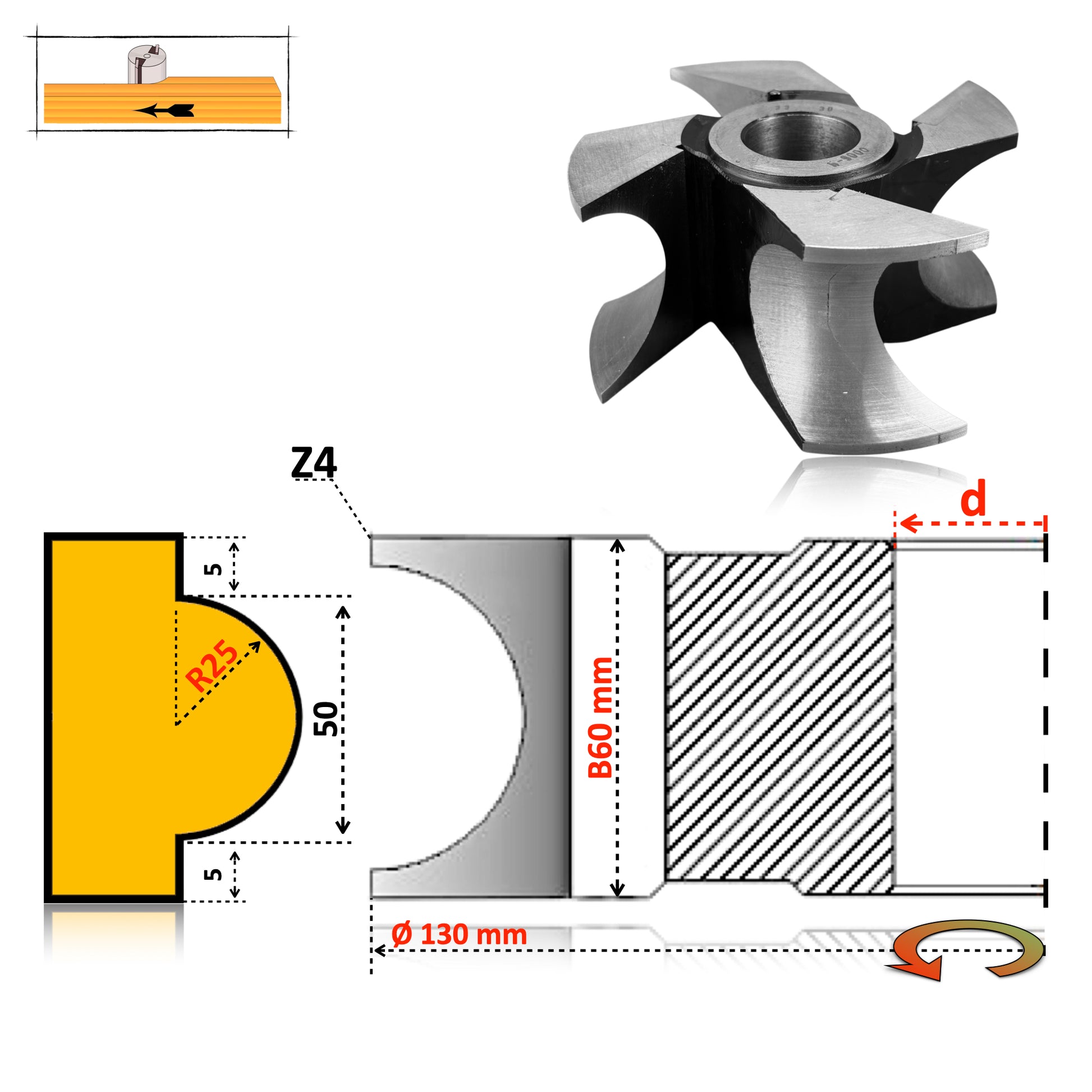

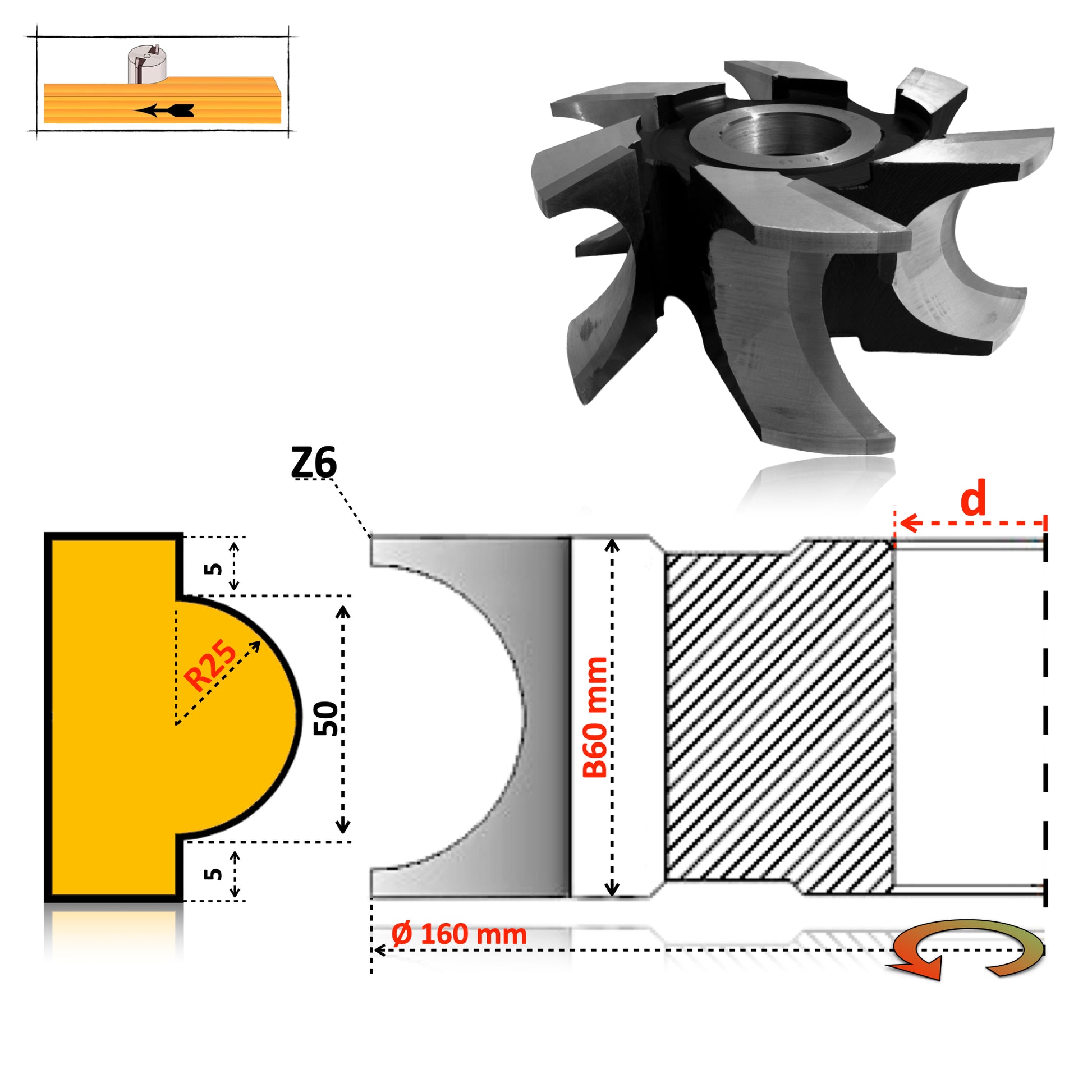

| Outer Diameter / Total Thickness | Outer Diameter / Total ThicknessVaries depending on the chosen radius – according to the technical drawing of each variant |
| Bore Diameter (d) | Bore Diameter (d)Ø30 mm / Ø32 mm standard (in stock) | Ø35 mm / Ø40 mm (upon pre-order) |
| Cutting Edge Material | Cutting Edge MaterialPremium HSS M2 (6.5% Tungsten), brazed |
| Number of Teeth | Number of Teeth4 pcs. |
| Cutting Edge Hardness | Cutting Edge Hardness64 – 66 HRC |
| Tip/Plate Thickness | Tip/Plate Thickness6 mm |
| Recommended RPM | Recommended RPM6,000 – 9,000 RPM (the exact value is specified for each specific variant/radius) |
| Estimated Yield | Estimated YieldUp to 3,000 linear meters (in softwoods, before the first resharpening) |
🚀 BENEFITS AND APPLICABILITY:
- Precise Concave Profile Across the Entire R3–R60 Range: ensures uniform edge rounding, regardless of the radius chosen for your project.
- Brazed HSS M2 Cutting Edge: 4 teeth made of high-speed steel (6.5% Tungsten) deliver a smooth cut without tearing the wood fibers.
- 6 mm Thick, Resharpenable Tips: the generous thickness of the tip allows for multiple successive resharpenings, significantly extending the tool's lifespan.
- Long-Term Investment: in case of advanced wear, the tool body can be re-brazed with new tips at a specialized center, eliminating the need to purchase a completely new cutter.
- Spacer Ring Compatible: suitable for fine adjustment on the spindle shaper axis.
- Custom Radius Upon Request: if your project requires a specific radius outside our standard range, you can contact us with your technical drawing.
🔹 Ideal for edge rounding on furniture, stairs, countertops, frames, and curved structures, ensuring smooth, uniform cuts without grain tearout.
📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)
💡 For constant processing of hardwoods or composite panels (Chipboard/MDF/HDF), an equivalent variant equipped with T.C.T. Tungsten Carbide (Vidia) tips is also available, which is highly resistant to abrasive wear.
⚠️ USE LIMITATIONS (HSS M2 VARIANT):
- Recommended Strictly for Natural Wood: optimal performance on softwoods; on hardwoods, the overall yield and edge lifespan are reduced.
- Not Recommended for Composites: ❌ DO NOT use on chipboard, MDF, HDF, exotic woods, or materials laminated with synthetic glues! The synthetic binders in these materials prematurely dull the high-speed steel edge. For these applications, please select our T.C.T. Vidia variant.
- Resharpening: the 6 mm tips can be resharpened, but we strongly recommend having this done at a professional grinding center to preserve the original cutting angle – incorrect sharpening can severely reduce cutting efficiency.
