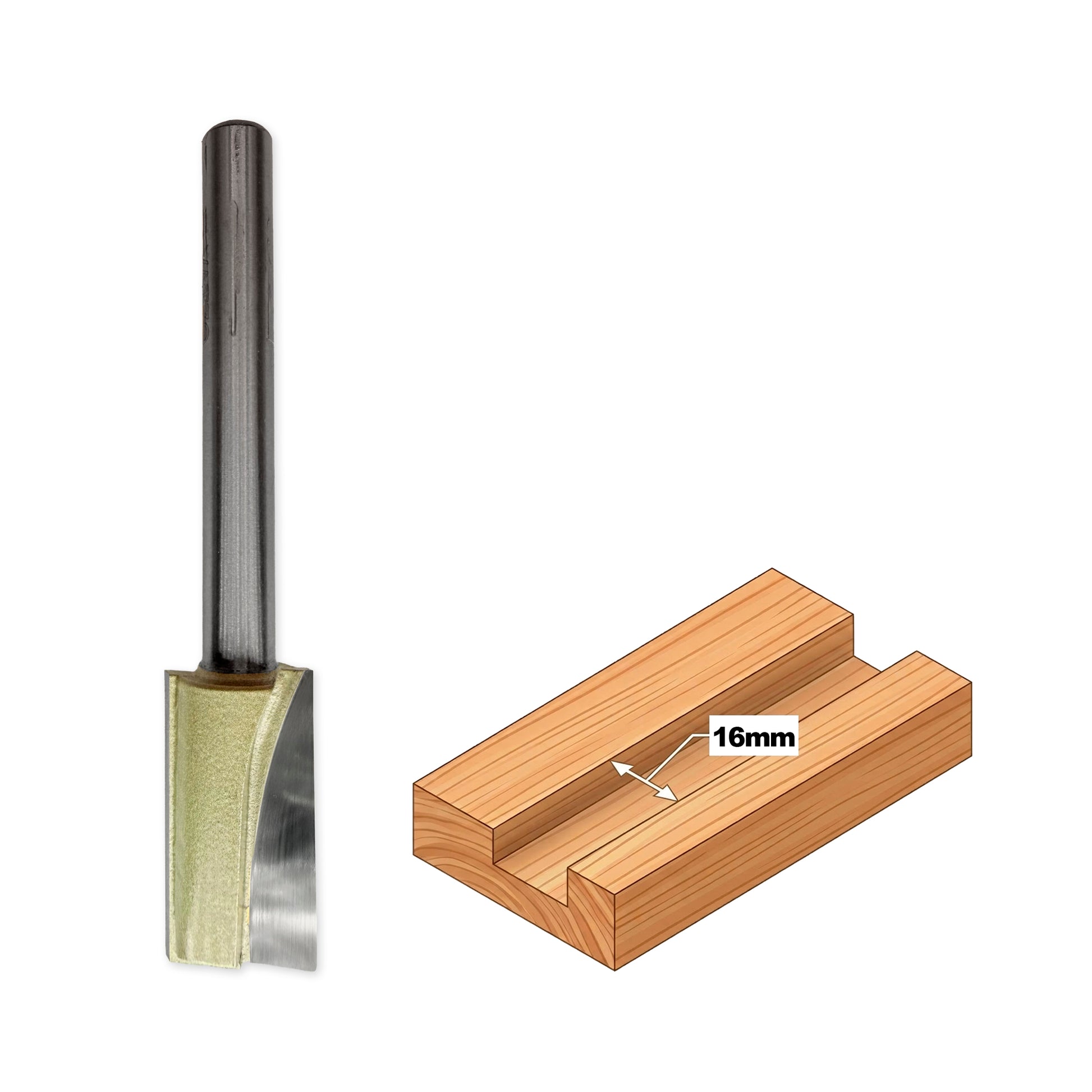

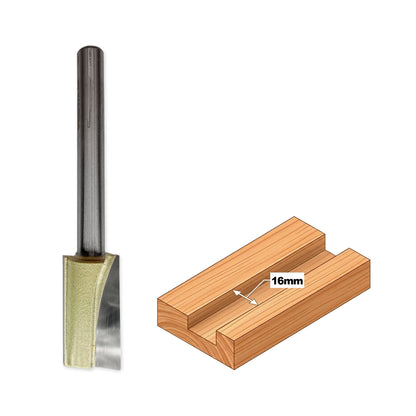

Straight Shank Router Bit for Grooving D=16mm, S=8mm, Lc=30mm, L=90mm, Z2 – T.C.T. (Carbide) – Vatzo

This groove router bit with two cutting edges (Z2) is the ideal choice for projects where finish quality is a priority. The carbide inserts (Vidia) ensure precise cutting and extended tool life in abrasive materials.

🪵 Performance on Materials:

Due to its two-flute configuration, the router bit offers excellent results on:

• MDF and Chipboard: Clean cutting, without edge chipping.
• Solid wood (Hard/Soft): Smooth finish, significantly reducing the need for subsequent sanding.

✨ Advantages of Z2 configuration:

• Superior Finish: The two cutting edges share the cutting load, resulting in a much finer surface compared to Z1 router bits.
• Balance and Stability: Reduced vibrations during operation, which protects the router bearings.
• Working Speed: Allows for a more constant feed rate in dense materials.

⚙️ Technical Details:

• Cutting edge material: Carbide (T.C.T. / Vidia)
• Cutting diameter (D): 16 mm
• Working depth (Lc): 30 mm

• Overall Length (L): 90 mm
• Number of cutting edges: Z2 (two cutting edges)
• Shank diameter (S): 8 mm
