Straight Groove Shank Cutter D=4mm | Lc=12mm | Z1 – T.C.T. Carbide

Straight Groove Shank Cutter D=4mm | Lc=12mm | Z1 – T.C.T. Carbide

1001-D4.S6.Lc12

37,00 RON
37,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Queue (S)

Low stock: 4 left

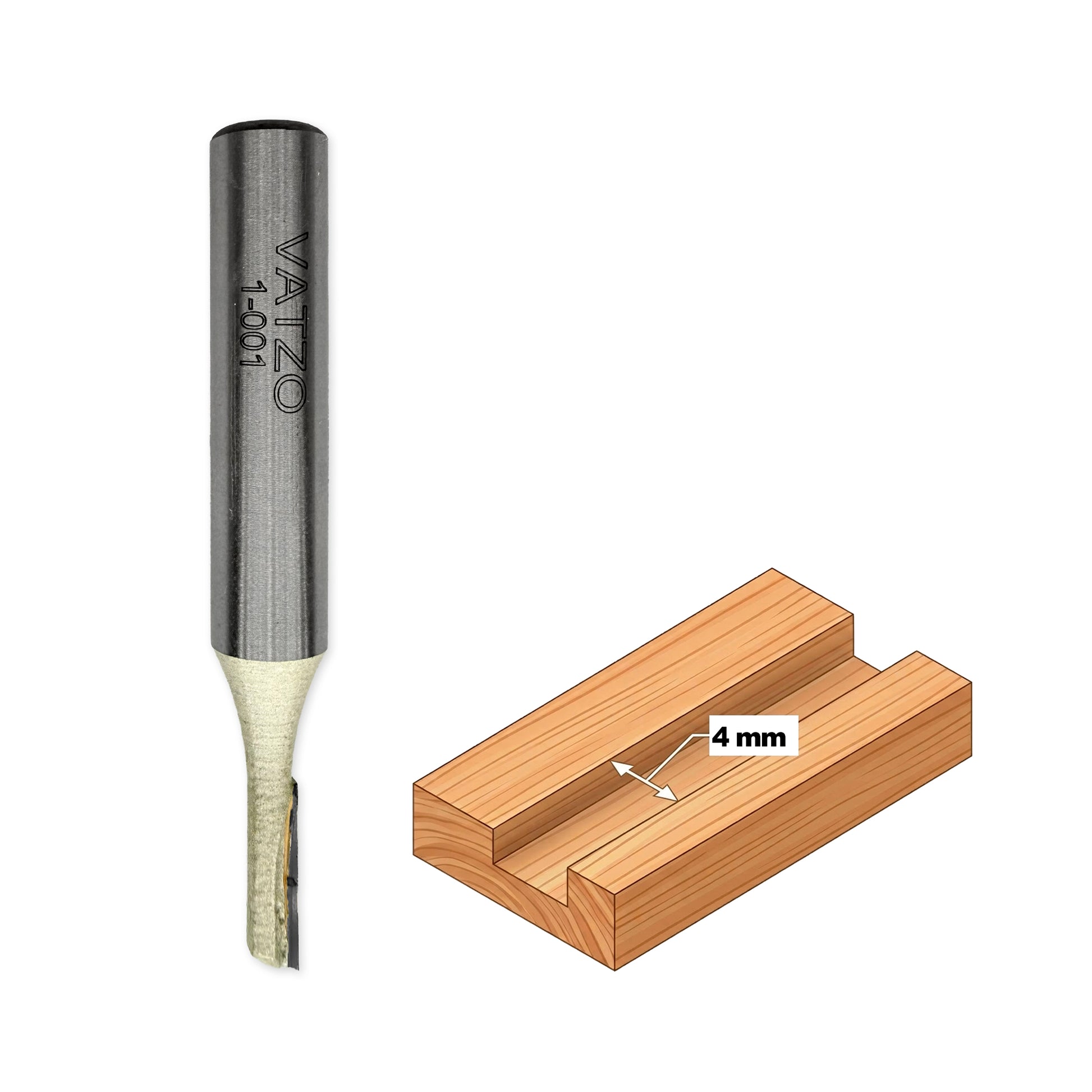

Shank Router Bit for Grooves – T.C.T. Vidia | D4 mm | Lc12 mm | Z1

T.C.T. (Vidia) carbide shank router bit, with a single flute (Z1), designed for creating narrow grooves, hardware recesses, and fine details in solid wood and wood-based panels. Available with Ø6 mm or Ø8 mm shank – select the variant from the menu.

Cutting Diameter (D) Cutting Diameter (D)4 mm
Working Depth (Lc) Working Depth (Lc)12 mm
Shank Diameter (S) Shank Diameter (S)Ø6 mm or Ø8 mm – select from menu
Number of Flutes Number of FlutesZ1 (single active cutter)
Blade Material Blade MaterialT.C.T. Vidia (high-density carbide)
Machine Compatibility Machine CompatibilityShank router (router), CNC, milling machines with collet chuck
Package Contents Package Contents1 x Router Bit (variant selected from menu)

✨ TECHNICAL ADVANTAGES:

  • Z1 Flute – Rapid Chip Evacuation: a single active cutter ensures large gaps for quick material removal from the groove, reducing the risk of overheating at deep depths.
  • T.C.T. Vidia – Maximum Versatility: carbide resists wear on both solid wood (soft and hard) and wood-based panels (MDF, particleboard, plywood), without the rapid wear characteristic of high-speed steel.
  • Precision for Fine Details: the 4 mm diameter allows for creating narrow grooves, hardware recesses, drawer bottoms, and other precision details.
  • Available in Two Shank Variants: Ø6 mm and Ø8 mm for compatibility with standard collets of most routers and CNCs.

⚠️ Important recommendation: due to the small diameter/depth ratio (4 mm D / 12 mm Lc), create deep grooves in successive passes of 3–4 mm with moderate feed. This prevents the router bit body from breaking under lateral pressure and ensures an impeccable finish.

⚠️ USAGE LIMITATIONS:

  • Do not force the feed: at D4 mm, excessive lateral pressure can break the router bit body – respect successive passes of a maximum of 3–4 mm depth per pass.
  • Vidia on soft wood: requires constant feed – stalling in rotation on resinous essences (spruce, fir) can cause local burning due to friction.
  • Not suitable for: large diameter cuts, splitting, or operations with intense lateral pressure.

📊 COMPATIBILITY LEVEL BY MATERIAL TYPE (T.C.T. VIDIA)

MDF / Particleboard / HDF / Plywood 100%

Optimal: resists the abrasive wear of synthetic binder, clean and precise groove.
Hard Wood (Beech, Oak, Ash) 100%

Excellent: carbide resists on dense essences, perfectly flat groove bottom.
Soft Wood (Spruce, Fir, Pine) 80%

Good: works, but requires constant feed to avoid friction burns.
Composite & Exotic Materials 100%

Maximum: the recommended choice for demanding materials.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (high-speed projected chips), mask or respirator (fine MDF/wood dust), and earmuffs.
  • Successive passes: do not attempt to achieve the full depth of 12 mm in a single pass – you risk breaking the router bit and projecting shards.
  • Check collet clamping: ensure the router bit shank is fully inserted and properly tightened in the collet before starting – a loosely clamped router bit vibrates and can come out of the collet during operation.
  • Maintain constant feed and do not stall the router bit in rotation on the same spot.
  • Be careful with hands and fingers: for shank router bits, the distance to the cutting area is smaller than for bore router bits – use guides and workpiece clamping devices.
