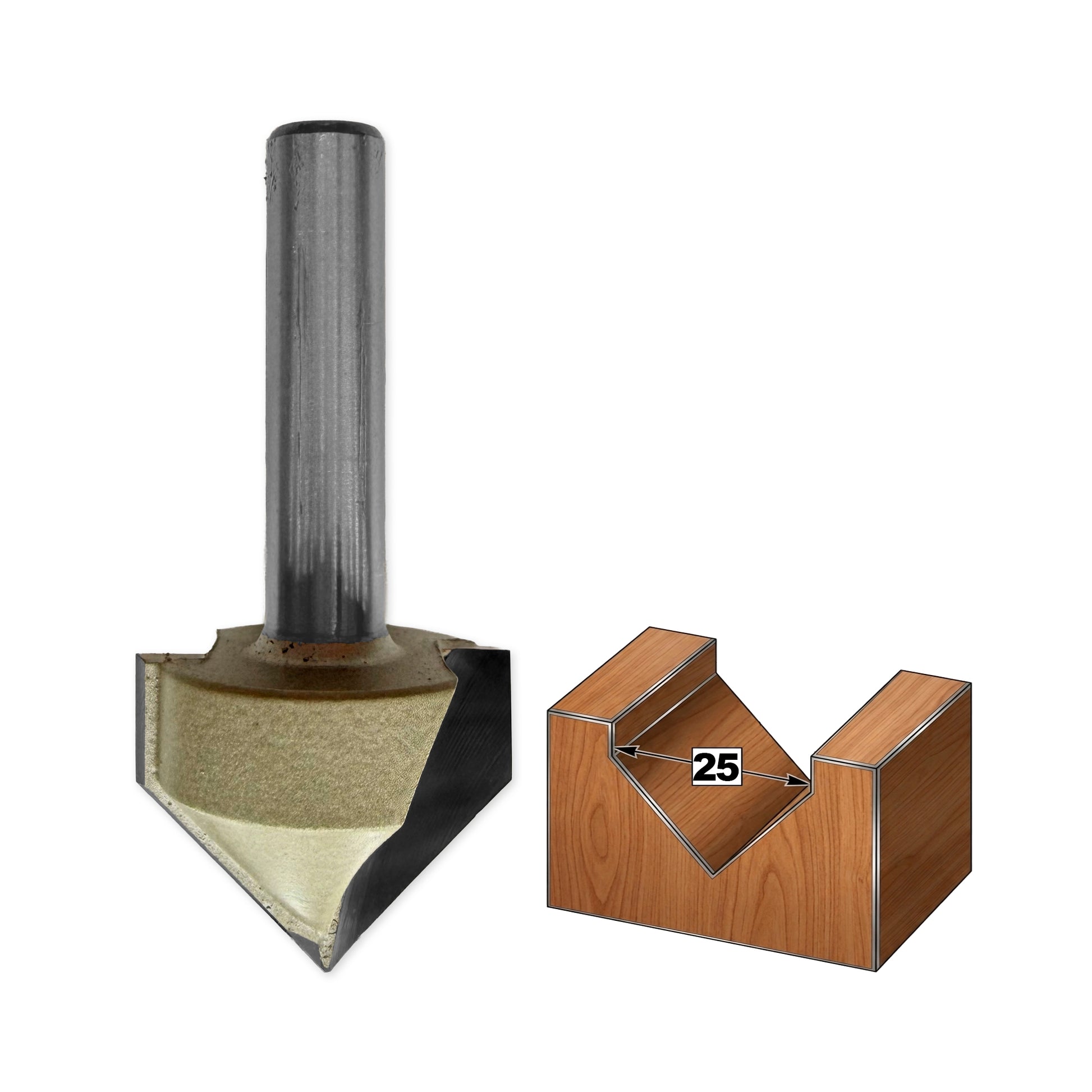

V-Groove Router Bit D=25mm, S=8mm, Lc=20.7mm, Z2 – T.C.T. (Carbide) – Vatzo

This 90-degree V-groove router bit with two cutting edges (Z2) is the precision tool needed for creating aesthetic expansion joints and decorative grooves. Equipped with high-density carbide cutting edges (Vidia/T.C.T.), the bit guarantees perfect tip geometry and superior wear resistance for intensive use.

🪵 Material Performance:

The two-symmetrical-flute configuration ensures balanced penetration and impeccable results on:

• Solid Wood (Hardwoods/Softwoods): Creates clean grooves without fiber tear-out at the profile edges.
• MDF and Laminated Panels: Ideal for engraving or marking joints between panels, providing a burn-free cut.
• Composite Materials: High abrasion resistance, keeping the cutting edge sharp for a large number of linear meters.

✨ Advantages of the Z2 angular profile:

• Perfect Centering: The bit tip is precisely ground to ensure a stable linear path, eliminating lateral vibrations.
• Aesthetic Expansion Joints: Allows for hiding joints between panels by creating a uniform chamfer, providing a professional look to furniture or wall coverings.
• Multifunctionality: In addition to expansion joints, the bit is excellent for engraving (letters/numbers) and chamfering edges at a fixed angle.
• Efficient Chip Evacuation: The design of the bit body allows for rapid sawdust removal, preventing overheating of the cutting edge.

⚙️ Technical Details:

• Cutting Edge Material: Carbide (T.C.T. / Vidia)
• Cutting Diameter (D): 25 mm
• Working Length (Lc): 20.7 mm

• Overall Length (L): 56 mm
• Number of Flutes: Z2 (two cutting edges)
• Shank Diameter (S): 8 mm
