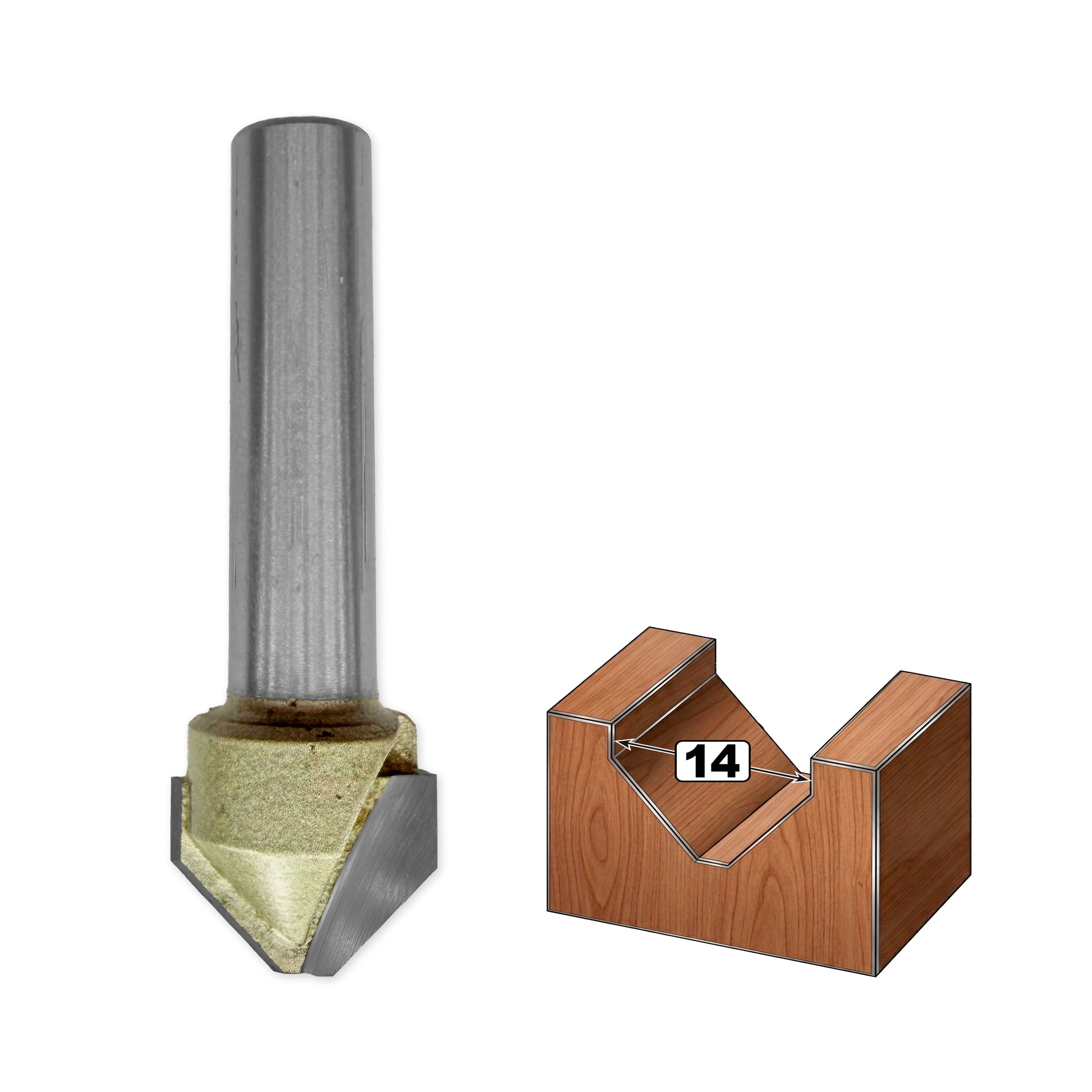

"V" Angle Milling Cutter with Flat Tip D=14mm, S=8mm, Lc=10mm, Z2 – T.C.T. (Carbide) – Vatzo

This variant of the 90-degree "V" grooving bit with a flat tip (Z2) is the professional solution for projects requiring a chamfered channel, but with a stable and clean base. Unlike fully pointed "V" bits, this model offers a hybrid profile, ideal for signage, decorative engraving, and expansion joints with a modern look.

Equipped with high-quality carbide (Vidia) cutting edges, the Vatzo router bit ensures balanced cutting, reducing the risk of tip chipping in hardwood.

🪵 Performance on Materials:

Thanks to its specific flat-tip geometry, the bit excels on:

• Solid Wood (Hard/Soft): Creates decorative grooves and letter engravings with a perfectly finished flat bottom.
• MDF and Laminated Panels: Ideal for creating design "grooves" on furniture fronts, providing a flat base for easier painting.
• Plastics and Composites: Excellent for advertising signage (engraved letters), where the flat bottom offers better text visibility.

✨ Advantages of the Flat Tip configuration:

• Maximum Durability: Eliminating the sharp tip makes the bit much more resistant to thermal and mechanical shocks, extending tool life.
• Exceptional Aesthetics: Creates an inverted trapezoidal channel, offering a more sophisticated design detail than a simple "V" channel.
• Reduced Vibrations: The Z2 geometry and mass distribution at the tip ensure superior stability during feed, protecting the router's spindle.
• Easy Cleaning: The flat base allows for much easier finishing or painting of the channel interior compared to a deep, narrow tip.

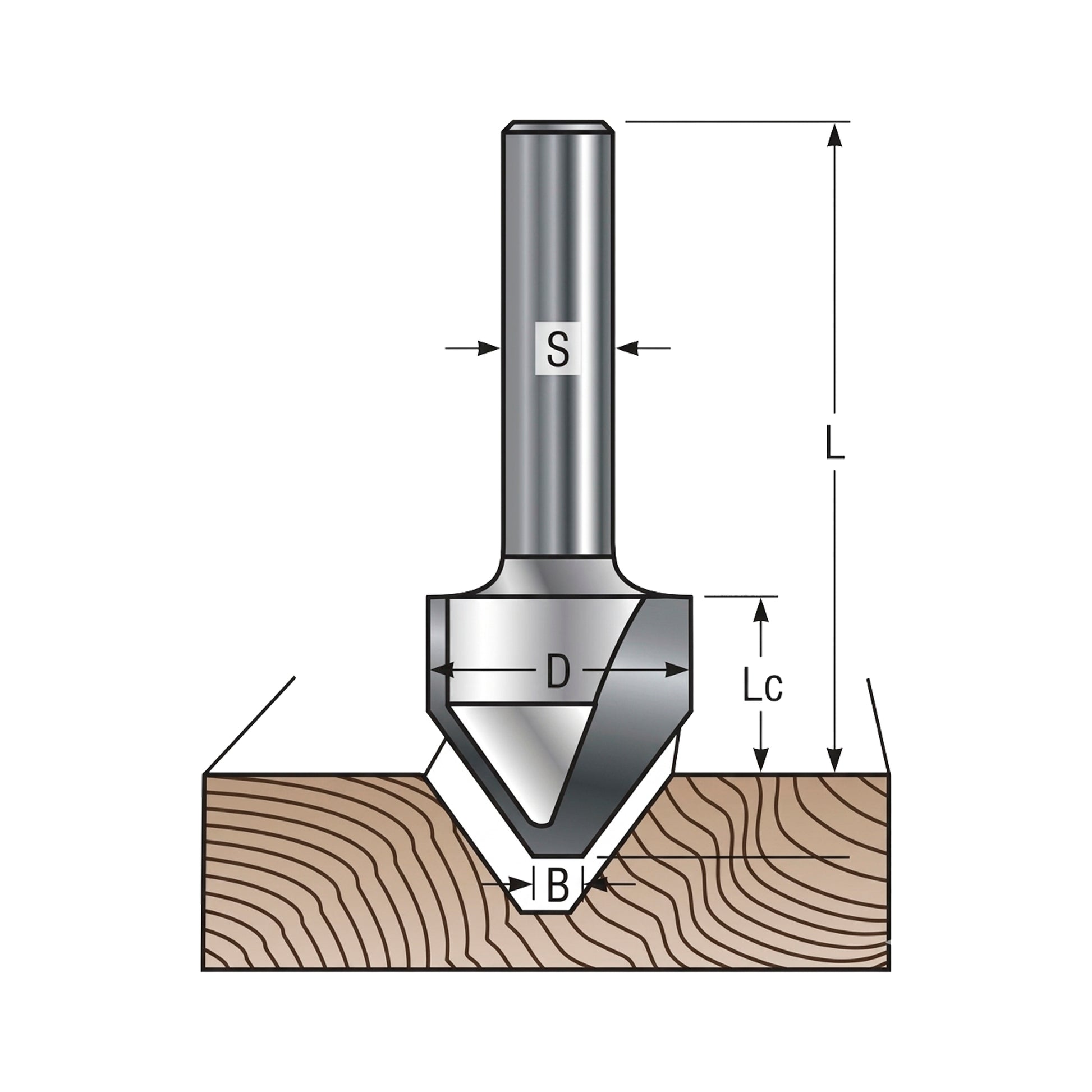

⚙️ Technical Details:

• Blade Material: Carbide (T.C.T. / Vidia)
• Cutting Diameter (D): 14 mm
• Working Depth (Lc): 10 mm

• Flat Tip Width (B): 3 mm
• Total Length (L): 45 mm
• Number of Blades: Z2 (two blades)
• Shank Diameter (S): 8 mm
