Straight Shank Router Bit D=10mm | Lc=30mm | Z2 – T.C.T. Carbide

Straight Shank Router Bit D=10mm | Lc=30mm | Z2 – T.C.T. Carbide

1003-D10.d6.Lc30

40,00 RON
40,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Queue (S)

Low stock: 1 left

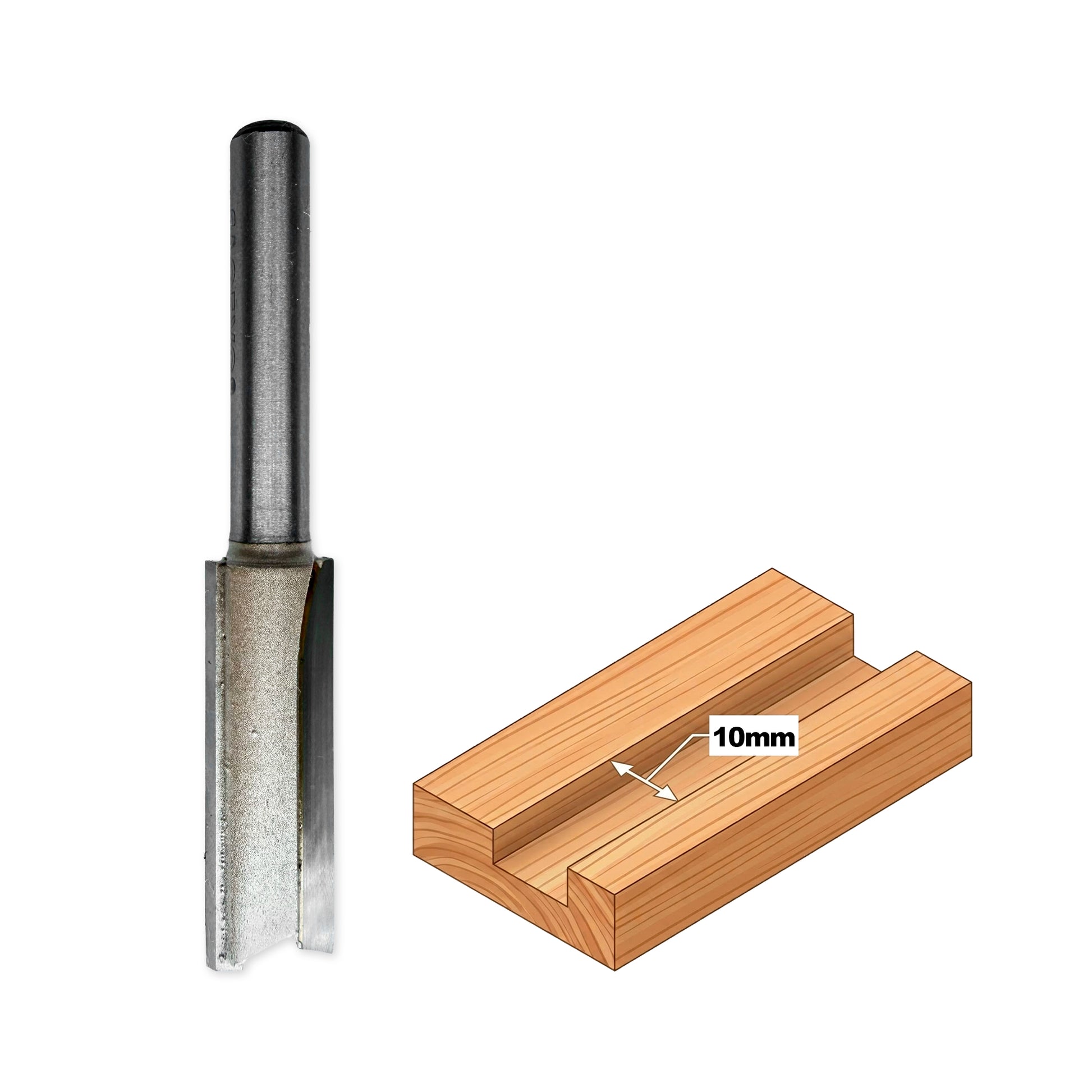

Straight Router Bit for Grooves – T.C.T. Carbide | D10 mm | Lc30 mm | Z2

T.C.T. (Carbide) straight router bit with two active cutting edges (Z2), designed for creating grooves with a superior finish in solid wood and derived panels. Cutting diameter 10 mm, working depth 30 mm. Available with shank Ø6 mm or Ø8 mm – select the option from the menu.

Cutting Diameter (D) Cutting Diameter (D)10 mm
Working Depth (Lc) Working Depth (Lc)30 mm
Shank Diameter (S) Shank Diameter (S)Ø6 mm or Ø8 mm – select from menu
Number of Flutes Number of FlutesZ2 (two active cutting edges)
Blade Material Blade MaterialT.C.T. Carbide (high-density cemented carbide)
Tool Compatibility Tool CompatibilityRouter, CNC, milling machines with collet chuck
Package Contents Package Contents1 x Router Bit (selected variant from menu)

✨ ADVANTAGES OF Z2 CONFIGURATION:

  • Superior Finish vs. Z1: The two cutting edges share the cutting load — the groove surface is smoother, with minimal tear-out, directly usable without further sanding.
  • Balance and Stability: The symmetrical Z2 configuration reduces vibrations during operation, protecting the router's bearings and extending the tool's lifespan.
  • Consistent Feed in Dense Materials: The two cutting edges allow for a more uniform and faster feed in hardwood, MDF, or chipboard compared to a Z1 bit.
  • T.C.T. Carbide – Durability on Abrasive Materials: The cemented carbide resists both solid wood and derived panels with synthetic binders (MDF, chipboard, plywood), without the rapid wear typical of high-speed steel.
  • Two Shank Variants: Ø6 mm and Ø8 mm for compatibility with standard collets of most routers and CNCs.

📊 MATERIAL COMPATIBILITY

MDF / Chipboard / HDF / Plywood (composite materials) 100%

Excellent: cemented carbide resists abrasive synthetic binders, clean edge without chipping.
Hard Solid Wood (Oak, Beech, Ash) 100%

Excellent: Z2 ensures a smooth finish in hardwoods, significantly reducing the need for sanding.
Soft Solid Wood (Spruce, Pine, Lime) 90%

Very good: excellent results, but for softwoods, a Z1 bit evacuates sawdust faster at great depths.

⚠️ USAGE RECOMMENDATIONS:

  • Successive Passes for Deep Grooves: for deep grooves (over 10 mm), work in steps of 4–6 mm per pass — this protects the bit body from excessive lateral pressure and ensures a uniform finish.
  • Moderate and Constant Feed: avoid jerky movements or forced pushing — let the bit's speed work with a linear, uniform feed.
  • Clean the Groove Between Passes: for deep or clogged grooves, remove accumulated sawdust to prevent overheating of the cutting edge.
