Straight Groove Shank Router Bit D=8mm | Lc=25mm | Z2 – T.C.T. Carbide
Straight Groove Shank Router Bit D=8mm | Lc=25mm | Z2 – T.C.T. Carbide
No reviews
SKU:1003-D8.S6.Lc25
Regular price
40,00 RON
Regular price
Sale price
40,00 RON
Taxes included.
Shipping calculated at checkout.
Quantity
Low stock: 1 left
Couldn't load pickup availability

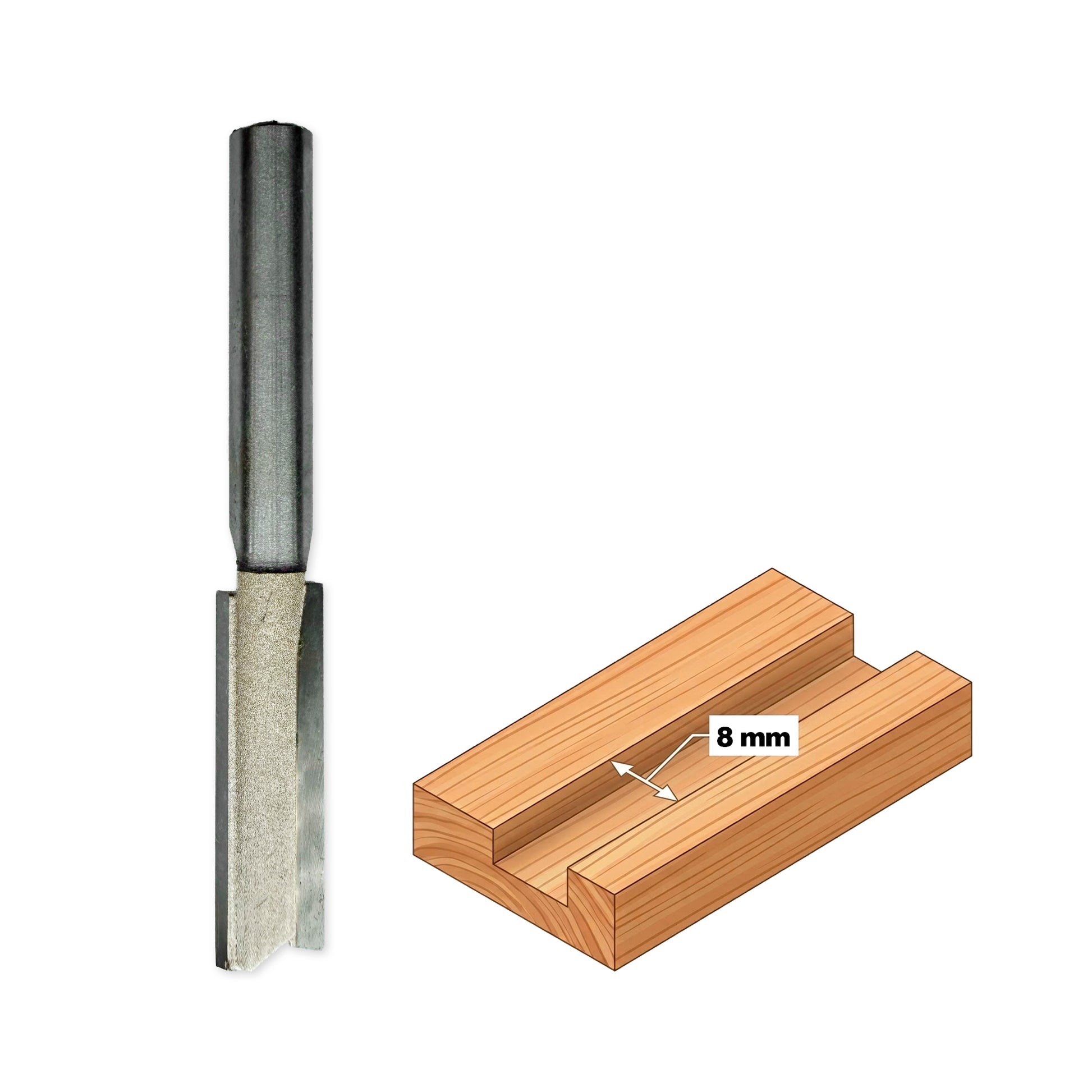

Straight Router Bit for Grooves – T.C.T. Carbide | D8 mm | Lc25 mm | Z2
Solid carbide (T.C.T.) straight router bit, with two active cutting edges (Z2), designed for creating superior-finish grooves in solid wood and engineered wood panels. Cutting diameter 8 mm, working depth 25 mm. Available with shank of Ø6 mm or Ø8 mm – select the desired variant from the menu.
| Cutting Diameter (D) | Cutting Diameter (D)8 mm |
| Working Length (Lc) | Working Length (Lc)25 mm |
| Shank Diameter (S) | Shank Diameter (S)Ø6 mm or Ø8 mm – select from menu |
| Number of Flutes | Number of FlutesZ2 (two active cutting edges) |
| Blade Material | Blade MaterialT.C.T. Carbide (high-density metallic carbide) |
| Machine Compatibility | Machine CompatibilityRouter, CNC, milling machines with collet chuck |
| Package Contents | Package Contents1 x Router Bit (selected variant from menu) |
✨ ADVANTAGES OF Z2 CONFIGURATION:
- Superior Finish vs. Z1: The two cutting edges share the cutting load — the groove surface is smoother, with minimal pulled fibers, directly usable without further sanding.
- Balance and Stability: The symmetrical Z2 configuration reduces vibrations during operation, protecting the router's bearings and extending tool life.
- Constant Feed in Dense Materials: The two cutting edges allow for a more uniform and faster feed in hardwood, MDF, or particle board compared to a Z1 bit.
- T.C.T. Carbide – Durability on Abrasive Materials: The metallic carbide withstands both solid wood and engineered wood panels with synthetic binders (MDF, particle board, plywood), without the rapid wear typical of high-speed steel.
- Two Shank Variants: Ø6 mm and Ø8 mm for compatibility with standard collets of most routers and CNC machines.
📊 MATERIAL COMPATIBILITY
MDF / Particle Board / HDF / Plywood (composite materials)
100%
Excellent: metallic carbide resists abrasive synthetic binders, clean edge without chipping.
Hard Solid Wood (Oak, Beech, Ash)
100%
Excellent: Z2 ensures a smooth finish in hardwoods, significantly reducing sanding needs.
Soft Solid Wood (Spruce, Fir, Pine, Linden)
90%
Very good: excellent results, but for softwoods, a Z1 bit evacuates sawdust faster at greater depths.
⚠️ USAGE RECOMMENDATIONS:
- Successive Passes for Deep Grooves: For deep grooves (over 10 mm), work in steps of 4–6 mm per pass — this protects the bit body from excessive lateral pressure and ensures a uniform finish.
- Moderate and Constant Feed: Avoid jerking or forced pushing — let the router's RPM work with a linear, uniform feed.
- Clean the Groove Between Passes: For deep or blind grooves, remove accumulated sawdust to prevent overheating of the cutting edge.
