Straight Grooving Router Bit Shank D=6mm | Lc=18mm | Z1 – T.C.T. Vidia

Straight Grooving Router Bit Shank D=6mm | Lc=18mm | Z1 – T.C.T. Vidia

37,00 RON
37,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Queue (S)

Available for Pre-order

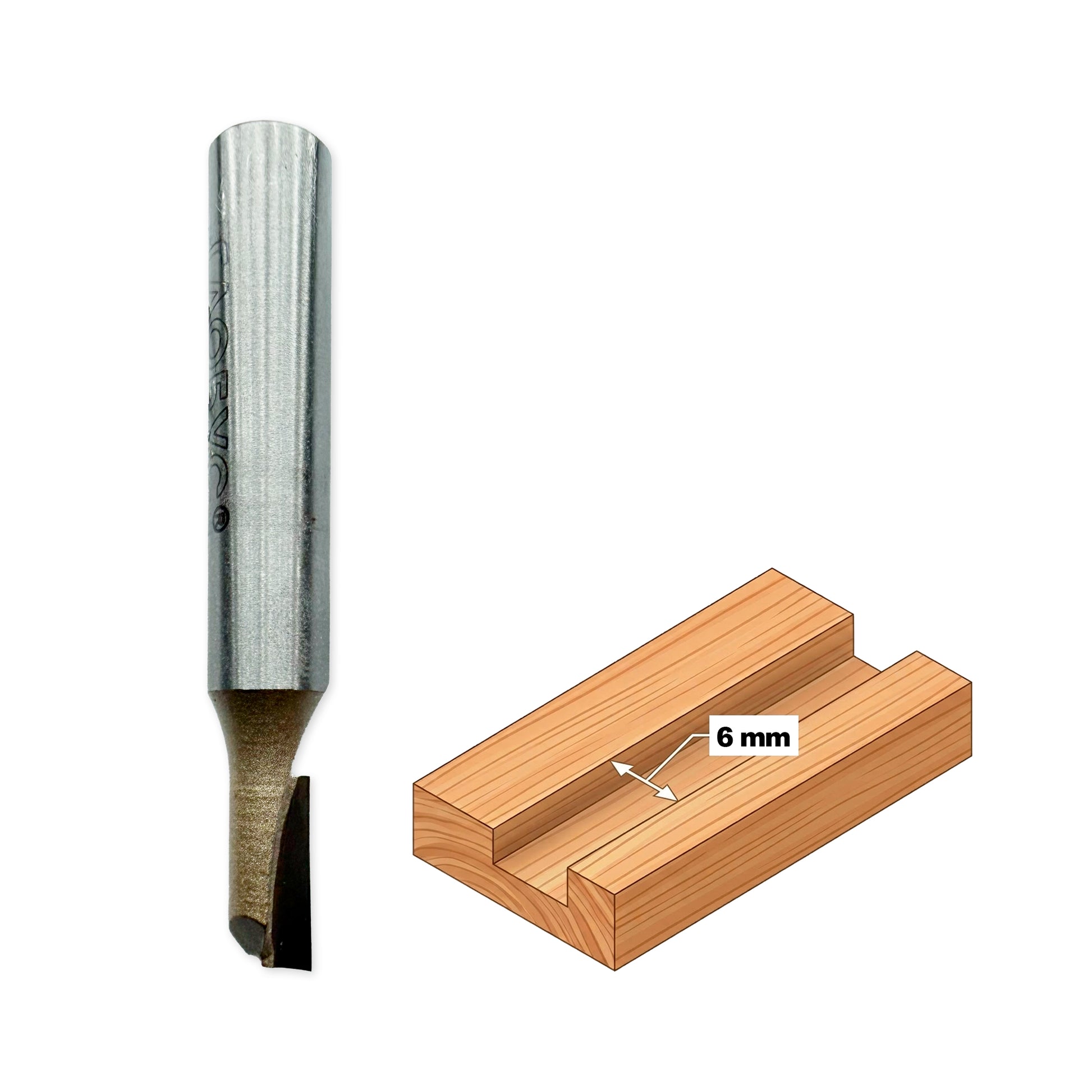

Grooving Router Bit – T.C.T. Carbide | D6 mm | S8 mm | Z1

T.C.T. (Tungsten Carbide Tipped) grooving router bit with a single cutting edge (Z1), designed for creating narrow grooves, hardware recesses, and fine details in solid wood and wood-based panels. Cutting diameter 6 mm, shank S8 mm, working depth 12 mm.

Cutting Diameter (D) Cutting Diameter (D)6 mm
Working Depth (Lc) Working Depth (Lc)12 mm
Shank Diameter (S) Shank Diameter (S)Ø8 mm
Number of Flutes Number of FlutesZ1 (single active cutting edge)
Cutting Edge Material Cutting Edge MaterialT.C.T. (High-density Tungsten Carbide)
Machine Compatibility Machine CompatibilityRouter, CNC, milling machines with Ø8 mm collet chuck
Package Contents Package Contents1 x Router Bit

✨ TECHNICAL ADVANTAGES:

  • Z1 Cutting Edge – Rapid Chip Evacuation: a single active cutting edge creates large voids for quick material removal from the groove, reducing the risk of overheating at deep cuts.
  • T.C.T. Carbide – Maximum Versatility: the carbide resists wear on both soft and hardwood, as well as on wood-based panels (MDF, particleboard, plywood), with a much longer lifespan compared to high-speed steel.
  • Precision for Fine Details: the 6 mm diameter allows for the creation of narrow grooves, hardware recesses, drawer bottoms, and other precision details.
  • Robust Ø8 mm Shank: the larger shank diameter compared to the cutting diameter provides additional rigidity and reduces vibrations during operation.

⚠️ Important recommendation: make deep grooves in successive passes of 3–4 mm with moderate feed rate. This prevents the bit body from breaking under lateral pressure and ensures a flawless finish.

⚠️ USAGE LIMITATIONS:

  • Do not force the feed rate: excessive lateral pressure can break the bit body – respect successive passes of a maximum of 3–4 mm depth per pass.
  • Carbide on soft wood: requires constant feed rate – pausing in rotation on resinous woods (fir, spruce) can cause local burning due to friction.
  • Not suitable for: operations with intense lateral pressure or large-diameter cuts.

📊 COMPATIBILITY RATING BY MATERIAL TYPE (T.C.T. CARBIDE)

MDF / Particleboard / HDF / Plywood 100%
Optimal: resists the abrasive wear of synthetic binders, clean and precise groove.
Hardwood (Beech, Oak, Ash) 100%
Excellent: carbide resists dense woods, perfectly flat groove bottom.
Softwood (Fir, Spruce, Pine) 80%
Good: works, but requires constant feed rate to avoid friction burns.
Composite & Exotic Materials 100%
Maximum: recommended choice for demanding materials.

🦺 SAFETY MEASURES FOR USE:

  • Mandatory protective equipment: safety glasses (chips projected at high speed), mask or respirator (fine MDF/wood dust), and earmuffs.
  • Successive passes: do not make the full 12 mm depth in a single pass – you risk breaking the bit and projecting fragments.
  • Check collet clamping: ensure that the Ø8 mm shank is fully inserted and correctly tightened in the collet before starting.
  • Maintain a constant feed rate and do not pause the rotating bit at the same point.
  • Secure the workpiece firmly before milling – at D6 mm, any uncontrolled movement of the workpiece can break the bit.
