• Freza cu alezaj placata cu vidia destinata pentru prelucrarea lemnului anume de fatetat la 45 grade permite grosime pana la 10 mm si prelucrare deasupra lemnului
  • Freza cu alezaj placata cu hss destinata pentru prelucrarea lemnului anume de fatetat la 45 grade permite grosime pana la 10 mm
  • Freza cu alezaj placata cu vidia destinata pentru prelucrarea lemnului anume de fatetat la 45 grade permite grosime pana la 10 mm si prelucrare sub lemn
1 3

45° Chamfer Router Bit for Wood 10 mm - HSS or Carbide

45° Chamfer Router Bit for Wood 10 mm - HSS or Carbide

K45G10RH-d30

216,00 RON
216,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Tablets - Bore (d)

Out of stock

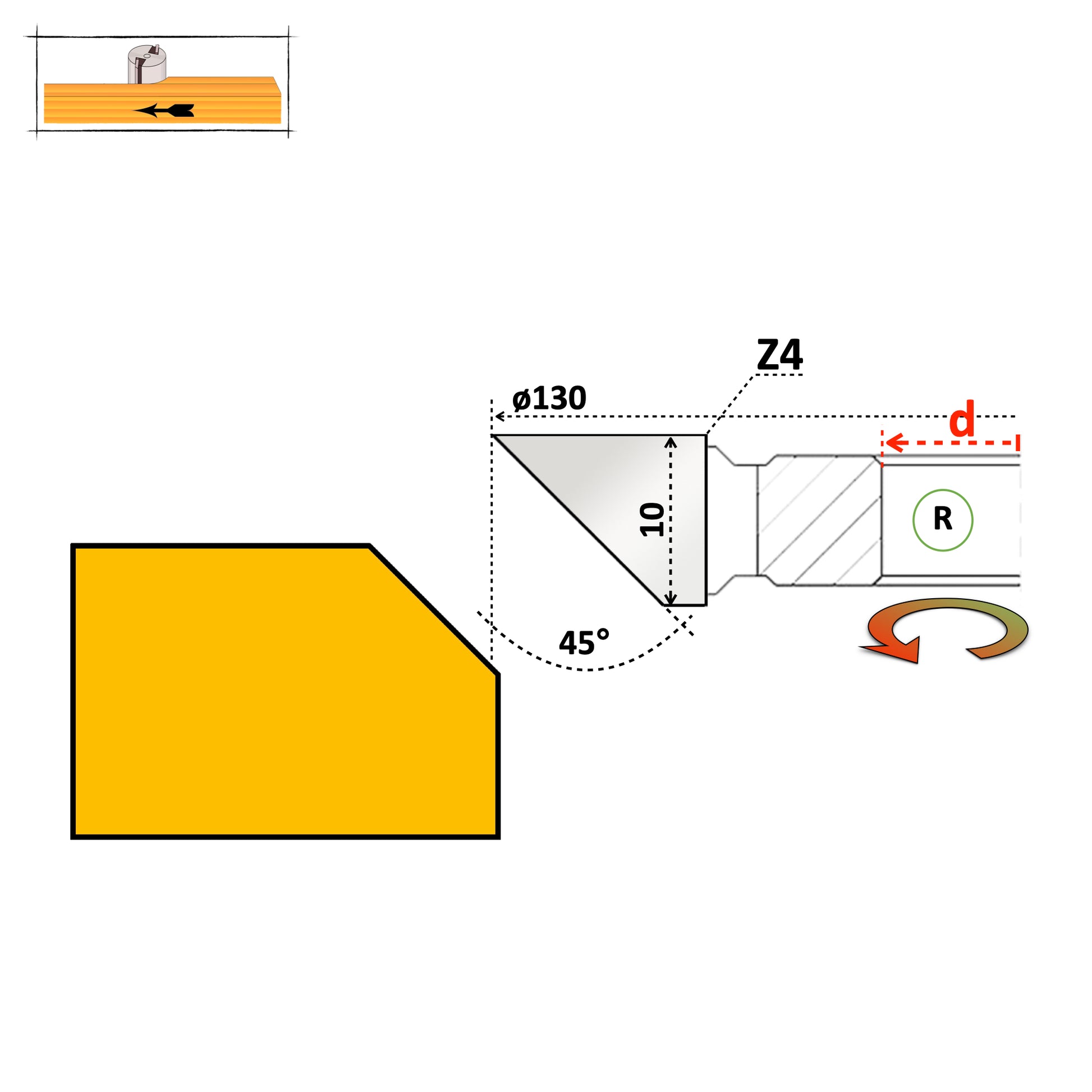

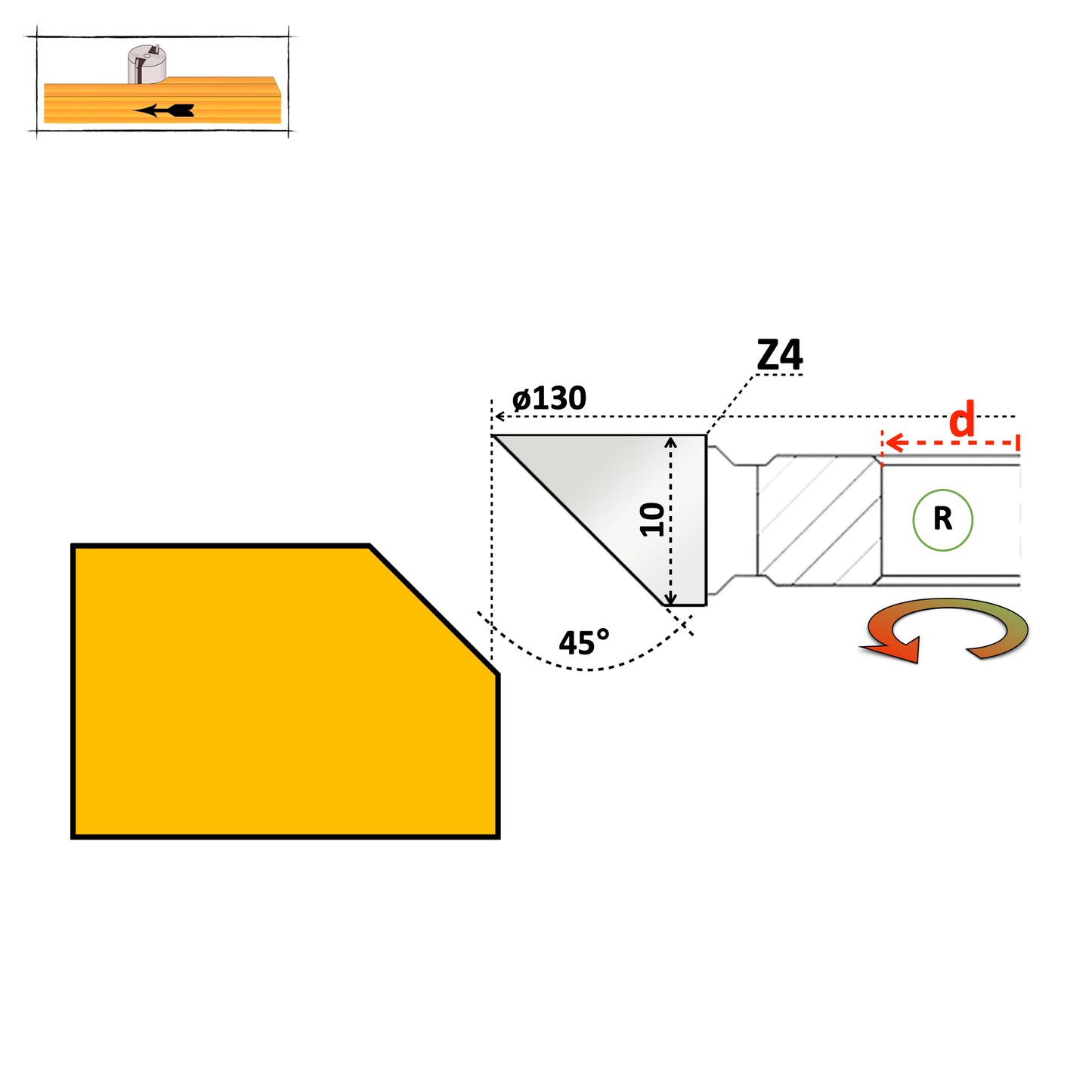

45° Chamfer/Bevel Cutter (10 mm Thickness) - SolGrat Industrial

Product Type 45° chamfer/bevel cutter
Available Variants HSS M2 (Right / Left) or T.C.T. Vidia (Right / Left) - Select variant
Outer Diameter (D) 130 mm
Active Working Space Maximum cutting thickness: 10 mm
Cutting Angle Perfectly calibrated 45°
Number of Teeth / Edges Z4 (4 active profiled, industrially brazed inserts)
Construction Type Fixed brazed inserts (Non-removable; resharpenable on the relief face)
Arbor Bore (d) Standard Ø30 mm (Also available in Ø35 or Ø40 mm upon request)
Recommended Speed 6,000 RPM (Ensures a clean, vibration-free cut)
Estimated Yield Up to 3,000 linear meters in soft wood (between resharpening cycles)
Country of manufacture Ukraine

⚙️ QUICK GUIDE FOR VARIANT CONFIGURATION

To ensure optimal performance on your machine, correctly select the cutting edge material and rotation direction (working position):

  • Right Rotation (Top Processing): Recommended when the cutter engages the material from above the wood piece, offering direct visibility of the edge.

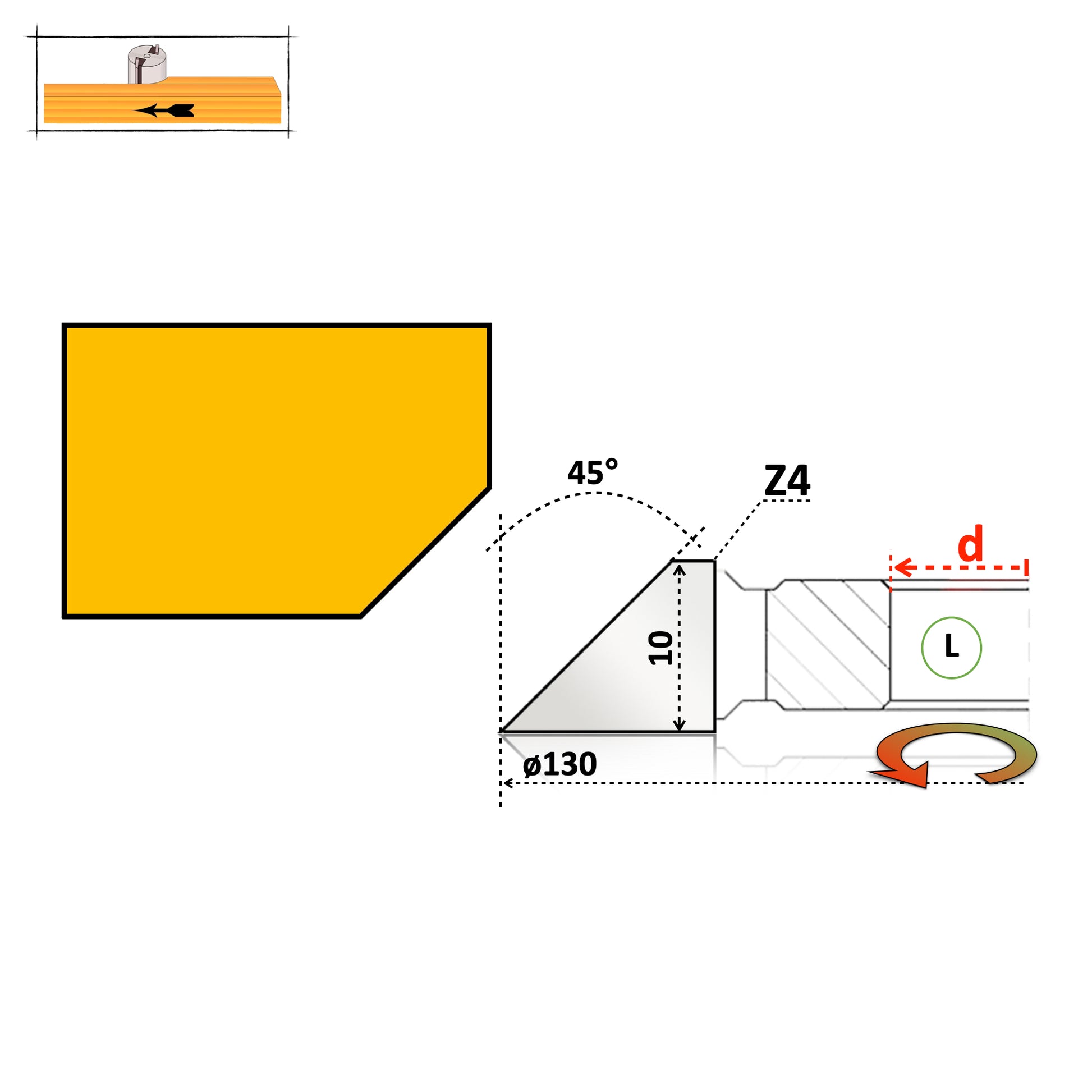

  • Left Rotation (Bottom Processing): Used for working underneath the wood piece, a method that offers increased safety and excellent chip evacuation due to gravity.
  • HSS M2 Premium Blade: Ideal exclusively for natural wood (soft and hard species). Leaves a perfectly smooth surface, without burn marks. Hardness: 64–66 HRC.
  • T.C.T. Vidia Blade: Mandatory for MDF, particle board, HDF, laminates, or composite materials with abrasive adhesives. Maximum hardness: 85–92 HRC.

DYNAMIC PROPERTIES AND PERFORMANCE

  • High-Precision Chamfering: The 45° angle is computer-rectified to ensure perfect corner joints or completely uniform decorative bevels along the entire panel.
  • Robust Z4 Configuration: The 4 active cutting edges share the chipping effort equally. This completely eliminates shocks, reduces vibrations transmitted to the machine's spindle, and increases feed rate.
  • Industrial Brazing Technology: Vidia variants are welded with high-performance brass alloy (Cu-Zn), and HSS variants with a special silver alloy (Ag). Both methods guarantee extreme resistance to high centrifugal forces.
  • Long-Term Investment: Although the inserts are fixed (brazed), the generous body allows for multiple successive resharpenings, maintaining the intact 45° profile for thousands of linear meters of work.

🛠️ Material Selection Guide: HSS vs. T.C.T. Vidia

The correct choice of cutting edge material directly influences finish quality and tool lifespan:

Processed Material HSS M2 Premium
(6.5% Tungsten) 		T.C.T. Vidia ⭐
(Carbide)
Softwood
(Fir, Spruce, Pine) 		⭐ 100%
(Impeccable Finish)		 ❌ Burn risk
(High friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Maximum resistance)
MDF / Particle board / HDF / Composite Not recommended (Instant wear) ⭐ 100%
(Optimal / Resists adhesives)

✅ Final recommendations for purchase:

  1. Correct Direction Selection: Ensure you select the correct variant (Right or Left) correlated with your machine's spindle rotation direction and the attack position (above or below the wood).
  2. Bore Configuration: The cutter comes standard with a Ø30 mm bore. If you require Ø35 or Ø40 mm, please specify this in the order comments field or contact our technical team.
