• Freza cu alezaj placata cu hss destinata pentru prelucrarea lemnului anume de fatetat la 45 grade permite grosime pana la 20 mm
1 3

45° Chamfer Router Bit for Wood - 20 mm - HSS or Carbide

45° Chamfer Router Bit for Wood - 20 mm - HSS or Carbide

K45G20RV-d30

675,00 RON
675,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Pills - Bore (d)

Low stock: 1 left

45° Chamfering / Beveling Router Bit (20 mm Thickness) - SolGrat Industrial

Product Type 45° Chamfering / Beveling Router Bit
Available Variants HSS M2 (Right / Left) or T.C.T. Vidia (Right / Left) - Select variant
Outer Diameter (D) 130 mm
Active Working Space Maximum cutting thickness: 20 mm
Cutting Angle Perfectly calibrated 45°
Number of Teeth / Edges Z4 (4 active profiled, industrially brazed inserts)
Construction Type Fixed brazed inserts (Non-removable; resharpenable on the relief face)
Arbor Bore (d) Standard Ø30 mm (Also available upon request in Ø35 or Ø40 mm variants)
Recommended Speed 6,000 RPM (Ensures clean cutting without vibrations)
Estimated Yield Up to 3,000 linear meters in soft wood (between resharpening cycles)
Country of Production Ukraine

⚙️ QUICK GUIDE FOR VARIANT CONFIGURATION

For optimal operation on your machine, correctly select the blade material and rotation direction (working position):

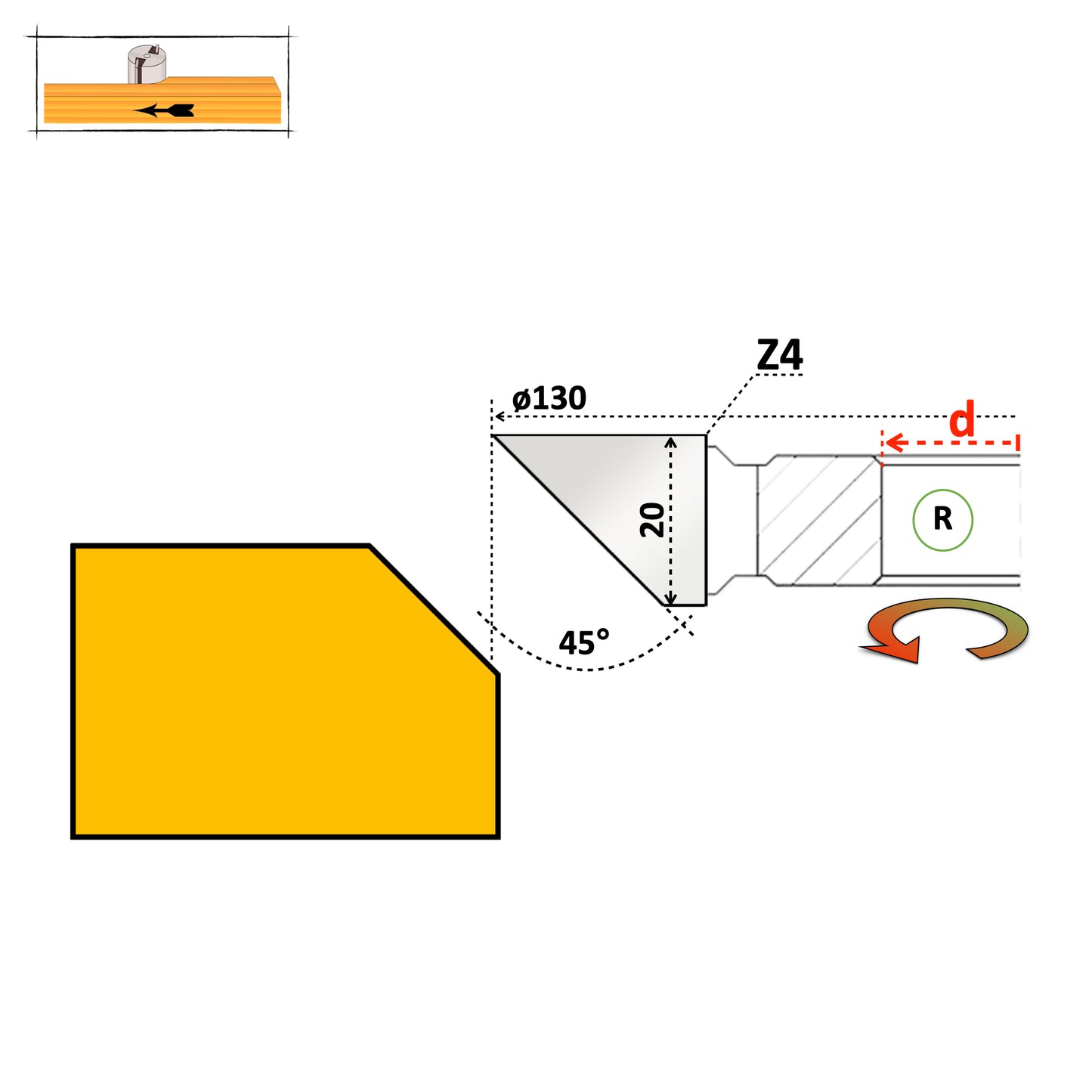

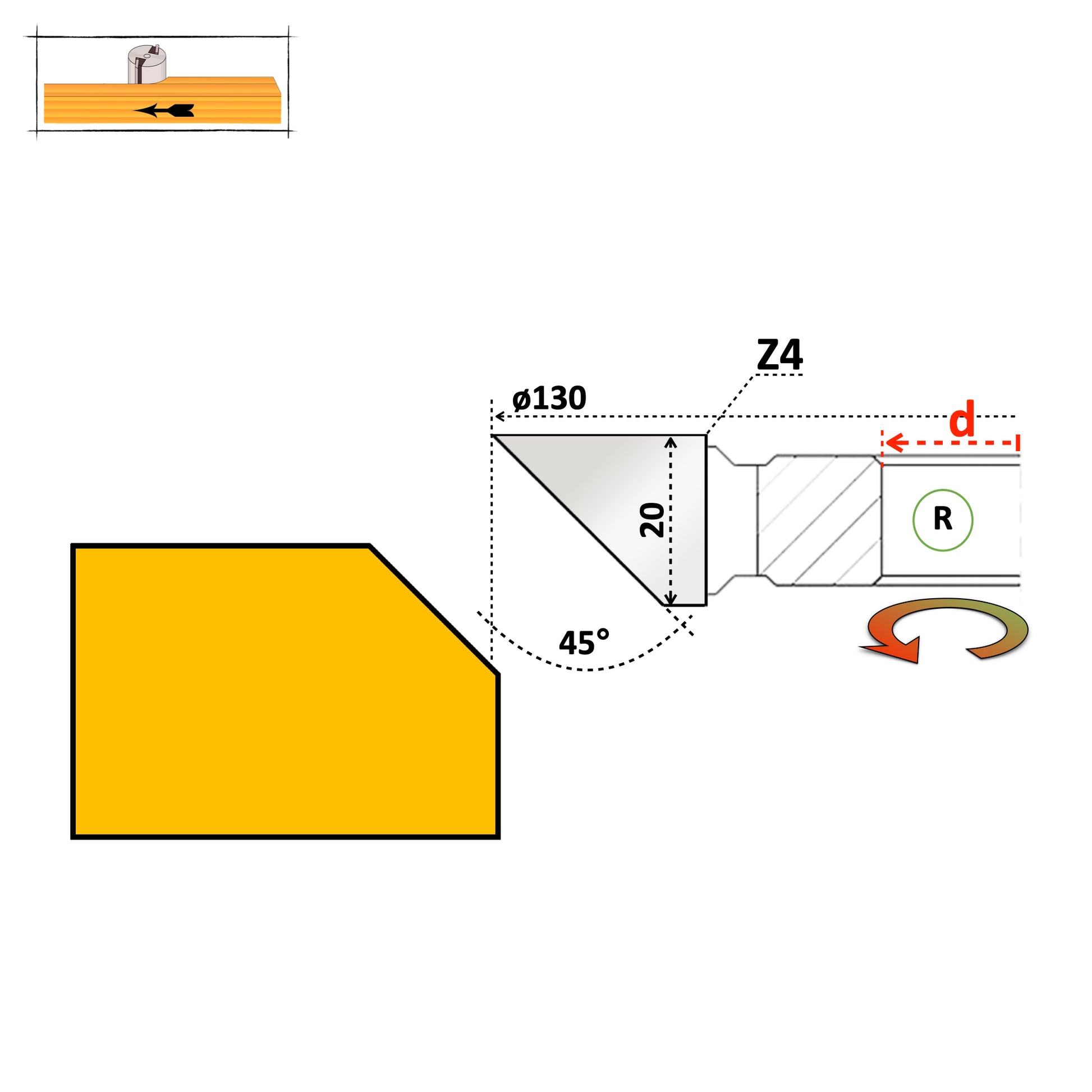

  • Right Direction (Top Processing): Recommended when the router bit attacks the material positioned above the workpiece, offering direct visibility of the edge.

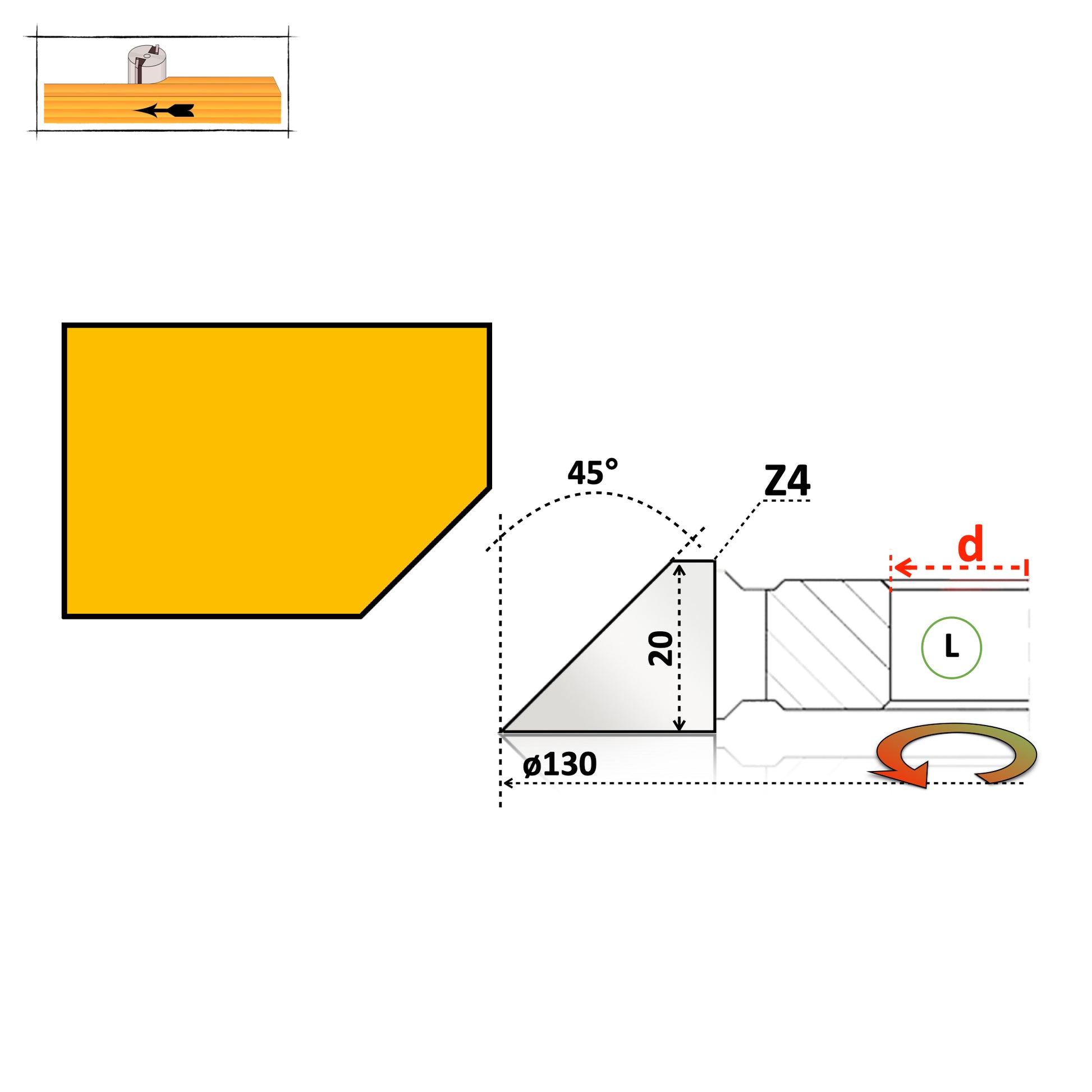

  • Left Direction (Bottom Processing): Used for working below the workpiece, a method that offers increased safety and excellent chip evacuation by gravity.
  • HSS M2 Premium Blade: Ideal exclusively for natural wood (soft and hardwood species). Leaves a perfectly glossy surface, without burn marks.
  • T.C.T. Vidia Blade: Mandatory for MDF, particleboard, HDF, laminates, or composite materials with abrasive adhesives.

DYNAMIC PROPERTIES AND PERFORMANCE

  • High-Precision Chamfering: The 45° angle is computer-ground to ensure perfect corner joints or completely uniform decorative facets along the entire panel.
  • Robust Z4 Configuration: The 4 active cutting edges share the cutting effort equally. This completely eliminates shocks, reduces vibrations transmitted to the machine spindle, and increases feed rate.
  • Industrial Brazing Technology: Vidia variants are welded with high-performance brass alloy (Cu-Zn), and HSS variants with special silver alloy (Ag). Both methods guarantee extreme resistance to high centrifugal forces.
  • Long-Term Investment: Although the inserts are fixed (brazed), the generous body allows for multiple successive resharpenings, maintaining the intact 45° profile for thousands of linear meters of work.

🛠️ Material Selection Guide: HSS vs. T.C.T. Vidia

The correct choice of blade material directly influences the quality of the finish and the tool's lifespan:

Material Processed HSS M2 Premium
(6.5% Tungsten) 		T.C.T. Vidia ⭐
(Carbide)
Softwood
(Spruce, Fir, Pine) 		⭐ 100%
(Impeccable Finish)		 ❌ Risk of burning
(High friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Maximum resistance)
MDF / Particleboard / HDF / Composite Not recommended (Instant wear) ⭐ 100%
(Optimal / Resistant to adhesives)
Blade Material Hardness 64 – 66 HRC 85 – 92 HRC

✅ Final recommendations for purchase:

  1. Correct Direction Selection: Ensure you select the correct variant (Right or Left) correlated with the rotation direction of your machine's spindle and the attack position (above or below the wood).
  2. Bore Configuration: By default, the router bit comes with a Ø30 mm bore. If you need Ø35 or Ø40 mm sizes, please specify this in the order comments field or contact our technical team.
