• Freză Îmbinare Lamelar Latitudinal Lemn - pentru lemn cu spatiu de lucru de minim 20 mm si pana la 50 mm
1 2

Lamellar Wood Joint Cutter Latitudinal 50 mm - C05 HSS Standard

Lamellar Wood Joint Cutter Latitudinal 50 mm - C05 HSS Standard

C05-d32

535,99 RON
630,00 RON 535,99 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Bore (d)

Low stock: 1 left

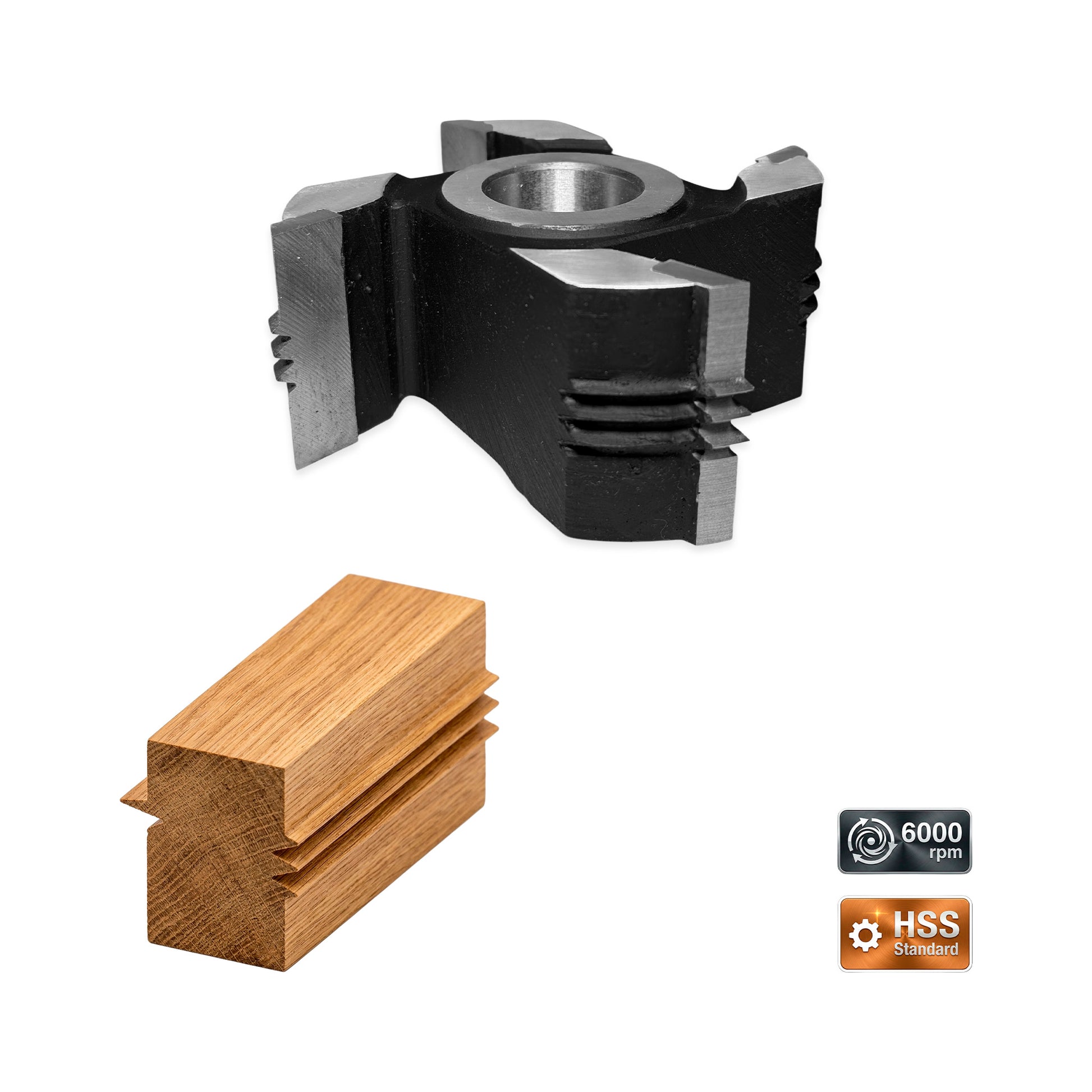

Wood Latitudinal Laminated Joint Cutter – 50 mm, 120 mm Diameter, HSS Standard

🔩 Technical Specifications:

Feature

Value

Outer diameter

120 mm

Active working space

>50 mm

Number / type of teeth

4 pcs., Brazed cutters with copper alloy (Cu-Zn)

Inserts - HSS Standard

Hardness

58…61 HRC

Recommended rotations

6200 rpm

Wear resistance

up to 3,000 linear meters in softwood

Inserts

Replaceable – long-term investment

Package quantity

1*Cutter

Package dimensions




Key Features:

✅ Precise and strong joints – Allows for uniform and solid bonding of wood elements.

✅ High-quality material – Brazed HSS Standard inserts ensure maximum durability.

✅ Optimized dimensions – 120 mm diameter, 50 mm height, ideal for latitudinal joints.

✅ Maximum speed 6200 rpm – Stable performance and clean cuts without burning.

✅ Extensive compatibility – Works with various professional routing machines.

📌 Perfect for joining solid wood panels and structures!

⚠️ Usage Limitations:

❌ We do not recommend the HSS variant for particleboard, MDF, HDF or very hard exotic wood

❌ For composite materials or demanding applications, choose the variant with carbide inserts

🛠️ Selection Guide: HSS vs. CARBIDE (Brazed Tools)

Material choice depends not only on wood hardness but also on how the cutting edge interacts with the grain. Our brazed cutters are optimized for stationary and CNC machines, but their performance varies drastically depending on the processed wood species.

✅ Conclusions for purchase:

  • HSS Standard: Exclusively for very soft wood (Spruce, Fir, Pine, Linden). Economical, fine cut.
  • HSS M2: The "king" of conifers. Guarantees immaculate white without burns. Also works on Oak/Beech for a mirror finish, but wears out faster.
  • Carbide (CMS): Mandatory for hard/exotic wood (Oak, Beech, Mahogany) and derivatives (MDF, Particleboard, Plywood). Withstands thousands of meters without sharpening.

⚠️ Caution: Carbide requires constant feed rate. If you stop rotating on softwood, burning is guaranteed.
