Laminated Timber Longitudinal Joint Milling Cutter C11 - 124 mm HSS Standard
Laminated Timber Longitudinal Joint Milling Cutter C11 - 124 mm HSS Standard
SKU:C11H124-d32
Out of stock
Couldn't load pickup availability

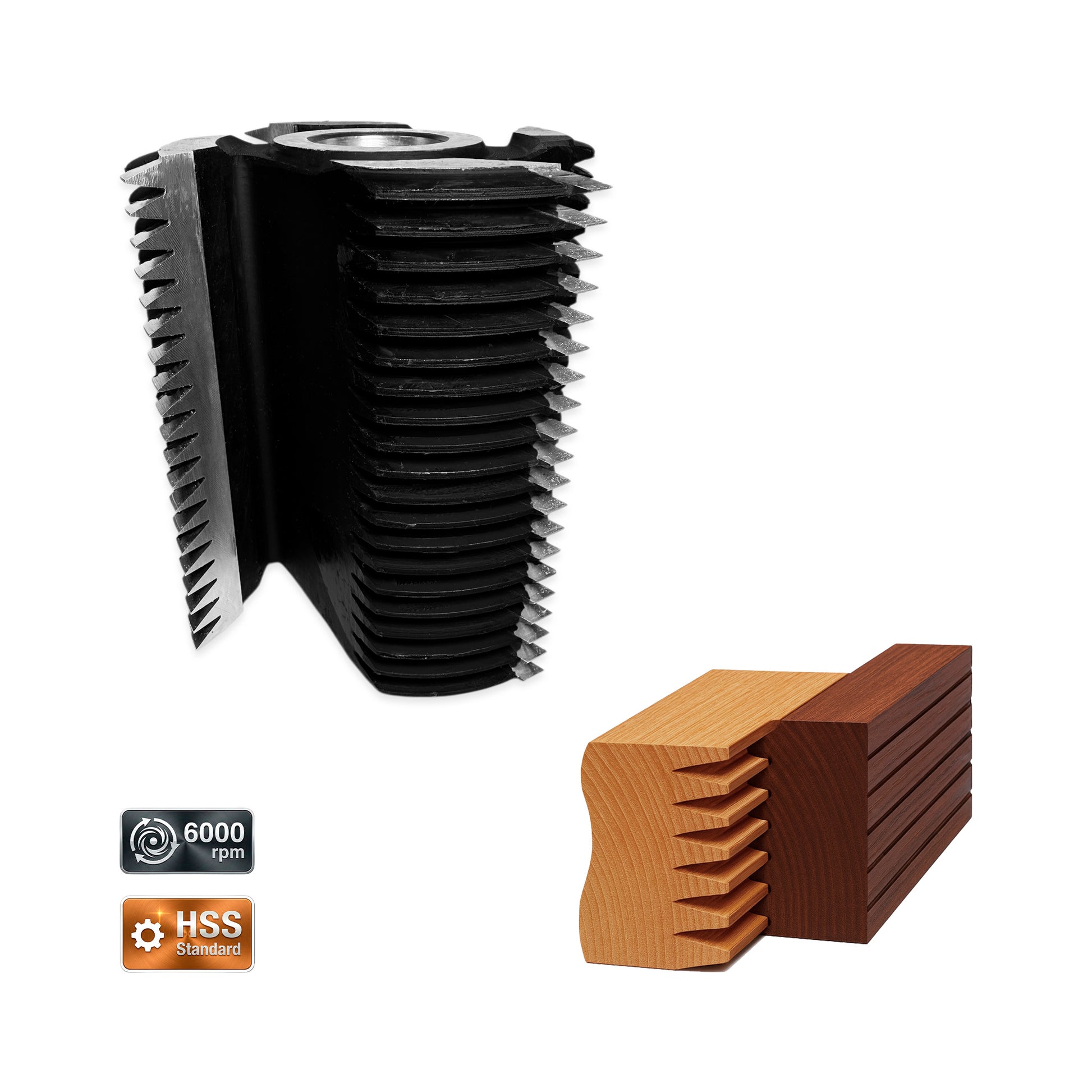

Longitudinal Wood Finger Joint Cutter – 124 mm HSS Standard
🔩 Technical Specifications:
|
Feature |
Value |
|---|---|
|
Outer diameter |
see technical drawing |
|
Active working space |
> 124 mm |
|
Number / type of teeth |
4 pcs., Brazed cutters with copper alloy (Cu-Zn) Inserts - HSS Standard |
|
Hardness |
58…61 HRC |
|
Recommended RPM |
6200 rpm |
|
Wear resistance |
up to 3,000 linear meters in softwood |
|
Inserts |
Replaceable – long-term investment |
|
Number of cutters in set |
1 pc. |
Main Features:
✅ Precise and strong joints – Allows for uniform and solid bonding of wood elements.
✅ High-quality material – Brazed HSS Standard inserts ensure maximum durability.
✅ Extensive compatibility – Works with various professional routing machines.
📌 Perfect for joining solid wood panels and structures!
⚠️ Usage limitations:
❌ We do not recommend the HSS variant for particleboard, MDF, HDF, or very hard exotic wood.
❌ For composite materials or demanding applications, choose the variant with Carbide inserts
🛠️ Selection Guide: HSS vs. CARBIDE (Brazed Tools)
The choice of material depends not only on wood hardness but also on how the cutting edge interacts with the grain. Our brazed cutters are optimized for stationary and CNC machines, but their performance varies drastically depending on the processed wood species.
✅ Purchase Conclusions:
- HSS Standard: Exclusively for very soft wood species (Spruce, Fir, Pine, Linden). Economical, fine cut.
- HSS M2: The "King" of softwoods. Guarantees immaculate white without burns. Also works on Oak/Beech for a mirror finish, but wears out faster.
- Carbide (CMS): Mandatory for hard/exotic wood species (Oak, Beech, Mahogany) and derivatives (MDF, Particleboard, Plywood). Resists thousands of meters without sharpening.
⚠️ Warning: Carbide requires constant feed rate. If you dwell in rotation on soft wood, burning is guaranteed.
