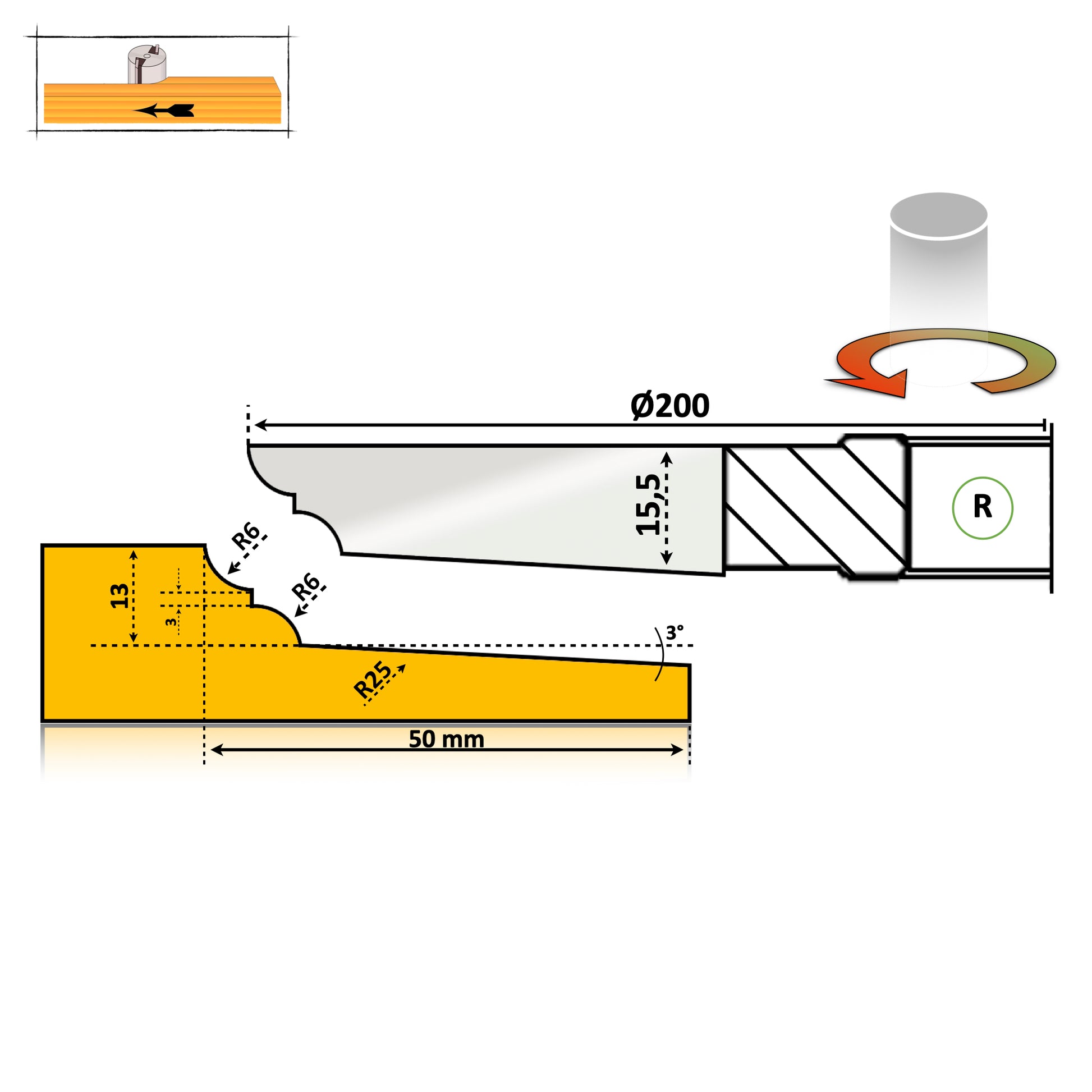

• Freza Tablie Mobila 45 mm Hss cu un profil treptat regal cu raza 6 mm freza dreapta deasupra lemnului
  • Freza Tablie Mobila 45 mm Hss cu un profil treptat regal

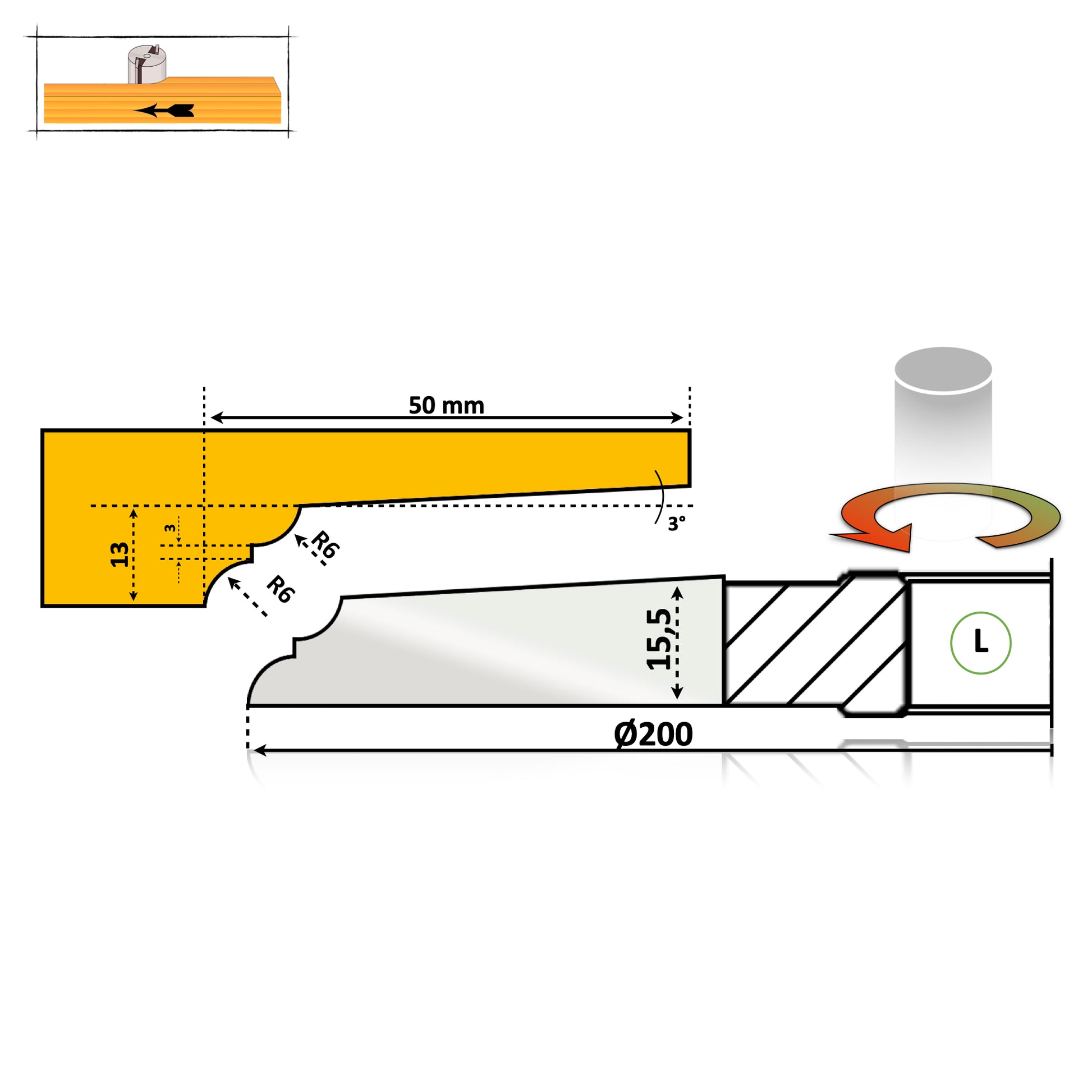

  • Freza Tablie Mobila 45 mm Hss cu un profil treptat regal cu raza 6 mm freza stanga sub lemn
1 5

Wood Panel Cutter D160 - D200 | Profile Code - M012-12 | DS Steel

Wood Panel Cutter D160 - D200 | Profile Code - M012-12 | DS Steel

M012-62R-d32

366,00 RON
366,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Diameter (D) x Position

Out of stock

Raised Panel Cutter – DS Steel | DIY

Profile cutter for creating raised panels on a stationary table router. Frequently used in the production of solid wood doors (central panel), paneled furniture (cabinet fronts, drawers, interior doors with decorative panels). Available in two model positioning variants – above the wood or below the wood – selectable directly from the product page.

Product Type Product TypeProfile cutter for creating floating panels
Milling Profile Milling ProfileClassic/traditional model – see attached technical drawing
Model Positioning Options Model Positioning OptionsSelect from menu: above the wood OR below the wood variant
Blade Material Blade MaterialDS Steel (standard high-speed steel)
Outer Diameter (D) Outer Diameter (D)160 mm or 200 mm – select from menu
Active Working Space Active Working SpaceSee attached technical drawing
Number of Teeth / Blades Number of Teeth / BladesZ4 (4 active, brazed profile inserts)
Construction Type Construction TypeBrazed inserts with brass alloy (Cu-Zn), resharpenable, without disassembly
Bore (d) Bore (d)Ø32 mm standard | Ø30 mm – reduction bush not included, purchased separately | Ø35 mm or Ø40 mm available for pre-order
Recommended RPM Recommended RPM6,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters in softwood (between sharpening cycles)
Package Contents Package Contents1 x Cutter (variant selected from menu)
Country of Origin Country of OriginUkraine

🚀 PROPERTIES AND PERFORMANCE:

  • Robust and Balanced Body: Made from heat-treated steel, the tool body eliminates vibrations, protecting machine bearings and ensuring smooth finishes.
  • Professional Z4 Configuration: The 4 active blades evenly distribute the cutting force, allowing for consistent feed without material tear-out, even in knotty areas.
  • Resistant Brazing: The inserts are fixed with brass alloy (Cu-Zn), which withstands high torsional forces during deep profiling.
  • Resharpenable: The generous tooth profile allows for repeated sharpening, reducing long-term maintenance costs.
  • Dual Model Orientation: Choosing the "above" or "below the wood" variant allows adaptation to the type of machine and preferred working method.

💡 How to choose model orientation:
– Above the wood – visually control the profile during milling; recommended for manual work with controlled overhead feed.
– Below the wood – sawdust and chips are thrown directly downwards; the workpiece finish remains protected while sliding on the router table.

⚠️ USAGE LIMITATIONS (DS STEEL):

  • Purpose: Recommended exclusively for natural solid wood of soft or medium density.
  • Not Recommended for Composites: ❌ NOT recommended for use on particleboard, MDF, HDF, exotic wood, or derived panels with abrasive adhesive!
  • Hardwood (oak, beech): DS Steel blade wear is significantly faster than on softwoods — sharpening will be more frequent.

📊 COMPATIBILITY LEVEL BY MATERIAL TYPE (DS STEEL)

Softwood (Spruce, Fir, Pine) 90%

Very good: clean cut, pleasant finish, ideal for DIY projects.
Medium Wood (Cherry, Walnut, Linden) 65%

Acceptable: good results, with more frequent sharpening.
Hardwood (Beech, Oak, Ash) 40%

Rapid blade wear — frequent sharpening increases maintenance costs.
Particleboard / MDF / HDF / Plywood Not Recommended

Synthetic binder prematurely wears out the DS Steel blade.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator (fine wood dust) and ear protection for prolonged work.
  • Attention to hands and fingers: always use a feeder/pusher device; do not manually guide the workpiece with hands near the cutter.
  • Check the cutter orientation before starting the machine – the "above" and "below the wood" variants are not interchangeable; incorrect mounting produces an incorrect profile.
  • Check the cutter's securement on the shaft and the complete tightening of the nut before starting.
  • Observe the recommended speed of 6,000 RPM – exceeding it increases the risk of vibrations and blade damage.
