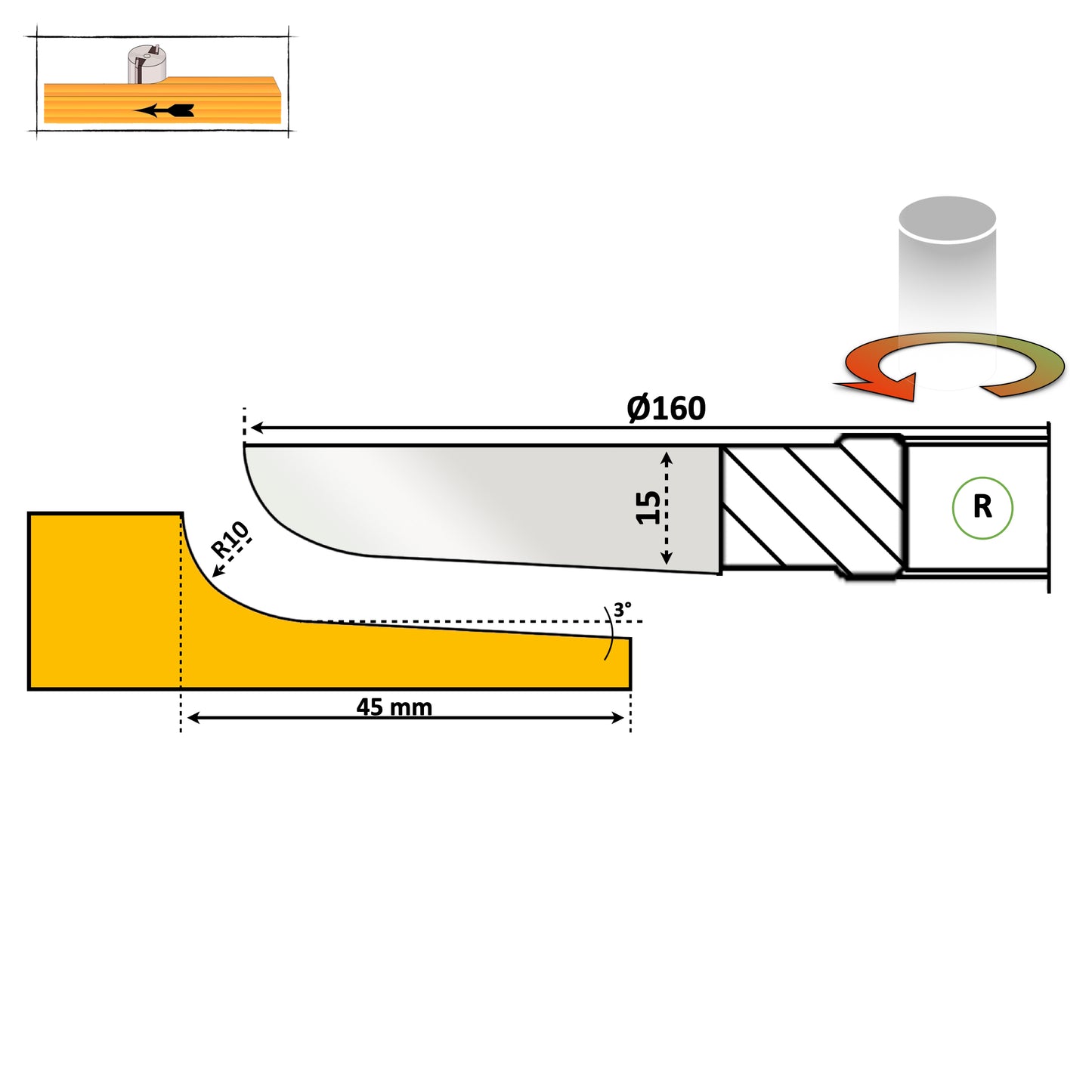

• Freza Tablie Mobila cu adancime profil de 45 mm cu un design simplu si neted cu o raza rotunjita mica pe capat cu rotatie spre dreapta, asupra lemnului pentru masina de frezat clasica
  • Freza Tablie Mobila cu adancime profil de 45 mm cu un design simplu si neted cu o raza rotunjita mica pe capat
  • Freza Tablie Mobila cu adancime profil de 45 mm si 15 mm spatiu de lucru, cu un design simplu si neted cu o raza rotunjita mica pe capat cu rotatie spre dreapta, asupra lemnului pentru masina de frezat clasica
  • Freza diamentru 200 mm pentru tablie usi cu un profil siplu si neted cu partea activa deasupra scandurei cu raza de 10 mm
  • Freza diamentru 200 mm pentru tablie usi cu un profil siplu si neted cu partea activa sub scandura cu raza de 10 mm
1 5

Router Bit for Wood Panel D160 - D200 | Profile Code - M012-8 | DS Steel

Router Bit for Wood Panel D160 - D200 | Profile Code - M012-8 | DS Steel

M012-58R-d32

366,00 RON
366,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Diameter (D) x Position

Low stock: 1 left

Panel Raising Cutter – DS Steel | DIY

Profiled cutter for creating raised panels on a stationary router table. Frequently used in the production of solid wood doors (central panel), furniture with raised panels (cabinet fronts, drawers, interior doors with decorative panels). Available in two model positioning variants – above the wood or below the wood – selectable directly from the product page.

Product Type Product TypeProfiled cutter for creating raised panels
Milling Profile Milling ProfileClassic/traditional model – see attached technical drawing
Model Positioning Variants Model Positioning VariantsSelect from menu: above the wood OR below the wood variant
Blade Material Blade MaterialDS Steel (standard high-speed steel)
Outer Diameter (D) Outer Diameter (D)160 mm or 200 mm – select from menu
Active Working Space Active Working SpaceSee attached technical drawing
Number of Teeth / Blades Number of Teeth / BladesZ4 (4 active, brazed profile inserts)
Construction Type Construction TypeBrazed inserts with brass alloy (Cu-Zn), resharpenable, without disassembly
Bore Diameter (d) Bore Diameter (d)Ø32 mm standard | Ø30 mm – reduction bush not included, purchased separately | Ø35 mm or Ø40 mm available for pre-order
Recommended Speed Recommended Speed6,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters in soft wood (between resharpening cycles)
Package Contents Package Contents1 x Cutter (variant selected from the menu)
Country of Origin Country of OriginUkraine

🚀 PROPERTIES AND PERFORMANCE:

  • Robust and Balanced Body: Made from heat-treated steel, the tool body eliminates vibrations, protecting machine bearings and ensuring smooth finishes.
  • Professional Z4 Configuration: The 4 active cutting edges evenly distribute the cutting effort, allowing for consistent feed without tear-out, even in knotty areas.
  • Resistant Brazing: The inserts are secured with brass alloy (Cu-Zn), which withstands high torsional forces during deep profiling.
  • Resharpenable: The generous tooth profile allows for repeated resharpening, reducing long-term maintenance costs.
  • Dual Model Orientation: Choosing the above or below wood variant allows adaptation to the type of machinery and preferred working method.

💡 How to choose model orientation:
– Above the wood – visually control the profile during milling; recommended for manual work with controlled feed from above.
– Below the wood – sawdust and chips are directed downwards; the workpiece finish remains protected while sliding on the router table.

⚠️ USAGE LIMITATIONS (DS STEEL):

  • Purpose: Recommended exclusively for natural solid wood of soft or medium density.
  • Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF, exotic wood, or derivative panels with abrasive adhesive!
  • Hardwood (oak, beech): DS Steel blade wear is significantly faster than on softwoods — resharpening will be more frequent.

📊 COMPATIBILITY RATING BY MATERIAL TYPE (DS STEEL)

Soft Wood (Spruce, Pine, Fir) 90%

Very good: clean cut, pleasant finish, ideal for DIY projects.
Medium Wood (Cherry, Walnut, Linden) 65%

Acceptable: good results, with more frequent resharpening.
Hard Wood (Beech, Oak, Ash) 40%

Rapid blade wear — frequent resharpening increases maintenance costs.
Chipboard / MDF / HDF / Laminated Not Recommended

Synthetic binder prematurely wears out the DS Steel blade.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator (fine wood dust), and hearing protection for prolonged work.
  • Hand and finger safety: always use a feed/push device; do not guide the workpiece manually with your hands near the cutter.
  • Check cutter orientation before starting the machine – the "above" and "below wood" variants are not interchangeable; incorrect mounting produces an incorrect profile.
  • Check the cutter's secure attachment to the spindle and the nut's complete tightening before starting.
  • Observe the recommended speed of 6,000 RPM – exceeding it increases the risk of vibrations and blade damage.
