Milling Cutter for Wooden Board Profile M012-38 - D200 HSS Standard
Milling Cutter for Wooden Board Profile M012-38 - D200 HSS Standard
SKU:M012-38L-d32
Low stock: 2 left
Couldn't load pickup availability

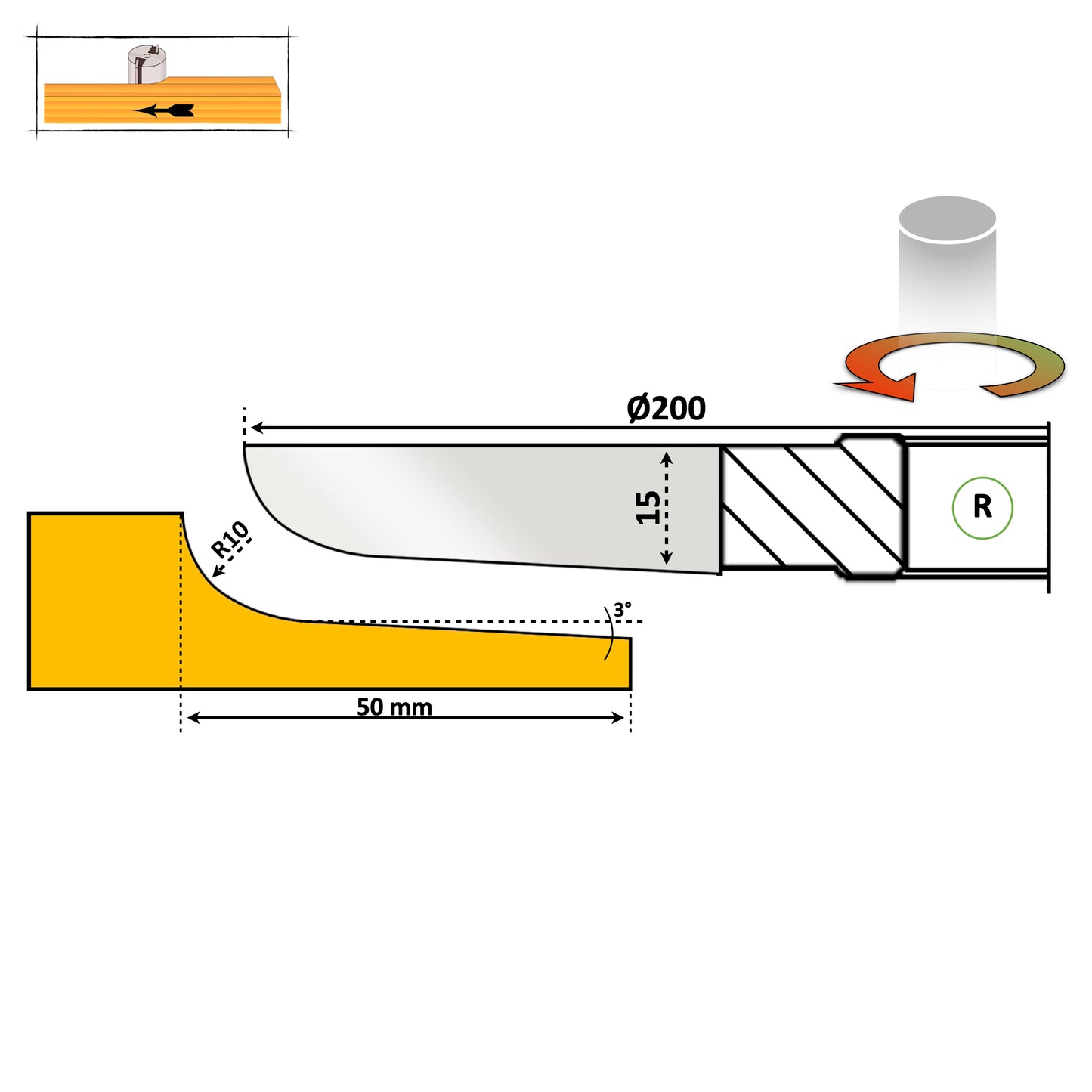

Raised Panel Router Bit Profile No. 38 | Brazed with – HSS
🔩 Technical Specifications:
|
Feature |
Value |
|---|---|
|
Outer Diameter |
200 mm |
|
Active Working Space |
15 mm |
|
Number / Type of Teeth |
4 pcs., Brazed cutters on brass alloy (Cu–Zn) Inserts - Standard HSS |
|
Hardness |
58…61 HRC |
|
Recommended RPM |
6000 rpm |
|
Wear Resistance |
up to 3,000 linear meters in softwood |
|
Inserts |
Replaceable – long-term investment |
|
Quantity of Cutters in Set |
1 pc. of your choice |
☞ Robust treated steel body – ensures perfect balance and reduced vibrations during operation
☞ HSS brazed cutting edges – the ideal choice depending on material type and intensity of use
☞ Versatile – optimized for soft and medium-density wood (spruce, fir, linden, beech, light oak)
✅ Advantages:
➤ Fine, precise, and consistent cut
➤ Easy to resharpen (HSS version)
➤ Low risk of burning on natural wood
➤ Suitable for traditional woodworking shops and hobby CNC
⚠️ Usage Limitations:
❌ We do not recommend the HSS version for particleboard, MDF, HDF, or very hard exotic wood
❌ For composite materials or demanding applications, choose the version with carbide (Vidia) inserts
🛠️ Selection Guide: HSS vs. VIDIA (Brazed Tools)
The choice of material depends not only on wood hardness but also on how the cutting edge interacts with the grain. Our brazed cutters are optimized for stationary and CNC machines, but their performance varies drastically depending on the processed wood species.
✅ Acquisition Conclusions:
- Standard HSS: Exclusively for very soft wood species (Spruce, Fir, Pine, Linden). Economical, fine cut.
- HSS M2: The "king" of softwoods. Guarantees immaculate white finish without burns. Also works on Oak/Beech for a mirror finish, but wears faster.
- Vidia (CMS): Mandatory for hard/exotic wood species (Oak, Beech, Mahogany) and derivatives (MDF, Particleboard, Plywood). Lasts thousands of meters without sharpening.
⚠️ Caution: Vidia requires constant feed rate. If you dwell in rotation on softwood, burning is guaranteed.
