• Set freze profil-contraprofil 40mm HSS M2 pentru uși din lemn masiv – 3 freze și inel distanțier
  • Set 3 freze profilate HSS M2 cu inel distanțier pentru uși de interior 40mm – profil și contraprofil clasic pentru rame și tâmplărie din lemn masiv
1 2

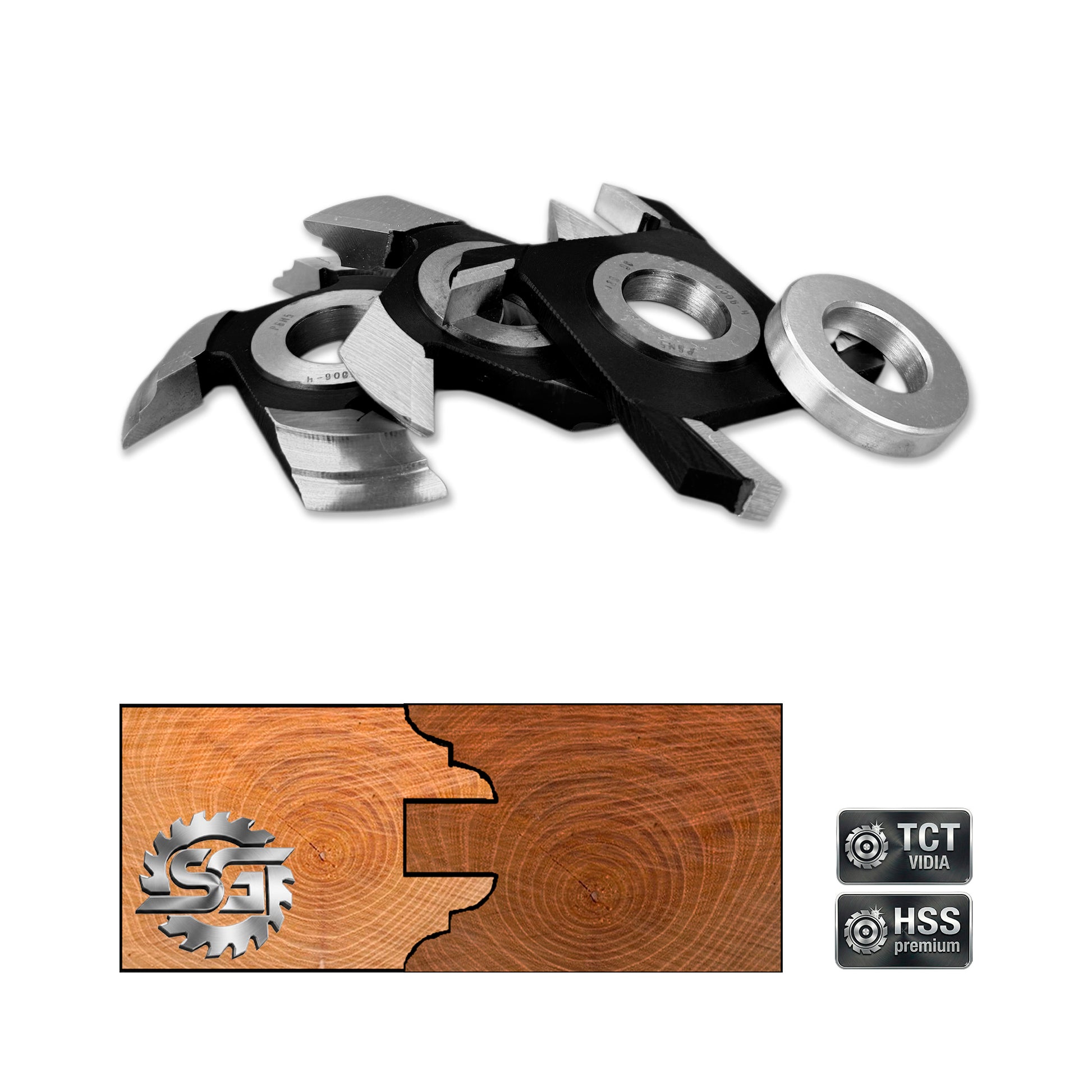

Set of 3 Door Cutter Bits Profile-Counterprofile | B40 mm | Code 04.07 | HSS or T.C.T Carbide

Set of 3 Door Cutter Bits Profile-Counterprofile | B40 mm | Code 04.07 | HSS or T.C.T Carbide

04.07-d32

640,00 RON
700,00 RON 640,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Material - Bore (d)

Low stock: 2 left

Profile-Cope Router Bit Set for Interior Doors (40 mm) – HSS M2 / T.C.T. Carbide

Active Working Thickness (B) Working Thickness (B)40 mm (finished element)
Blade Material Blade MaterialHSS M2 Premium (high-speed steel, 6.5% Tungsten, brazed with Ag silver alloy) | T.C.T. Carbide (metal carbide, 85–92 HRC) – select the variant from the menu
Construction Type Construction TypeBrazed profiled tools (monoblock after brazing, no removable inserts)
Blade Hardness Blade HardnessHSS M2 – 64–66 HRC | T.C.T. Carbide – 85–92 HRC
Set Configuration Set Configuration3 profiled cutters + 1 calibrated spacer ring
Arbor Bore (d) Arbor Bore (d) Ø32 mm (in stock) | Ø30, Ø35 mm / Ø40 mm available for pre-order
Recommended Speed Recommended Speed6,000 – 9,000 RPM (CNC / table router optimized)
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before the first resharpening)
Outer Diameter Outer DiameterAccording to attached technical drawing
Country of Origin Country of OriginUkraine

🚀 DYNAMIC PROPERTIES AND PERFORMANCE:

  • Absolute Joint Precision: structurally optimized geometry for creating door frames and panels with a thickness of 40 mm, ensuring zero tolerance in profile-cope coupling.
  • High-Quality Brazed Blade: the inserts, regardless of the chosen material (HSS M2 or T.C.T. Carbide), are professionally brazed with silver alloy (Ag), guaranteeing high mechanical resistance to shocks and impeccable finishes, without fiber tear-out.
  • Calibrated Modular System: the set consisting of 3 cutters and the included spacer ring allows for micrometric height adjustments, perfectly adapting to normal wear and tear from successive resharpenings.
  • Dynamic Balancing Class G2.5: reduces vibrations on the machine's spindle, protecting the bearings of the drive assembly and ensuring a perfectly smooth surface (ready for painting or lacquering).
  • Versatility in Fixing: Ø30 mm and Ø32 mm bores are standardized for immediate delivery, with the option of custom execution for Ø35 mm or Ø40 mm.

⚠️ USAGE LIMITATIONS FOR HSS M2 VARIANT:

  • Wood Derivatives Restriction: ❌ NOT recommended for use on particleboard, MDF, HDF, or exotic wood! The synthetic binder in these materials will prematurely wear out the high-speed steel blade.
  • Alternative Solution: for composite or agglomerated wood panels, mandatorily request the T.C.T. Carbide insert variant.

🛠️ PROFESSIONAL SELECTION GUIDE: HSS vs. T.C.T. Carbide

Choosing the correct blade material directly influences the finish quality and tool lifespan (swipe left-right on mobile to see the complete table):

Processed Material HSS M2 Premium
(6.5% W / Р6М5) 		T.C.T. Carbide ⭐
(Metal Carbides)
Softwood
(Spruce, Fir, Pine) 		⭐ 100%
(No Burns)		 ❌ Risk of burning
(Friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Resistant)
MDF / Particleboard / HDF / Laminated Not recommended ⭐ 100%
(Optimal)
Composite & Exotic Materials Forbidden ⭐ 100%
(Maximum)
Active Insert Thickness 6 mm (Maximum) 3 mm
Number of Resharpenings Maximum (M2) Limited (3 mm)
Blade Material Hardness 64 – 66 HRC 85 – 92 HRC
💡 Conclusions for purchase:
  1. Working with Spruce, Fir, or Pine? Stick with this HSS M2 Premium variant. It's the only material that guarantees an immaculate white finish on softwood, without burn marks.
  2. Working with Oak, Beech, or laminated panels? Choose the T.C.T. Carbide variant, structurally optimized for dense woods without rapid blade dulling.
  3. Arbor Configuration: the Ø30 mm and Ø32 mm variants are delivered immediately from stock. For machines with Ø35 mm or Ø40 mm arbors, select the dedicated option or send a firm pre-order to the technical team.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respiratory filter (fine wood dust), and ear protection for prolonged work.
  • Attention to hands and fingers: maintain a safe distance from the cutting area and use feed/push devices where possible; do not manually intervene near moving cutters.

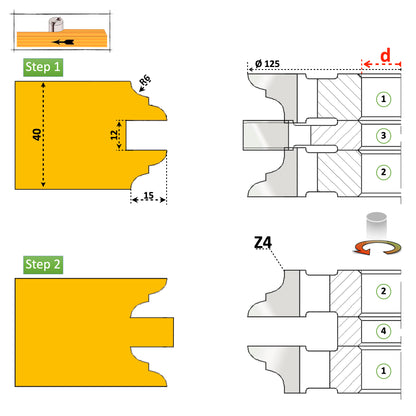

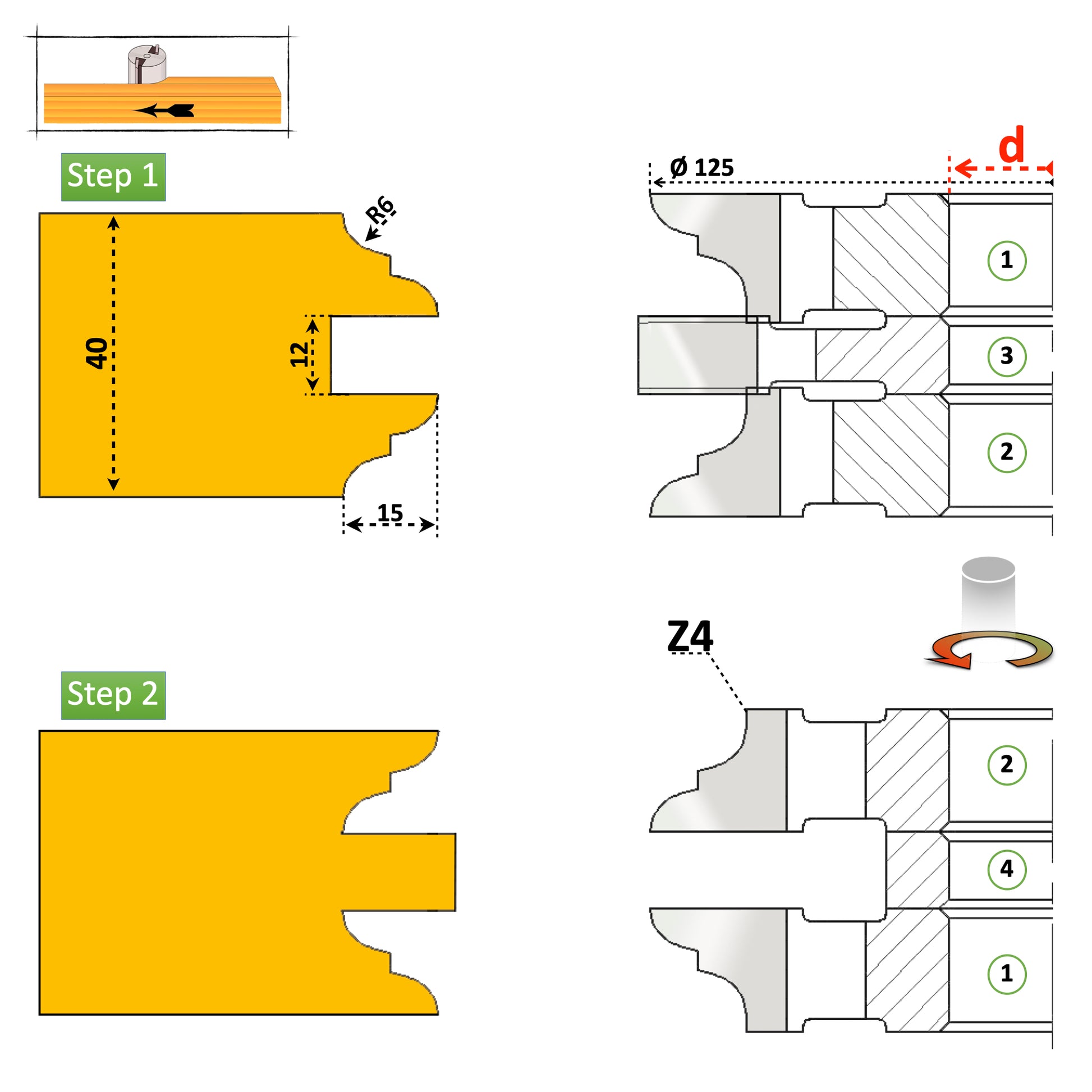

  • Observe the assembly order of the set: the 3 cutters and the spacer ring must be mounted exactly in the order indicated by the technical drawing – an incorrect order will alter the final profile and can unbalance the assembly.
  • Check the fastening of the entire package (cutters + ring) and the tightening of the spindle nut before starting the machine.
  • Observe the recommended speed of 6,000 – 9,000 RPM, to avoid vibrations or the risk of blade breakage.
  • Resharpening: we recommend resharpening at a specialized center, to preserve the profile geometry and original cutting angle.
