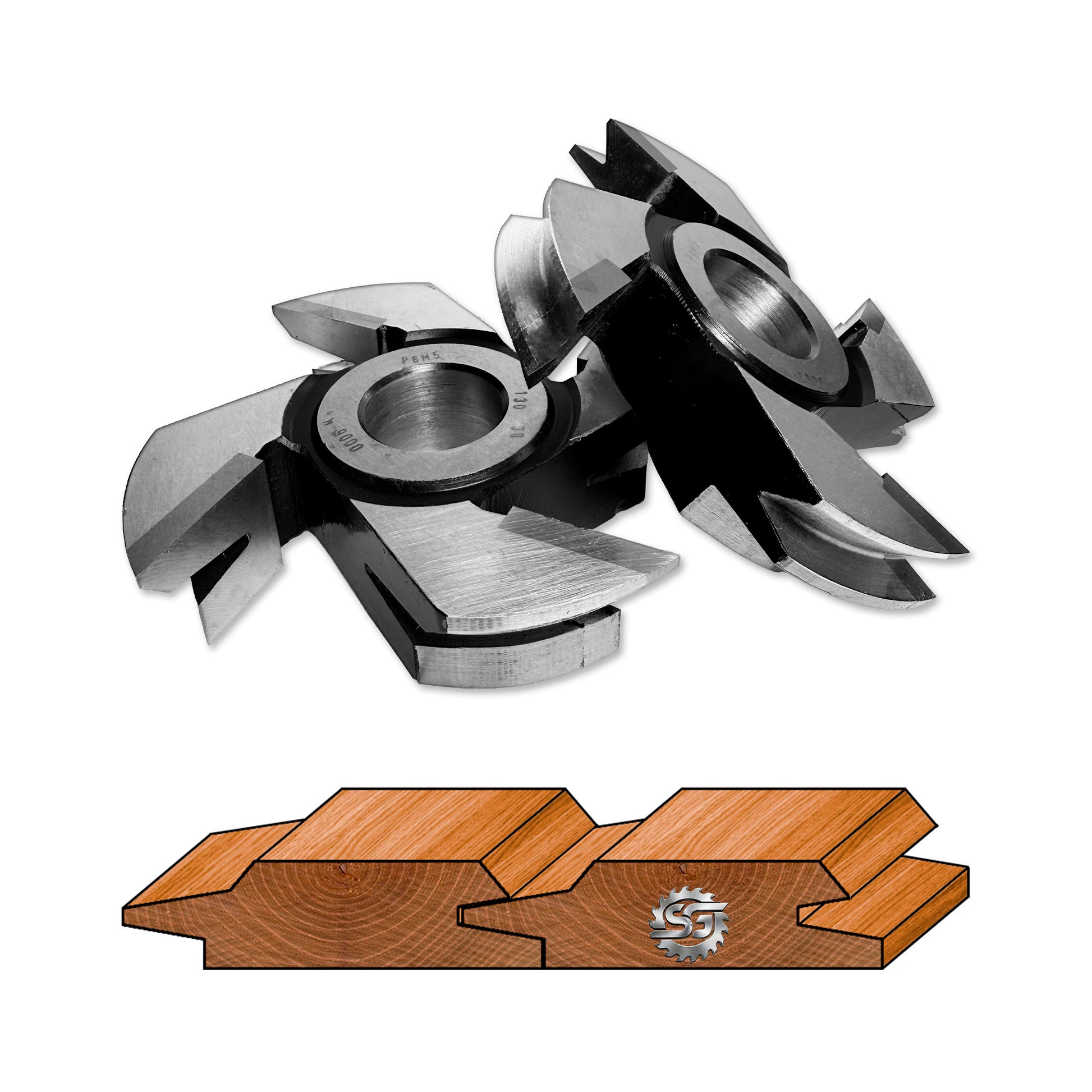

• Set Freze 2 buc pentru Lambriu cu Profil tesit sau oblic la 45 grade cu imbinare conic si canal de 10 mm profilat pentru scandura de 13 pana la 25 mm grosime
  • Set Freze pentru Lambriu cu profil oblic tesit la 40 grade cu sant de 10 mm si imbinare conic pentru masina de frezat clasica sau scm
1 2

Set of 2 Oblique Profile Paneling Cutters 14 - 25 mm | Code 14.00UC | Premium HSS

Set of 2 Oblique Profile Paneling Cutters 14 - 25 mm | Code 14.00UC | Premium HSS

14.00UC-d30

566,00 RON
700,00 RON 566,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Bore (d)

Low stock: 6 left

Oblique Chamfered Profile Paneling Cutter Set with Conical Joint (14–25 mm) | HSS M2 Premium

Set of 2 profiled cutters for creating paneling with a decorative oblique/chamfered profile and a conical joint — when two adjacent boards are installed, a visible gap of ~10 mm is created between them, characteristic of modern paneling with spacing. The profile is self-adaptable for wood thicknesses between 14–25 mm, adjustable solely by the machine spindle height, without spacer rings. Available in versions for a classic spindle moulder (D130, d30) and for 4-sided moulders (D160, d40).

Outside Diameter (D) Outside Diameter (D)Ø130 mm (spindle moulder, d30) | Ø160 mm (4-sided moulder, d40) – select from menu
Active Working Space Active Working Space14–20 mm (recommended) – self-adaptable by spindle height, without spacer rings. Total cutter thickness 28 mm, fixed straight part at top 3 mm. Can be used over the entire active surface.
Joint Geometry Joint GeometryDecorative oblique/chamfered profile with conical joint – when installed, a visible gap of ~10 mm is formed between 2 adjacent boards
Bore (d) Bore (d)Ø30 mm standard (D130) | Ø40 mm standard (D160) | Ø35 mm or other sizes – upon request
Number of Teeth / Inserts Number of TeethZ4 (D130) | Z6 (D160, optimized for fast feed on 4 sides)
Cutting Material Cutting MaterialHSS M2 Premium (6.5% Tungsten), brazed with silver alloy (Ag) | 64–66 HRC
Recommended RPM Recommended RPM9,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutting Inserts Cutting InsertsBrazed, successively resharpenable; with advanced wear, the cutter body can be re-brazed
Set Configuration Set Configuration2 brazed monoblock cutters (male + female profile, structurally correlated)
Country of Origin Country of OriginUkraine

📐 SELECTION GUIDE – WHICH VARIANT TO CHOOSE:

  • D130 mm / d30 / Z4 – Classic Spindle Moulder: standard variant for spindle moulders with one shaft. Ø30 mm bore standard; Ø35 mm or Ø40 mm on request.
  • D160 mm / d40 / Z6 – 4-Sided Moulders: the larger diameter and 6 teeth are calculated for the industrial speeds and feeds of 4-sided moulders. Ø40 mm bore standard.
  • Self-Adjusting 14–20 mm: no spacer rings needed — adjust solely by the machine spindle height for any board thickness within the working range.
  • Extended Lip on Female Cutter: allows paneling to be fixed with clamps or nails directly to the structure — convenient, fast, and secure. The conical joint with free space under the nail prevents blocking due to dust or chips.

🚀 PROPERTIES AND PERFORMANCE:

  • Visible ~10 mm Joint Gap: the conical profile of the cutter ensures that when two adjacent boards are installed, a regular visible gap of ~10 mm is formed — specific to the modern paneling style with spacing, providing a precise and uniform geometric appearance over the entire surface.
  • Finish Ready for Lacquering: the HSS M2 cutting edge at 9,000 RPM leaves a smooth, white surface, without burns or fiber tear-out — even with knotted woods.
  • CNC Dynamic Balancing: the cutter body is computer-machined for minimal vibration at idle, protecting the machine's spindle and bearings.
  • Long-Term Investment: inserts can be successively resharpened; with advanced wear, the cutter body can be re-brazed with new inserts.

⚠️ LIMITATIONS IN USE (HSS M2):

  • Exclusive Use – Natural Solid Wood: ❌ NOT recommended for use on chipboard, MDF, HDF, or very hard exotic wood! The synthetic binder prematurely wears out the high-speed steel cutting edge.
  • Exotic or Very Hard Woods: for high-density woods, HSS cutting edge wear is faster — resharpening will be more frequent.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: immaculate white finish, no burns – the ideal choice for spruce, fir, or pine paneling.
Hardwood (Beech, Oak, Ash) 80%

Good: effective results, cutting edge wear is faster than on softwoods.
Exotic / Very Dense Wood 50%

Acceptable: accelerated cutting edge wear, more frequent resharpening required.
