Set of 5 Round Profile Tongue and Groove Router Bits D140 | d40 | 12 - 18 mm - 14.03.15UR HSS

Set of 5 Round Profile Tongue and Groove Router Bits D140 | d40 | 12 - 18 mm - 14.03.15UR HSS

14.03.15UR-d40

1.024,00 RON
1.024,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

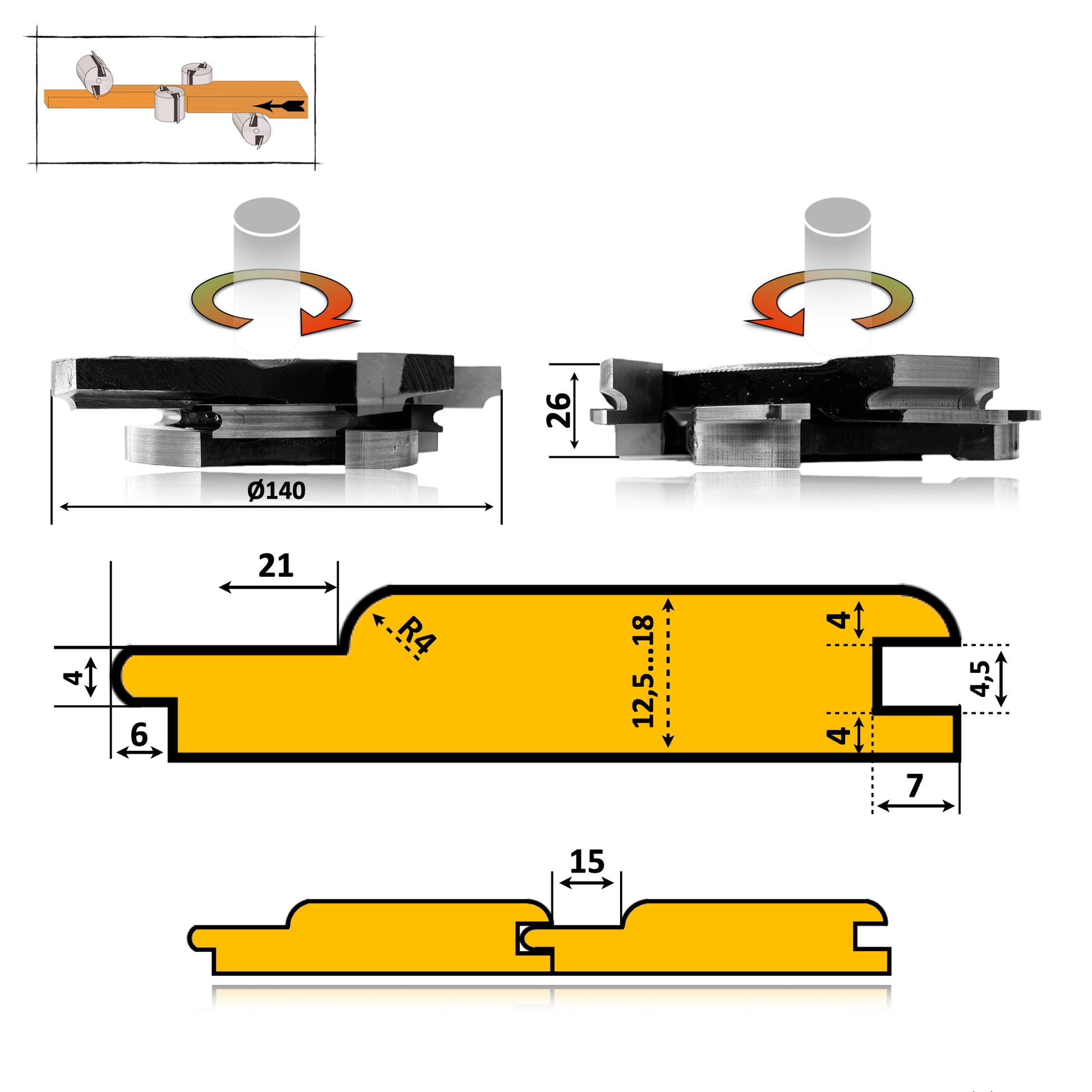

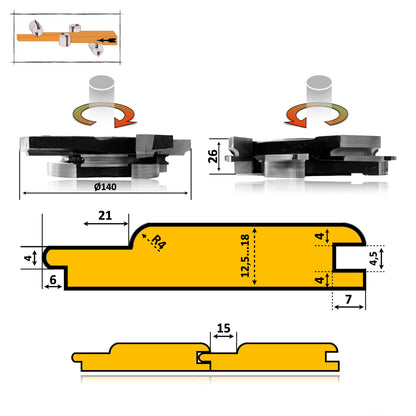

Professional Set for Softline Paneling with 15 mm Shadow Gap

Product Type Modular router bit set for premium rounded paneling production
Joint Profile Round Model (Softline Radius) with flat spacer
Shadow Gap Generated at 15 mm width (Ensures 3D effect and conceals the joint)
Thickness Capacity Fully adaptable for thin or thick paneling profiles (12 - 20 mm range)
Outer Diameter (D) 140 mm
Set Architecture Modular system 3+2 router bits: Special configuration for easy sharpening and profile precision
Cutting Material / Type Premium HSS M2 (High-Speed Steel enriched with 6.5% Tungsten)
Construction Type Brazed profile inserts industrially welded onto a rigid body made of structurally treated steel
Cutting Edge Hardness 64 – 66 HRC (Clean, super-sharp cut, no torn fibers)
Standard Spindle Bore (d) Ø40 mm (Ideal for 4-sided planers or spindle molders)
Spindle Compatibility The system allows mounting on Ø30 mm or Ø35 mm spindles using reduction bushings
Country of production Ukraine

DYNAMIC PROPERTIES AND PERFORMANCE

  • 15 mm Shadow Gap for Premium Design: The special geometry of these cutters creates a flat, perfectly straight step of 15 mm width at the joint. This design detail creates a pronounced "shadow gap," giving the paneling a modern, three-dimensional architectural look, while masking the wood's natural expansion and contraction.
  • Smart Modular System 3+2 Router Bits: Due to the technical complexity involved in the curved profile combined with the straight step, the set has been structurally segmented into a group of 5 independent router bits (3 pieces on one side and 2 pieces on the other side). This architecture offers an enormous practical advantage for maintenance, allowing extremely simple and quick sharpening of each radius on the teeth's relief face, completely eliminating the blockages typical of monolithic router bits.
  • Fluid Adjustment for Thin or Thick Paneling: The segmented design eliminates fixed dimension constraints. By simply repositioning and sliding the two router bit subassemblies on your machine's spindle, you can easily switch from cutting thin 12 mm paneling to massive 20 mm thick elements, maintaining the 15 mm finish perfectly calibrated.
  • Professional Cutting Edge Made of HSS M2 High-Speed Steel: The industrially brazed inserts on the tool body are made of premium HSS M2 alloy (6.5% W). High-speed steel allows for a considerably finer cutting edge than carbide, cleanly severing wood fibers and leaving the curved surface perfectly smooth, almost completely eliminating time spent on sanding.

⚠️ Material-dependent operating guide:

✅ Ideal Use: Softwood natural essences (Spruce, Fir, Pine, Lime) and hardwood essences (Beech, Oak, Ash).

❌ Not for use on particleboard, MDF, HDF, composites, or agglomerated materials (causes instant wear of the HSS cutting edge)!

🛠️ Professional Selection Guide: HSS M2 vs. T.C.T. Carbide

Choosing the correct material directly influences machine efficiency and finish quality. Consult the technical differences below:

Material to Process Premium HSS M2 ⭐
(Choice of this set) 		T.C.T. Carbide
(Carbide Alloy)
Soft Natural Wood
(Spruce, Fir, Pine, Lime) 		⭐ 100%
(Glossy Finish / No torn fibers)		 80%
(Medium risk of burns at slow feed rate)
Hard Natural Wood
(Oak, Beech, Ash, Hornbeam) 		80%
(Clean cut / Requires more frequent sharpening)		 ⭐ 100%
(Maximum wear resistance)
MDF / Particleboard / HDF / Agglomerates Forbidden / Not Recommended ⭐ 100%
(Optimal for synthetic adhesives)
Cutting edge quality Maximum (Extremely fine/sharp edge for radii) Standard (Chipping by structural impact)
Active Layer Hardness 64 – 66 HRC 85 – 92 HRC

✅ Technical recommendations for mounting and use:

  1. Thickness Versatility: The set offers you full control in the workshop, allowing you to cut thin or thick paneling (between 12 and 20 mm) intended for interior cladding or ventilated facades with a groove/blockhouse design.
  2. Machine Integration: Natively designed for industrial Ø40 mm spindles used on 4-sided planers. It can be safely used on a classic spindle molders (Ø30 or Ø35 mm spindle) by using professionally centered reduction rings or bushings.
  3. Maintenance: Dividing the cutting group into 3 and 2 router bit subassemblies significantly eases the periodic resharpening operation on the teeth face, protecting the perfectly calibrated 15 mm shadow profile and massively extending the tool's lifespan.
