Set of 5 Round Profile Tongue and Groove Router Bits D140 | d40 | 12 - 18 mm - 14.03.9UR HSS
Set of 5 Round Profile Tongue and Groove Router Bits D140 | d40 | 12 - 18 mm - 14.03.9UR HSS
No reviews
SKU:14.03.9UR-d40
Regular price
766,00 RON
Regular price
1.024,00 RON
Sale price
766,00 RON
Taxes included.
Shipping calculated at checkout.
Quantity
Low stock: 4 left
Couldn't load pickup availability

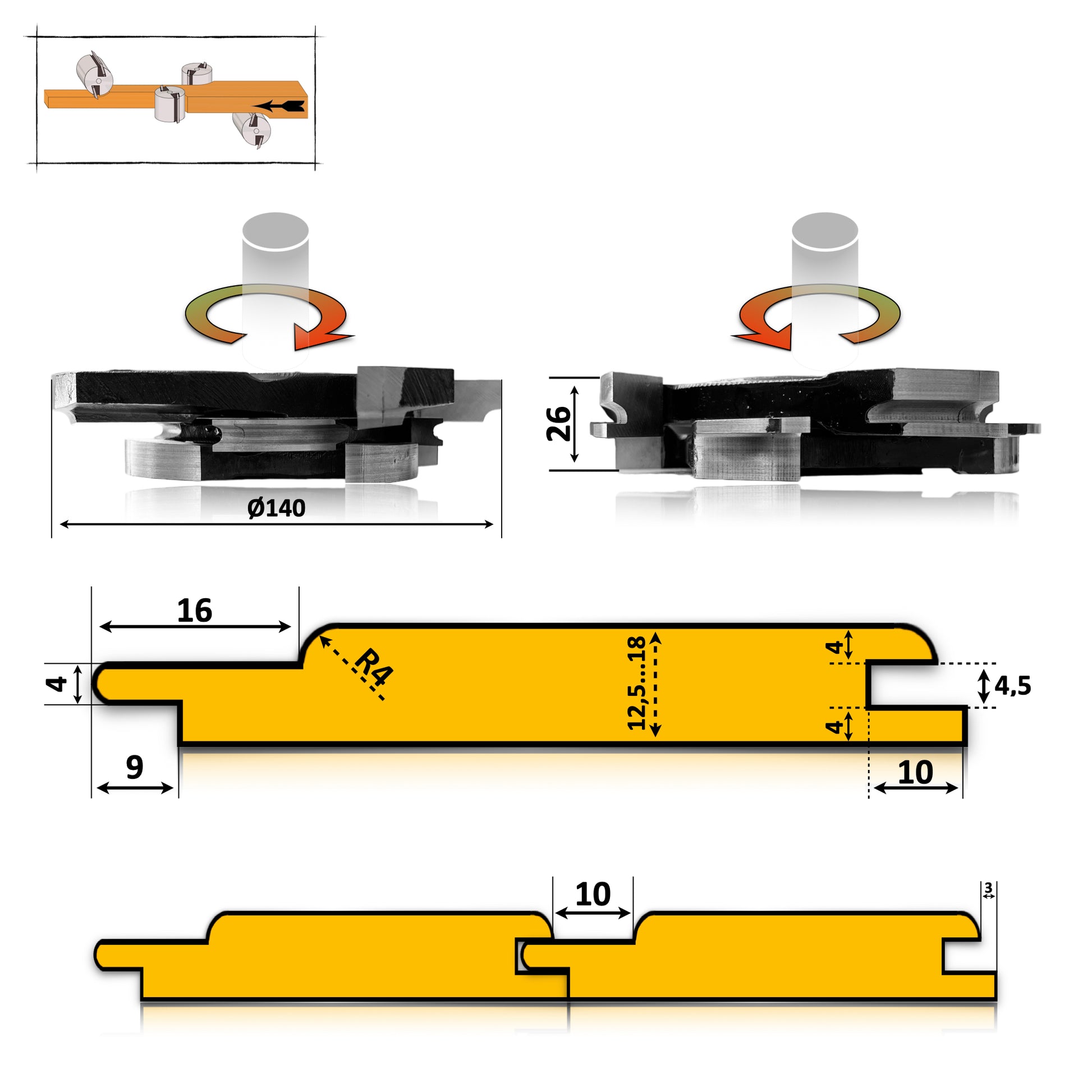

Professional Set for Softline Paneling with 10 mm Shadow Gap
| Product Type | Set of modular router bits for premium rounded paneling production |
| Joint Profile | Rounded Model (Softline Radius) with flat spacer |
| Shadow Gap | Generated at 10 mm width (Ensures 3D effect and conceals the joint) |
| Thickness Capacity | Fully adaptable for thin or thick paneling profiles (12 - 18 mm range) |
| Outer Diameter (D) | 140 mm |
| Set Architecture | Modular 3+2 bit system: Special configuration for easy sharpening and precise profiling |
| Blade Material / Type | Premium HSS M2 (High-Speed Steel enriched with 6.5% Tungsten) |
| Construction Type | Industrially brazed profiled inserts on a rigid structural treated steel body |
| Blade Hardness | 64 – 66 HRC (Clean, super-sharp cut, no torn fibers) |
| Standard Spindle Bore (d) | Ø40 mm (Ideal for 4-sided planers or table routers) |
| Spindle Compatibility | The system allows mounting on Ø30 mm or Ø35 mm spindles using reduction bushings |
| Country of Production | Ukraine |
DYNAMIC PROPERTIES AND PERFORMANCE
- 10 mm Shadow Gap for Premium Design: The special geometry of these cutters creates a perfectly straight, flat step of 10 mm width at the joint. This design detail creates a pronounced "shadow joint," giving the paneling a modern, three-dimensional architectural look, while masking the natural expansion and contraction of the wood.
- Smart Modular 3+2 Router Bit System: Due to the technical complexity involved in the curved profile combined with the straight step, the set has been structurally segmented into a group of 5 independent router bits (3 pieces on one side and 2 pieces on the other side). This architecture offers an enormous practical advantage for maintenance, allowing extremely simple and quick sharpening of each radius on the clearance face of the teeth, completely eliminating the specific blockages of monoblock router bits.
- Fluid Adjustment for Thin or Thick Paneling: The segmented design eliminates the constraints of fixed dimensions. By simply repositioning and sliding the two router bit subassemblies on your machine's spindle, you can easily switch from cutting thin 12 mm paneling to massive 20 mm thick elements, while keeping the 10 mm finish perfectly calibrated.
- Professional HSS M2 High-Speed Steel Blade: The industrially brazed inserts on the tool body are made of premium HSS M2 alloy (6.5% W). High-speed steel allows for a significantly finer cutting edge than carbide, cleanly cutting wood fibers and leaving the curved surface perfectly smooth, almost completely eliminating sanding time.
⚠️ Operating guide based on material:
✅ Ideal Use: Natural softwoods (Spruce, Fir, Pine, Linden) and hardwoods (Beech, Oak, Ash).
❌ Prohibited for use on chipboard, MDF, HDF, composites, or agglomerated materials (causes instant wear of the HSS blade)!
🛠️ Professional Selection Guide: HSS M2 vs. T.C.T. Carbide
Choosing the correct material directly influences machine efficiency and finish quality. Consult the technical differences below:
| Processed Material | HSS M2 Premium ⭐ (Choice for this set) |
T.C.T. Carbide (Carbide Alloy) |
|---|---|---|
| Natural Softwood (Spruce, Fir, Pine, Linden) |
⭐ 100% (Glossy Finish / No torn fibers) |
80% (Medium risk of burns with slow feed) |
| Natural Hardwood (Oak, Beech, Ash, Hornbeam) |
80% (Clean cut / Requires more frequent sharpening) |
⭐ 100% (Maximum resistance to mechanical wear) |
| MDF / Chipboard / HDF / Agglomerates | Forbidden / Not recommended | ⭐ 100% (Optimal for synthetic adhesives) |
| Cutting Edge Quality | Maximum (Extremely fine/sharp edge for radii) | Standard (Chipping by structural impact) |
| Active Layer Hardness | 64 – 66 HRC | 85 – 92 HRC |
✅ Technical recommendations for assembly and use:
- Thickness Versatility: The set offers you full control in the workshop, allowing you to cut fine or thick paneling (between 12 and 20 mm) intended for interior cladding or ventilated facades with a groove/blockhouse design.
- Machine Integration: Natively designed for industrial Ø40 mm spindles used on 4-sided planers. It can be safely used on a classic table router (Ø30 or Ø35 mm spindle) by using professionally centered reduction rings or bushings.
- Maintenance: Dividing the cutting group into subassemblies of 3 and 2 router bits significantly eases the periodic resharpening operation on the teeth's face, protecting the perfectly calibrated 10 mm shadow profile and massively extending the tool's lifespan.
