Set of 2 Oblique Profile Paneling Cutters 14 - 22 mm | Code 14.22.8UC | HSS Premium

Set of 2 Oblique Profile Paneling Cutters 14 - 22 mm | Code 14.22.8UC | HSS Premium

14.22.8UC-d30

566,00 RON
700,00 RON 566,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Position x Bore (d)

Low stock: 2 left

45° Oblique Profile Paneling Cutter Set | Premium HSS M2

Set of 2 profiled cutters for creating paneling with an oblique profile (45° chamfered), where the joint between boards is finished directly at an angle – without a visible gap between them. The chamfered profile provides an elegant and authentic look, suitable for indoor or outdoor paneling, linings, and decorative solid wood panels. Available in variants for a single-spindle table router (D130 mm) and for four-sided planers (D140 mm / D160 mm), each in an up chamfer (UC) or down chamfer (DC) version.

Outer Diameter (D) Outer Diameter (D)130 mm (single-spindle table router) | 140 mm / 160 mm (4-sided planers) – select from menu
Active Working Space Active Working Space14 – 22 mm
Profile Angle Profile Angle45° (oblique / chamfered profile)
Working Position Working PositionUC – Up Chamfer | DC – Down Chamfer – select from menu
Bore (d) Bore (d)Ø30 mm standard (D130) | Ø40 mm standard (D140 / D160) | other sizes – contact us
Blade Material Blade MaterialPremium HSS M2 (6.5% Tungsten), brazed with silver alloy (Ag)
Number of Teeth / Inserts Number of Teeth / Inserts4 brazed inserts
Blade Hardness Blade Hardness64 – 66 HRC
Recommended RPM Recommended RPM6,000 – 9,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutter Inserts Cutter InsertsBrazed, successively re-sharpenable at a specialized center; in case of advanced wear, the cutter body can be re-brazed
Set Configuration Set Configuration2 cutters
Net Weight (Package) Net Weight (Package)2000 g
Special Modifications Special ModificationsFor other dimensions or special configurations – contact our team before ordering
Country of Origin Country of OriginUkraine

📐 SELECTION GUIDE – WHICH VARIANT TO CHOOSE:

  • D130 mm – Single-Spindle Table Router: standard variant for classic table routers with a vertical spindle. Standard Ø30 mm bore.
  • D140 mm / D160 mm – 4-Sided Planers: larger diameters are calculated for the specific speeds and feeds of 4-sided planers. Standard Ø40 mm bore.
  • UC (Up Chamfer): the workpiece advances with the visible face upwards; the cutter works from bottom to top. Suitable for machines where the paneling slides on the table with the visible face up.
  • DC (Down Chamfer): the workpiece advances with the visible face downwards; the cutter works from top to bottom. Suitable for machines where the paneling is pressed from above.
  • Other Dimensions or Configurations: for special modifications of diameter, bore, or profile angle, contact our team before ordering.
  • Other Dimensions or Configurations: for special modifications of diameter, bore or profile angle, please contact our team before placing your order.

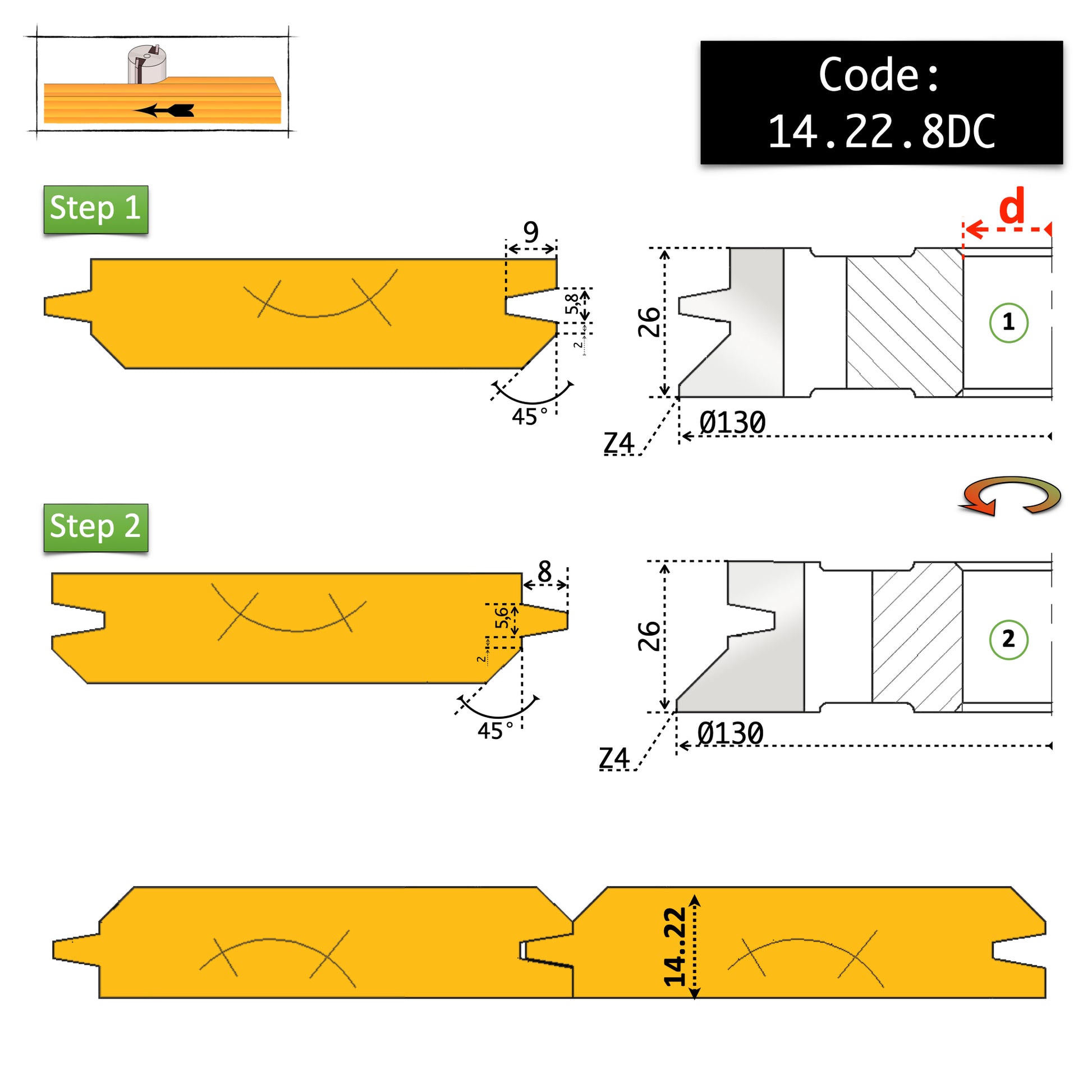

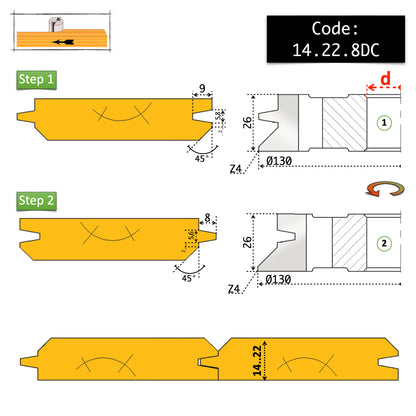

🔹 Each variant comes with a specific technical drawing – you can find it by selecting the desired variant from the menu.

🚀 FEATURES AND PERFORMANCE:

  • Direct 45° Oblique Profile at the Joint: the cutter profiles the edge of the board so that when two paneling boards are joined, a continuous and elegant chamfer is created, with no visible gap between them.
  • Elegant and Uniform Finish: the precise chamfered profile ensures a smooth surface, ready for varnishing or painting, without the need for intensive additional sanding.
  • HSS M2 Blade Brazed with Silver (Ag): high mechanical resistance, clean cuts without tearing wood fibers, even on more demanding wood species.
  • Long-Term Investment: the inserts can be successively re-sharpened at a specialized center, and in case of advanced wear, the cutter body can be re-brazed with new inserts.

🔹 Ideal for interior and exterior paneling, linings, decorative panels, and any application where an oblique profile at the joint gives a premium look to the finished surface.

⚠️ LIMITATIONS IN USE (HSS M2):

  • Exclusive Purpose: this variant is intended exclusively for processing natural solid wood.
  • Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF, or very hard exotic wood! The synthetic binder prematurely wears out the high-speed steel blade.
  • Exotic or Very Hard Woods: for high-density wood species, HSS blade wear is faster — more frequent resharpening will be required.

📊 COMPATIBILITY RATING BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: clean cut, impeccable finish, no burning on the fibers.
Hardwood (Beech, Oak, Ash) 80%

Good: efficient results, blade wear is faster than on softwoods.
Exotic / Very Dense Wood 50%

Acceptable: accelerated blade wear, more frequent resharpening needed.
Chipboard / MDF / HDF / Plywood Not Recommended

The synthetic binder prematurely wears out the HSS blade.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator (fine wood dust), and ear protection for prolonged work.
  • Beware of hands and fingers: when processing long paneling boards, use push sticks and guides; do not manually guide the workpiece near the cutter.
  • Check the fastening of the cutters on the spindle and the complete tightening of the nut before starting the machine.
  • Respect the recommended RPM (6,000 – 9,000 RPM) to avoid vibrations or blade damage.
  • Resharpening: we recommend resharpening at a specialized center to maintain the 45° angle and the original geometry of the profile.
