Router Bit for Wood Panels D160 - D200 | Profile Code - P8 | HSS or T.C.T. Carbide

Router Bit for Wood Panels D160 - D200 | Profile Code - P8 | HSS or T.C.T. Carbide

ST160P8HR-d30

542,00 RON
542,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Diameter (D) × Position × Material

Out of stock

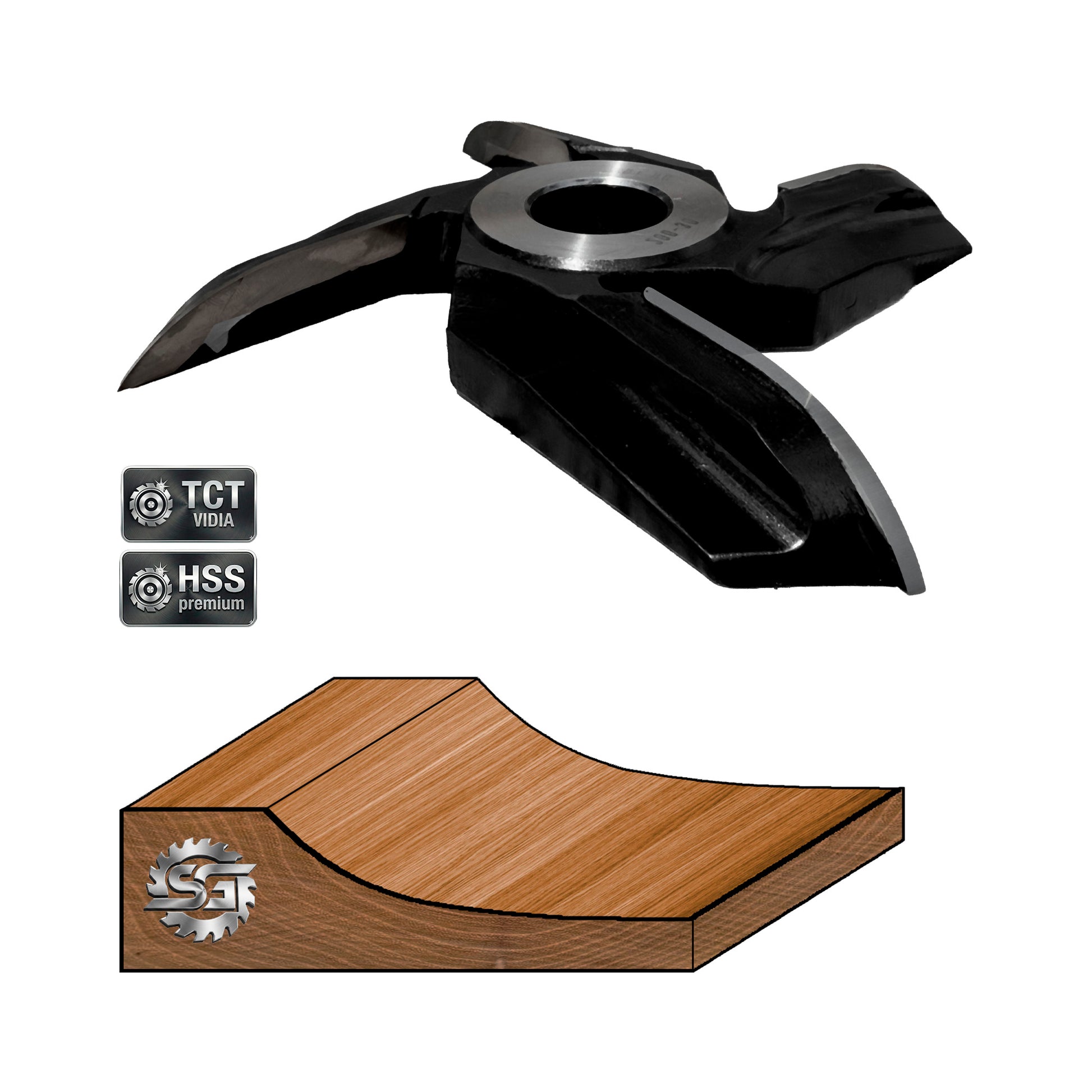

Panel Cutter – HSS M2 or T.C.T. Vidia | D160 / D200

Profiled cutter for creating panels on a stationary spindle moulder, available in two diameters (160 mm and 200 mm), two material variants (HSS M2 or T.C.T. Vidia) and two working positions (above or below the wood) – all selectable from the menu. Frequently used in the production of solid wood doors, paneled furniture, and decorative wood elements.

Outer Diameter (D) Outer Diameter (D)160 mm or 200 mm – select from menu

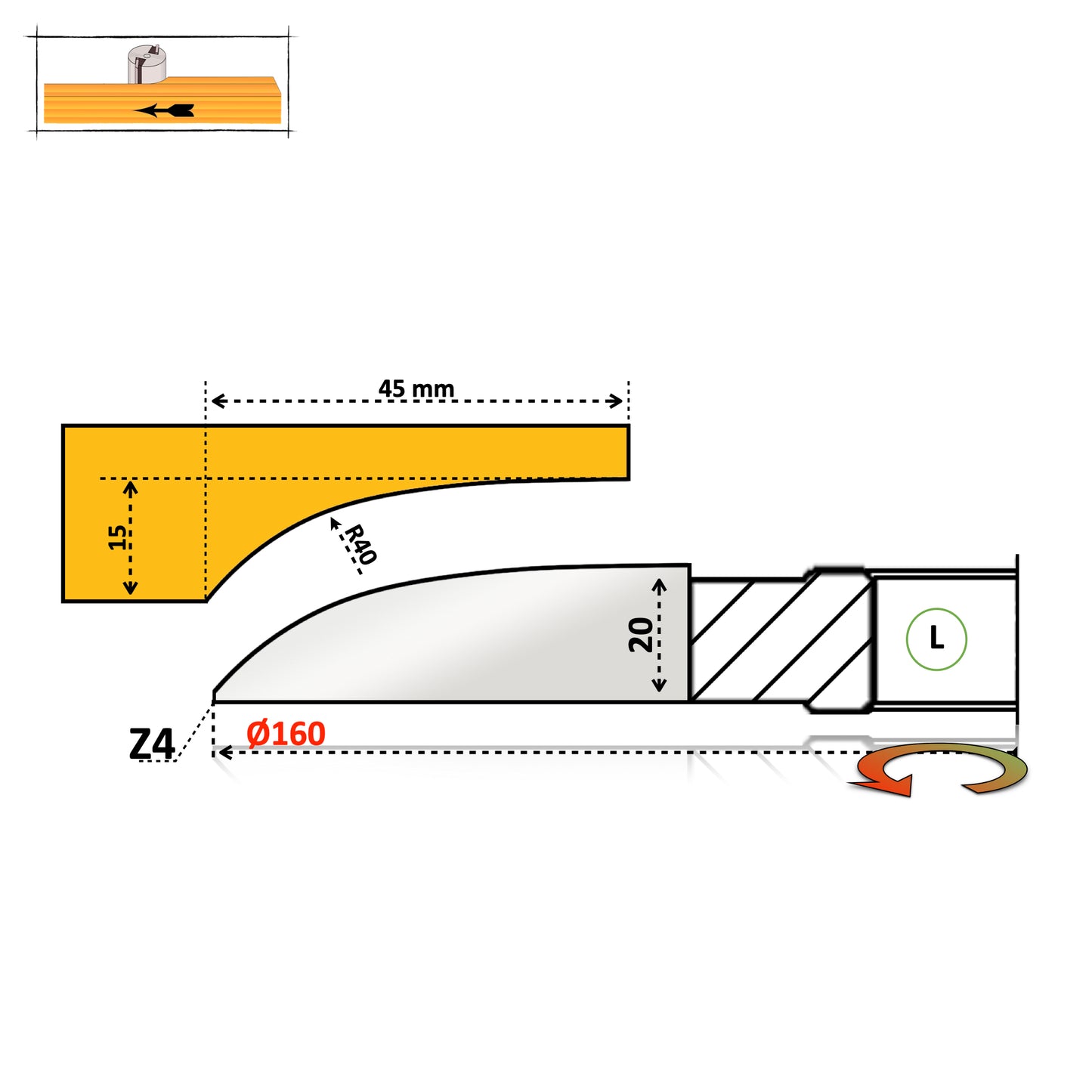

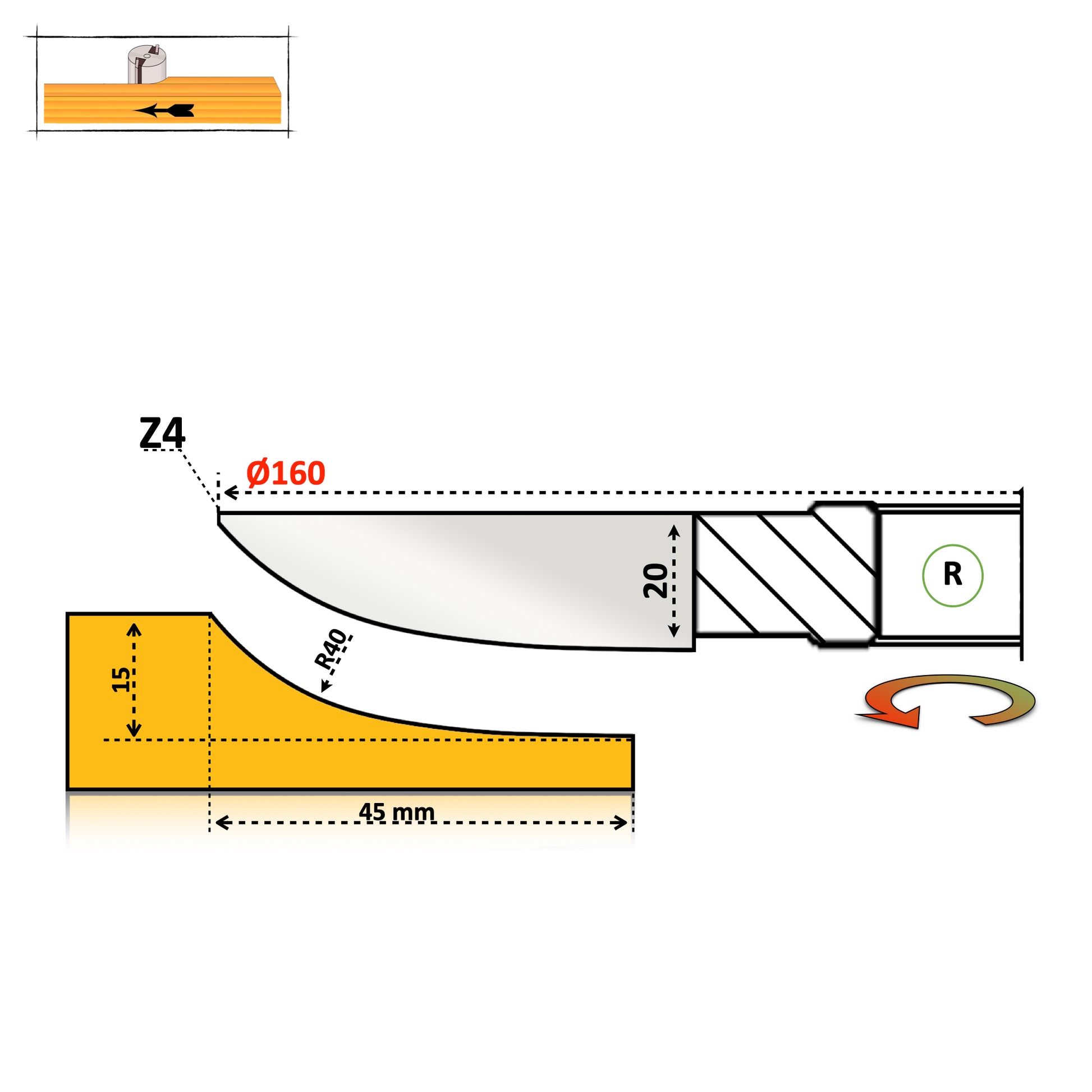

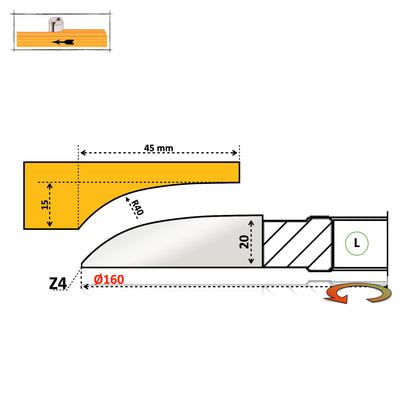

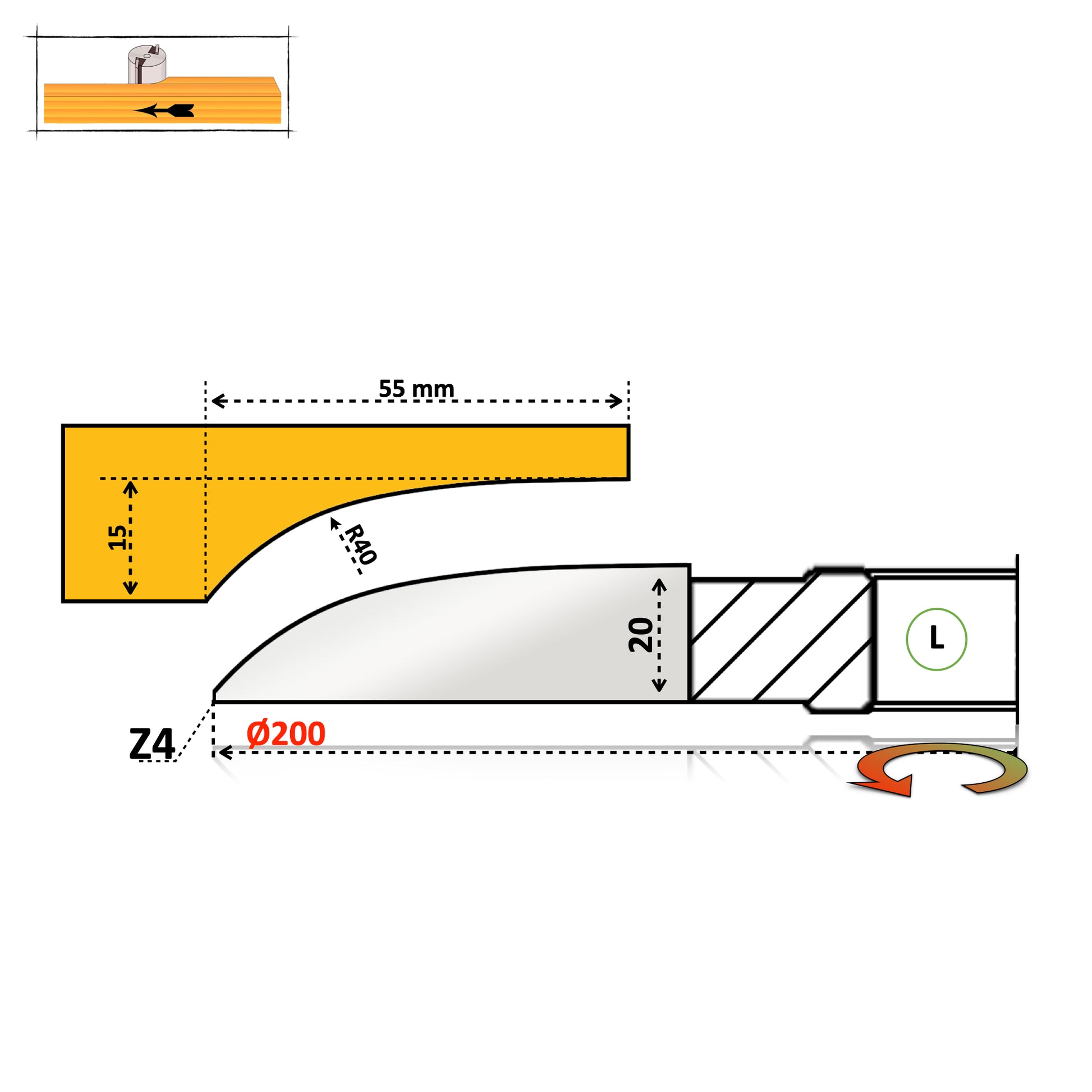

Active Working Space Active Working SpaceAccording to the technical drawing of the selected variant
Working Position Working PositionAbove the wood – the cutter works from bottom to top | Below the wood – the cutter works from top to bottom
Bore (d) Bore (d)Ø30 mm standard | other spindle diameters available for pre-order
Blade Material Blade MaterialHSS M2 – 4 brazed inserts on silver alloy (Ag) | T.C.T. Vidia – 4 carbide inserts brazed on brass alloy (Cu-Zn)
Blade Hardness Blade HardnessHSS M2 – 64–66 HRC | T.C.T. Vidia – 85–92 HRC
Recommended Speed Recommended Speed6,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Inserts InsertsBrazed, successively resharpenable at a specialized center; in case of advanced wear, the cutter body can be re-brazed
Package Contents Package Contents1 x Cutter (variant selected from the menu)
Country of Origin Country of OriginUkraine

🚀 PROPERTIES AND PERFORMANCE:

  • Robust and Balanced Body: made of heat-treated steel, the tool body eliminates vibrations, protecting machine bearings and ensuring flat finishes.
  • Fine and Precise Cut: regardless of the chosen material, the brazed inserts ensure a consistent cut and a finish directly from milling, ready for stain or lacquer.
  • Z4 Configuration: the 4 inserts evenly distribute the cutting force, without material tear-out.
  • Long-Term Investment: the inserts can be successively resharpened at a specialized center, and in case of advanced wear, the cutter body can be re-brazed.
  • Maximum Flexibility: 2 diameters × 2 materials × 2 working positions — select the exact combination for your machine and project.

💡 How to choose the working position:
– Above the wood – you visually control the profile during milling; recommended for manual work with controlled top feed.
– Below the wood – sawdust and chips are thrown directly downwards; the workpiece finish remains protected while sliding on the milling table.

⚠️ USAGE LIMITATIONS:

  • HSS M2 variant: ❌ not recommended for particleboard, MDF, HDF, or very hard exotic wood – the synthetic binder prematurely wears the high-speed steel blade.
  • T.C.T. Vidia variant on softwood: requires constant feed – stopping rotation on resinous woods can cause local burns.

🛠️ SELECTION GUIDE: HSS M2 vs. T.C.T. Vidia

The choice of material directly influences the finish quality and tool lifespan (swipe left-right on mobile to see the full table):

Processed Material HSS M2 Premium
(6.5% W / Р6М5) 		T.C.T. Vidia ⭐
(Metallic Carbides)
Softwood
(Spruce, Fir, Pine) 		⭐ 100%
(No Burns)		 ❌ Risk of burning
(Friction / constant feed mandatory)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Resistant)
Knots in Wood ✅ Resistant
(HSS absorbs shock) 		⚠️ Risk of chipping
(carbide is hard but brittle to shock)
MDF / Particleboard / HDF / Plywood Not Recommended ⭐ 100%
(Optimal)
Composite & Exotic Materials Forbidden ⭐ 100%
(Maximum)
Active Insert Thickness 6 mm (Maximum) 3 mm
Blade Hardness 64 – 66 HRC 85 – 92 HRC
💡 Conclusions for purchase:
  1. Working with Spruce, Fir, or Pine? Choose HSS M2 – guarantees a pristine white finish, free of burn marks.
  2. Working with Oak, Beech, MDF, or Particleboard? Choose T.C.T. Vidia – resists the abrasive wear of hardwoods and synthetic binders.
  3. Be careful with Vidia on softwood: requires constant feed – stopping rotation can cause burns on the grain.

🦺 SAFETY MEASURES DURING USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator filter (fine wood dust), and earmuffs for prolonged work.
  • Attention to hands and fingers: always use a feed/push device; do not guide the workpiece manually with hands near the cutter.
  • Check cutter orientation before starting the machine – the "Above" variant and the "Below the wood" variant are not interchangeable; incorrect mounting produces an incorrect profile.
  • Check the cutter's securement on the spindle and the complete tightening of the nut before starting.
  • Adhere to the recommended speed of 6,000 RPM.
