M012-63 Profile Wooden Headboard Cutter - D160 HSS Standard
M012-63 Profile Wooden Headboard Cutter - D160 HSS Standard
SKU:M012-63L-d32
Low stock: 1 left
Couldn't load pickup availability

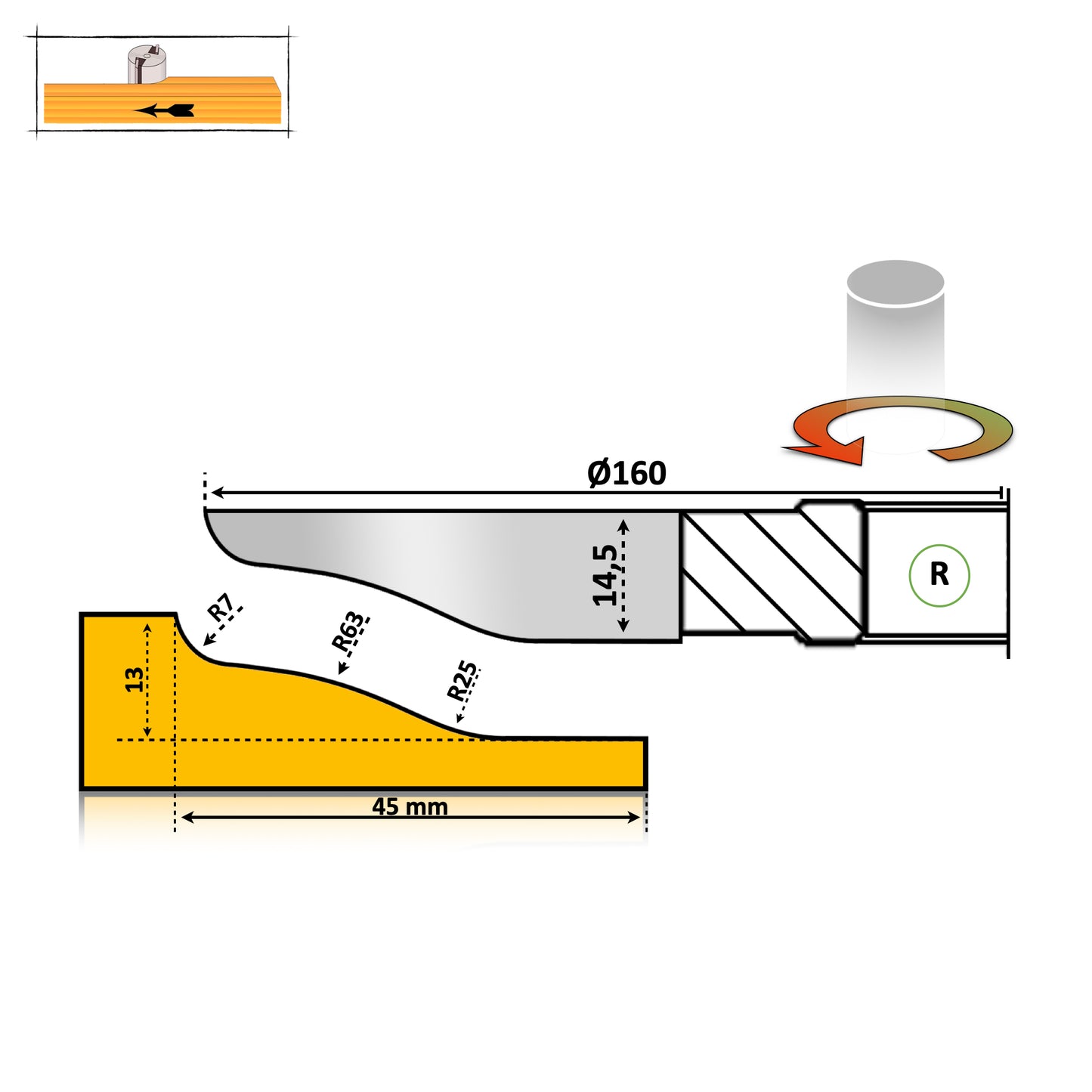

Cutter for Raised Panel Mobile Profile M012-63 | Brazed with – HSS M2
🔩 Technical specifications:
|
Feature |
Value |
|---|---|
|
Outer diameter |
160 mm |
|
Active working space |
15 mm |
|
Number / type of teeth |
4 pcs., Cutters brazed on brass alloy (Cu–Zn) Inserts - Standard HSS |
|
Hardness |
58…61 HRC |
|
Recommended rotations |
6000 rpm |
|
Wear resistance |
up to 3,000 linear meters in softwood |
|
Inserts |
Replaceable – long-term investment |
|
Quantity of cutters in set |
1 pc. of choice |
|
Package weight |
850g |
☞ Robust treated steel body – ensures perfect balance and reduced vibrations during operation
☞ Brazed cutting edges with HSS M2 6.5% Tungsten – the ideal choice depending on material type and usage intensity
☞ Versatile – optimized for soft and medium hardwoods (spruce, fir, linden, beech, light oak)
✅ Advantages:
➤ Fine, precise, and consistent cut
➤ Easy to resharpen (HSS variant)
➤ Low risk of burning on natural wood
➤ Suitable for traditional carpentry workshops and hobby CNC machines
⚠️ Usage limitations:
❌ We do not recommend the HSS variant for particleboard, MDF, HDF, or very hard exotic wood
❌ For composite materials or demanding applications, choose the variant with carbide inserts
HSS COMPATIBILITY:
The cutter can be mounted on most standard milling machines, being suitable for both manual work and CNC machines with moderate feed rates.
HSS M2(%) compatibility explanations:
• 90–80%: Optimal performance, the cutter works efficiently and durably.
• 79–60%: Good processing, but requires maintenance (sharpening or cooling).
• <60%: The wood is too hard or oily, leading to rapid wear of the HSS M2 cutter.
Recommendation: For exotic or very hard woods, cemented carbide (Widia) cutters would be a more suitable choice.
