Router Bit for Wood Panel Profile N12 - D160 HSS Premium
Router Bit for Wood Panel Profile N12 - D160 HSS Premium
SKU:ST160P12HL-d30
Low stock: 1 left
Couldn't load pickup availability

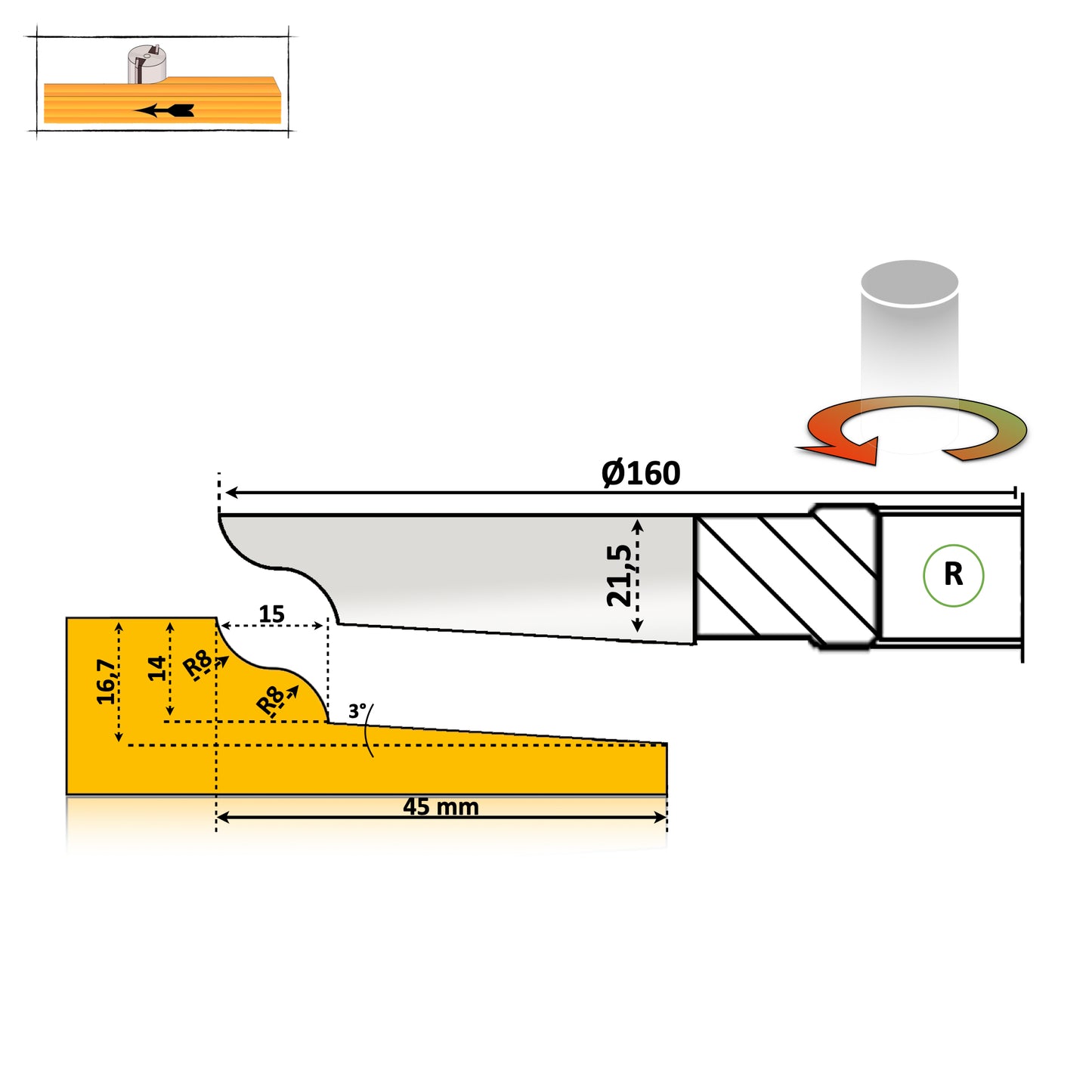

Raised Panel Cutter for Doors Profile №12 | Brazed with – HSS or Carbide
🔩 Technical Specifications:
|
Feature |
Value |
|---|---|
|
Outer Diameter |
160 mm |
|
Active Cutting Length |
16.7 mm |
|
Number / Type of Teeth |
Carbide - 4 Brazed tips on brass alloy (Cu-Zn) HSS M2 - 4 Brazed tips on silver alloy (Ag) |
|
Hardness |
Carbide - 85…92 HRC HSS M2 - 62…66 HRC
|
|
Recommended RPM |
6000 rpm |
|
Wear Resistance |
up to 3,000 linear meters in softwood |
|
Tips |
Replaceable – long-term investment |
|
Quantity per set |
1 pc. of choice |
|
Package Dimensions |
18*16*5 - 900g |
☞ Robust steel body – ensures perfect balance and reduced vibrations during operation
☞ Brazed edges with HSS M2 or Carbide (tungsten carbide) inserts – the ideal choice depending on the material type and intensity of use
☞ Versatile – optimized for soft and medium hardwoods (spruce, fir, linden, beech, light oak)
✅ Advantages:
➤ Fine, precise, and consistent cut
➤ Easy to resharpen (HSS version)
➤ Low risk of burning on natural wood
➤ Suitable for traditional woodworking workshops and hobby CNC
⚠️ Usage Limitations:
❌ We do not recommend the HSS version for chipboard, MDF, HDF, or very hard exotic wood
❌ For composite materials or demanding applications, choose the carbide insert version
🛠️ Selection Guide: HSS vs. CARBIDE (Brazed Tools)
The choice of material depends not only on wood hardness but also on how the cutting edge interacts with the grain. Our brazed cutters are optimized for stationary and CNC machines, but their performance varies drastically depending on the wood species being processed.
✅ Purchase Conclusions:
- Standard HSS: Exclusively for very soft wood species (Spruce, Fir, Pine, Linden). Economical, fine cut.
- HSS M2: The "king" of conifers. Guarantees immaculate white without burns. Also works on Oak/Beech for a mirror finish, but wears out faster.
- Carbide (CMS): Mandatory for hard/exotic wood species (Oak, Beech, Mahogany) and derivatives (MDF, Particleboard, Laminated). Lasts thousands of meters without sharpening.
⚠️ Attention: Carbide requires constant feed rate. If you dwell at speed on softwood, burning is guaranteed.
