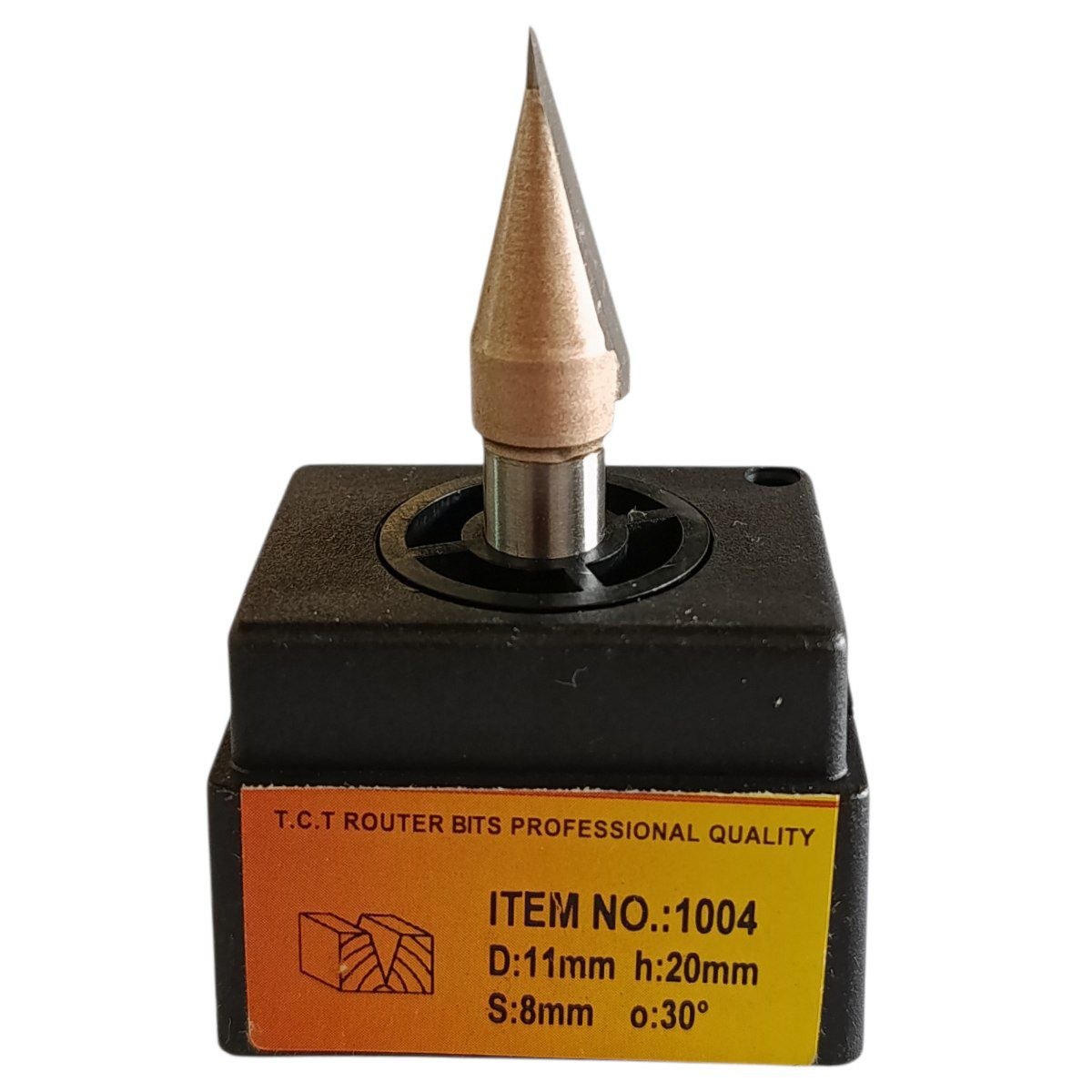

Conical Grooving Router Bit 30° D11, S8, z1, Lc20

Globus 1004 is a conical router bit with a 30° angle, a diameter of 11 mm, a working height of 20 mm, and a shank of 8 mm. It is equipped with a single cutting edge (Z1). It is used for creating facets (chamfering), decorative cuts, and conical grooves in wood and wood-based materials.

Technical specifications

• Manufacturer: Globus (Ukraine)
• Article: 1004
• Type: Conical router bit (30°)
• Diameter (D): 11 mm
• Working height (Lc): 20 mm
• Shank (S): 8 mm
• Number of cutting edges (Z): 1
• Material: Carbide (HM)

Application area

• Forming facets (chamfering) at a 30° angle.
• Creating decorative cuts and conical profiles.
• Working with solid wood, plywood, MDF, chipboard.
• Use on hand routers and CNC machines.

Advantages

• 30° angle: Versatile for chamfering and fine decorative elements.
• Carbide blade: Offers high durability and a clean cut.
• 8 mm shank: Compatibility with most routing machines.
• Compact diameter (11 mm): Ideal for working with small details and high precision.
