• Set Freze profesionale HSS sai TCT Vidia pentru îmbinări profil/contraprofil de 20 - 24 mm cu adancime profil de 12 mm. Ideal pentru mobilă din lemn masiv sau esențe tari.
  • Freze HSS pentru îmbinări uși de mobilă, profil 2, 20 - 24 mm HSS sau TCT Vidia
1 2

Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.02 | HSS or TCT

Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.02 | HSS or TCT

02.02-d32

447,00 RON
570,00 RON 447,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Inserts x Profile x Bore (d)

Low stock: 2 left

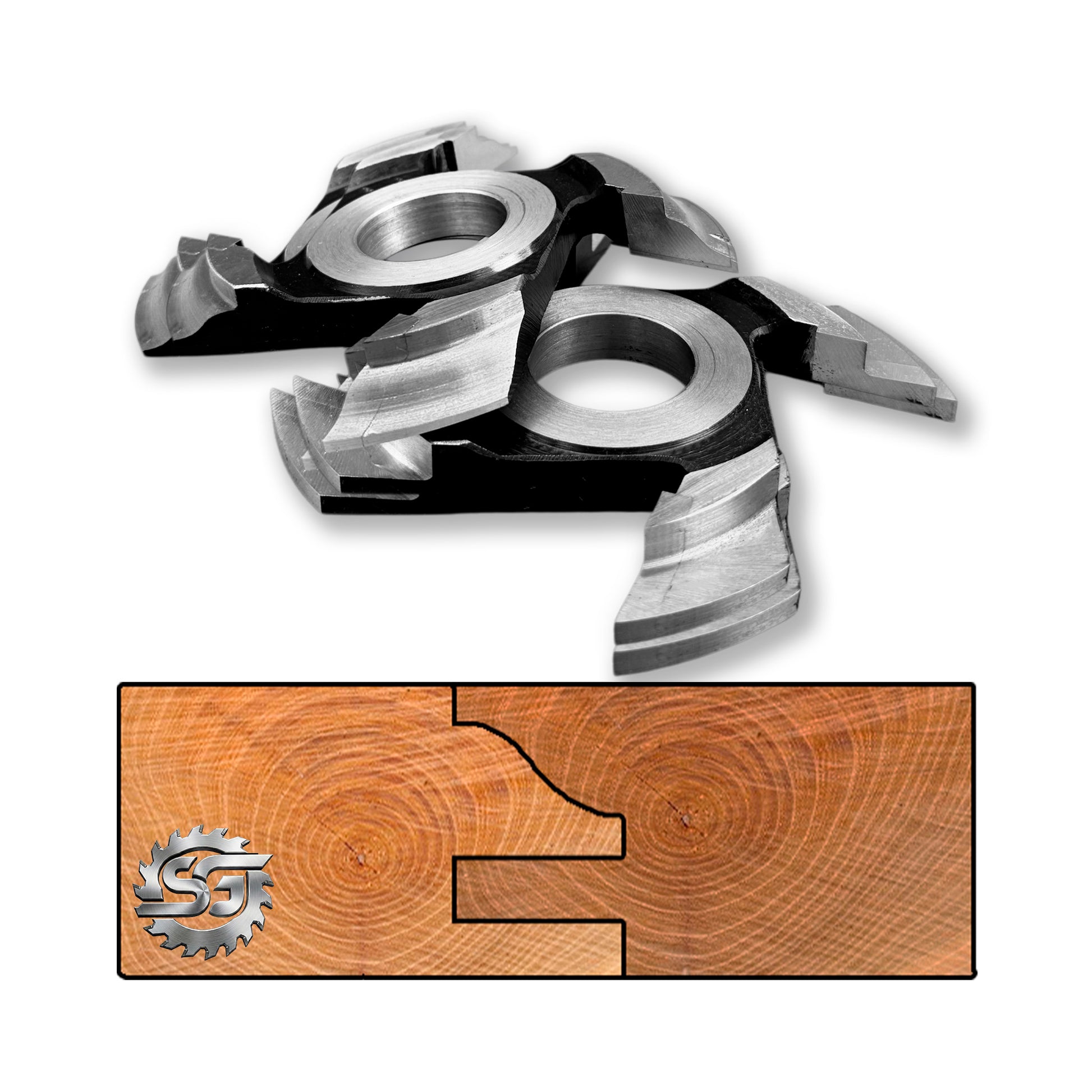

2-Piece Matched Router Bit Set for Cabinet Doors and Drawers (20–24 mm) – HSS M2 / T.C.T. Carbide

Professional set of 2 matched bore router bits for creating decorative profiles and counter-profiles on cabinet doors, drawer fronts, and frames made of solid wood or wood-based panels. Calibrated working thickness for 20–24 mm components. Available in HSS M2 Premium and T.C.T. Carbide variants — select from the menu.

Active Working Thickness Working Thickness20–24 mm (finished components – frames, doors, drawer fronts)

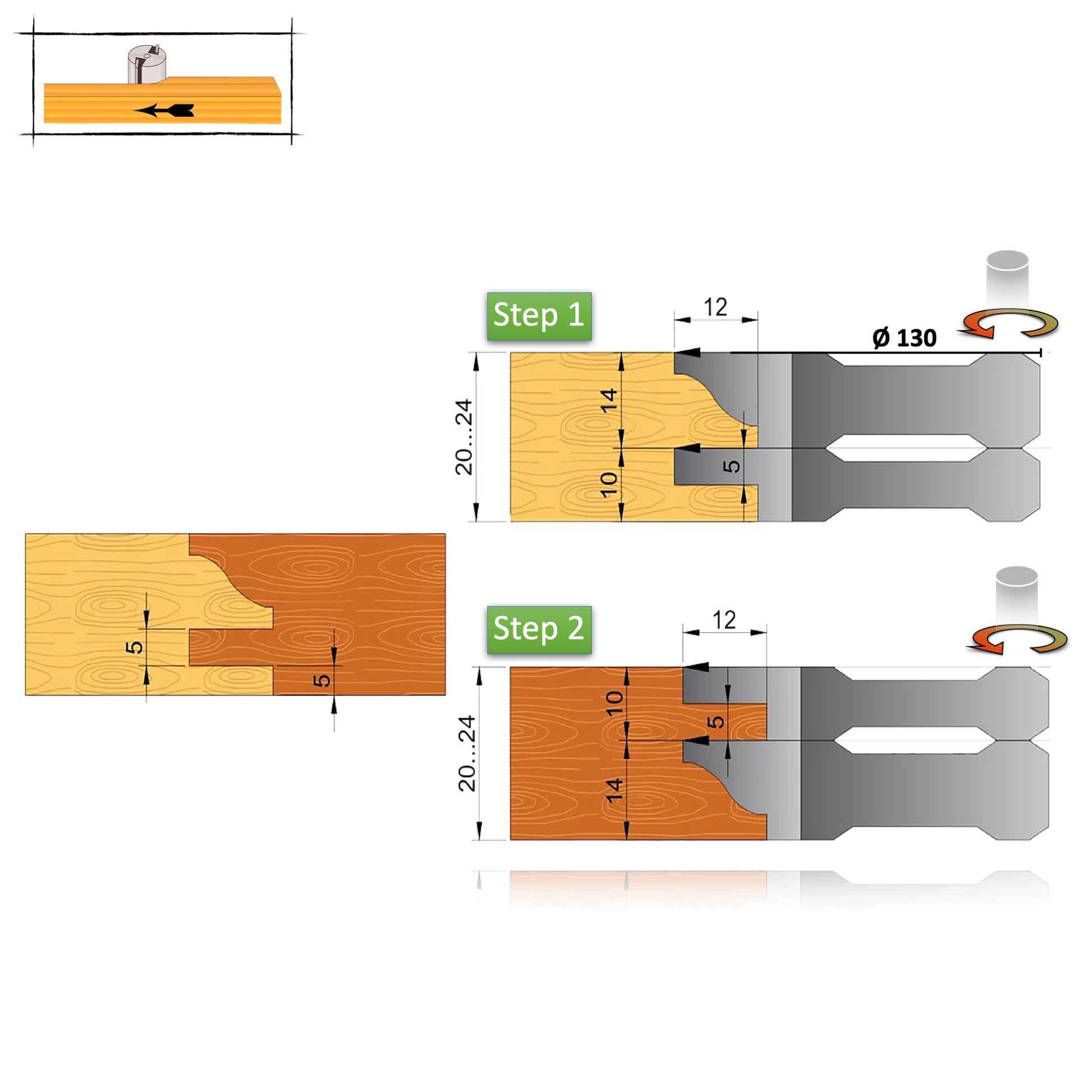

Outer Diameter (D) Outer Diameter (D)According to the attached technical drawing
Bore Diameter (d) Bore Diameter (d)See the variant list in the menu (d32/30 = comes with reducing bushing). Upon request, we can produce variants in specific sizes.
Blade Material Blade MaterialHSS M2 Premium – 4 brazed inserts with silver alloy (Ag), 64–66 HRC, 6 mm insert | T.C.T. Carbide – 4 brazed inserts, 85–92 HRC, 3 mm insert – select variant
Construction Type Construction TypeBrazed profiled tools, successively resharpenable; re-brazable after advanced wear
Set Configuration Set Configuration2 matched profiled router bits (profile + counter-profile)
Recommended RPM RPM6,000 – 9,000 RPM (marked on the packaging box and on the router bit body – observe the indicated speed)
Country of Origin Country of OriginUkraine

✨ FEATURES AND ADVANTAGES:

  • Deep, Well-Defined Profiles: the calibrated working space for 20–24 mm allows for clear decorative reliefs with a solid and elegant appearance – typical of quality furniture.
  • CNC Dynamic Balance: the body of each router bit is machined on high-precision CNC machines, eliminating idle vibrations and protecting the spindle and bearings of the router machine.
  • Perfect Profile-Counter-profile Fit: the 2 router bits are matched and calibrated together — door and frame joints are tight, without manual adjustments.
  • Long-Term Investment: the inserts can be successively resharpened at a specialized center, and after advanced wear, the router bit body can be re-brazed.

🛠️ SELECTION GUIDE: HSS M2 vs. T.C.T. CARBIDE

The choice of material directly influences the quality of the finish and the tool's lifespan (swipe left-right on mobile):

Material to be Processed HSS M2 Premium ⭐
(High-Speed Steel) 		T.C.T. Carbide ⭐
(Tungsten Carbide)
Solid Wood
(Spruce, Fir, Beech, Oak) 		⭐ Optimal
Glossy finish, no sanding required		 Recommended
Standard cutting
Raw or Painted MDF / HDF Not Recommended
Rapid wear		 ⭐ Optimal
Resistant to binders
Melamine Particleboard / Composites Strictly Not Recommended ⭐ Optimal
Prevents chipping
Blade Hardness 64–66 HRC 85–92 HRC

🦺 PRACTICAL TIPS FOR INSTALLATION AND OPERATION:

  1. Test on scrap material: before series production, perform a control routing on a piece of scrap wood to verify the perfect right-angle fit of the profiles.
  2. Clean the spindle: remove any traces of dust or resin deposits from the machine's spindle before assembly — any residues can cause unwanted radial runout.
  3. Constant feed at 6,000–9,000 RPM: a uniform feed keeps the cutting edge cool and eliminates the risk of burning on materials with glues or tannins.
