Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.03 | HSS or T.C.T Carbide

Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.03 | HSS or T.C.T Carbide

02.03h12HSS-d32/30

471,00 RON
570,00 RON 471,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Inserts x Profile x Bore (d)

Low stock: 1 left

2-Piece Matched Router Bit Set for Cabinet Doors and Drawers (20–24 mm) – HSS M2 / T.C.T. Carbide

Professional set of 2 bore router bits, matched, for creating decorative profiles and counter-profiles on cabinet doors, drawer fronts, and frames made of solid wood or wood-based panels. Calibrated working thickness for 20–24 mm components. Available in HSS M2 Premium and T.C.T. Carbide variants — select from the menu.

Active Working Thickness Working Thickness20–24 mm (finished components – frames, doors, drawer fronts)

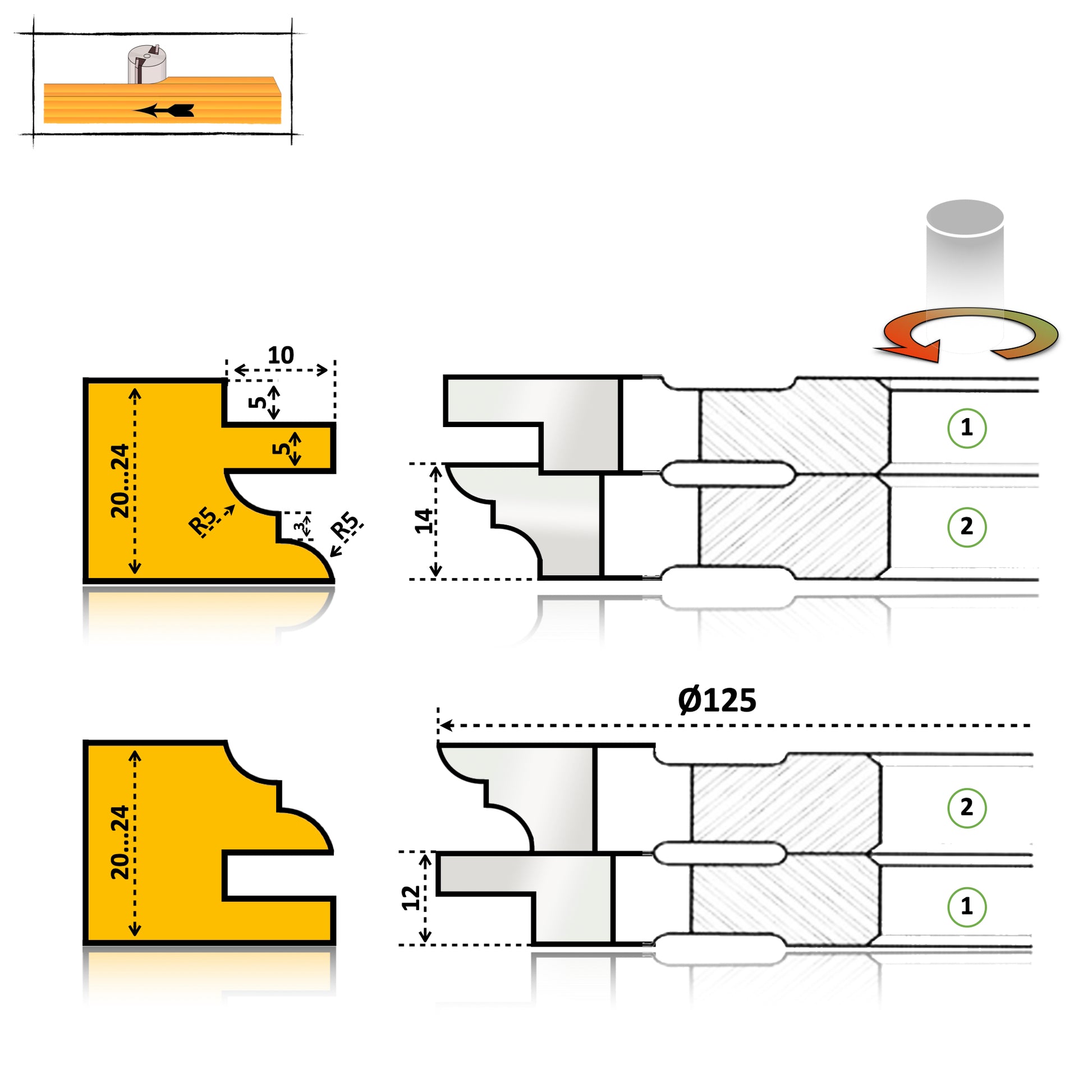

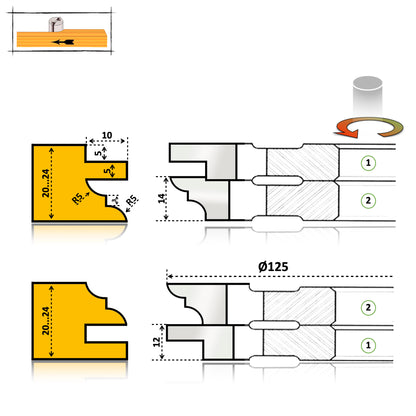

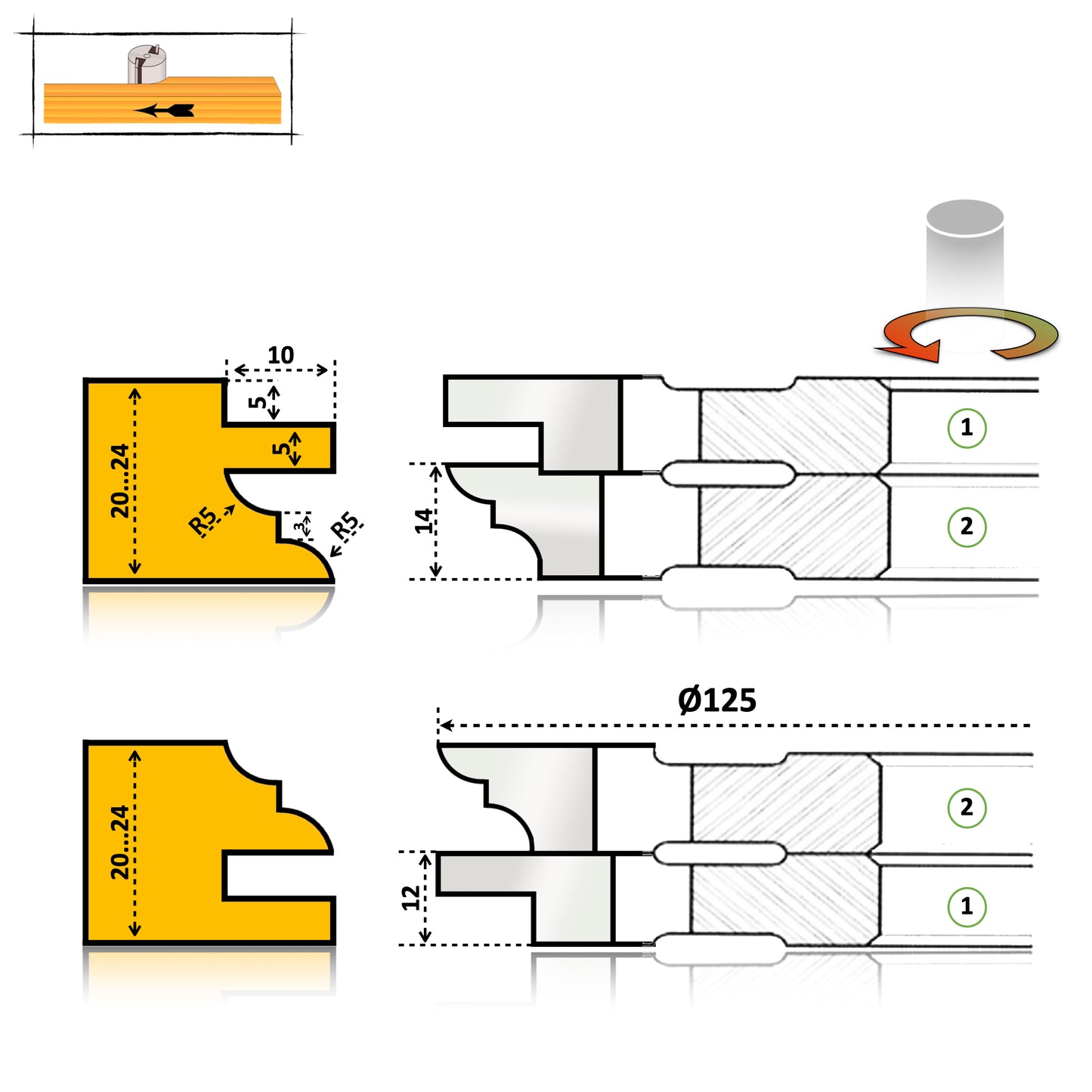

Outer Diameter (D) Outer Diameter (D)According to the attached technical drawing
Bore Diameter (d) Bore Diameter (d)See the variants list in the menu (d32/30 = comes with reduction bushing). Custom sizes available upon request.
Cutting Material Cutting MaterialHSS M2 Premium – 4 brazed inserts with silver alloy (Ag), 64–66 HRC, 6 mm insert | T.C.T. Carbide – 4 brazed inserts, 85–92 HRC, 3 mm insert – select variant
Construction Type Construction TypeBrazed profile tools, successively resharpenable; re-brazeable for advanced wear
Set Configuration Set Configuration2 matched profile router bits (profile + counter-profile)
Recommended RPM RPM6,000 – 9,000 RPM (marked on the packaging box and on the router bit body – observe the indicated RPM)
Country of Origin Country of OriginUkraine

✨ PROPERTIES AND ADVANTAGES:

  • Deep and Well-Defined Profiles: the calibrated working space for 20–24 mm allows for clear decorative reliefs, with a massive and elegant look – specific to quality furniture.
  • CNC Dynamic Balancing: the body of each router bit is machined on high-precision CNC machines, eliminating idle vibrations and protecting the spindle and bearings of the routing machine.
  • Perfect Profile-Counter-profile Match: the 2 router bits are matched and calibrated together — door and frame joints come out tight, without manual adjustments.
  • Long-Term Investment: the inserts can be successively resharpened at a specialized center, and for advanced wear, the router bit body can be re-brazed.

🛠️ SELECTION GUIDE: HSS M2 vs. T.C.T. CARBIDE

The choice of material directly influences the finish quality and tool lifespan (swipe left-right on mobile):

Material Processed HSS M2 Premium ⭐
(High-Speed Steel) 		T.C.T. Carbide ⭐
(Tungsten Carbide)
Solid Wood
(Spruce, Fir, Beech, Oak) 		⭐ Optimal
Glossy finish, no sanding		 Recommended
Standard cut
Raw or Painted MDF / HDF Not Recommended
Rapid wear		 ⭐ Optimal
Resistant to binders
Melamine Particleboard / Composites Strictly Not Recommended ⭐ Optimal
Prevents chipping
Cutting Edge Hardness 64–66 HRC 85–92 HRC

🦺 PRACTICAL TIPS FOR INSTALLATION AND OPERATION:

  1. Test on sacrificial material: before serial production, perform a test cut on a piece of sacrificial wood to check the perfect right-angle fit of the profiles.
  2. Clean the spindle: remove any dust or resin deposits from the machine spindle before installation — any residue can cause unwanted radial runout.
  3. Constant feed at 6,000–9,000 RPM: uniform feed keeps the cutting edge cool and eliminates the risk of burning on materials with glues or tannins.
