Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.04 | HSS or TCT

Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.04 | HSS or TCT

02.04h14HSS-d30

471,00 RON
570,00 RON 471,00 RON
Sale Sold out
Taxes included. Shipping calculated at checkout.
Inserts x Profile x Bore (d)

Low stock: 1 left

2-Piece Profile-Counterprofile Router Bit Set for Cabinet Doors and Drawers (20–24 mm) – HSS M2 / T.C.T. Carbide

Professional set of 2 bore router bits, paired, for creating decorative profiles and counterprofiles on cabinet doors, drawer fronts, and frames made of solid wood or wood-based panels. Calibrated working thickness for 20–24 mm components. Available in HSS M2 Premium and T.C.T. Carbide variants — select from the menu.

Active Working Thickness Working Thickness20–24 mm (finished components – frames, doors, drawer fronts)

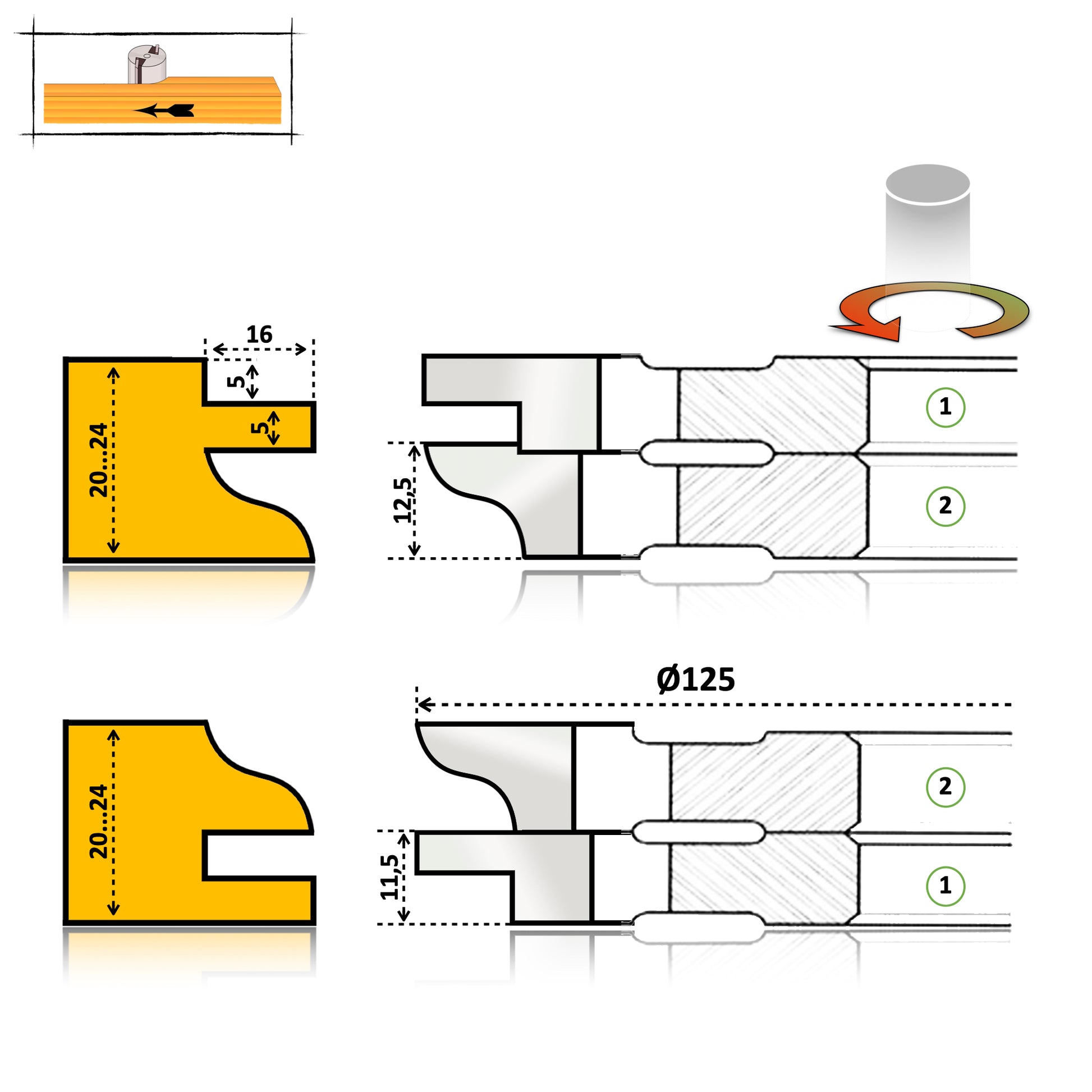

Outer Diameter (D) Outer Diameter (D)According to the attached technical drawing
Bore Diameter (d) Bore Diameter (d)See the list of variants in the menu (d32/30 = comes with reduction bushing). Custom sizes available upon request.
Cutting Material Cutting MaterialHSS M2 Premium – 4 brazed inserts with silver alloy (Ag), 64–66 HRC, 6 mm insert | T.C.T. Carbide – 4 brazed inserts, 85–92 HRC, 3 mm insert – select variant
Construction Type Construction TypeBrazed profile tools, successively resharpenable; rebrazable upon advanced wear
Set Configuration Set Configuration2 paired profile router bits (profile + counterprofile)
Recommended Speed Speed6,000 – 9,000 RPM (marked on packaging box and tool body – adhere to indicated speed)
Country of Origin Country of OriginUkraine

✨ PROPERTIES AND ADVANTAGES:

  • Deep and Well-Defined Profiles: The calibrated working space for 20–24 mm allows for clear decorative reliefs, with a solid and elegant appearance – typical for quality furniture.
  • Dynamic CNC Balancing: The body of each router bit is machined on high-precision CNC machines, eliminating idle vibrations and protecting the spindle and bearings of the router machine.
  • Perfect Profile-Counterprofile Fit: The two router bits are paired and calibrated together — the joint of doors and frames results in a tight fit, without manual adjustments.
  • Long-Term Investment: The inserts can be successively resharpened at a specialized center, and in case of advanced wear, the tool body can be rebrazed.

🛠️ SELECTION GUIDE: HSS M2 vs. T.C.T. CARBIDE

The choice of material directly affects the finishing quality and tool lifespan (swipe left-right on mobile):

Processed Material HSS M2 Premium ⭐
(High-Speed Steel) 		T.C.T. Carbide ⭐
(Tungsten Carbide)
Solid Wood
(Spruce, Fir, Beech, Oak) 		⭐ Optimal
Glossy finish, no sanding		 Recommended
Standard cut
Raw or Painted MDF / HDF Not recommended
Rapid wear		 ⭐ Optimal
Resistant to binders
Melamine Particleboard / Composites Strictly not recommended ⭐ Optimal
Prevents chipping
Cutting Edge Hardness 64–66 HRC 85–92 HRC

🦺 PRACTICAL MOUNTING AND OPERATION TIPS:

  1. Test on sacrificial material: Before serial production, perform a test cut on a piece of sacrificial wood to check for perfect right-angle profile matching.
  2. Spindle cleaning: Remove dust or resin deposits from the machine spindle before mounting — any residues can cause unwanted radial runout.
  3. Constant feed at 6,000–9,000 RPM: A uniform feed keeps the cutting edge cool and eliminates the risk of burns on materials with glues or tannins.
