SolGrat

Decking Bore Cutter – HSS M2 | Z4 or Z6

SKU: D1FD125B130z4-d40
€334,36 incl. VAT
Only 1 left
Limited stock
Width (B) x Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

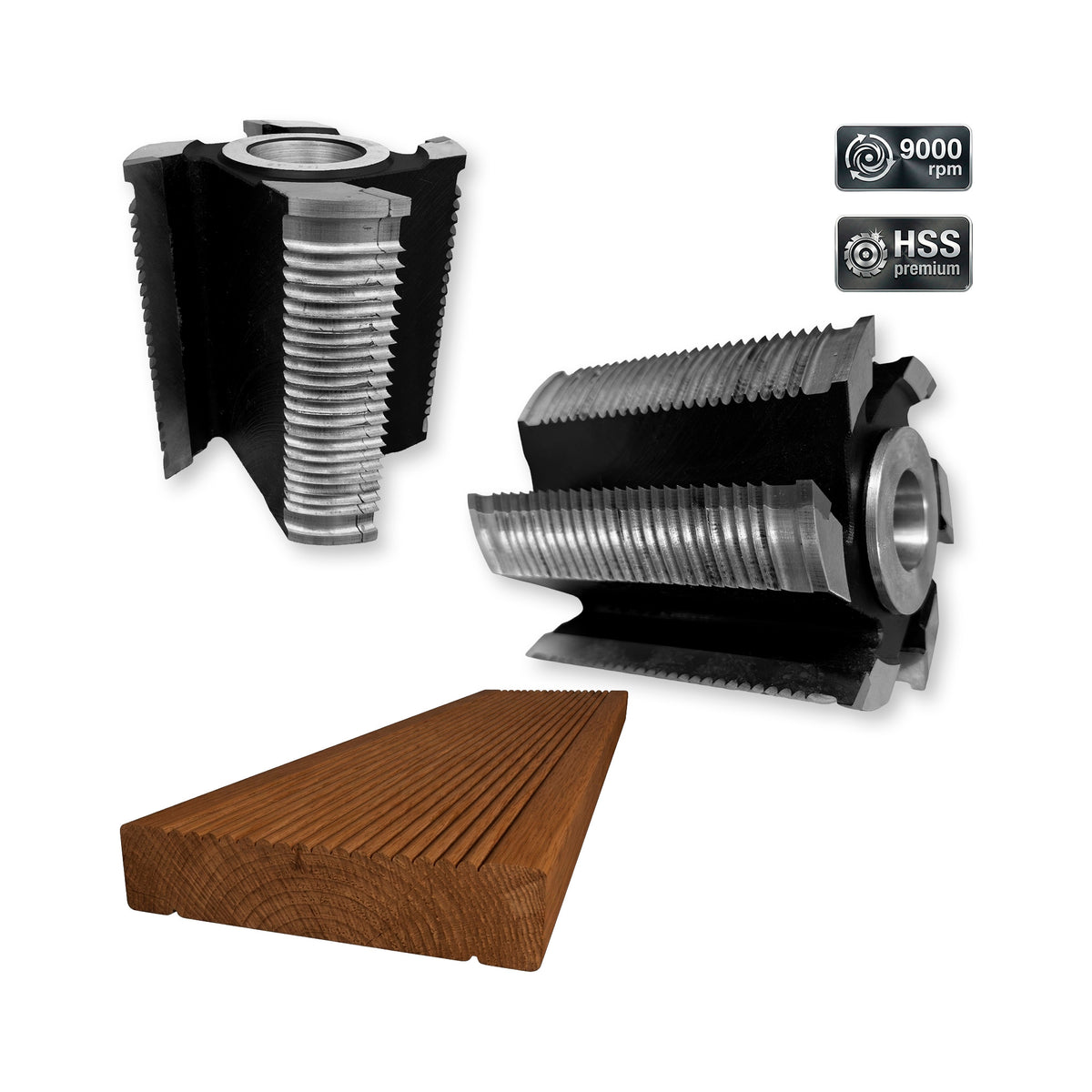

Decking and Terrace Profile Router Bit – HSS M2 | Z4 / Z6 | Custom Made

HSS M2 premium high-speed steel profile router bit, designed for creating the specific profile of decking boards – drainage grooves, anti-slip surface profile. Available in Z4 (4 teeth) and Z6 (6 teeth) variants, with working space and diameter according to the attached technical drawing. Custom-made with desired dimensions – diameter, bore, number of teeth – for both classic milling machines and 4-sided machines. Select the variant from the menu.

Outer Diameter (D) Outer Diameter (D)According to attached technical drawing | Custom: specify desired dimension
Active Working Space Working SpaceAccording to attached technical drawing | Custom: specify desired dimension
Arbor Hole (d) Arbor Hole (d)Custom: specify desired bore (standard for classic machines or 4-sided machines)
Number of Teeth Number of TeethZ4 (4 teeth) or Z6 (6 teeth) – select from menu
Cutting Material Cutting MaterialHSS M2 Premium (6.5% Tungsten) – 64–66 HRC | Brazed with silver alloy (Ag), successively resharpenable; re-brazeable for advanced wear
Main Application ApplicationDecking profile – drainage grooves, anti-slip surface.
Machine Compatibility Machine CompatibilityClassic milling machines with standard bore | Industrial 4-sided machines – specify when ordering
Recommended RPM RPMMarked on the cutter body – observe the indicated RPM
Package Contents Package Contents1 router bit (variant selected from menu)
Country of Origin Country of OriginUkraine

✨ ADVANTAGES:

  • Z4 vs Z6 – How to Choose: Z4 (4 teeth) offers better chip evacuation and faster feed – recommended for softwoods or mass production. Z6 (6 teeth) ensures a finer profile finish – recommended for hardwoods or when surface quality is a priority.
  • Custom Made – Personalized Dimensions: if you have a specific decking profile or a machine with non-standard parameters, we can custom-make the router bit to your desired dimensions – diameter, bore, working space, number of teeth. Contact us with the technical drawing or specifications.
  • HSS M2 – Hardwood Performance: M2 high-speed steel is the ideal material for the wood species used in decking – pine, spruce, oak, acacia, thermally modified wood – offering a sharp and durable cutting edge without the risk of burning.
  • Long-Term Investment: the inserts can be successively resharpened; in case of advanced wear, the cutter body can be re-brazed.

📊 COMPATIBILITY WITH DECKING WOOD TYPES

Softwood (Pine, Spruce, Fir – resinous decking) 100%

Excellent: Z4 recommended for quick evacuation of resinous sawdust.
Hardwood (Oak, Acacia, Thermally Modified Wood) 90%

Very good: Z6 recommended for a cleaner profile finish on dense woods.
Dense Exotic Wood (Ipe, Bangkirai, Cumaru) 70%

Acceptable: HSS M2 works, but for intensive production on exotic wood, we recommend the T.C.T. carbide variant – contact us for an offer.

📐 HOW TO ORDER CUSTOM DIMENSIONS:

If you need a router bit with specific profile or dimensions not found in the menu options:

  1. Contact us at office@solgrat.com with the desired specifications or the technical drawing of the profile.
  2. Specify: outer diameter (D), bore (d), working space, number of teeth, and machine type (classic machine or 4-sided).
  3. We will send you a price offer and execution time within a maximum of 24 working hours.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Order several variants

Variant Quantity Price Total
Decking Bore Cutter – HSS M2 | Z4 or Z6

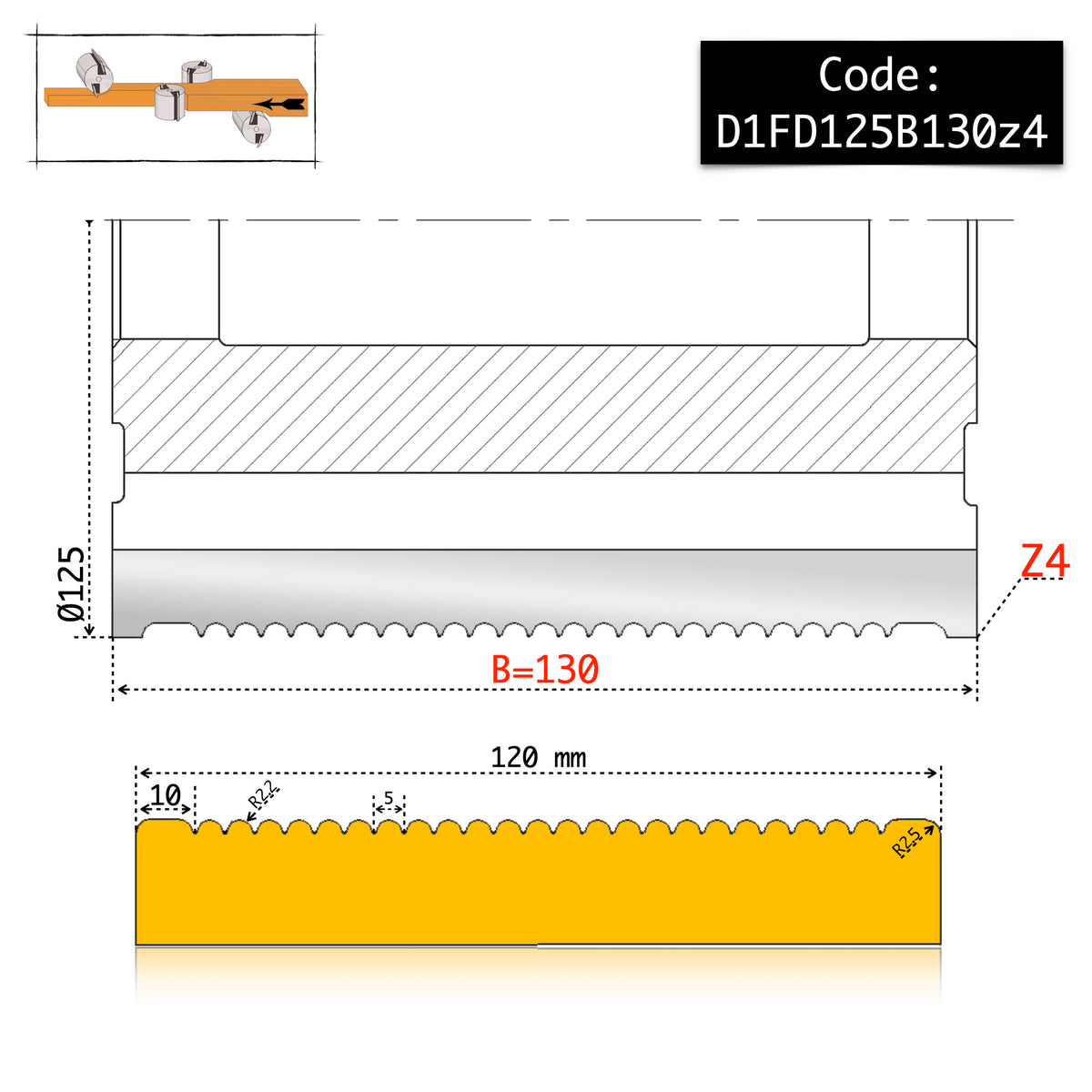

130 mm x Ø40 D1FD125B130z4-d40
€334,36 incl. VAT
€0,00
€334,36 incl. VAT
€0,00
Decking Bore Cutter – HSS M2 | Z4 or Z6

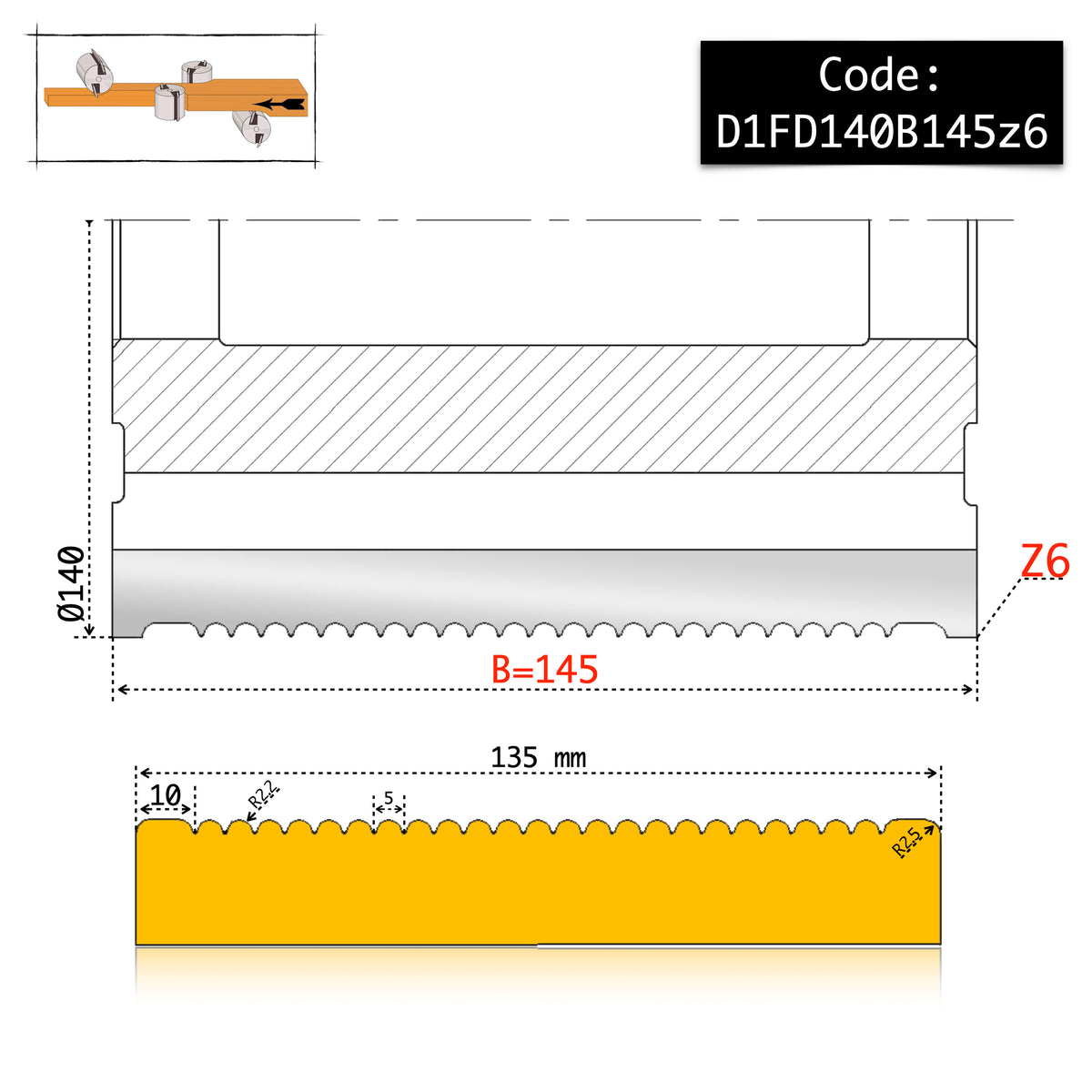

145 mm x Ø40 D1FD140B145z6-d40
€448,99 incl. VAT
€0,00
€448,99 incl. VAT
€0,00
