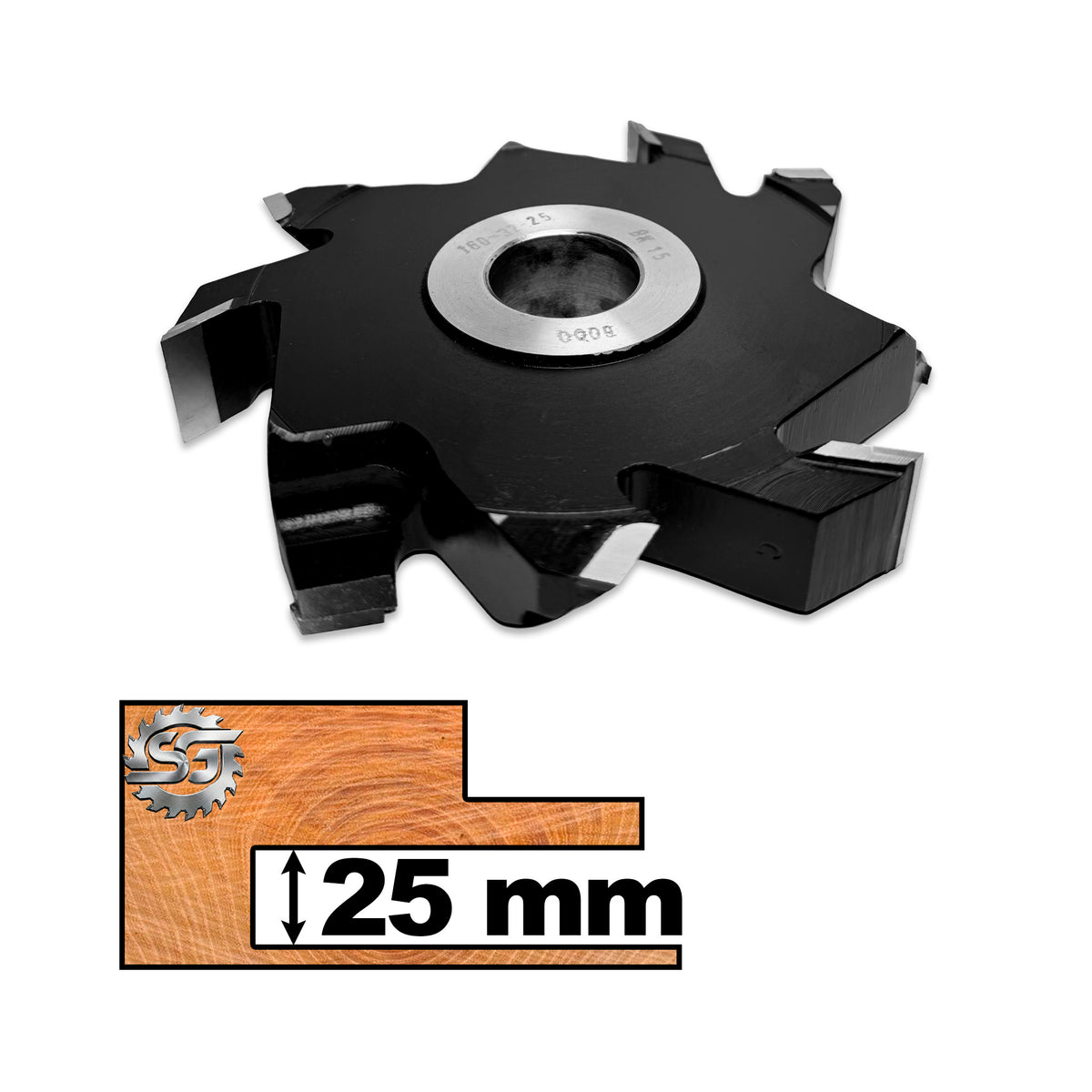

Freză circulară Widia 160x25 mm cu pre-tăietori pentru canale curate în PAL și MDF.

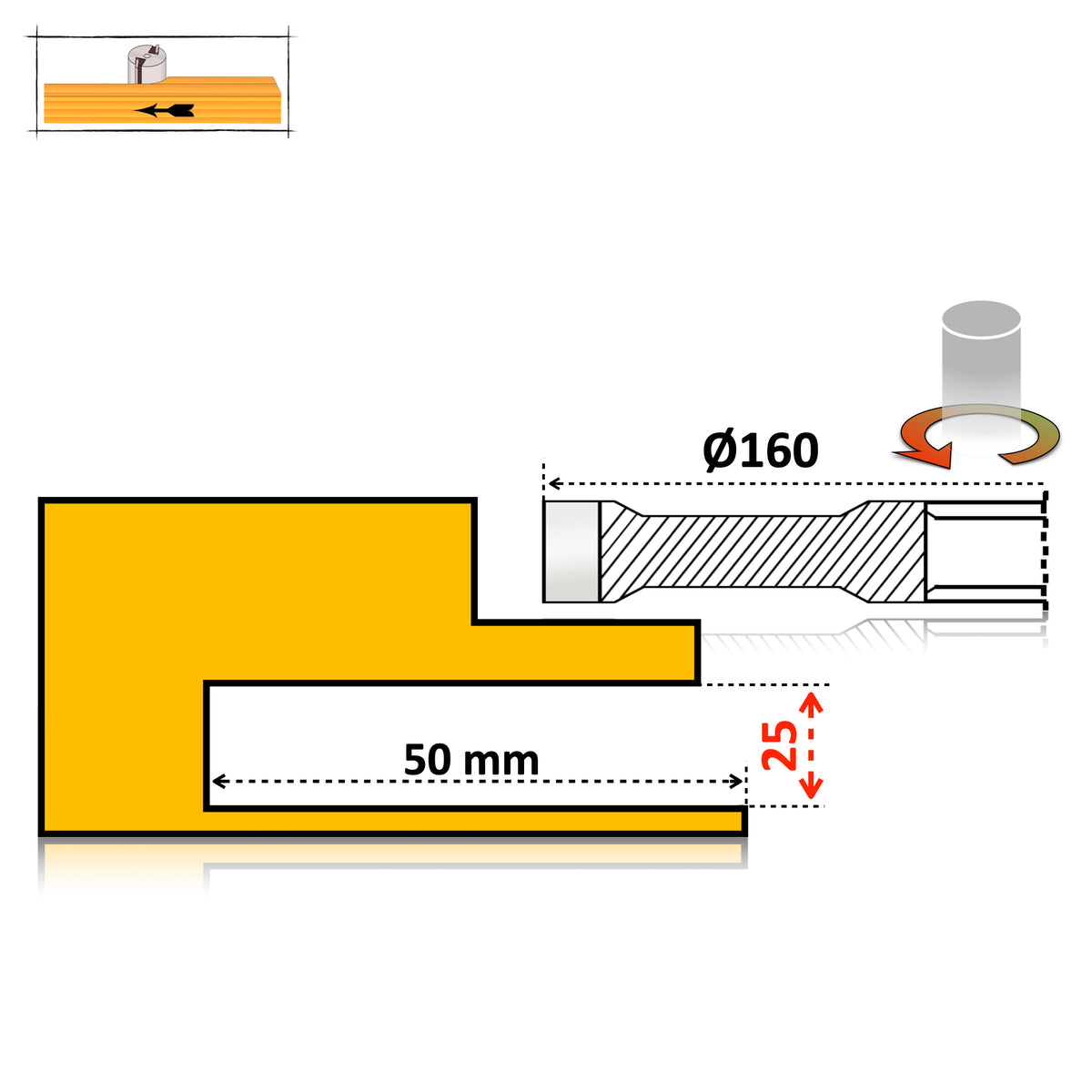

Detaliu cuțite pre-tăietoare freză nut 160 mm, configurație 3+3+3 pentru finisaj fără așchiere.

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Rebate Cutter 160 x 25 mm with Pre-Cutter - Brazed HW (K40)

SKU: K160*25V-d32

€72,60 incl. VAT

-30% ~~€103,17~~ €72,60 incl. VAT

Out of stock

Bore (d)

32/30 mm

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Industrial Performance for Chip-Free Finishing

🔩 Technical Specifications:

Feature	Value
Outer Diameter	160 mm
Active Working Space	>25 mm
Number / Type of Teeth	9 brazed inserts on brass alloy (Cu-Zn)
Hardness	85…92 HRC
Recommended RPM	> 6000 rpm
Wear Resistance	up to 3,000 linear meters in softwood
Inserts	Replaceable – long-term investment
Router Bit Quantity per Package	1 pc.
Package Weight	2200 g.

This router bit is the ideal choice for creating wide grooves and rebates in demanding materials such as melamine-faced chipboard, MDF, or laminated wood. Thanks to its generous 160 mm diameter and special tooth configuration, the tool offers exceptional stability and increased working speed on industrial machines with a vertical spindle.

Why choose this model with pre-cutters?

The secret to an impeccable finish lies in the 3+3+3 cutting system. The router bit is equipped with high-density carbide (Widia) inserts, strategically arranged:

Base knives: Ensure rapid material evacuation.
Pre-cutter knives: These "score" the wood fiber or melamine layer before the main cut. The result? Perfect edges, free of chips or tears, even when working across the grain.

✅ Main Advantages:

Clean cut on both sides: Integrated pre-cutters eliminate the need for subsequent edge sanding.
Maximum durability (Widia): Carbide cutting edges last up to 10 times longer than standard ones in abrasive materials (chipboard/MDF).
Reduced vibrations: The router bit body is electronically balanced to protect the machine spindle and ensure a consistent and smooth cut.
Versatility: Perfect for creating deep grooves, hinge recesses, or edge trimming on large formats.

This router bit represents a long-term investment for any joinery workshop that values speed and a superior quality finished product, ready for assembly.

WIDIA COMPATIBILITY:

Compatibility Explanations (%) for Cemented Carbide (Widia) Router Bits:

• 92–85%: Exceptional performance, the router bit operates efficiently with a long lifespan even under intensive use.

• 84–70%: Very good processing, but minor adjustments may be needed, such as feed rate or using a coolant to prevent overheating.

• 70%: Wood is extremely abrasive (e.g., very hard species or high silica content), which can accelerate blade wear, although durability remains superior to HSS router bits.

✅ Recommendation: For the hardest wood species (exotic, high-density, or rich in mineral resins), Widia router bits are the ideal solution due to their high hardness (85…92 HRC / 1600 – 1800 HV Vickers), offering exceptional resistance to wear and high temperatures.
