SolGrat

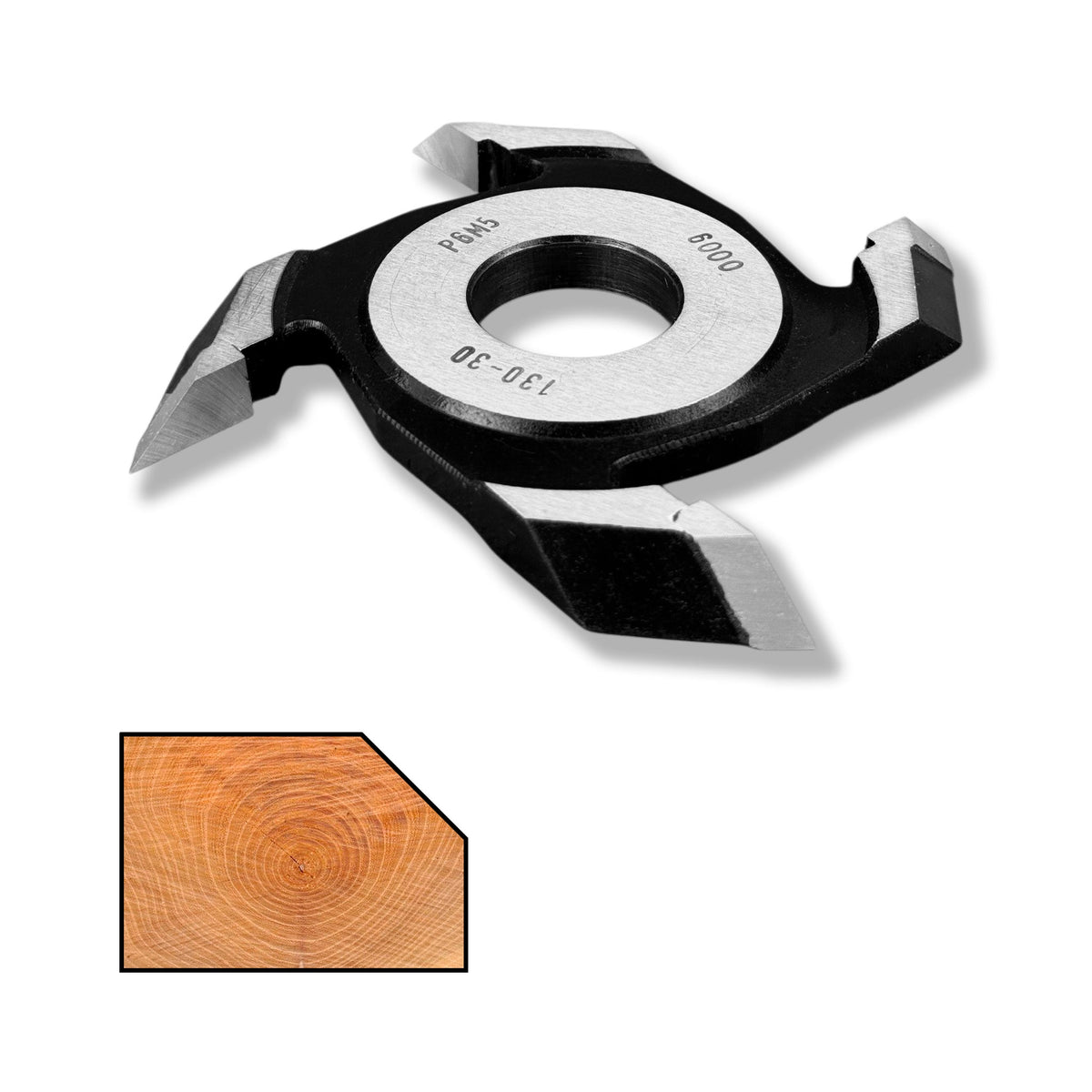

45° Chamfer Router Bit for Wood 10 mm - HSS or Carbide

SKU: K45G10RV-d30
€64,96 incl. VAT
Only 1 left
Limited stock
Tablets - Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

45° Chamfer/Bevel Cutter (10 mm Thickness) - SolGrat Industrial

Product Type 45° chamfer/bevel cutter
Available Variants HSS M2 (Right / Left) or T.C.T. Vidia (Right / Left) - Select variant
Outer Diameter (D) 130 mm
Active Working Space Maximum cutting thickness: 10 mm
Cutting Angle Perfectly calibrated 45°
Number of Teeth / Edges Z4 (4 active profiled, industrially brazed inserts)
Construction Type Fixed brazed inserts (Non-removable; resharpenable on the relief face)
Arbor Bore (d) Standard Ø30 mm (Also available in Ø35 or Ø40 mm upon request)
Recommended Speed 6,000 RPM (Ensures a clean, vibration-free cut)
Estimated Yield Up to 3,000 linear meters in soft wood (between resharpening cycles)
Country of manufacture Ukraine

⚙️ QUICK GUIDE FOR VARIANT CONFIGURATION

To ensure optimal performance on your machine, correctly select the cutting edge material and rotation direction (working position):

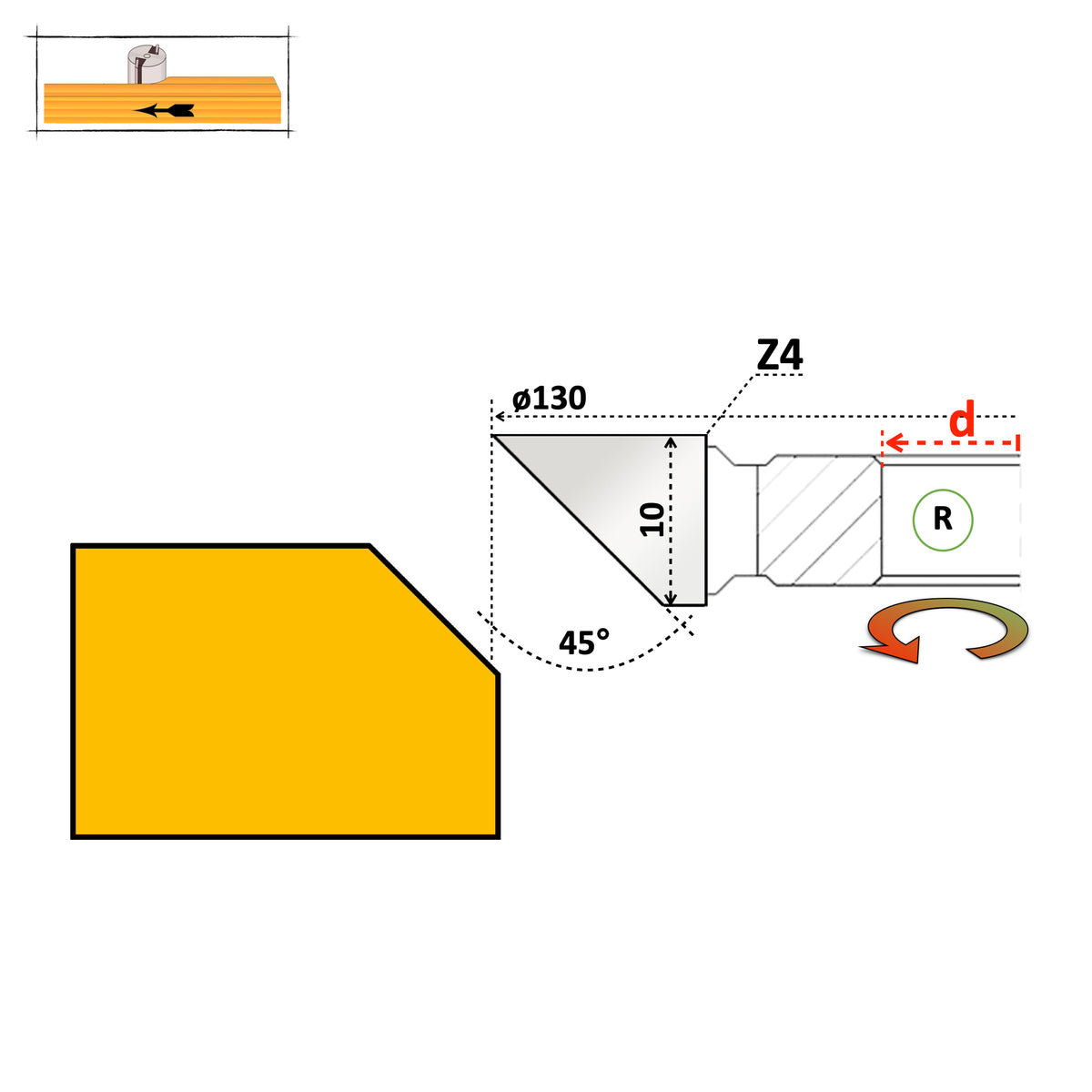

  • Right Rotation (Top Processing): Recommended when the cutter engages the material from above the wood piece, offering direct visibility of the edge.

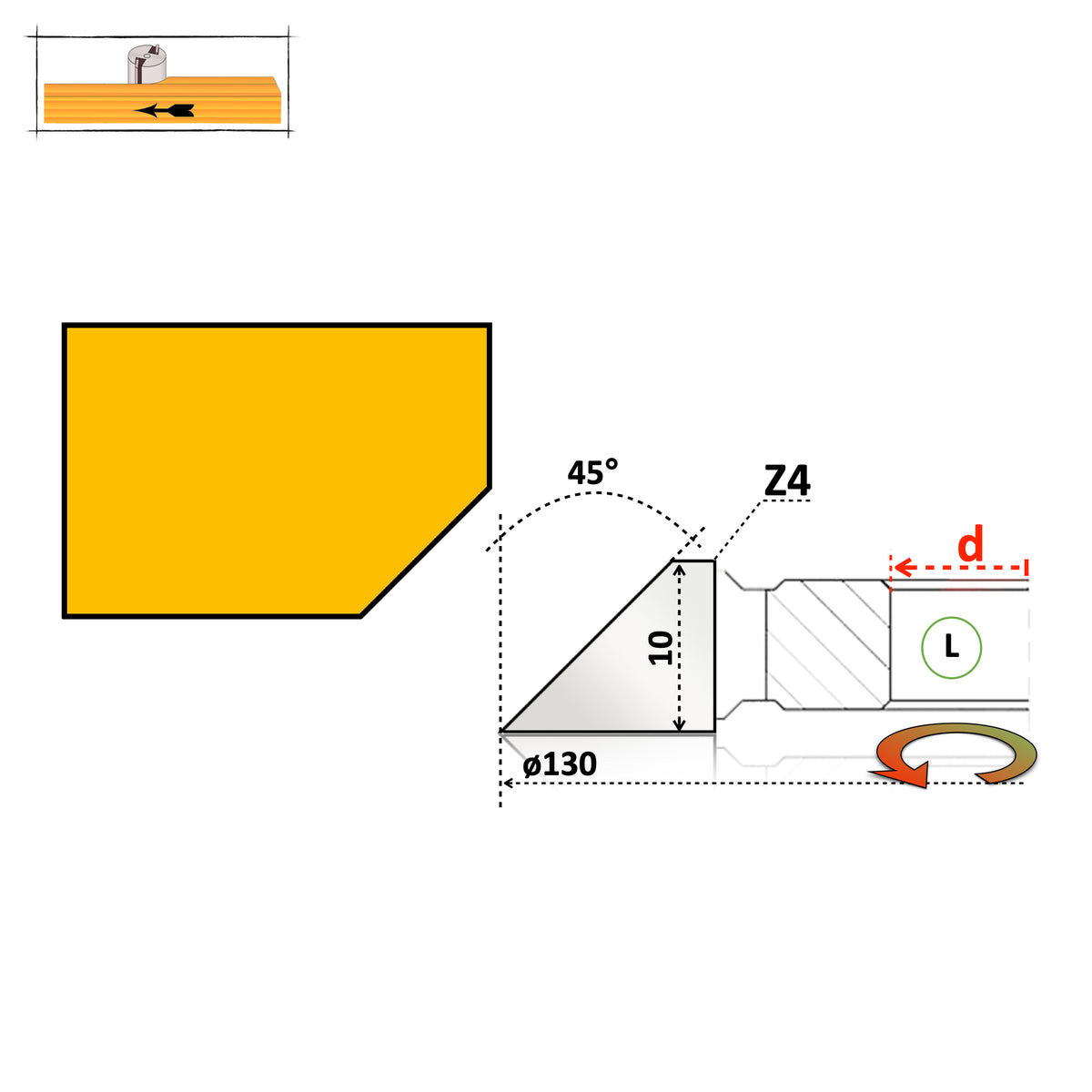

  • Left Rotation (Bottom Processing): Used for working underneath the wood piece, a method that offers increased safety and excellent chip evacuation due to gravity.
  • HSS M2 Premium Blade: Ideal exclusively for natural wood (soft and hard species). Leaves a perfectly smooth surface, without burn marks. Hardness: 64–66 HRC.
  • T.C.T. Vidia Blade: Mandatory for MDF, particle board, HDF, laminates, or composite materials with abrasive adhesives. Maximum hardness: 85–92 HRC.

DYNAMIC PROPERTIES AND PERFORMANCE

  • High-Precision Chamfering: The 45° angle is computer-rectified to ensure perfect corner joints or completely uniform decorative bevels along the entire panel.
  • Robust Z4 Configuration: The 4 active cutting edges share the chipping effort equally. This completely eliminates shocks, reduces vibrations transmitted to the machine's spindle, and increases feed rate.
  • Industrial Brazing Technology: Vidia variants are welded with high-performance brass alloy (Cu-Zn), and HSS variants with a special silver alloy (Ag). Both methods guarantee extreme resistance to high centrifugal forces.
  • Long-Term Investment: Although the inserts are fixed (brazed), the generous body allows for multiple successive resharpenings, maintaining the intact 45° profile for thousands of linear meters of work.

🛠️ Material Selection Guide: HSS vs. T.C.T. Vidia

The correct choice of cutting edge material directly influences finish quality and tool lifespan:

Processed Material HSS M2 Premium
(6.5% Tungsten) 		T.C.T. Vidia ⭐
(Carbide)
Softwood
(Fir, Spruce, Pine) 		⭐ 100%
(Impeccable Finish)		 ❌ Burn risk
(High friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Maximum resistance)
MDF / Particle board / HDF / Composite Not recommended (Instant wear) ⭐ 100%
(Optimal / Resists adhesives)

✅ Final recommendations for purchase:

  1. Correct Direction Selection: Ensure you select the correct variant (Right or Left) correlated with your machine's spindle rotation direction and the attack position (above or below the wood).
  2. Bore Configuration: The cutter comes standard with a Ø30 mm bore. If you require Ø35 or Ø40 mm, please specify this in the order comments field or contact our technical team.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
