SolGrat

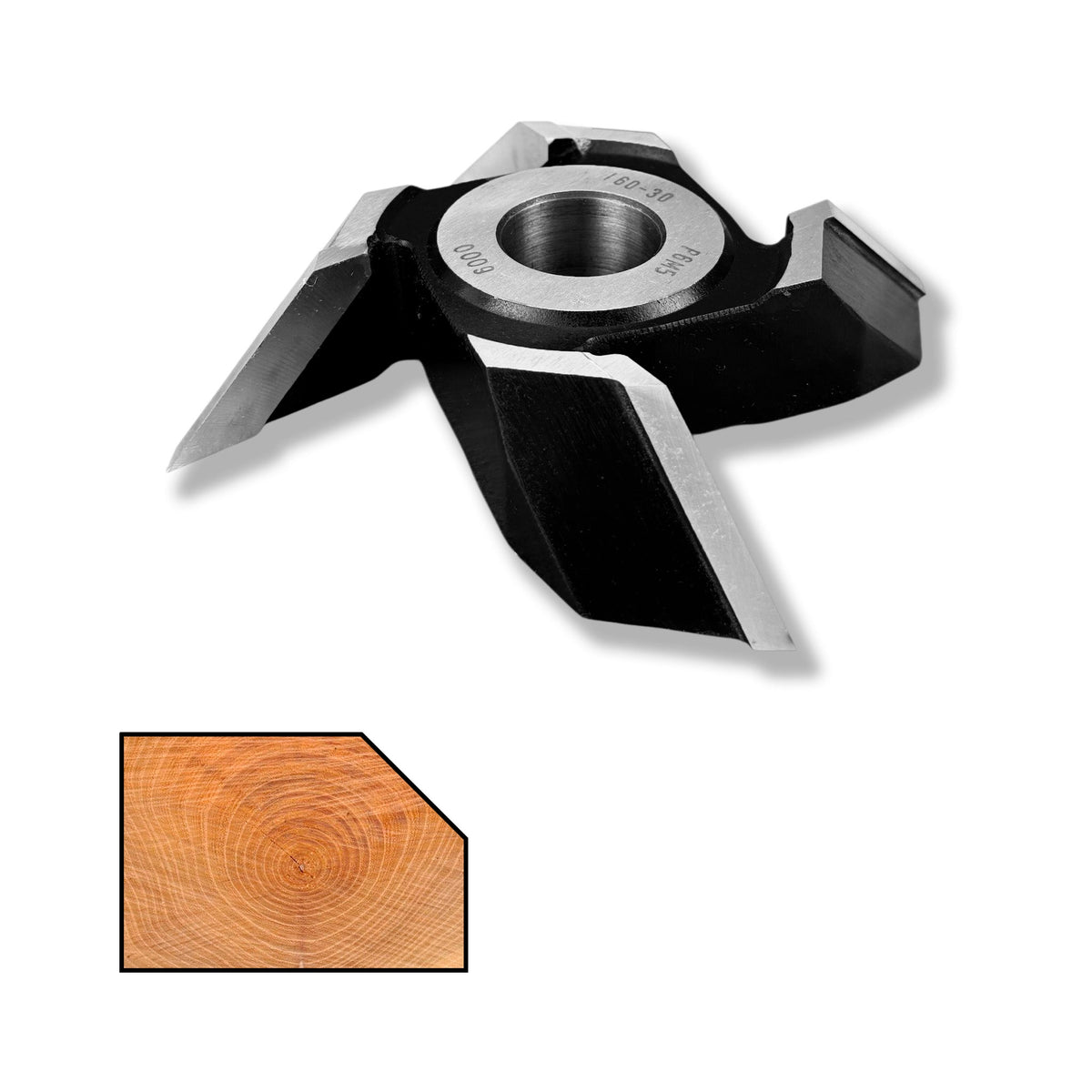

45° Chamfer Router Bit for Wood 30 mm - HSS or Carbide

SKU: K45G30RH-d30
€87,79 incl. VAT
-13% €100,96 €87,79 incl. VAT
Only 1 left
Limited stock
Tablets - Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

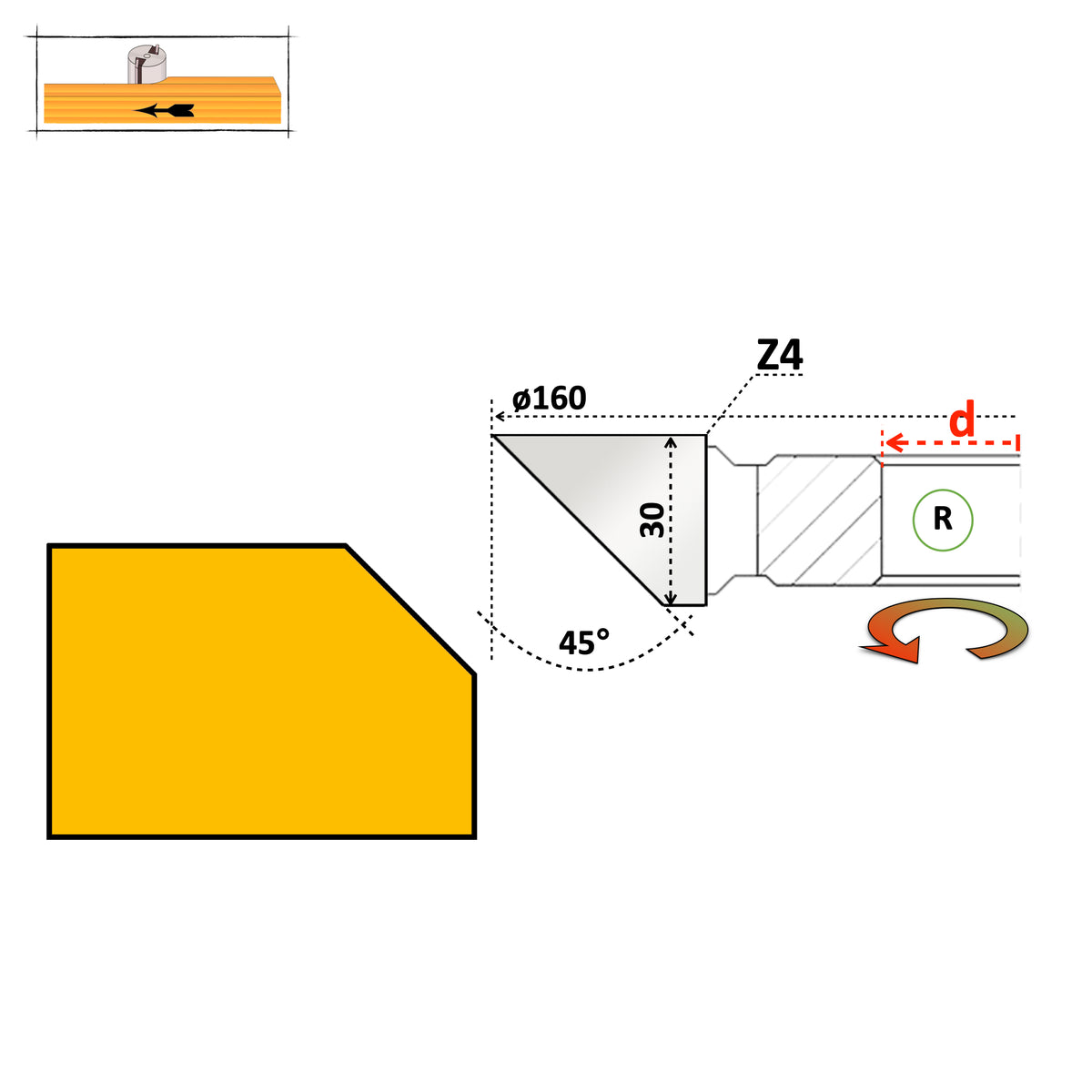

45° Chamfer / Bevel Cutter (30 mm Thickness) - SolGrat Industrial

Product Type 45° Chamfer / Bevel Cutter
Available Variants HSS M2 (Right / Left) or T.C.T. Carbide (Right / Left) - Select variant
Outer Diameter (D) 130 mm
Active Working Space Maximum cutting thickness: 30 mm
Cutting Angle Perfectly calibrated 45°
Number of Teeth / Edges Z4 (4 active profiled inserts, industrially brazed)
Construction Type Fixed brazed inserts (Non-removable; regrindable on the clearance face)
Arbor Bore (d) Standard Ø30 mm (Also available upon request in Ø35 or Ø40 mm variants)
Recommended Speed 6,000 RPM (Ensures a clean cut without vibrations)
Estimated Yield Up to 3,000 linear meters in soft wood (between sharpening cycles)
Country of Production Ukraine

⚙️ QUICK GUIDE FOR VARIANT CONFIGURATION

To ensure optimal performance on your machine, correctly select the cutting edge material and direction of rotation (working position):

  • Right Rotation (Processing Above): Recommended when the cutter attacks the material positioned above the workpiece, offering direct visibility of the edge.

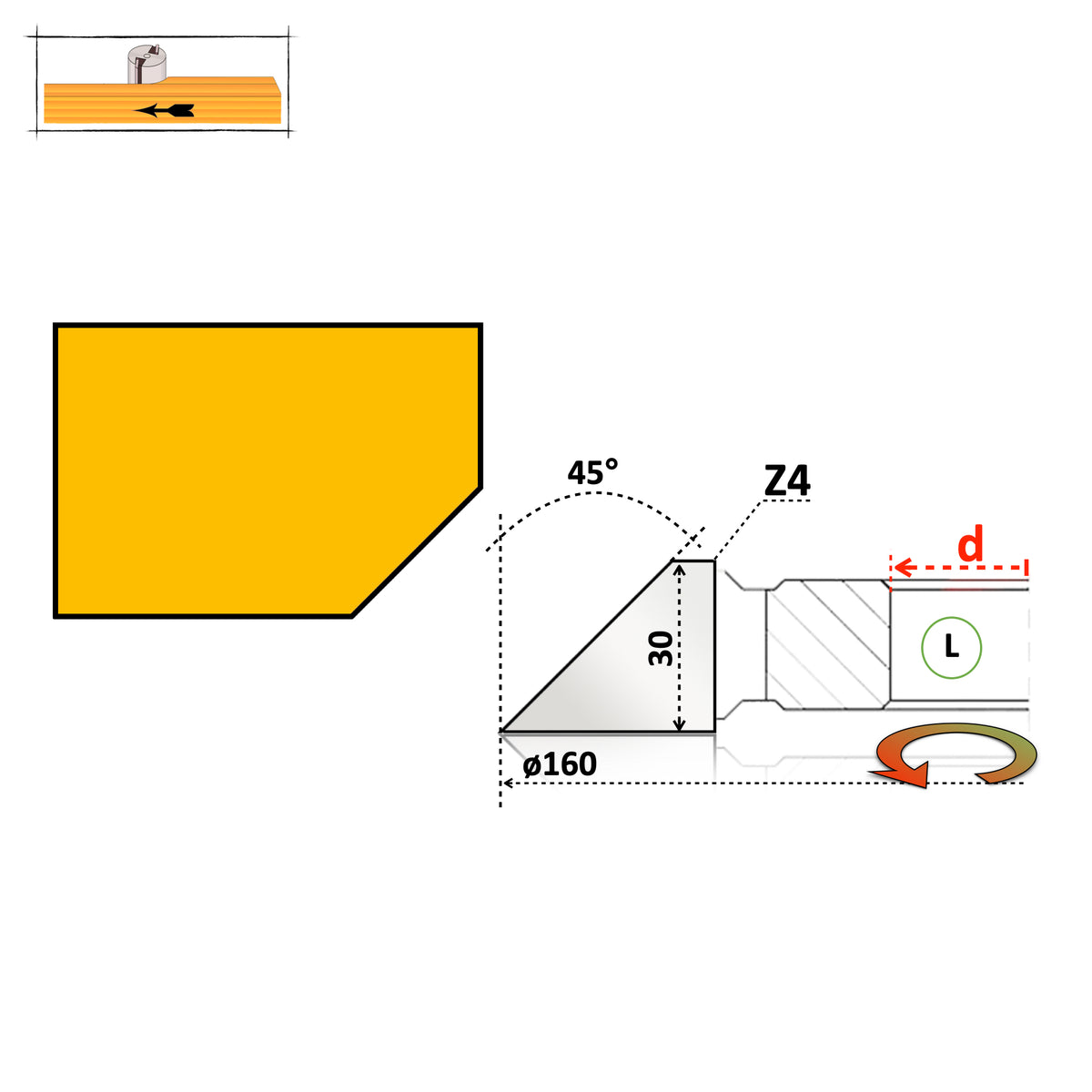

  • Left Rotation (Processing Below): Used for working underneath the workpiece, a method that provides increased safety and excellent chip evacuation by gravity.
  • HSS M2 Premium Blade: Ideal exclusively for natural wood (soft and hard species). Leaves a perfectly smooth surface, without burn marks.
  • T.C.T. Carbide Blade: Mandatory for MDF, chipboard, HDF, laminates, or composite materials with abrasive adhesives.

DYNAMIC PROPERTIES AND PERFORMANCE

  • High-Precision Chamfering: The 45° angle is computer-ground to ensure perfect corner joints or completely uniform decorative bevels along the entire panel.
  • Robust Z4 Configuration: The 4 active cutting edges evenly distribute the cutting effort. This completely eliminates shocks, reduces vibrations transmitted to the machine's spindle, and increases the feed rate.
  • Industrial Brazing Technology: Carbide variants are brazed with high-performance brass alloy (Cu-Zn), and HSS variants with a special silver alloy (Ag). Both methods guarantee extreme resistance to high centrifugal forces.
  • Long-Term Investment: Although the inserts are fixed (brazed), the generous body allows for multiple successive regrinds, maintaining the 45° profile intact for thousands of linear meters of work.

🛠️ Material Selection Guide: HSS vs. T.C.T. Carbide

The correct choice of cutting edge material directly influences the finish quality and tool lifespan:

Material Processed HSS M2 Premium
(6.5% Tungsten) 		T.C.T. Carbide ⭐
(Metallic Carbides)
Softwood
(Spruce, Fir, Pine) 		⭐ 100%
(Flawless Finish)		 ❌ Risk of burning
(High friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Maximum resistance)
MDF / Chipboard / HDF / Composite Not recommended (Instant wear) ⭐ 100%
(Optimal / Resists adhesives)
Blade Material Hardness 64 – 66 HRC 85 – 92 HRC

✅ Final recommendations for purchase:

  1. Correct Direction Selection: Make sure you select the correct variant (Right or Left) correlated with the rotation direction of your machine's spindle and the attack position (above or below the wood).
  2. Bore Configuration: By default, the cutter comes with a Ø30 mm bore. If you require Ø35 or Ø40 mm dimensions, please specify this in the order notes field or contact our technical team.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
