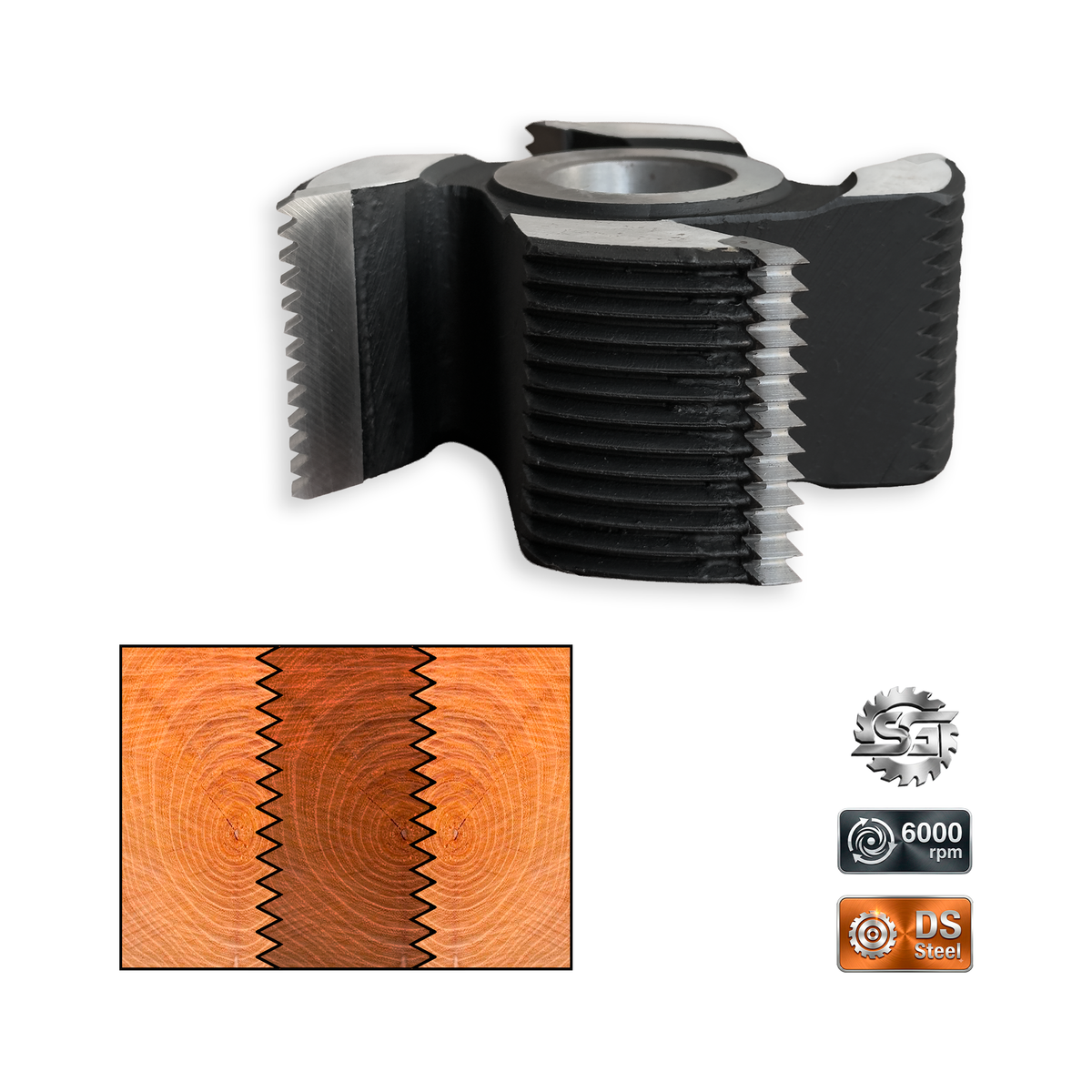

Freza reglabila pentru imbinare lemn lamelar latitudinal 50-120 mm Solgrat C04 DS Steel

Set freze din otel pentru imbinari dințate si panouri masive groase C04 DS Steel

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

Vatzo

Lamelar Latitudinal Wood Joint Router Bit 60 mm | D100 | d32 | Code - C02 | DS Steel

SKU: C04B50DS-d32

€113,87 incl. VAT

Only 1 left

Limited stock

Dimensiuni x Alezaj (d)

50 mm - d32/30

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

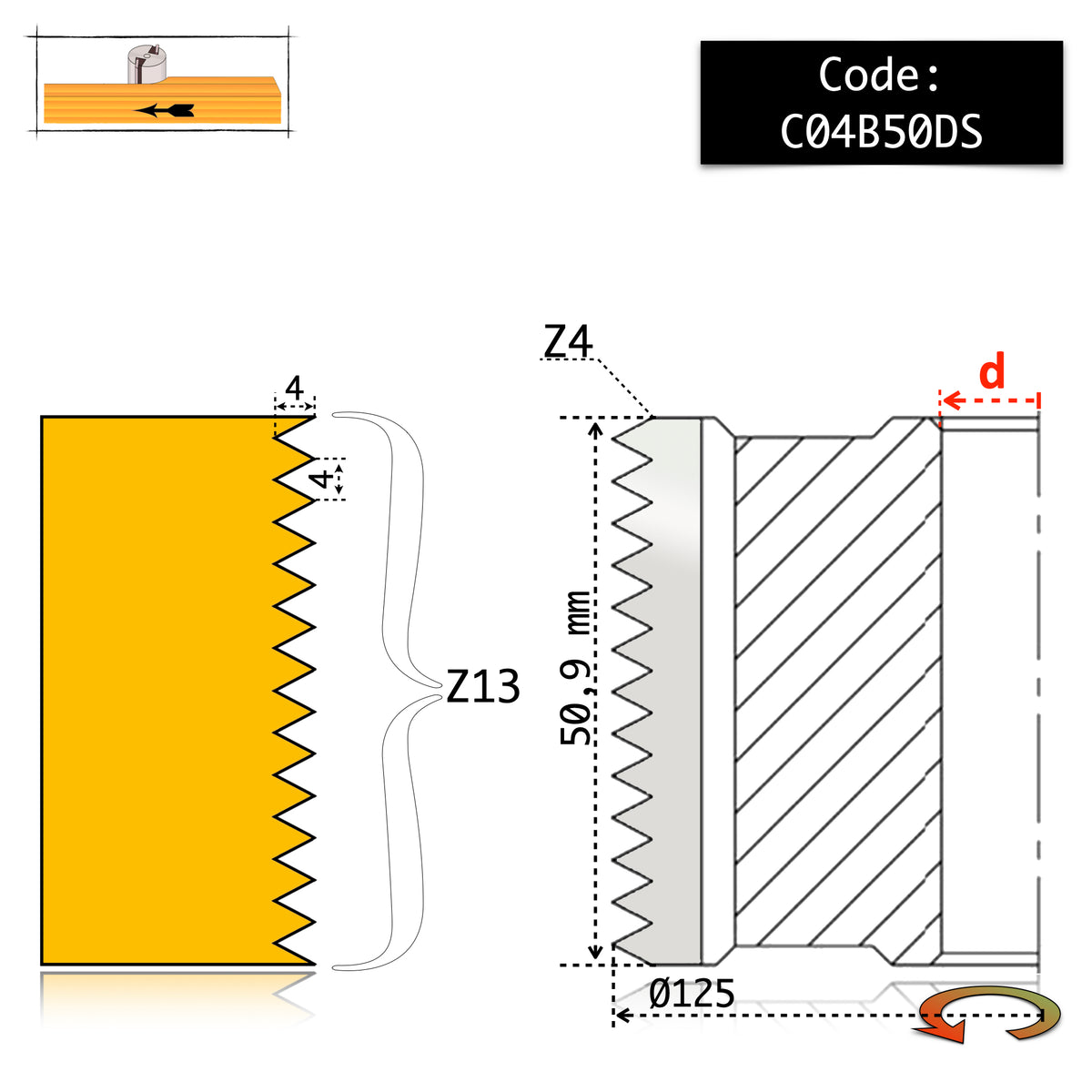

Latitudinal Lamellar Joint Cutter – DS Steel - DIY

Standard Bore (d)	Ø32 mm 🛠️ Adaptation options: For 30 mm spindle, reduction bushes are used (discount in package!). For 35 mm or 40 mm spindle, we offer the possibility of technical bore enlargement.
Active Cutting Material	DS Steel (Standard Joinery Steel, excellent economic choice)
Performance Range	DIY Series – Optimized for moderate use, small workshops, and craftsmen
Number / Type of Teeth	Z4 (4 pieces) – Industrially brazed cutters with special copper alloy
Tooth Profile Depth	2.5 mm (Conical lamellar profile with shoulder)
Minimum Material Thickness	Can work from a minimum panel thickness of 10 mm
Active Working Space	10 to 60 mm (Ideal for aligning wide panels)
Outer Diameter (D)	100 mm
Blade Hardness	58 – 61 HRC
Recommended Speed	6,000 RPM (Ensures clean cuts, without burn marks)
Construction Warranty	Replaceable profiled inserts – a smart and safe long-term investment
Country of Production	Ukraine

✨ DYNAMIC FEATURES AND PERFORMANCE (DIY SERIES)

Precise and Durable Joints: Specifically designed for creating strong joints between planks or panels. The conical lamellar profile with a shoulder increases the adhesive contact surface, ensuring uniform bonding and superior mechanical fastening.
Economical and Efficient Solution: The special DS Steel configuration is a rational option for small workshops, small-batch production, or carpentry work that requires a reliable tool without high acquisition costs.
Precision from 10 mm Thickness: Thanks to optimally designed teeth (2.5 mm depth), the cutter allows for complementary profiling even on thin pieces, starting from a wood thickness of just 10 mm.
Balance and Consistent Performance: With an external diameter of 100 mm and a recommended speed of 6,000 RPM, the tool guarantees stable operation, reducing vibrations on classic stationary or industrial machines.
Workshop Versatility: It is fully compatible with a wide range of professional routing machines used in solid wood panel processing and traditional furniture production.

💡 TECHNICAL ADJUSTMENT RECOMMENDATION FOR CRAFTSMEN:

To achieve a perfect counter-profile: For the final joint of the two wood pieces to be perfectly flush (without steps or unevenness on the surface), it is recommended that after routing the first piece, you lower or raise the cutter on the spindle by exactly half a tooth before routing the complementary piece.

⚠️ Limitations of use for the variant in this advertisement (DS Steel - DIY):

❌ NOT recommended for use on chipboard, MDF, HDF, or Exotic Wood!

❌ Intended exclusively for natural softwood (conifers, lime, etc.). For industrial volumes or hardwood, choose superior variants.

📌 Ideal for carpentry workshops, solid wood furniture, and projects based on softwoods!

🛠️ Professional Selection Guide: DS Steel vs. HSS vs. Carbide

Choosing the correct cutting material directly influences the desired finish and the tool's wear resistance. Consult the informative table below:

Material Processed	DS Steel ⭐ (DIY Standard - This Cutter)	HSS M2 Premium ⭐ (6.5% Tungsten / Р6М5)	T.C.T. Carbide ⭐ (Metal Carbides)
Softwood (Spruce, Fir, Pine, Lime)	90% (Good / Economical)	⭐ 100% (Burn-free finish)	❌ Risk of burning (Due to localized friction)
Hardwood (Beech, Oak, Ash)	40% (Rapid dulling)	80% (Structurally efficient)	⭐ 100% (Maximum durability)
MDF / Chipboard / HDF / Composite	Not recommended	Not recommended	100% (Optimized for industrial use)
Number of Resharpenings	Standard	Maximum (M2 resharpenable)	Structurally limited
Cutting Edge Material Hardness	~62 HRC	64 – 66 HRC	85 – 92 HRC

✅ Practical Conclusions for Purchase:

Are you working on standard structures made of Spruce or Fir? The DS Steel DIY Series variant in this ad is the perfect choice in terms of cost. It offers complete working freedom and secure joints on softwood with minimal investment.
Do you need greater durability on solid wood? For large daily volumes or essences such as Oak and Beech, we recommend you opt for the superior HSS M2 Premium variant from our catalog.
Do you need to route chipboard or agglomerated MDF? In this case, the only material capable of resisting the adhesives in pressed boards is the one with T.C.T. Carbide inserts.
