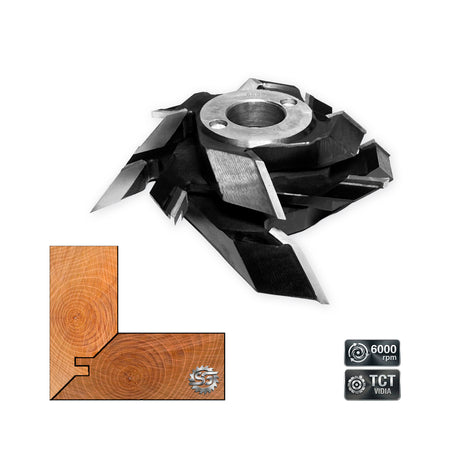

Freză de îmbinare la 45 grade din 3 corpuri fixe, cu spațiu de lucru pentru panouri de 25, 35 sau 42 mm, echipată cu plăcuțe brazate Carbura Vidia.
Cap de tăiere profilat pentru îmbinări tip lock miter la 45 de grade, construcție solidă pentru tâmplărie industrială și mobilier din lemn masiv.
Freză de îmbinare la 45 grade din 3 corpuri fixe, cu spațiu de lucru pentru panouri de 25, 35 sau 42 mm, echipată cu plăcuțe brazate Carbura Vidia.
Cap de tăiere profilat pentru îmbinări tip lock miter la 45 de grade, construcție solidă pentru tâmplărie industrială și mobilier din lemn masiv.

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

45° Lock Miter Wood Joint Cutter 25-42 mm | HSS or HW (K40)

SKU: SG-I45G25V-d30
€133,74 incl. VAT
-17% €160,49 €133,74 incl. VAT
Only 1 left
Limited stock
Material
Width (B) - Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

45° Lock Miter Cutter for Wood and MDF – HSS M2 or T.C.T. Carbide | 25–42 mm

Cutter for 45° Lock Miter corner joints, with automatic alignment and high structural strength — designed to produce the complementary male-female profile in a single pass. Available in HSS M2 Premium and T.C.T. carbide versions, for working thicknesses of 25, 35 or 42 mm — select the material and thickness from the menu.

Bore (d) Bore (d)Ø30 mm / Ø40 mm standard | custom versions on request
Workpiece Thickness Workpiece Thickness25 mm, 35 mm or 42 mm – select from the menu
Cutting Edge Material Cutting Edge MaterialHSS M2 Premium (6.5% tungsten) | T.C.T. carbide (ultra-hard tungsten carbide) – select the version
Cutting Edge Hardness HardnessHSS M2 – 64–66 HRC | T.C.T. carbide – 85–92 HRC
Number / Type of Teeth TeethZ4 – profiled tips industrially brazed with brass alloy (Cu-Zn)
Construction ConstructionIntegrated monobloc geometry, cutting edges brazed onto a rigid heat-treated alloy steel body
Recommended Speed Recommended Speed6,000 RPM
Country of Origin Country of OriginUkraine

✨ FEATURES AND PERFORMANCE:

  • Professional Lock Miter Joint System: designed specifically for 45° corner joints, it gives fast, automatic and highly precise panel alignment and outstanding structural strength in the finished assembly.
  • Anti-Vibration Monobloc Geometry: the compact body, dynamically balanced by CNC machining, eliminates idle vibration on shapers and stationary spindle moulders.
  • Self-Locking Joint in a Single Pass: produces the complementary male-female profile in one operation — large contact surface, perfect glue distribution, rigid angle fixing.
  • Wide Working Capacity: the profile allows efficient processing of parts of different thicknesses (25, 35 or 42 mm), depending on the selected version.
  • 2 Materials, 2 Best Uses: HSS M2 for a flawless finish on soft solid wood, T.C.T. carbide for maximum durability on MDF, particleboard and hardwoods.

⚠️ RECOMMENDATIONS AND USAGE LIMITATIONS:

  • HSS M2 version: ❌ NOT recommended for MDF, particleboard, HDF or very hard exotic wood — synthetic binders wear the high-speed steel edge prematurely. Intended for natural solid wood only.
  • T.C.T. carbide version on softwood: on very soft species (fir, spruce), keep a constant feed rate to avoid burn marks from local friction.

🛠️ SELECTION GUIDE: HSS M2 vs. T.C.T. CARBIDE

The cutting edge material directly affects finish quality and tool life (swipe left-right on mobile to see the full table):

Workpiece Material HSS M2 Premium ⭐
(6.5% tungsten) 		T.C.T. Carbide ⭐
(Tungsten carbide)
Softwood
(Fir, Spruce, Pine, Lime) 		⭐ 100%
(Glossy finish, no burning)		 ❌ Burning risk
(Local friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Structurally efficient)		 ⭐ 100%
(Maximum durability)
MDF / Particleboard / HDF / Laminated board Not recommended ⭐ 100%
(Industrial optimum)
Composite & Exotic Materials Not allowed ⭐ 100%
(Maximum efficiency)
Number of Resharpenings Maximum (M2 is resharpenable) Structurally limited
Edge Hardness 64 – 66 HRC 85 – 92 HRC
✅ Buying recommendations:
  1. Working mostly with MDF, particleboard or hard laminated panels? Choose the T.C.T. carbide version – the extreme hardness of tungsten carbide lets it cut composites without losing its edge to resins or the artificial density of the material.
  2. Working natural fir, spruce or pine? For soft solid wood, the HSS M2 Premium version has the edge — it cuts the fibre cleanly without crushing it, for a flawless look. If you will also be cutting MDF, stay with the carbide version.
  3. Speed and Constant Feed: carbide-tipped cutters need a constant feed rate; if the workpiece stops while the cutter is spinning at 6,000 RPM, the heat built up by friction can leave unsightly burn marks on natural wood.

🦺 SAFETY MEASURES:

  • Mandatory protective equipment: safety glasses, a respirator mask or filter (fine wood/MDF dust) and hearing protection for extended work.
  • Check the mounting of the cutter on the spindle and that the nut is fully tightened before starting.
  • Observe the recommended speed of 6,000 RPM to avoid vibration or damage to the cutting edge.
  • Use feed/push devices when working short parts — keep your hands away from the cutting zone.
  • Resharpening: we recommend having it done at a specialised service centre to preserve the Lock Miter profile geometry and the 45° angle.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
