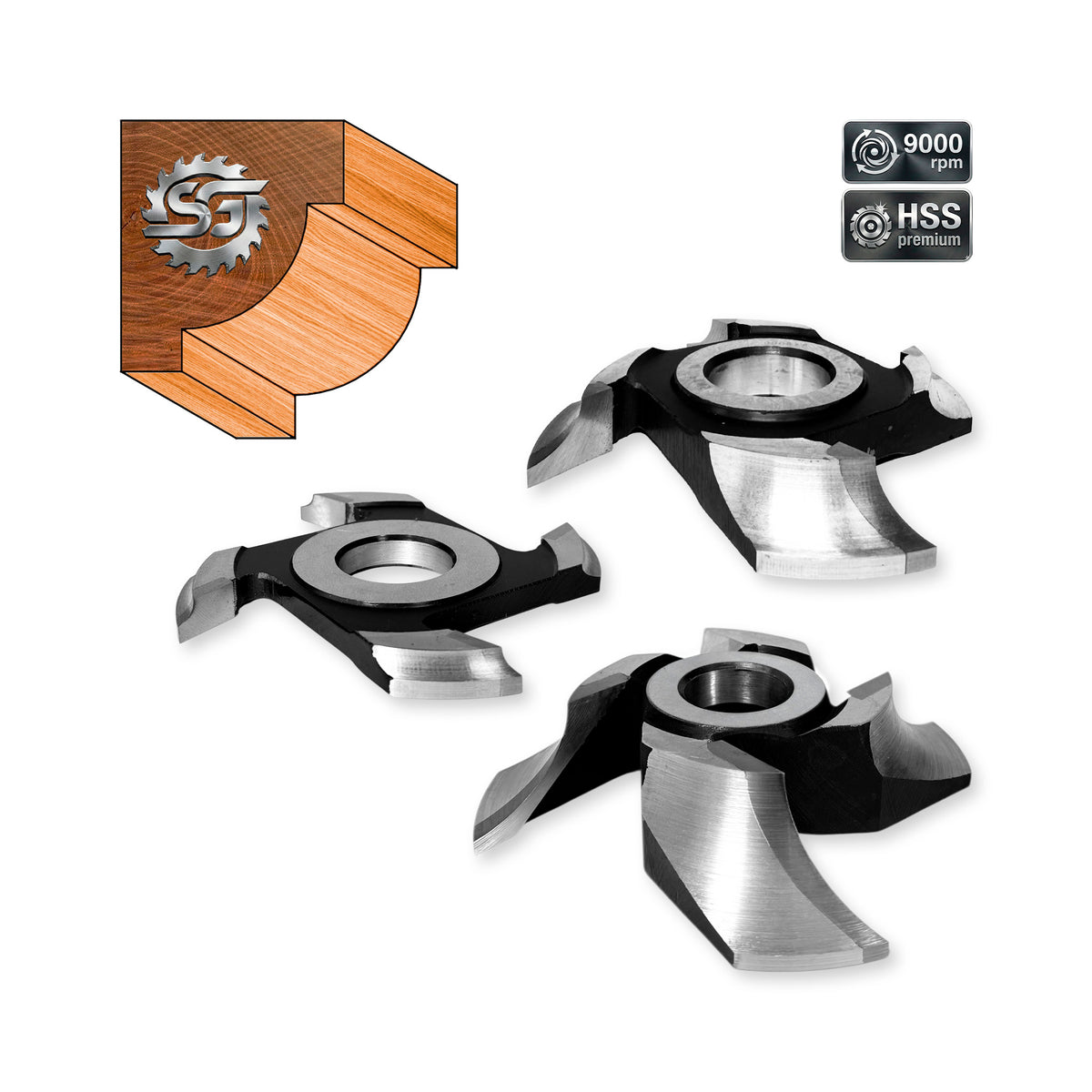

Professional bore-type shaper cutter for rounding wood edges with a concave quarter-round profile, Bottom Radius configuration (cutting below the workpiece) – for spindle moulder work with a fence, with the workpiece passing over the tool. The range covers radii from R3 to R60 mm, from fine decorative roundings to large profiles for posts, stairs, rustic furniture or beams. Available in HSS M2 and HW (K40) – select material, radius and bore from the menu.
| Profile | ProfileConcave quarter round (produces rounded convex edges) |
| Cutting Type / Position | PositionBottom Radius (cutting below the workpiece) |
| Radius Range | Radius RangeR3 – R60 mm (select from the menu) |

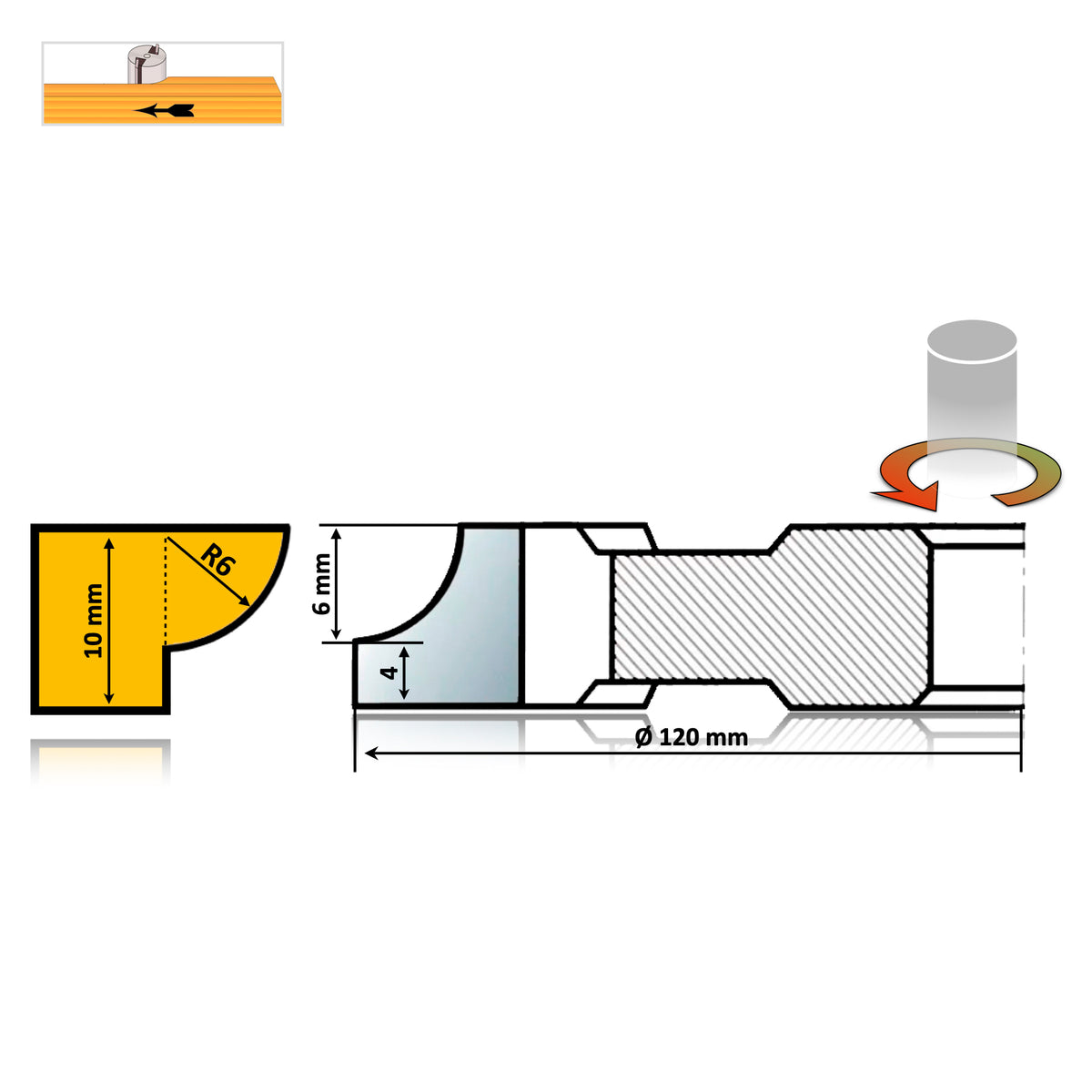

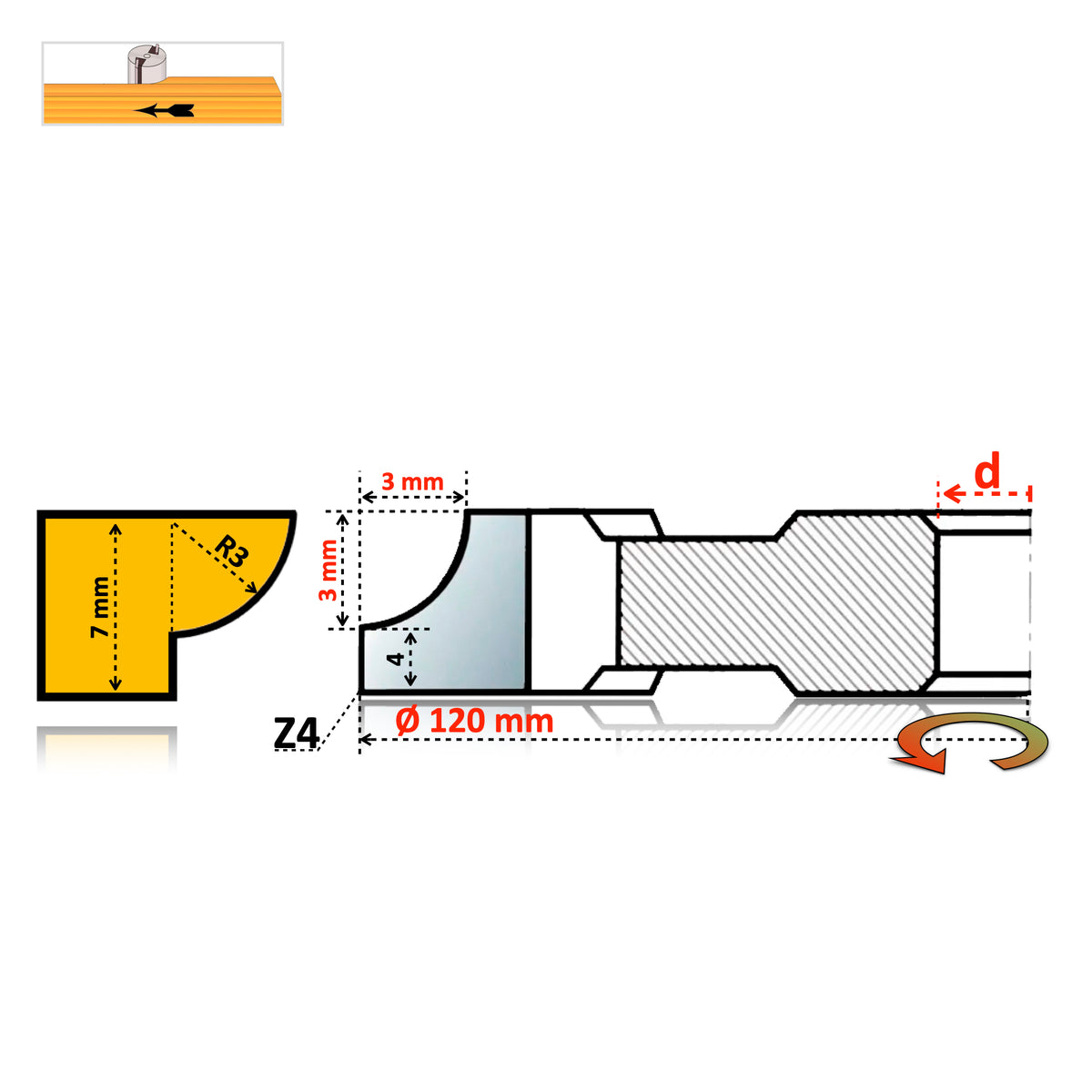

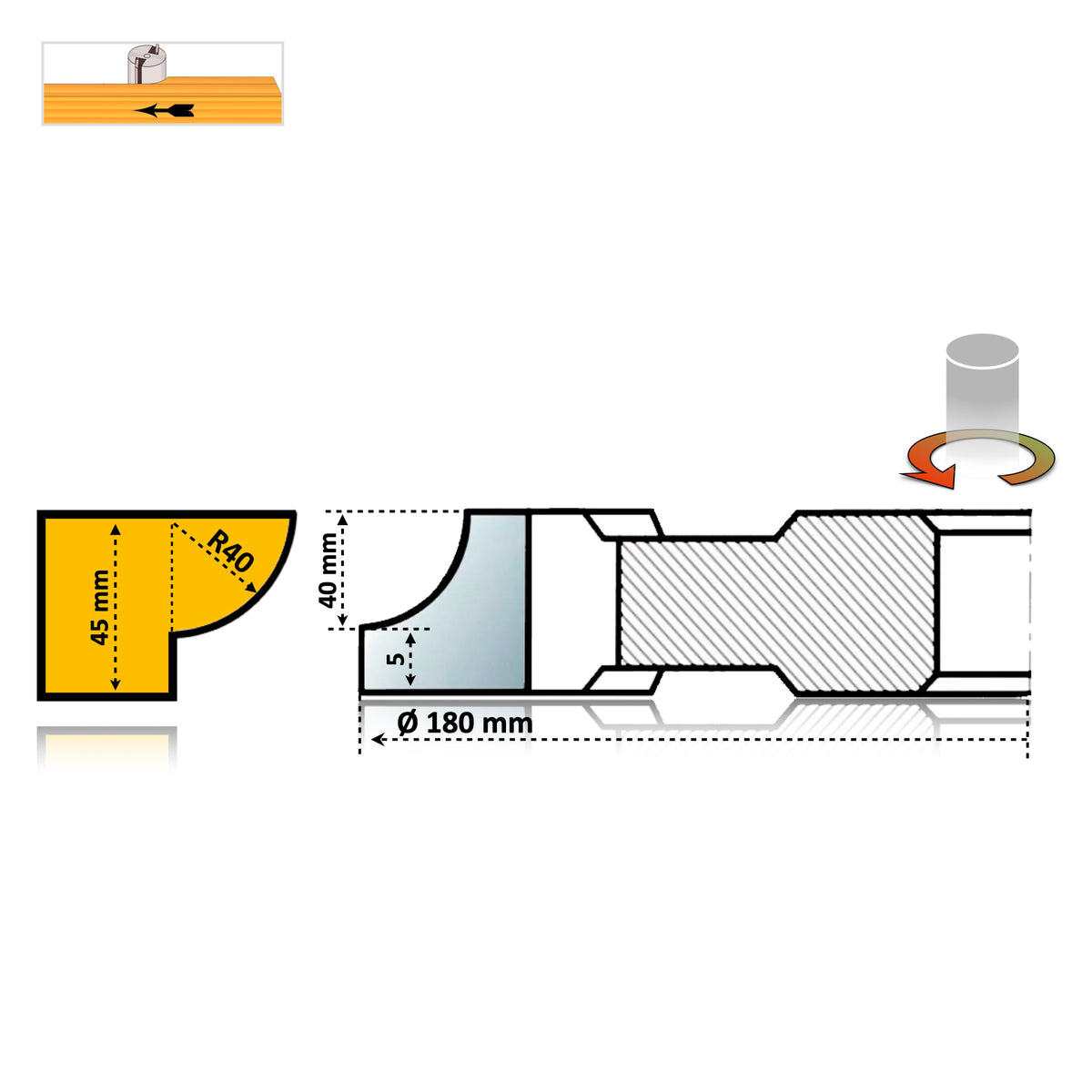

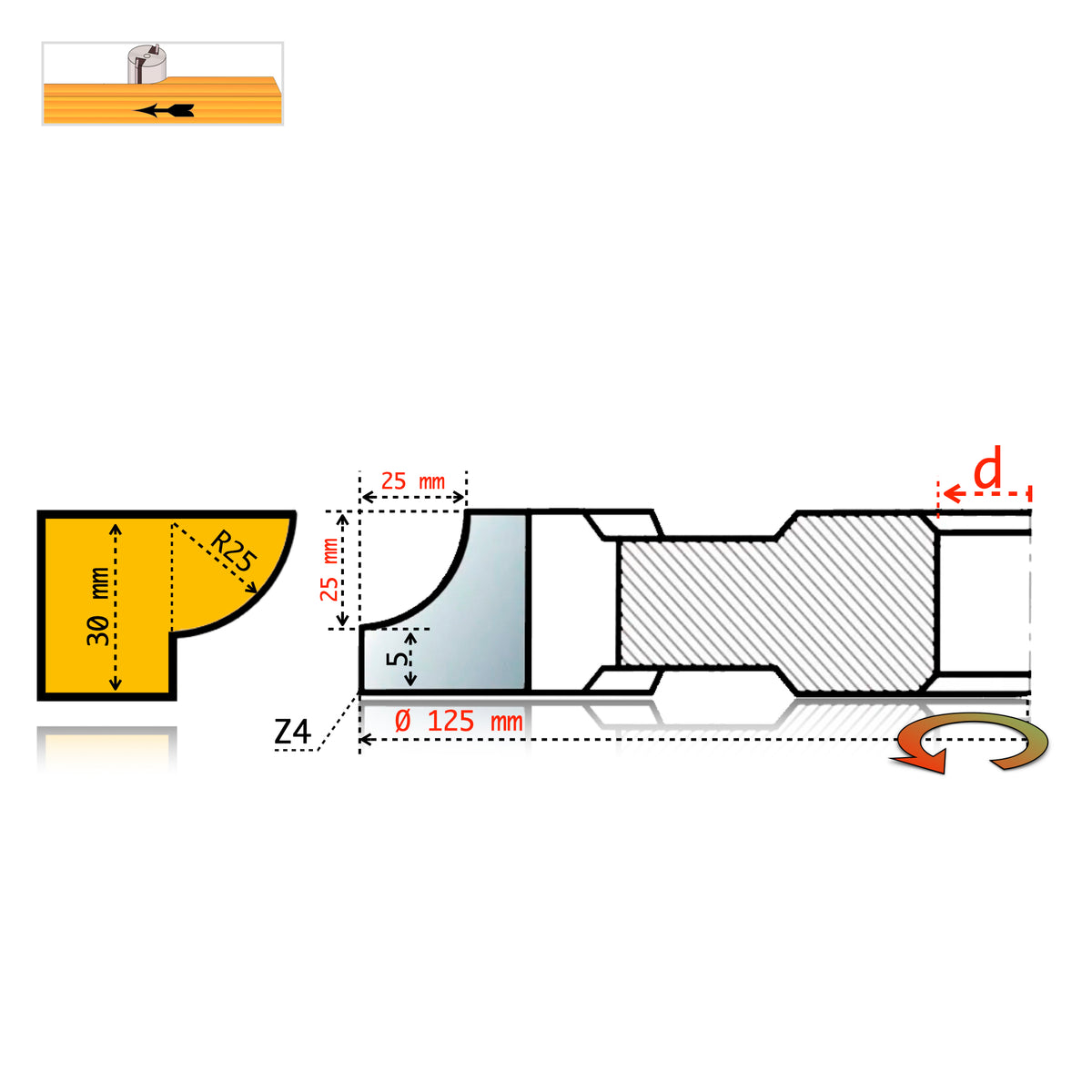

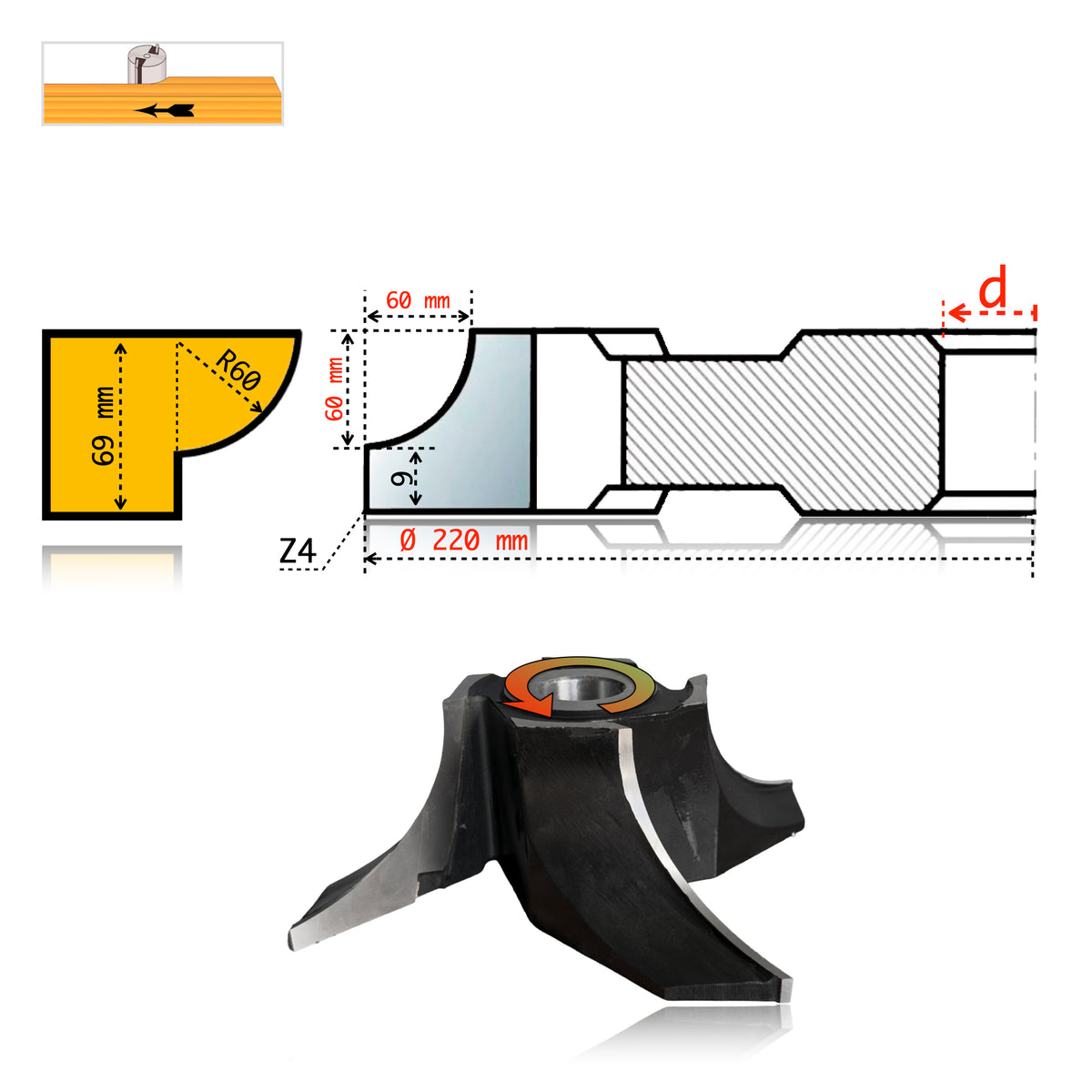

| Outer Diameter / Height | Diameter / HeightAccording to the technical drawing of each radius in the image gallery |
| Bore (d) | Bore (d)Ø30 mm or Ø32 mm; Ø32/30 mm with bushing – according to the selected variant |
| Cutting Edge Material | Cutting Edge MaterialHSS M2 (R6M5 · 6% W · 5% Mo) | HW (K40) – VK15 tungsten carbide (85% WC · 15% Co), a tough, impact-resistant grade |
| Cutting Edge Hardness | HardnessHSS M2 – 63–65 HRC | HW (K40) – 86–87 HRA |
| Number of Teeth | Number of TeethZ4 (4 brazed tips) |
| Cutting Tips | Cutting TipsBrazed, can be resharpened repeatedly at a specialised service centre; at advanced wear the cutter body can be re-tipped |
| Recommended Speed | Recommended Speed6,000 – 9,000 RPM (check the marking on the cutter body) |
| Estimated Tool Life | Tool LifeUp to 3,000 linear metres (in softwood, between resharpenings) |
| Country of Origin | Country of OriginUkraine |
💡 For high-volume hardwood work or chipboard / MDF / HDF, choose the HW (K40) variant, which is far more resistant to abrasive wear.
The cutting-edge material directly affects finish quality and tool life (swipe left-right on mobile):
| Workpiece Material | HSS M2 Premium (6% W · 5% Mo) |
HW (K40) ⭐ (VK15 carbide) |
|---|---|---|
| Softwood (fir, spruce, pine) | ⭐ 100% (Flawless finish) | ❌ Burning risk (Constant feed required) |
| Hardwood (beech, oak, ash) | 80% (Efficient) | ⭐ 100% (Wear-resistant) |
| MDF / Chipboard / HDF / Laminate | Not recommended | ⭐ 100% (Optimal) |
| Exotic Species & Composites | Not permitted | ⭐ 100% (Recommended) |
| Number of Resharpenings | Maximum | Limited (tip ~3 mm) |
| Edge Hardness | 63 – 65 HRC | 86 – 87 HRA |
Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).
Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.
This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.
See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
| Variant | Quantity | Price | Total |
|---|---|---|---|
HSS M2 / R3 - d32
9R3L-d32
|
|
||
HSS M2 / R4 - d30
9R4L-d30
|
|
||
HSS M2 / R5 - d30
9R5L-d30
|
|
||
HSS M2 / R6 - d32/30
9R6L-d32
|
Out of stock
|
||
HSS M2 / R8 - d30
9R8L-d30
|
|
||
HSS M2 / R10 - d30
9R10L-d30
|
Out of stock
|
||
HSS M2 / R12 - d32/30
9R12L-d32
|
|
||
HSS M2 / R14 - d30
9R14L-d30
|
|
||
HSS M2 / R16 - d32/30
9R16L-d32
|
|
||
HSS M2 / R18 - d30
9R18L-d30
|
|
||
HSS M2 / R20 - d30
9R20L-d30
|
Out of stock
|
||
HSS M2 / R25 - d30
9R25L-d30
|
|
||
HSS M2 / R30 - d30
9R30L-d30
|
Out of stock
|
||
HSS M2 / R40 - d30
9R40L-d30
|
|
||
|
HSS M2 / R50 - d32
9R50L
|
Out of stock
|
||
HSS M2 / R60 - d32
9R60L
|
Out of stock
|
||
|
HW (K40) / R3 - d32
|
Out of stock
|
||
|
HW (K40) / R4 - d30
|
Out of stock
|
||
|
HW (K40) / R5 - d30
|
Out of stock
|
||
|
HW (K40) / R6 - d32/30
|
Out of stock
|
||
|
HW (K40) / R8 - d30
|
Out of stock
|
||
|
HW (K40) / R10 - d30
|
Out of stock
|
||
|
HW (K40) / R12 - d32/30
|
Out of stock
|
||
|
HW (K40) / R14 - d30
|
Out of stock
|
||
|
HW (K40) / R16 - d32/30
|
Out of stock
|
||
|
HW (K40) / R18 - d30
|
Out of stock
|
||
|
HW (K40) / R20 - d30
|
Out of stock
|
||
|
HW (K40) / R25 - d30
|
Out of stock
|
||
|
HW (K40) / R30 - d32
|
Out of stock
|
||
|
HW (K40) / R40 - d30
|
Out of stock
|
||
|
HW (K40) / R50 - d32
|
Out of stock
|
||
|
T.C.T Vidia / HSS R60 - D32
9R60LHW-d30
|
|
