Set Freze 2 buc pentru Lambriu cu Profil tesit sau oblic la 45 grade cu imbinare conic si canal de 10 mm profilat pentru scandura de 13 pana la 25 mm grosime

Set Freze pentru Lambriu cu profil oblic tesit la 40 grade cu sant de 10 mm si imbinare conic pentru masina de frezat clasica sau scm

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Set of 2 Oblique Profile Paneling Cutters 14 - 25 mm | Code 14.00UC | HSS M2

SKU: 14.00UC-d30

€125,91 incl. VAT

Out of stock

Bore (d)

30 mm

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Oblique Chamfered Profile Paneling Cutter Set with Conical Joint (14–25 mm) | HSS M2

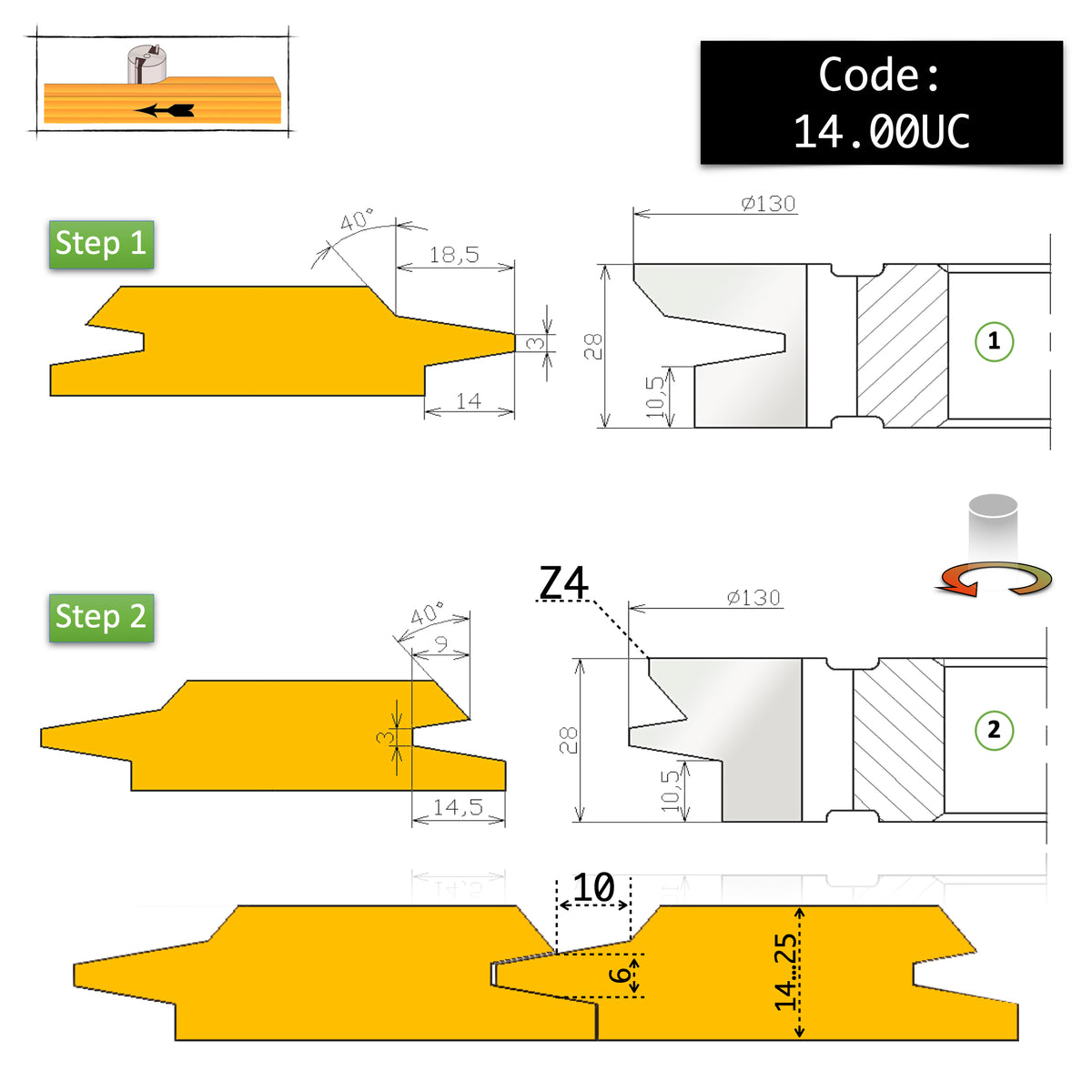

Set of 2 profiled cutters for creating paneling with a decorative oblique/chamfered profile and a conical joint — when two adjacent boards are installed, a visible gap of ~10 mm is created between them, characteristic of modern paneling with spacing. The profile is self-adaptable for wood thicknesses between 14–25 mm, adjustable solely by the machine spindle height, without spacer rings. Available in versions for a classic spindle moulder (D130, d30) and for 4-sided moulders (D160, d40).

Outside Diameter (D)	Outside Diameter (D)Ø130 mm (spindle moulder, d30) \| Ø160 mm (4-sided moulder, d40) – select from menu
Active Working Space	Active Working Space14–20 mm (recommended) – self-adaptable by spindle height, without spacer rings. Total cutter thickness 28 mm, fixed straight part at top 3 mm. Can be used over the entire active surface.
Joint Geometry	Joint GeometryDecorative oblique/chamfered profile with conical joint – when installed, a visible gap of ~10 mm is formed between 2 adjacent boards
Bore (d)	Bore (d)Ø30 mm standard (D130) \| Ø40 mm standard (D160) \| Ø35 mm or other sizes – upon request
Number of Teeth / Inserts	Number of TeethZ4 (D130) \| Z6 (D160, optimized for fast feed on 4 sides)
Cutting Material	Cutting MaterialHSS M2 (6.5% Tungsten), brazed \| 63–65 HRC
Recommended RPM	Recommended RPM9,000 RPM
Estimated Yield	Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutting Inserts	Cutting InsertsBrazed, successively resharpenable; with advanced wear, the cutter body can be re-brazed

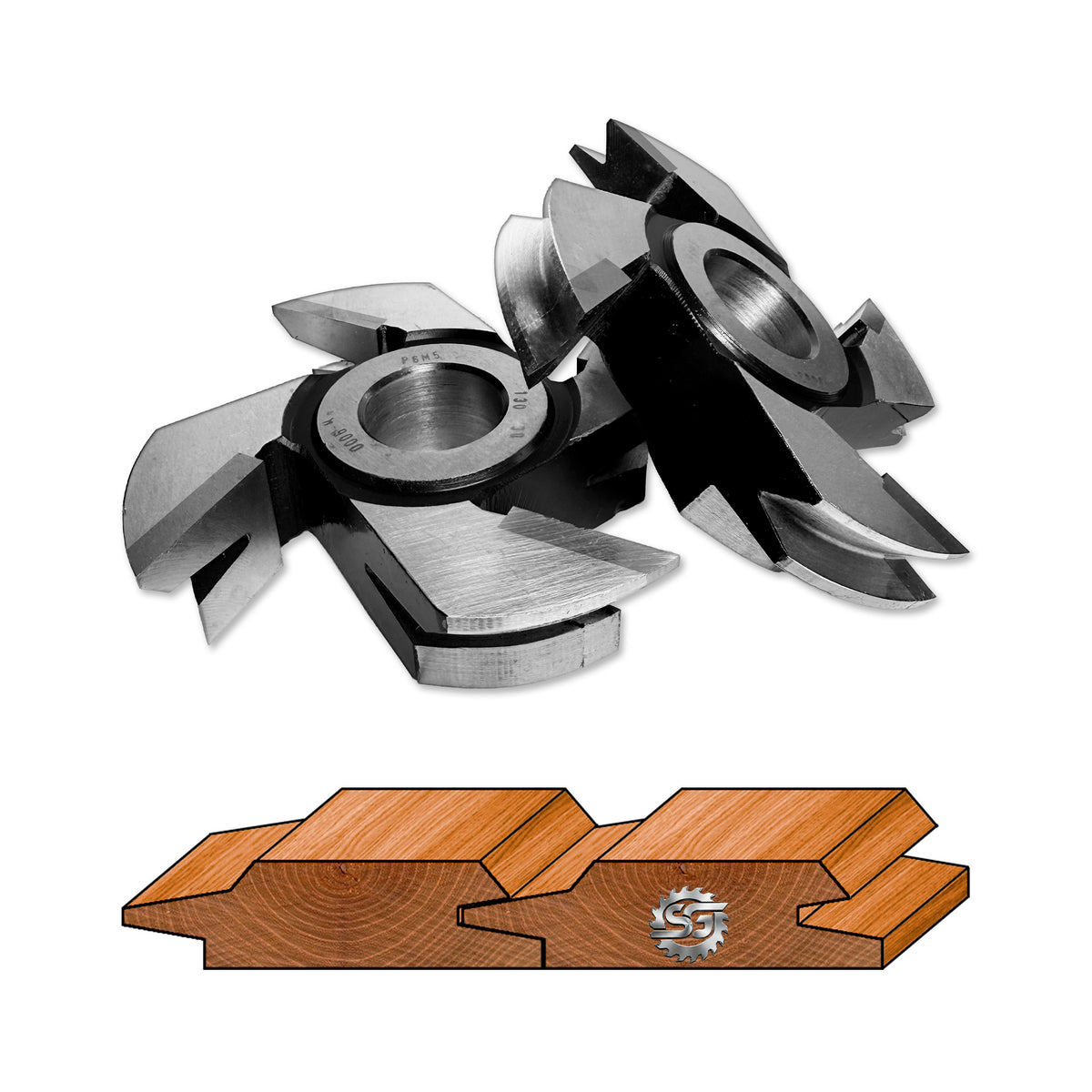

Set Configuration	Set Configuration2 brazed monoblock cutters (male + female profile, structurally correlated)
Country of Origin	Country of OriginUkraine

📐 SELECTION GUIDE – WHICH VARIANT TO CHOOSE:

D130 mm / d30 / Z4 – Classic Spindle Moulder: standard variant for spindle moulders with one shaft. Ø30 mm bore standard; Ø35 mm or Ø40 mm on request.
D160 mm / d40 / Z6 – 4-Sided Moulders: the larger diameter and 6 teeth are calculated for the industrial speeds and feeds of 4-sided moulders. Ø40 mm bore standard.
Self-Adjusting 14–20 mm: no spacer rings needed — adjust solely by the machine spindle height for any board thickness within the working range.
Extended Lip on Female Cutter: allows paneling to be fixed with clamps or nails directly to the structure — convenient, fast, and secure. The conical joint with free space under the nail prevents blocking due to dust or chips.

🚀 PROPERTIES AND PERFORMANCE:

Visible ~10 mm Joint Gap: the conical profile of the cutter ensures that when two adjacent boards are installed, a regular visible gap of ~10 mm is formed — specific to the modern paneling style with spacing, providing a precise and uniform geometric appearance over the entire surface.
Finish Ready for Lacquering: the HSS M2 cutting edge at 9,000 RPM leaves a smooth, white surface, without burns or fiber tear-out — even with knotted woods.
CNC Dynamic Balancing: the cutter body is computer-machined for minimal vibration at idle, protecting the machine's spindle and bearings.
Long-Term Investment: inserts can be successively resharpened; with advanced wear, the cutter body can be re-brazed with new inserts.

⚠️ LIMITATIONS IN USE (HSS M2):

Exclusive Use – Natural Solid Wood: ❌ NOT recommended for use on chipboard, MDF, HDF, or very hard exotic wood! The synthetic binder prematurely wears out the high-speed steel cutting edge.
Exotic or Very Hard Woods: for high-density woods, HSS cutting edge wear is faster — resharpening will be more frequent.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: immaculate white finish, no burns – the ideal choice for spruce, fir, or pine paneling.

Hardwood (Beech, Oak, Ash) 80%

Good: effective results, cutting edge wear is faster than on softwoods.

Exotic / Very Dense Wood 50%

Acceptable: accelerated cutting edge wear, more frequent resharpening required.

Chipboard / MDF / HDF / Laminated Not recommended

The synthetic binder prematurely wears out the HSS cutting edge.

🦺 SAFETY MEASURES DURING USE:

Mandatory protective equipment: safety glasses (against projected chips), mask or respirator filter (fine wood dust), and earmuffs for prolonged work.
Attention to hands and fingers: when machining long paneling boards, use push sticks and guides; do not guide the workpiece by hand near the cutter.
Check the secure fastening of the cutters on the spindle and full tightening of the nut before starting the machine.
Observe the recommended speed (9,000 RPM) to avoid vibrations or damage to the cutting edge.
Resharpening: we recommend having it done at a specialized center to preserve the original geometry of the conical profile.
