Set Freze lambriu cu profil rotund la imbinare canal de 10 mm cu grosime 28 mm brazate cu hss

Set freze pentru lambriu cu profil rotund 14-25 mm si soft line de 10 mm cu imbinare conica pentru masina de frezat clasica cu alezaj de 30 mm

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Set of 2 Round Panel Milling Cutters 14 - 25 mm | Code 14.00UR | HSS M2

SKU: 14.00UR-d30

€125,91 incl. VAT

Only 1 left

Limited stock

Bore (d)

30 mm

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

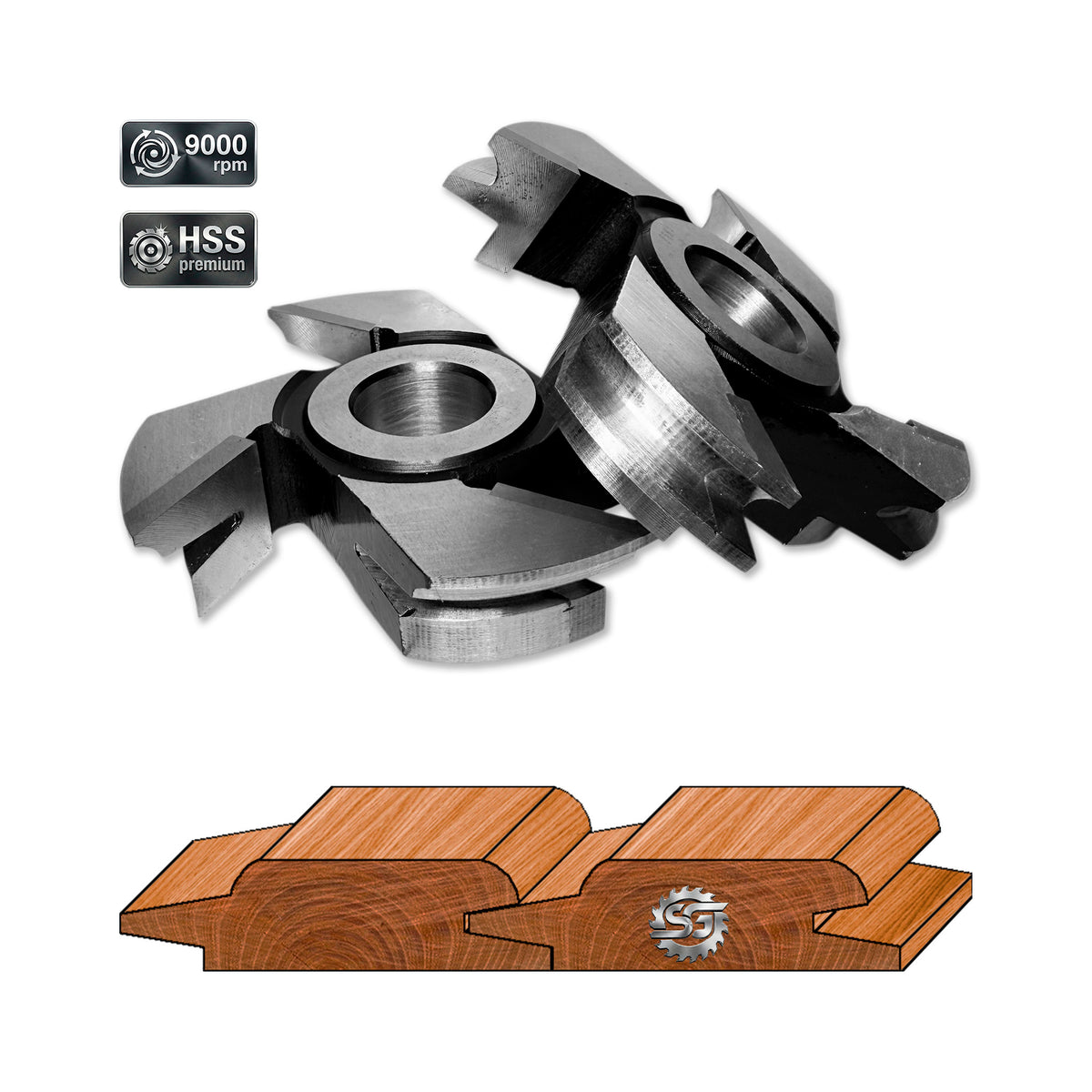

R8 Round Profile Paneling Router Bit Set with Conical Joint (14–25 mm) | HSS M2

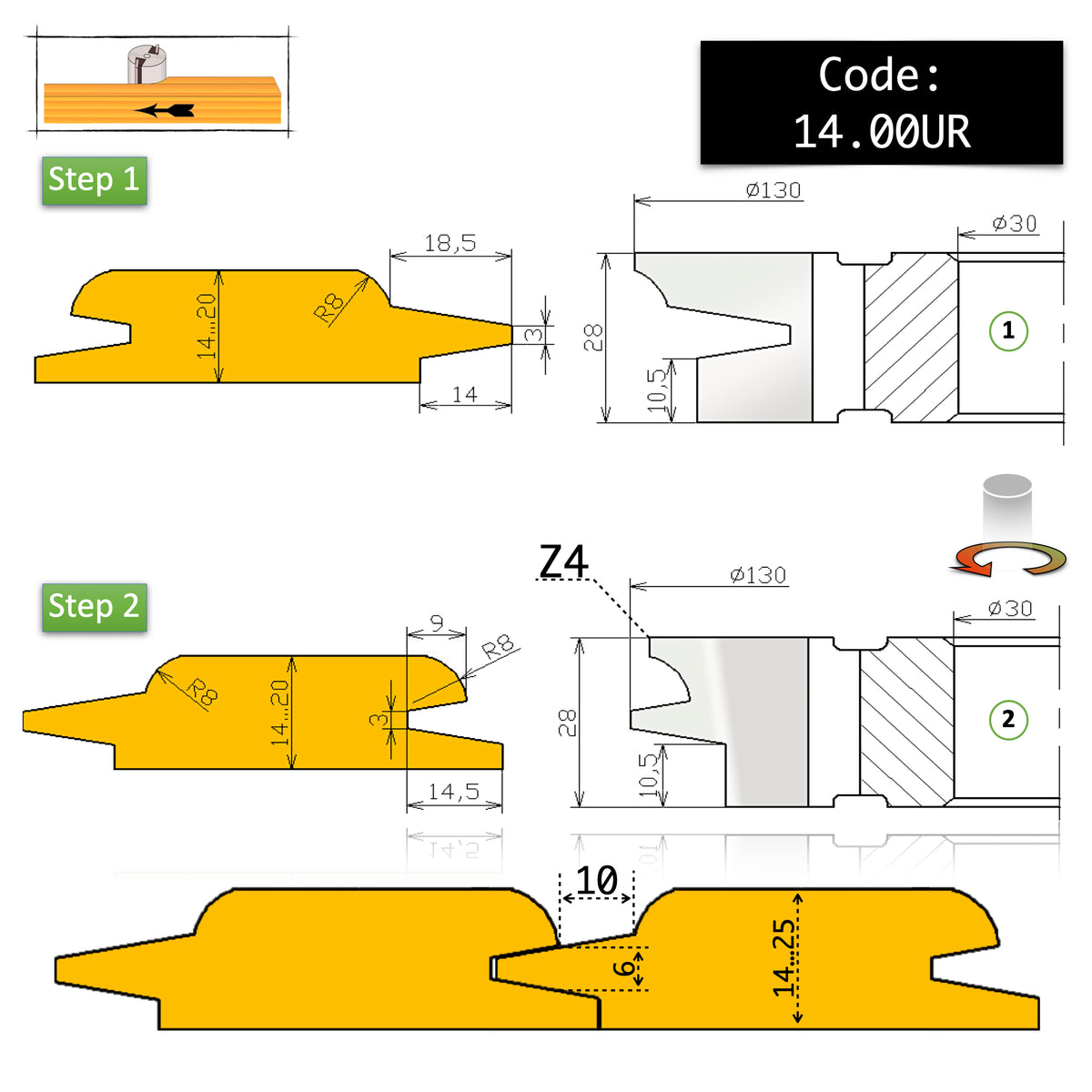

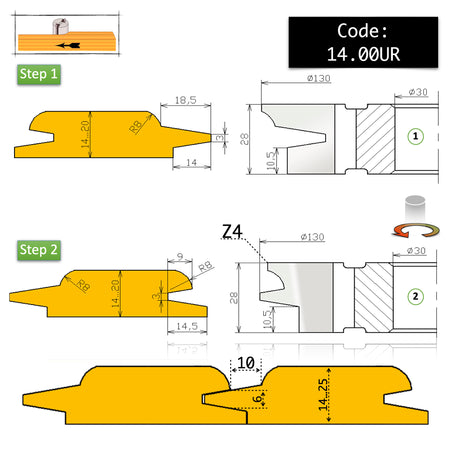

Set of 2 profile router bits for creating paneling with an R8 round profile and a conical joint — when two adjacent boards are installed, a visible gap of ~10 mm is formed between them, characteristic of modern spaced paneling styles. The profile is self-adapting for wood thicknesses between 14–25 mm, adjustable solely by the machine spindle height, without spacer rings. Available in versions for classic spindle moulders (D130, d30) and for four-sided planers (D160, d40).

Outer Diameter (D)	Outer Diameter (D)Ø130 mm (spindle moulder, d30) \| Ø160 mm (4-sided planer, d40) – select from menu
Active Working Space	Active Working Space14–20 mm (recommended) – self-adapting from spindle height, without spacer rings. Total router bit thickness 28 mm, fixed straight part at top 3 mm. Can be used over the entire active surface.
Joint Geometry	Joint GeometryR8 Round profile with conical joint – when assembled, a visible gap of ~10 mm is formed between 2 adjacent boards
Bore (d)	Bore (d)Ø30 mm standard (D130) \| Ø40 mm standard (D160) \| Ø35 mm or other sizes – upon request
Number of Teeth / Inserts	Number of TeethZ4 (D130) \| Z6 (D160, optimized for fast feed on 4 sides)
Blade Material	Blade MaterialHSS M2 (6.5% Tungsten), brazed \| 63–65 HRC
Recommended RPM	Recommended RPM9,000 RPM
Estimated Yield	Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutting Inserts	Cutting InsertsBrazed, successively resharpenable; with advanced wear, the router bit body can be re-brazed
Set Configuration	Set Configuration2 brazed monoblock router bits (male + female profile, structurally correlated)
Country of Origin	Country of OriginUkraine

📐 SELECTION GUIDE – WHICH VARIANT TO CHOOSE:

D130 mm / d30 / Z4 – Classic Spindle Moulder: the standard variant for single-spindle moulders. Ø30 mm bore standard; Ø35 mm or Ø40 mm on request.
D160 mm / d40 / Z6 – 4-Sided Planers: the larger diameter and 6 teeth are calculated for the industrial speeds and feeds of 4-sided planers. Ø40 mm bore standard.
Self-Adapting 14–20 mm: you do not need spacer rings — adjust solely by the machine spindle height for any board thickness within the working range.
Extended Lip on Female Router Bit: allows paneling to be fixed with clamps or nails directly to the structure — convenient, fast, and secure. The conical joint with free space under the nail prevents clogging due to dust or chips.

🚀 PROPERTIES AND PERFORMANCE:

Visible Gap of ~10 mm at Joint: the conical profile of the router bit creates a regular visible gap of ~10 mm when two adjacent boards are installed — characteristic of modern spaced paneling styles, with a precise and uniform geometric appearance across the entire surface.
Finish Directly Ready for Varnishing: the HSS M2 cutting edge at 9,000 RPM leaves a smooth, clean surface, without burns or fiber tear-out — even with knotty wood.
CNC Dynamic Balancing: the router bit body is computer-machined for minimal idle vibrations, protecting the machine spindle and bearings.
Long-Term Investment: inserts can be successively resharpened; with advanced wear, the router bit body can be re-brazed with new inserts.

⚠️ LIMITATIONS IN USE (HSS M2):

Exclusive Use – Natural Solid Wood: ❌ NOT recommended for use on particleboard, MDF, HDF, or very hard exotic wood! The synthetic binder prematurely wears out the high-speed steel cutting edge.
Exotic or Very Hard Woods: for high-density woods, HSS cutting edge wear is faster — resharpening will be more frequent.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: immaculate white finish, no burns – the ideal choice for spruce, fir, or pine paneling.

Hardwood (Beech, Oak, Ash) 80%

Good: efficient results, cutting edge wear is faster than on softwoods.

Exotic / Very Dense Wood 50%

Acceptable: accelerated cutting edge wear, more frequent resharpening needed.

Particleboard / MDF / HDF / Laminated Not Recommended

The synthetic binder prematurely wears out the HSS cutting edge.

🦺 SAFETY MEASURES IN USE:

Mandatory protective equipment: safety glasses (against projected chips), mask or respirator filter (fine wood dust), and ear protection for prolonged work.
Attention to hands and fingers: when processing long paneling boards, use pushers and guides; do not guide the workpiece by hand near the router bit.
Check the fastening of the router bits on the spindle and the complete tightening of the nut before starting the machine.
Observe the recommended RPM (9,000 RPM) to avoid vibrations or damage to the cutting edge.
Resharpening: we recommend having it done at a specialized center to maintain the original geometry of the conical profile.
