Set of 2 Slanted Profile Tongue and Groove Router Bits 16 - 26 mm | Code 14.01UC | HSS M2

SKU: 14.01UC-d30
€131,07 incl. VAT
Only 1 left
Limited stock
Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

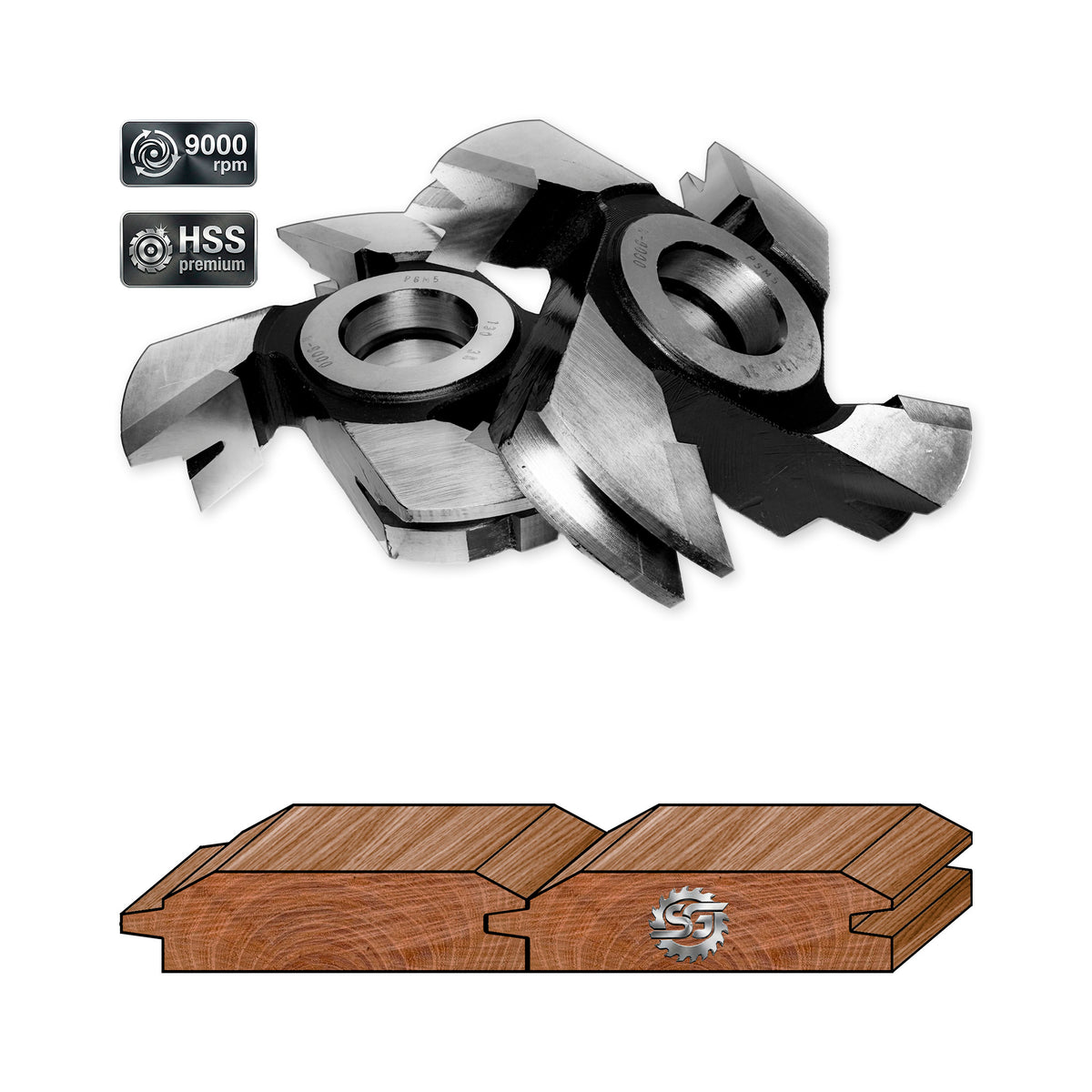

Set of 2 Chamfered Panel Milling Cutters with Direct V-Joint (30°) – HSS M2 | 16 – 26 mm

Professional set of 2 brazed monoblock HSS M2 cutters, designed for producing solid wood paneling with a chamfered (angled) profile and a direct 30° V-joint. Unlike the round profile, the chamfer creates a straight, geometric, angled line, and the two adjacent boards join directly at a 30° angle — without an intermediate gap, with continuous transition between panels.

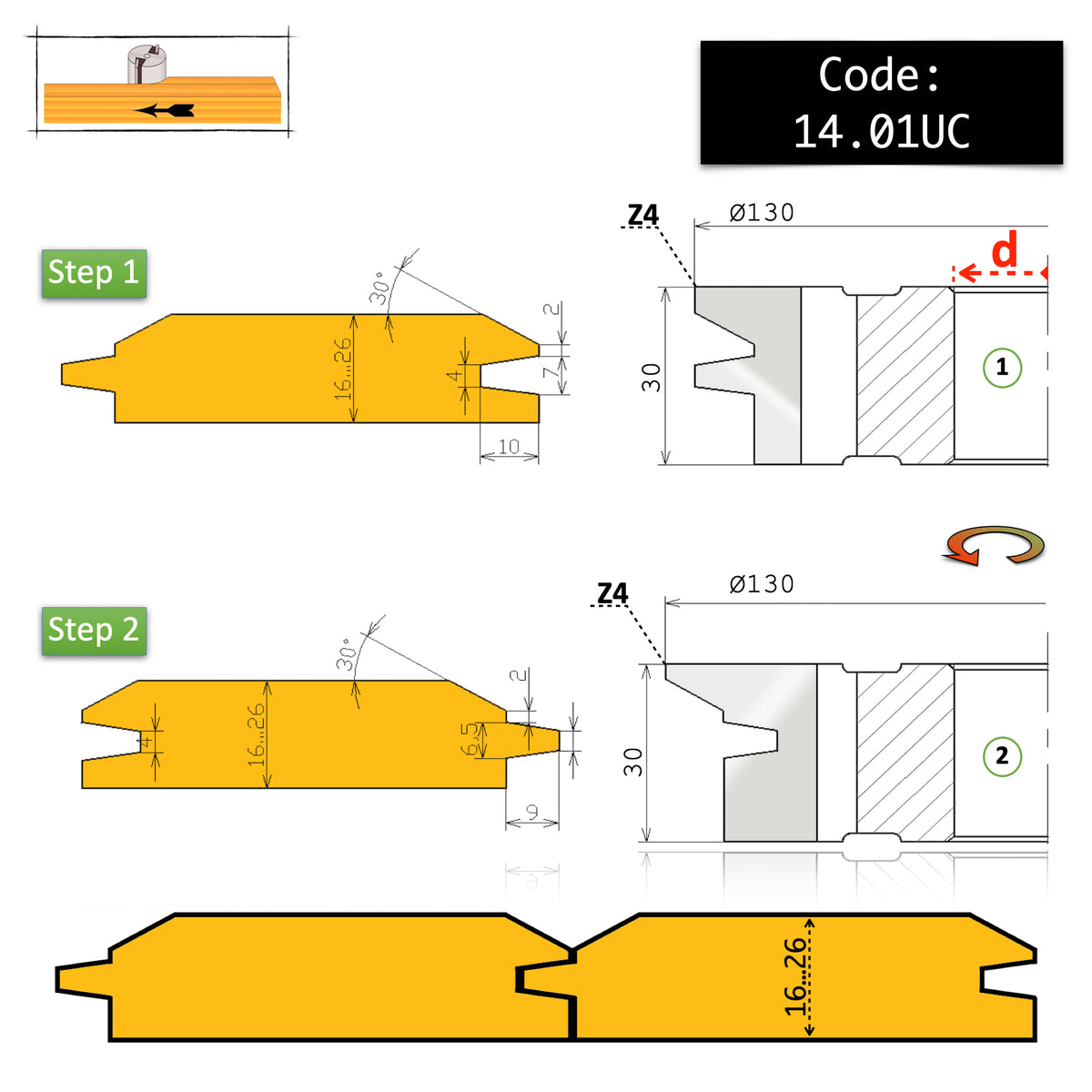

Arbor Hole (d) Arbor Hole (d)Ø30 mm – for classic milling machines (stationary equipment) | Ø40 mm – for industrial 4-sided machines | other sizes by pre-order
Outer Diameter (D) Outer Diameter (D)According to the technical drawing of the selected variant
Construction Type / Teeth Construction Type / TeethZ4 – industrially brazed profiled teeth
Material Thickness (Working Space) Material Thickness16 – 26 mm – height-adjustable profile, adaptable for various board thicknesses
Joint Angle Joint Angle30° – direct V-joint, without intermediate gap
Set Configuration Set Configuration2 brazed monoblock cutters (profile and counter-profile structurally correlated)
Blade Material Blade MaterialHSS M2 (high-speed steel, 6.5% Tungsten), brazed
Blade Hardness Blade Hardness63 – 65 HRC
Recommended Speed Recommended Speed9,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters (on natural wood, before the first resharpening)
Blade Inserts Blade InsertsBrazed, successively resharpenable at a specialized center; in case of advanced wear, the cutter body can be re-brazed
Country of Origin Country of OriginUkraine

✨ KEY FEATURES AND ADVANTAGES:

  • Geometric, Modern Finish: the 30° chamfer creates a straight and angled line, appreciated in contemporary and minimalist interior design, unlike the classic appearance of the round profile.
  • Direct V-Joint: the two adjacent boards join at a continuous 30° angle, without a visible gap or intermediate space — a smooth transition between panels.
  • HSS M2 (6.5% Tungsten): hardness of 63–65 HRC, excellent resistance to high temperatures during cutting and completely eliminates the risk of fiber tear-out in knot areas.
  • Multi-Thickness 16–26 mm: thanks to the design with the straight cutting edge extended at the bottom, the cutters process different board thicknesses without structural modifications to the tool.
  • Long-Term Investment: the inserts can be successively resharpened, and in case of advanced wear, the cutter body can be re-brazed with new inserts.
💡 Simple adjustment, no additional rings: because the straight lower part of the profile is extended, it is NOT necessary to add rings or spacer washers to change the material thickness. Switching from a thinner to a thicker board (16–26 mm) is done exclusively by adjusting the height of the spindle, the 30° joint angle remaining constant and perfectly correlated on the panel face.

⚠️ LIMITATIONS IN USE (HSS M2):

  • Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF or agglomerated materials – these exclusively require the HW (K40) variant.
  • Excellent on solid wood: spruce, fir, pine, linden, beech, oak, ash.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: immaculate white finish, no burns – the ideal choice for spruce, fir or pine paneling.
Hardwood (Beech, Oak, Ash) 80%

Good: efficient results, blade wear is faster than on softwoods.
Chipboard / MDF / HDF / Laminated Not Recommended

Synthetic binder prematurely wears HSS blades.

🦺 SAFETY PRECAUTIONS FOR USE:

  • Mandatory protective equipment: safety glasses (projected chips), mask or respirator filter (fine wood dust) and ear protection for prolonged work.
  • Beware of hands and fingers: when processing long paneling boards, use push sticks and guides; do not manually guide the workpiece near the cutter.
  • Check the securement of the cutters on the spindle and the complete tightening of the nut before starting.
  • Observe the recommended speed of 9,000 RPM.
  • Resharpening: we recommend performing it at a specialized center to maintain the original profile geometry and the 30° joint angle.
