Set of 2 Oblique Profile Paneling Cutters 14 - 22 mm | Code 14.22.8UC | HSS M2

SKU: 14.22.8UC-d30
€109,67 incl. VAT
Only 1 left
Limited stock
Position x Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

45° Oblique Profile Paneling Cutter Set | Premium HSS M2

Set of 2 profiled cutters for creating paneling with an oblique profile (45° chamfered), where the joint between boards is finished directly at an angle – without a visible gap between them. The chamfered profile provides an elegant and authentic look, suitable for indoor or outdoor paneling, linings, and decorative solid wood panels. Available in variants for a single-spindle table router (D130 mm) and for four-sided planers (D140 mm / D160 mm), each in an up chamfer (UC) or down chamfer (DC) version.

Outer Diameter (D) Outer Diameter (D)130 mm (single-spindle table router) | 140 mm / 160 mm (4-sided planers) – select from menu
Active Working Space Active Working Space14 – 22 mm
Profile Angle Profile Angle45° (oblique / chamfered profile)
Working Position Working PositionUC – Up Chamfer | DC – Down Chamfer – select from menu
Bore (d) Bore (d)Ø30 mm standard (D130) | Ø40 mm standard (D140 / D160) | other sizes – contact us
Blade Material Blade MaterialPremium HSS M2 (6.5% Tungsten), brazed with silver alloy (Ag)
Number of Teeth / Inserts Number of Teeth / Inserts4 brazed inserts
Blade Hardness Blade Hardness64 – 66 HRC
Recommended RPM Recommended RPM6,000 – 9,000 RPM
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutter Inserts Cutter InsertsBrazed, successively re-sharpenable at a specialized center; in case of advanced wear, the cutter body can be re-brazed
Set Configuration Set Configuration2 cutters
Net Weight (Package) Net Weight (Package)2000 g
Special Modifications Special ModificationsFor other dimensions or special configurations – contact our team before ordering
Country of Origin Country of OriginUkraine

📐 SELECTION GUIDE – WHICH VARIANT TO CHOOSE:

  • D130 mm – Single-Spindle Table Router: standard variant for classic table routers with a vertical spindle. Standard Ø30 mm bore.
  • D140 mm / D160 mm – 4-Sided Planers: larger diameters are calculated for the specific speeds and feeds of 4-sided planers. Standard Ø40 mm bore.
  • UC (Up Chamfer): the workpiece advances with the visible face upwards; the cutter works from bottom to top. Suitable for machines where the paneling slides on the table with the visible face up.
  • DC (Down Chamfer): the workpiece advances with the visible face downwards; the cutter works from top to bottom. Suitable for machines where the paneling is pressed from above.
  • Other Dimensions or Configurations: for special modifications of diameter, bore, or profile angle, contact our team before ordering.
  • Other Dimensions or Configurations: for special modifications of diameter, bore or profile angle, please contact our team before placing your order.

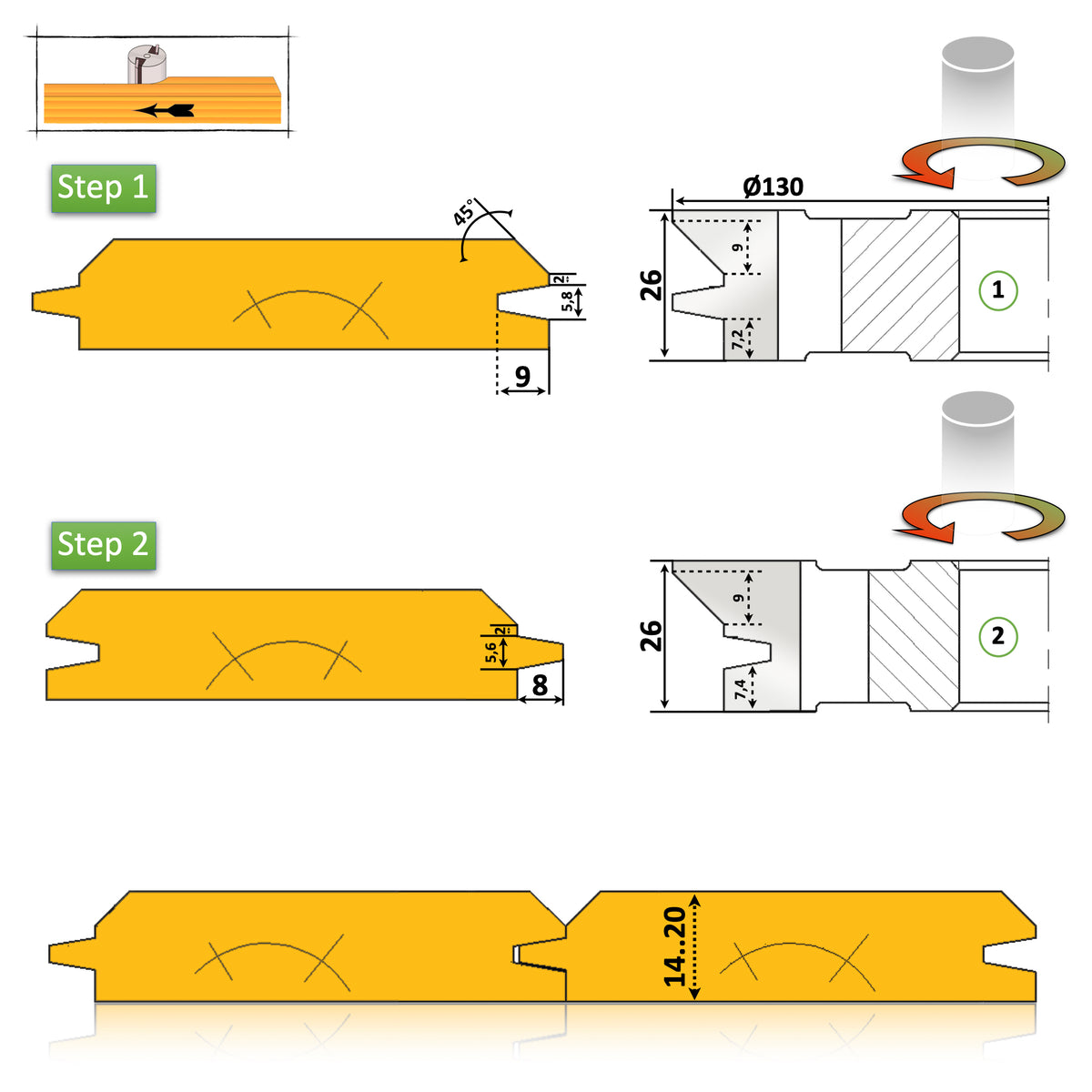

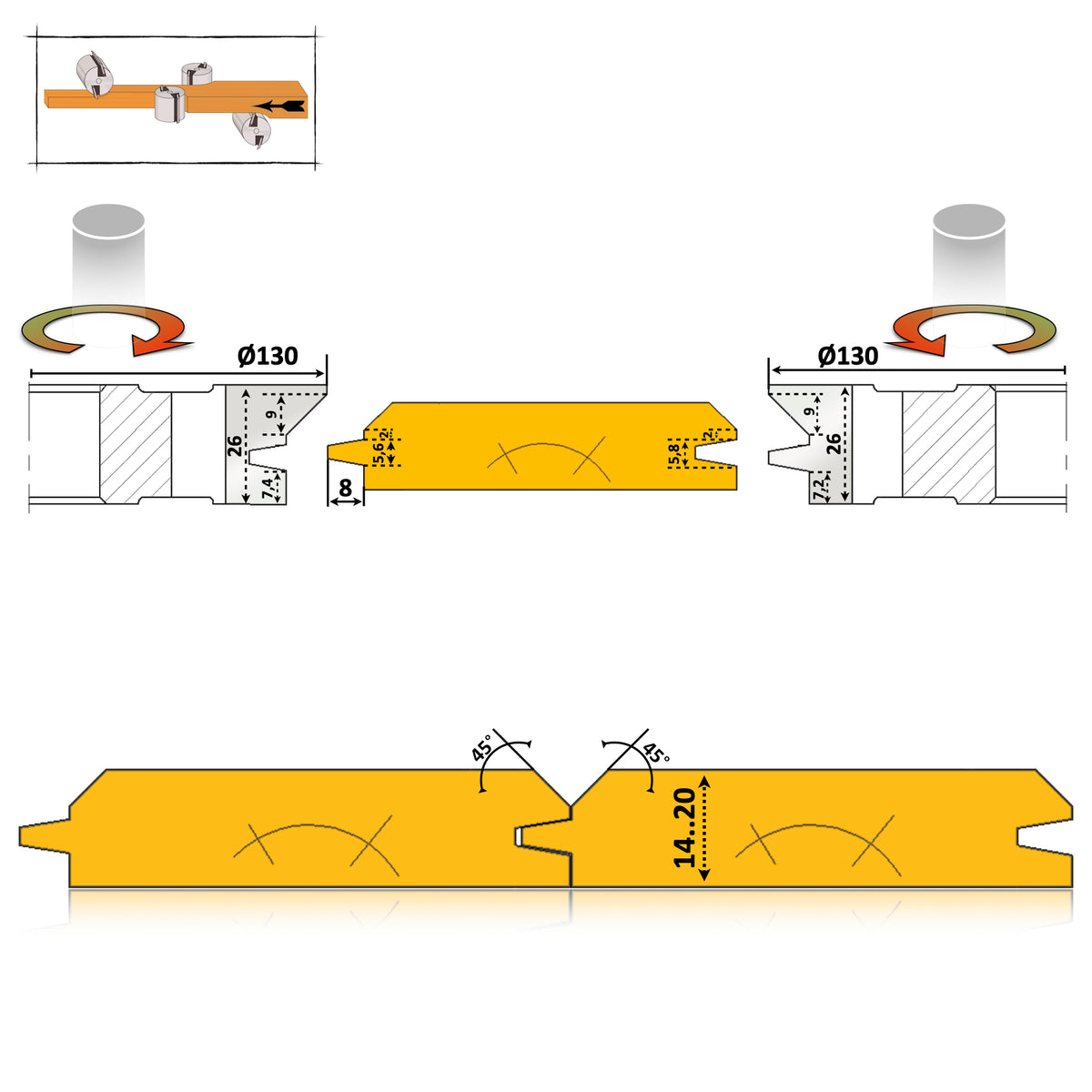

🔹 Each variant comes with a specific technical drawing – you can find it by selecting the desired variant from the menu.

🚀 FEATURES AND PERFORMANCE:

  • Direct 45° Oblique Profile at the Joint: the cutter profiles the edge of the board so that when two paneling boards are joined, a continuous and elegant chamfer is created, with no visible gap between them.
  • Elegant and Uniform Finish: the precise chamfered profile ensures a smooth surface, ready for varnishing or painting, without the need for intensive additional sanding.
  • HSS M2 Blade Brazed with Silver (Ag): high mechanical resistance, clean cuts without tearing wood fibers, even on more demanding wood species.
  • Long-Term Investment: the inserts can be successively re-sharpened at a specialized center, and in case of advanced wear, the cutter body can be re-brazed with new inserts.

🔹 Ideal for interior and exterior paneling, linings, decorative panels, and any application where an oblique profile at the joint gives a premium look to the finished surface.

⚠️ LIMITATIONS IN USE (HSS M2):

  • Exclusive Purpose: this variant is intended exclusively for processing natural solid wood.
  • Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF, or very hard exotic wood! The synthetic binder prematurely wears out the high-speed steel blade.
  • Exotic or Very Hard Woods: for high-density wood species, HSS blade wear is faster — more frequent resharpening will be required.

📊 COMPATIBILITY RATING BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine, Linden) 100%

Excellent: clean cut, impeccable finish, no burning on the fibers.
Hardwood (Beech, Oak, Ash) 80%

Good: efficient results, blade wear is faster than on softwoods.
Exotic / Very Dense Wood 50%

Acceptable: accelerated blade wear, more frequent resharpening needed.
Chipboard / MDF / HDF / Plywood Not Recommended

The synthetic binder prematurely wears out the HSS blade.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator (fine wood dust), and ear protection for prolonged work.
  • Beware of hands and fingers: when processing long paneling boards, use push sticks and guides; do not manually guide the workpiece near the cutter.
  • Check the fastening of the cutters on the spindle and the complete tightening of the nut before starting the machine.
  • Respect the recommended RPM (6,000 – 9,000 RPM) to avoid vibrations or blade damage.
  • Resharpening: we recommend resharpening at a specialized center to maintain the 45° angle and the original geometry of the profile.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
