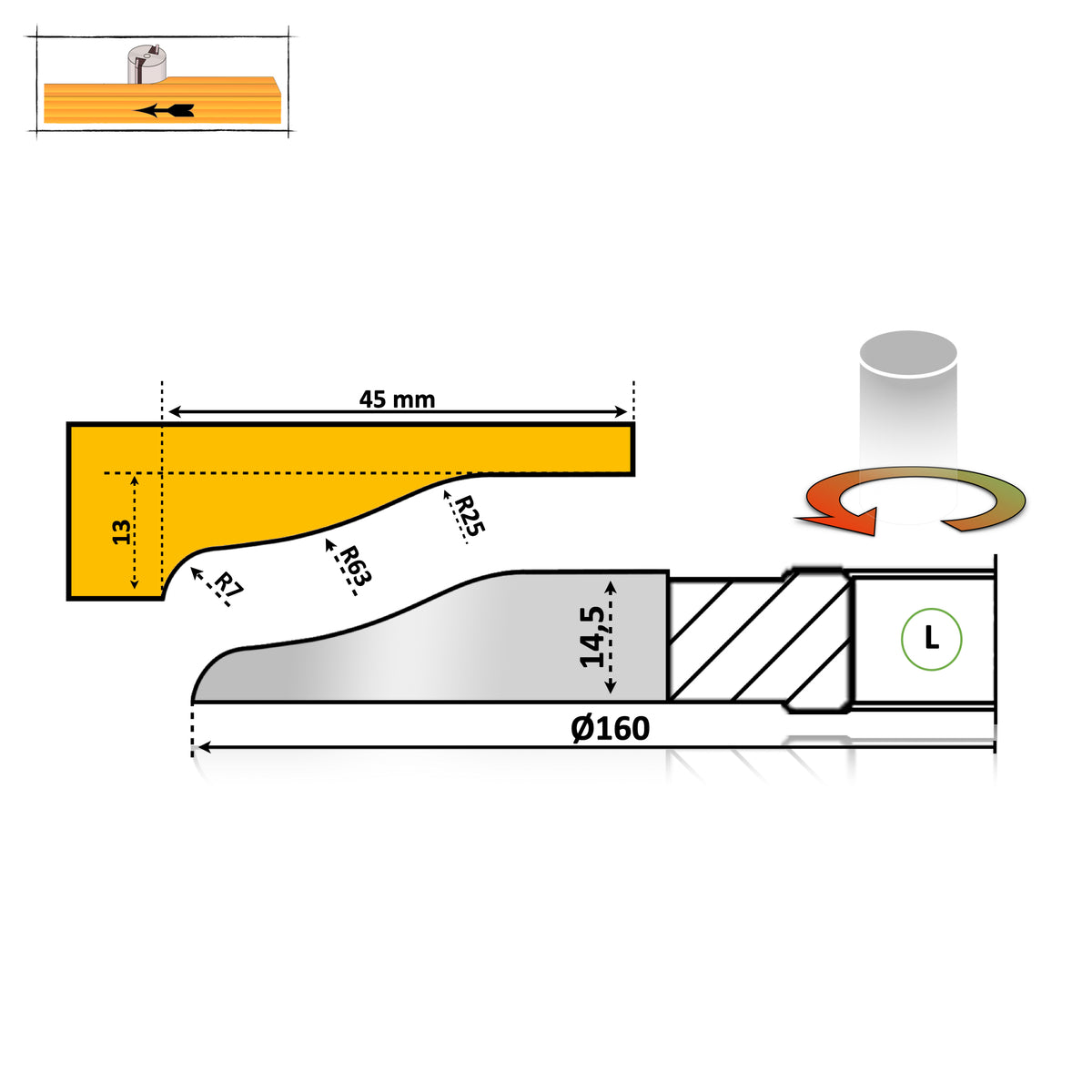

Freza tablie mobila cu adancime de 45 mm cu un profil neted valuros cu partea activa sub lemn

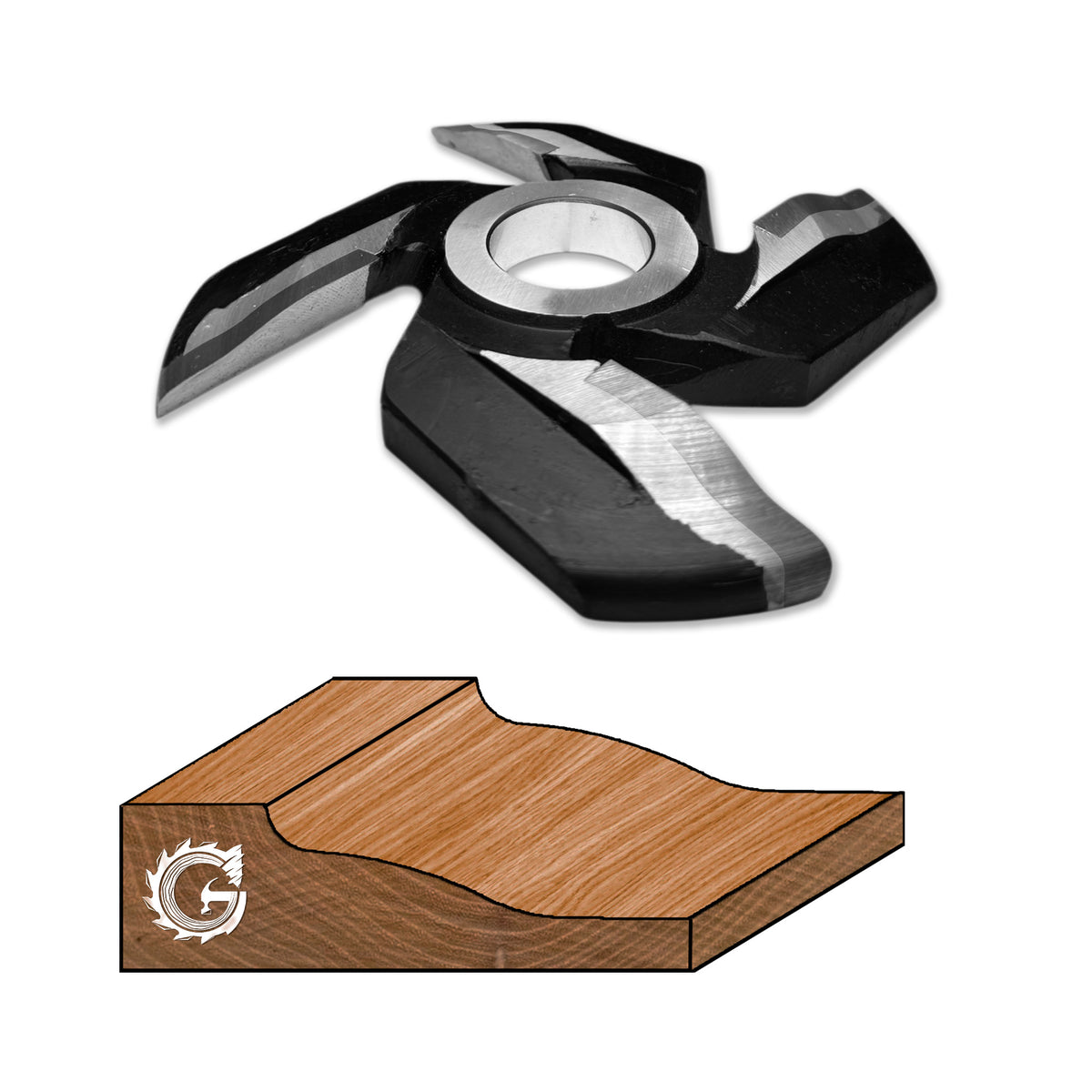

Freza Tablie Mobila 45 mm HSS cu un profil elegant neted fara complicatii ca valul linistit de mare

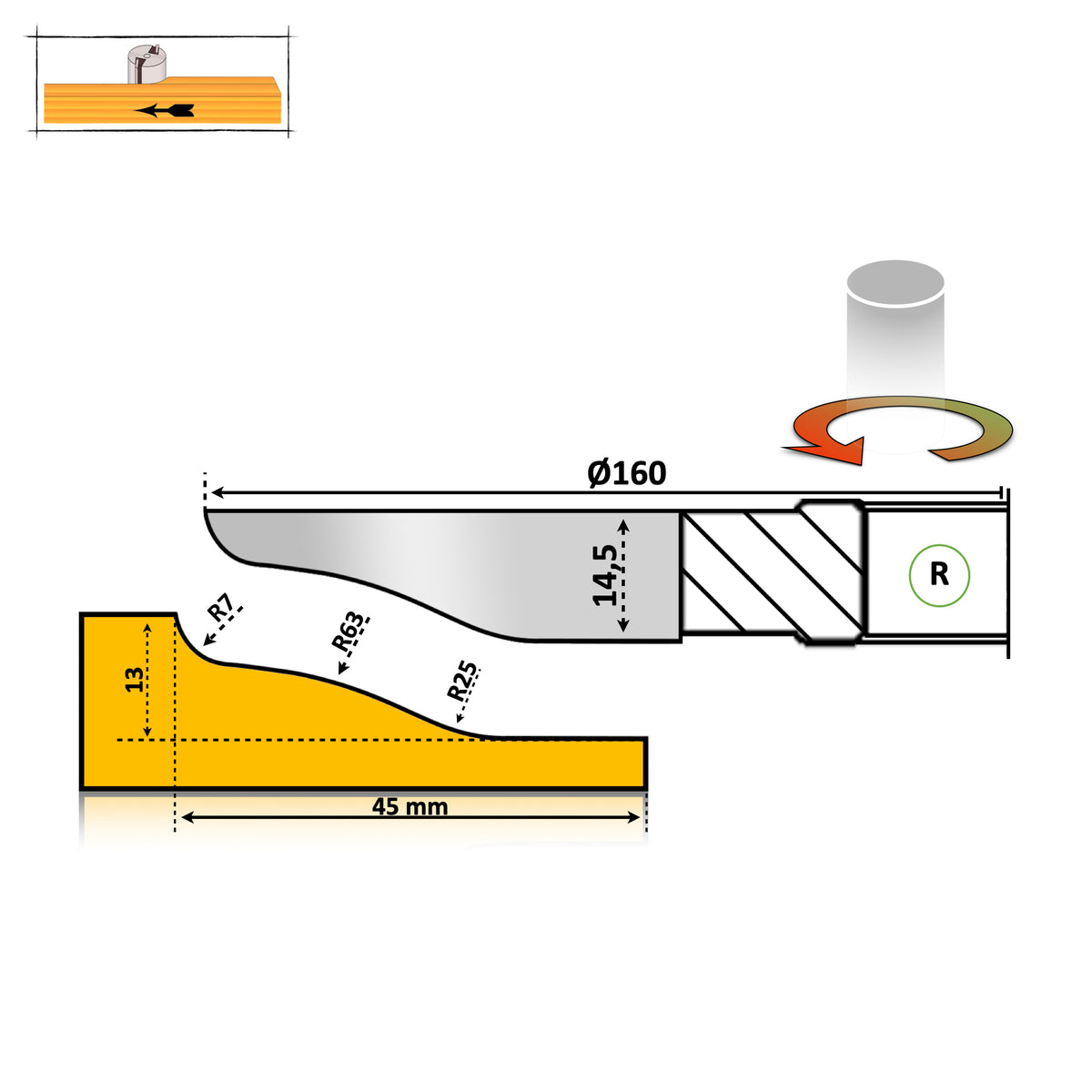

Freza tablie mobila cu adancime de 45 mm cu un profil neted valuros cu partea activa asupea lemnului

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

Vatzo

Router Bit for Wooden Panels D160 - D200 | Profile Code - M012-13 | DS Steel

SKU: M012-63L-d32

€66,89 incl. VAT

-12% ~~€75,68~~ €66,89 incl. VAT

Only 3 left

Limited stock

Diameter (D) x Position

D160 – Above D160 – Under the wood

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Raised Panel Cutter – DS Steel | DIY

Profiled cutter for creating raised panels on a stationary router table. Frequently used in the production of solid wood doors (central panel), furniture with raised panels (cabinet fronts, drawers, interior doors with decorative panels). Available in two model positioning options – above the wood or below the wood – selectable directly from the product page.

Product Type	Product TypeProfiled cutter for making movable panels
Milling Profile	Milling ProfileClassic/traditional model – see attached technical drawing
Model Positioning Options	Model Positioning OptionsSelect from menu: above the wood OR below the wood option
Cutting Edge Material	Cutting Edge MaterialDS Steel (standard high-speed steel)
Outer Diameter (D)	Outer Diameter (D)160 mm or 200 mm – select from menu
Active Working Space	Active Working SpaceSee attached technical drawing
Number of Teeth / Cutting Edges	Number of Teeth / Cutting EdgesZ4 (4 active, brazed, profiled inserts)
Construction Type	Construction TypeBrazed inserts with brass alloy (Cu-Zn), resharpenable, without disassembly
Bore Diameter (d)	Bore Diameter (d)Ø32 mm standard \| Ø30 mm – reduction bush not included, purchased separately \| Ø35 mm or Ø40 mm available for pre-order
Recommended RPM	Recommended RPM6,000 RPM
Estimated Yield	Estimated YieldUp to 3,000 linear meters in soft wood (between resharpening cycles)
Package Contents	Package Contents1 x Cutter (option selected from menu)
Country of Origin	Country of OriginUkraine

🚀 PROPERTIES AND PERFORMANCE:

Robust and Balanced Body: Made of heat-treated steel, the tool body eliminates vibrations, protecting machine bearings and ensuring smooth finishes.
Professional Z4 Configuration: The 4 active cutting edges evenly distribute the cutting effort, allowing for constant feed without material tearing, even in areas with knots.
Durable Brazing: Inserts are fixed with brass alloy (Cu-Zn), which withstands high torsional forces during deep profiling.
Resharpenable: The generous tooth profile allows for repeated resharpening, reducing long-term maintenance costs.
Dual Model Orientation: Choosing the "above" or "below the wood" option allows adaptation to the type of machine and preferred working method.

💡 How to choose the model orientation:
– Above the wood – visually control the profile during milling; recommended for manual work with controlled overhead feed.
– Below the wood – sawdust and chips are thrown directly downwards; the finish of the workpiece remains protected while sliding on the router table.

⚠️ USAGE LIMITATIONS (DS STEEL):

Purpose: Recommended exclusively for natural solid wood of soft or medium density.
Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF, exotic wood, or derivative panels with abrasive adhesive!
Hardwood (oak, beech): The wear of the DS Steel cutting edge is significantly faster than on softwoods — resharpening will be more frequent.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (DS STEEL)

Soft Wood (Fir, Spruce, Pine) 90%

Very good: clean cut, pleasant finish, ideal for DIY projects.

Medium Wood (Cherry, Walnut, Lime) 65%

Acceptable: good results, with more frequent resharpening.

Hard Wood (Beech, Oak, Ash) 40%

Rapid cutting edge wear — frequent resharpening increases maintenance costs.

Chipboard / MDF / HDF / Plywood Not Recommended

Synthetic binder prematurely wears the DS Steel cutting edge.

🦺 SAFETY MEASURES IN USE:

Mandatory protective equipment: safety glasses (against projected chips), mask or respirator filter (fine wood dust), and ear protection for prolonged work.
Beware of hands and fingers: always use a feed/push device; do not guide the workpiece manually with hands near the cutter.
Check the cutter orientation before starting the machine – the "above" and "below the wood" options are not interchangeable; incorrect mounting produces an incorrect profile.
Check the fixation of the cutter on the spindle and the full tightening of the nut before starting.
Observe the recommended speed of 6,000 RPM – exceeding it increases the risk of vibrations and cutting edge damage.
