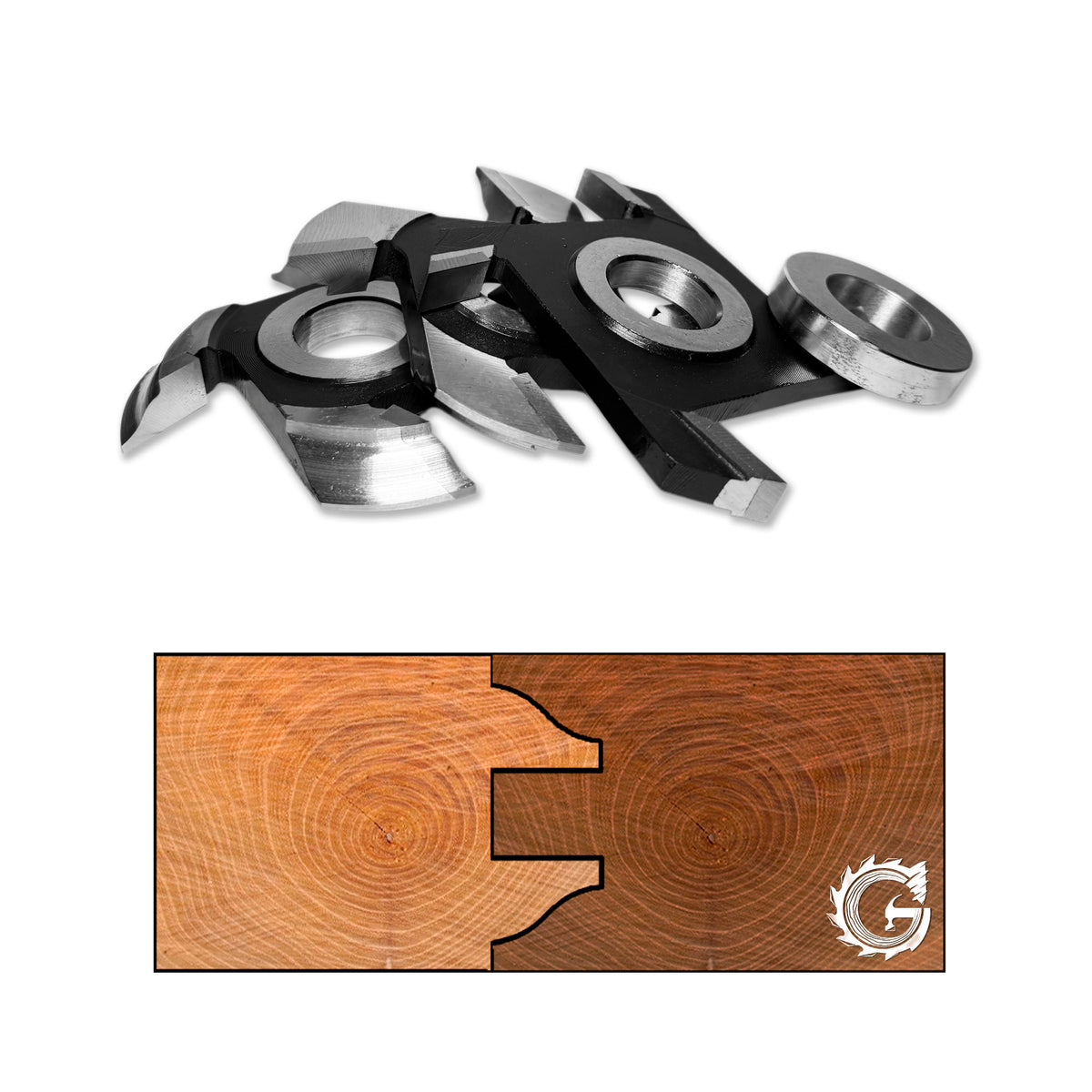

Set of 3 Door Cutters Profile-Counterprofile – 40 mm | Code 04.06 | HSS or HW (K40)

SKU: 04.06-d32

€99,35 incl. VAT

-26% ~~€133,74~~ €99,35 incl. VAT

Only 1 left

Limited stock

Material - Bore (d)

HSS - d32/30

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Profile-Counter Profile Router Bit Set for Interior Doors (40 mm) – HSS M2 / T.C.T. Carbide

Active Working Thickness (B)	Working thickness (B)40 mm (finished element)
Blade Material	Blade MaterialHSS M2 Premium (high-speed steel, 6.5% Tungsten, brazed with Ag silver alloy) \| T.C.T. Carbide (metallic carbide, 85–92 HRC) – select option from menu
Construction Type	Construction TypeBrazed profile tools (monoblock after brazing, no removable inserts)
Blade Hardness	Blade HardnessHSS M2 – 64–66 HRC \| T.C.T. Carbide – 85–92 HRC
Set Configuration	Set Configuration3 profile router bits + 1 calibrated spacer ring
Arbor Bore (d)	Arbor Bore (d)Ø30 mm / Ø32 mm standard (in stock) \| Ø35 mm / Ø40 mm available for pre-order
Recommended Speed	Recommended Speed6,000 – 9,000 RPM (optimized for CNC / table router)
Estimated Yield	Estimated YieldUp to 3,000 linear meters (in softwoods, before first sharpening)

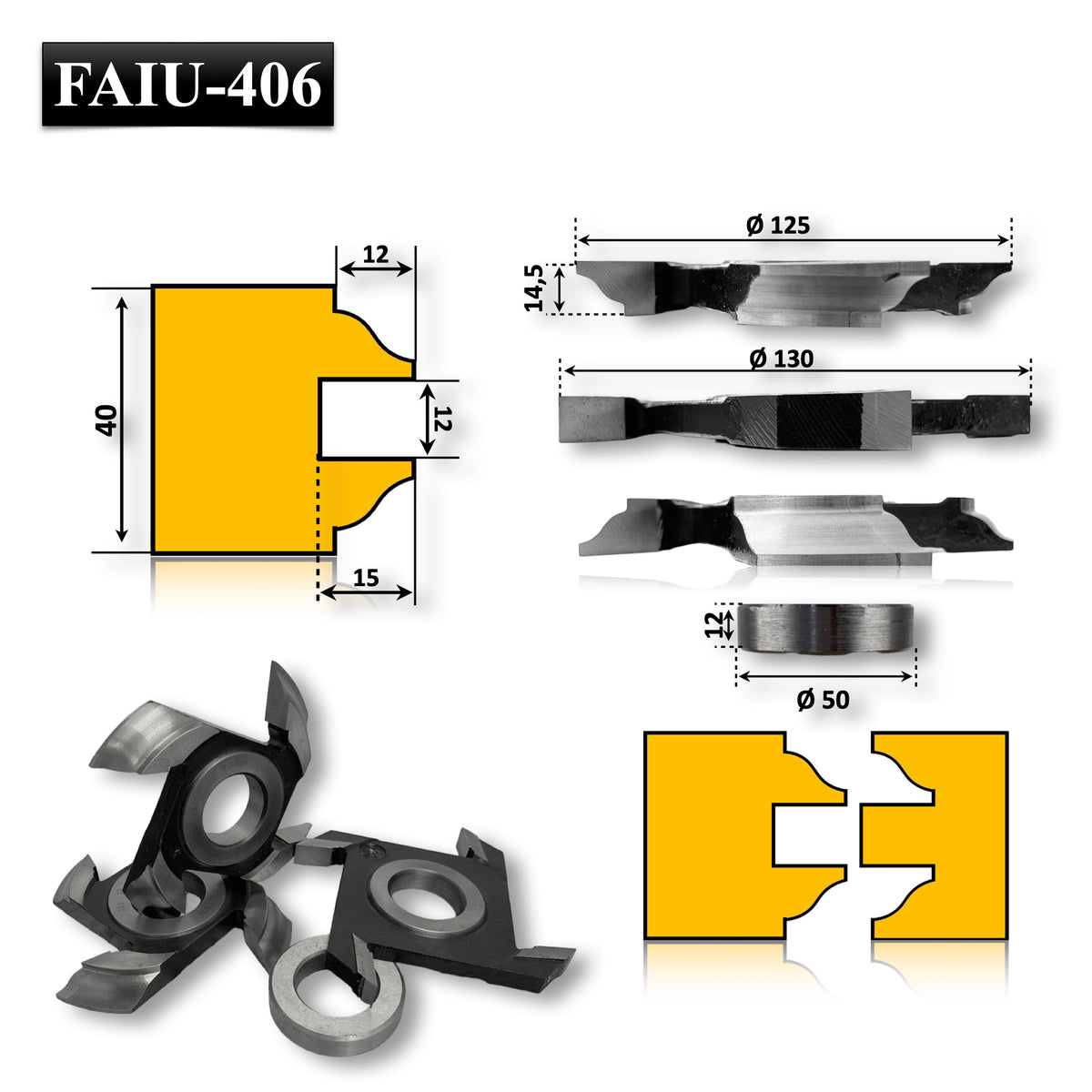

Outer Diameter	Outer DiameterAccording to attached technical drawing
Country of Origin	Country of OriginUkraine

Absolute Joint Precision: structurally optimized geometry for manufacturing door frames and panels with a thickness of 40 mm, ensuring zero tolerance in profile-counter profile coupling.
High-Quality Brazed Blade: the inserts, regardless of the material chosen (HSS M2 or T.C.T. Carbide), are professionally brazed with silver alloy (Ag), guaranteeing high mechanical resistance to shocks and impeccable finishes, without fiber tear-out.
Calibrated Modular System: the set consisting of 3 router bits and the included spacer ring allows micrometric height adjustments, adapting perfectly to normal wear and tear from successive resharpenings.
Dynamic Balancing Class G2.5: reduces vibrations on the machine spindle, protecting the bearings of the drive assembly and ensuring a perfectly smooth surface (ready for painting or lacquering).
Versatility in Fixing: Ø30 mm and Ø32 mm bores are standardized for immediate delivery, with the option of custom manufacturing for Ø35 mm or Ø40 mm.

Wood Derivatives Restriction: ❌ NOT recommended for use on particle board, MDF, HDF, or exotic wood! The synthetic binder in these materials will prematurely wear the high-speed steel blade.
Alternative Solution: for composite or agglomerated wood panels, it is mandatory to request the version with T.C.T. Carbide inserts.

Choosing the correct blade material directly influences the finish quality and tool lifespan (swipe left-right on mobile to view the full table):

Material Processed	HSS M2 Premium (6.5% W / Р6М5)	T.C.T. Carbide ⭐ (Metallic Carbides)
Softwood (Spruce, Fir, Pine)	⭐ 100% (No Burns)	❌ Risk of burning (Friction)
Hardwood (Beech, Oak, Ash)	80% (Efficient)	⭐ 100% (Resistant)
MDF / Particle board / HDF / Laminated	Not recommended	⭐ 100% (Optimal)
Composite & Exotic Materials	Prohibited	⭐ 100% (Maximum)
Active Insert Thickness	6 mm (Maximum)	3 mm
Number of Resharpenings	Maximum (M2)	Limited (3 mm)
Blade Material Hardness	64 – 66 HRC	85 – 92 HRC

Working with Spruce, Fir, or Pine? Stick with this HSS M2 Premium version. It is the only material that guarantees an immaculate white softwood, without burn marks.
Working with Oak, Beech, or laminated panels? Choose the T.C.T. Carbide version, structurally optimized for dense species without rapid blade wear.
Bore Configuration: the Ø30 mm and Ø32 mm versions are delivered immediately from stock. For machines with Ø35 mm or Ø40 mm spindles, select the dedicated option or send a firm pre-order to the technical team.

Mandatory protective equipment: safety glasses (against flying chips), mask or respirator (fine wood dust), and hearing protection for prolonged work.
Attention to hands and fingers: maintain a safe distance from the cutting area and use feed/push devices where possible; do not manually intervene near moving router bits.
Respect the assembly order of the set: the 3 router bits and the spacer ring must be assembled exactly in the order indicated by the technical drawing – an incorrect order alters the final profile and can unbalance the assembly.
Check the fastening of the entire package (router bits + ring) and the tightening of the spindle nut before starting the machine.
Respect the recommended speed of 6,000 – 9,000 RPM, to avoid vibrations or the risk of blade breakage.
Resharpening: we recommend having resharpening performed at a specialized center to maintain the original profile geometry and rake angle.
