Grooving Cutter - Rebate - Ø125 mm | 4 - 60 mm – Z6 HSS M2 Cutting Edge

SKU: N125*5HSS-d30
Regular price €17,20 incl. VAT
Regular price -10% €19,11 Sale price €17,20 incl. VAT
In stock
Ships in 24–48 h
Width (B) - Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

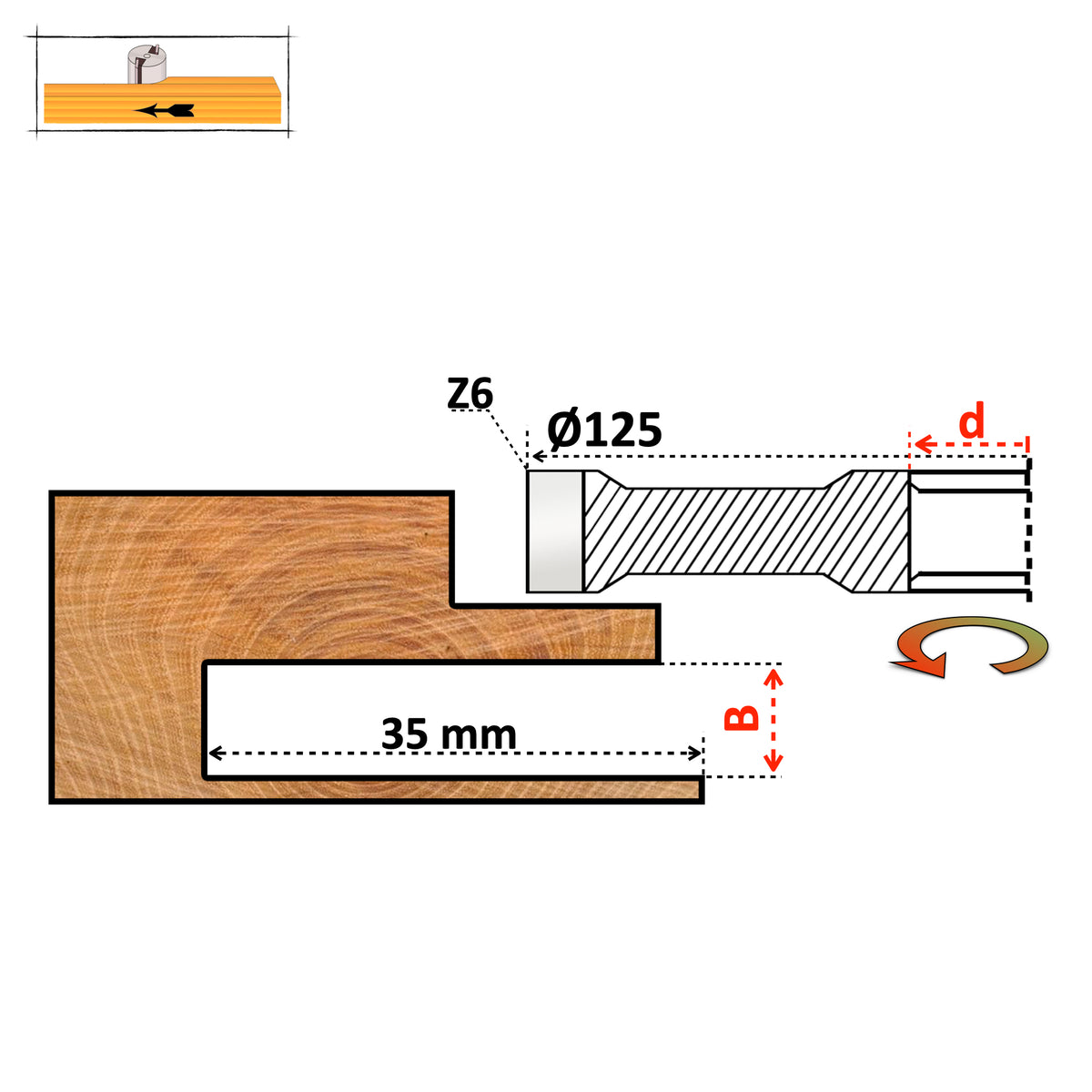

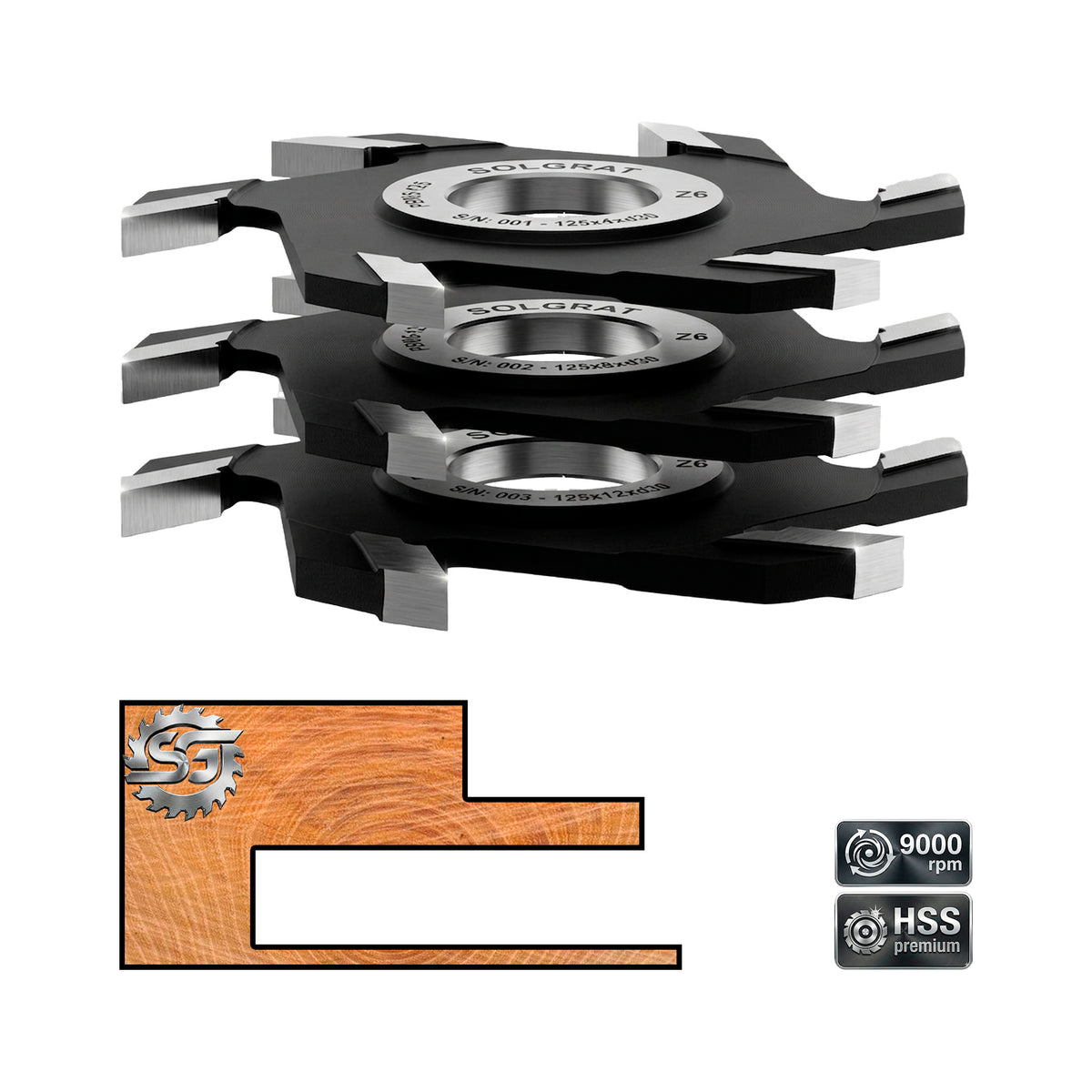

Grooving or Rebating Cutter Z6 | Diameter 125 mm | HSS M2 6.5% Tungsten Blade

Professional bore cutter, with 6 cutting edges (Z6) made of HSS M2 high-speed steel (6.5% Tungsten), for cutting grooves or rebates in solid wood. Available in a wide range of working thicknesses, from 4 to 60 mm, selectable directly from the product page. The package contains 1 cutter, of your choice – for multiple pieces (of the same or different variants), adjust the desired quantity for each option at checkout.

Working Thickness (B) Working Thickness (B)Available for selection: from 4 mm up to 60 mm (select variant)
Outer Diameter (D) Outer Diameter (D)125 mm
Number of Teeth / Blades Number of Teeth / BladesZ6 (6 active brazed inserts)
Blade Material Blade MaterialPremium HSS M2 High-Speed Steel (high 6.5% Tungsten content)
Construction Type Construction TypeProfessionally brazed inserts with special silver (Ag) alloy
Blade Hardness Blade Hardness64 – 66 HRC
Bore (d) Bore (d)Ø30 mm / Ø32 mm standard (see variant) | Ø35 mm / Ø40 mm available only by pre-order
Recommended Maximum Speed Recommended Maximum Speed9,000 RPM (for stationary milling machines / CNC)
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwood, between resharpening cycles)
Package Content Package Content1 x Cutter, of chosen variant (for multiple pieces, adjust the desired quantity for each variant)
Professional Range Professional RangeSolGrat – HSS Premium
Country of Origin Country of OriginUkraine

🚀 DYNAMIC PROPERTIES AND PERFORMANCE:

  • Z6 Force Configuration: equipped with 6 cutting teeth, the cutter ensures rapid chip evacuation, reducing vibrations and providing a clean finish to the groove, without fiber tearing.
  • Dense Blade with 6.5% Tungsten: the special HSS M2 alloy offers exceptional resistance to micro-chipping upon impact with knots, keeping its edge sharp longer than standard steel.
  • Shock-Absorbing Brazing: the fixing of inserts with a silver (Ag) based alloy absorbs mechanical shock waves during processing, protecting the integrity of the teeth and the machine spindle bearings.
  • Durable Investment (Reusable Body): unlike monobloc cutters that are discarded after wear, the thick SolGrat steel body allows professional re-brazing (welding of new inserts) at a specialized center, saving long-term costs.
  • Flexibility through Variants: the product is available in multiple width variants (4–60 mm) and standardized bores, configurable directly from the product page.

⚠️ IMPORTANT LIMITATIONS IN USE (HSS M2 VARIANT):

  • Exclusive Purpose: this HSS M2 range is exclusively intended for processing natural solid wood.
  • Prohibited Materials: ❌ NOT recommended and strictly forbidden for use on particleboard, MDF, HDF, or exotic wood!
  • Correct Alternative: for particleboards, composite materials, or wood derivatives with abrasive adhesive, request the variant with T.C.T. Vidia inserts.

📊 COMPATIBILITY GRADE BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Pine) 100%
Excellent: clean cut, no burns, impeccable groove finish.
Hardwood (Beech, Oak, Ash) 80%
Good: structurally efficient, but the blade wears out faster than on softwoods.
Particleboard / MDF / HDF / Laminated / Composites Not Recommended / Forbidden
The synthetic binder in these materials prematurely wears out the HSS blade.

💡 For MDF/particleboard/HDF/laminated panels or for intensive work on hardwoods, the equivalent variant with T.C.T. Vidia inserts is also available, much more resistant to the abrasive wear of these materials.

🦺 SAFETY MEASURES IN USE:

  • Mandatory protective equipment: safety glasses (against projected chips), mask or respirator filter (fine wood dust), and ear protection for prolonged work.
  • Attention to hands and fingers: maintain a safe distance from the cutting area and use feed/push devices where possible; do not manually intervene near the moving cutter.
  • Check the cutter's fastening on the spindle before starting the machine.
  • Respect the recommended speed of 9,000 RPM, to avoid vibrations or the risk of blade breakage.
