Circular Saw Blade PILANA 400x4.4/3.2 x 30 mm | 72 TFZ L HP+ for Melamine Faced Chipboard and MDF

SKU: PCPHP+400*4.4*72TFZL
€189,15 incl. VAT
-13% €216,28 €189,15 incl. VAT
In stock
On order
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

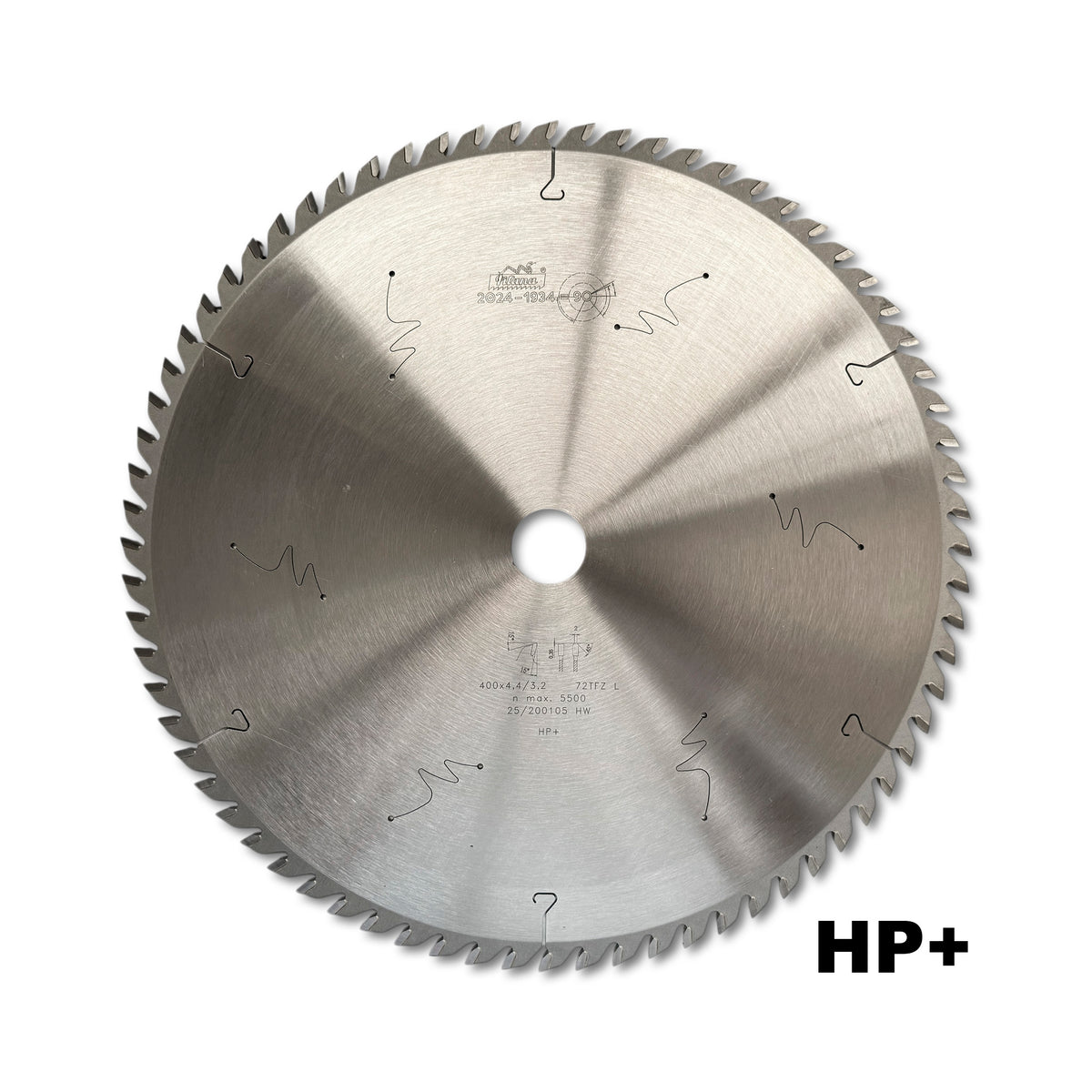

PILANA Professional Circular Saw Blade | 400x4.4/3.2 z72 TFZ L HP+

The professional circular saw blade PILANA HP+ (High Performance) represents the top industrial solution for clean and intensive cutting of wood-based panels. Thanks to the advanced geometric configuration of its TFZ (Trapezoidal-Flat) teeth and a reinforced body with damping slots, this blade guarantees perfect cuts, free of chipping or micro-cracks, on both sides of the laminated material (even without a scoring unit on perfectly tuned machinery).

Outer Diameter (D) 400 mm
Kerf Width / Plate Thickness (B/b) 4.4 mm (tooth width) / 3.2 mm (blade body thickness)
Arbor Bore Diameter (d) 30 mm (Industrial Standard)
Number of Teeth / Form 72 Teeth | TFZ L Profile (Trapezoidal-Flat with optimized rake angle)
Performance Range HP+ (High Performance Plus) - Maximum resistance to abrasive wear
Material Destination Melamine-faced chipboard, double-laminated MDF, HDF, stratified panels, and technical plastics
Manufacturer PILANA (Guaranteed Industrial Quality, Czech Republic)

✨ TECHNICAL ADVANTAGES OF THE PILANA HP+ SERIES:

📐 TFZ L Teeth Geometry (Trapezoidal - Flat) The trapezoidal profile performs the central pre-cut of the material, while the flat tooth cleans the edges of the kerf. This perfect alternation considerably reduces the pushing force and completely eliminates the risk of chipping of the melamine or veneer.
🤫 Laser Damping Slots & Silent Technology The blade body is laser-cut from high-quality alloy tool steel and is equipped with radial thermal expansion slots. These absorb vibrations and expansions during intensive work, keeping the blade perfectly flat and quiet.
💎 Extra Hard Tungsten Carbide Tips (HP+) The alloy of the carbide tips is optimized to resist the action of extremely abrasive synthetic adhesives used in the structure of chipboard and MDF panels. The blade maintains its sharp cutting edge for a much greater number of linear meters between resharpenings compared to standard blades.

🪵 COMPATIBILITY GUIDE AND RECOMMENDATIONS:

  • Ideal Materials: Excellent for sizing panel packages or individual sheets of melamine/laminated chipboard, raw or painted MDF, HDF, plexiglass, and composite materials with hard binders.
  • Operating Recommendation: Use the blade on sliding table saws or stationary CNC machines. For absolutely impeccable industrial quality results (flawless finish on the underside of the panel), it is recommended to use it in tandem with a suitable scoring blade.
