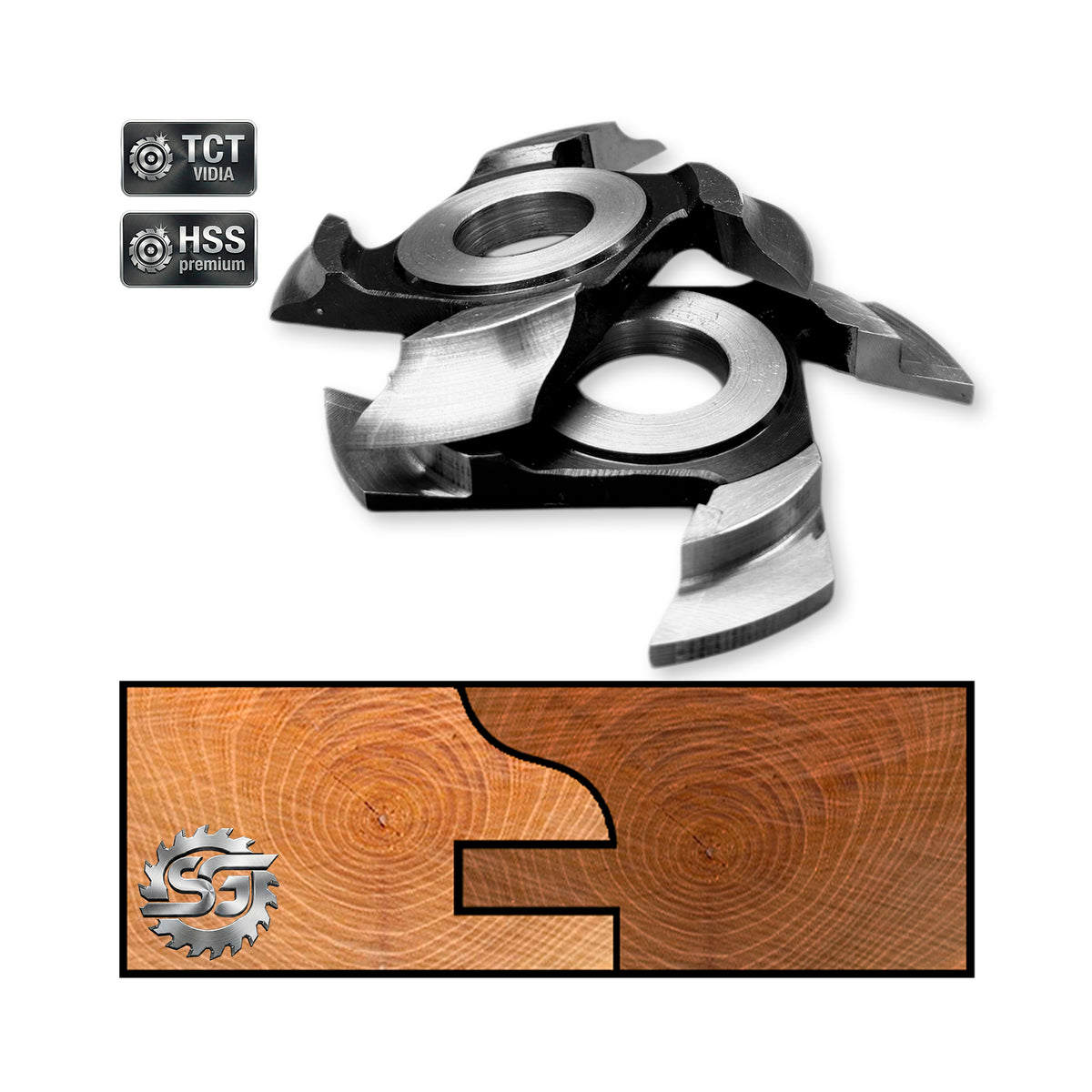

Set freze profesionale pentru îmbinare mobilă, placate cu HSS, ideale pentru material de 20-22 mm, asigurând precizie și rezistență în timp.
Set freze profesionale pentru îmbinare mobilă, placate cu HSS, ideale pentru material de 20-22 mm, asigurând precizie și rezistență în timp.

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Furniture Profile-Counterprofile Router Bit Set 20 - 24 mm | Code 02.04 | HSS or HW (K40)

SKU: 02.04h14V-d32
€100,69 incl. VAT
-18% €122,28 €100,69 incl. VAT
Only 1 left
Limited stock
Inserts x Profile x Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

2-Piece Profile-Counterprofile Router Bit Set for Cabinet Doors and Drawers (20–24 mm) – HSS M2 / HW (K40)

Professional set of 2 bore router bits, paired, for creating decorative profiles and counterprofiles on cabinet doors, drawer fronts, and frames made of solid wood or wood-based panels. Calibrated working thickness for 20–24 mm components. Available in HSS M2 and HW (K40) variants — select from the menu.

Active Working Thickness Working Thickness20–24 mm (finished components – frames, doors, drawer fronts)

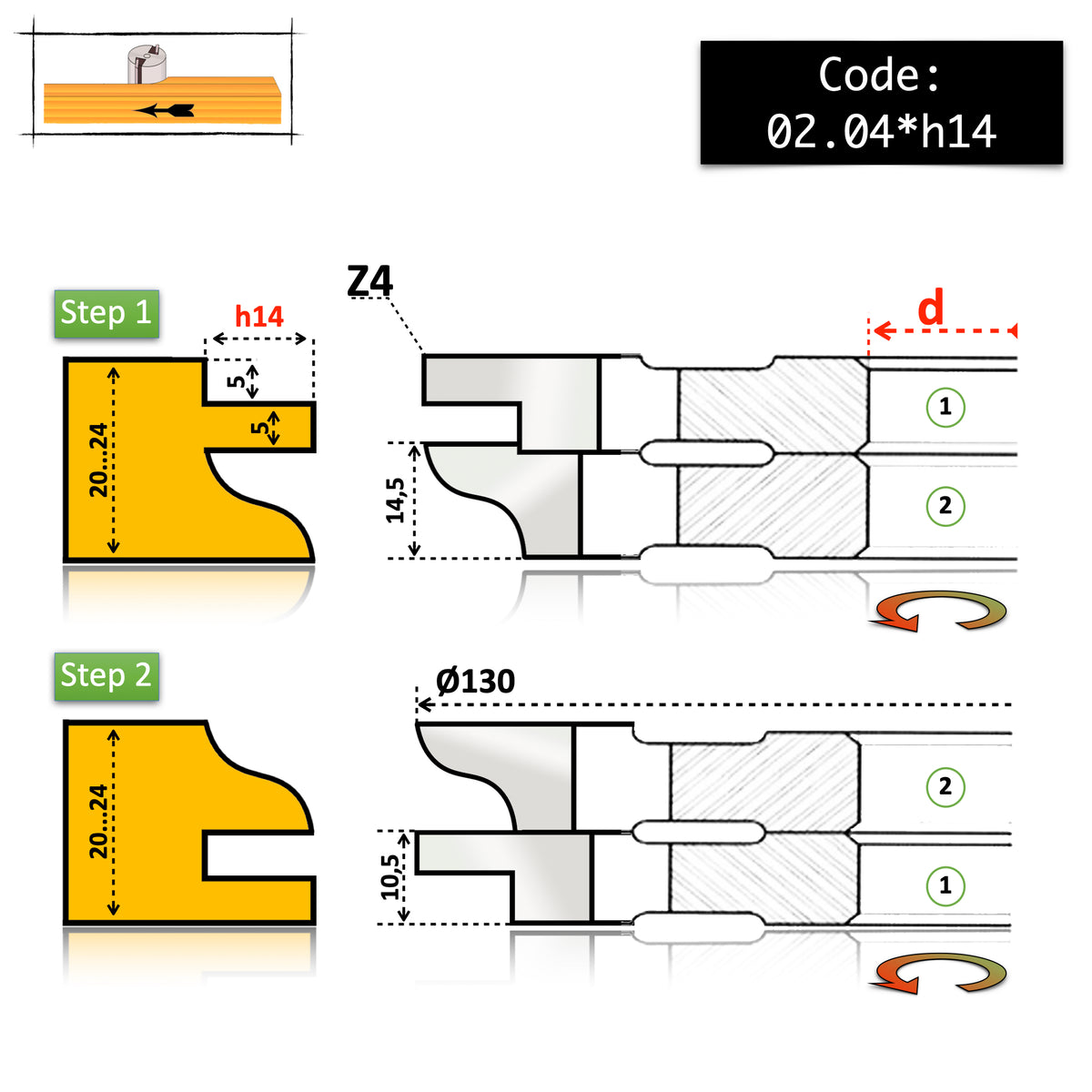

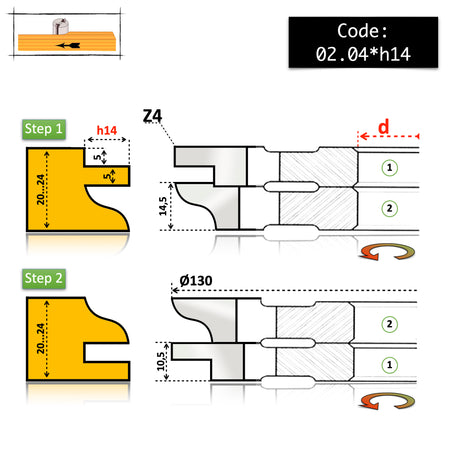

Outer Diameter (D) Outer Diameter (D)According to the attached technical drawing
Bore Diameter (d) Bore Diameter (d)See the list of variants in the menu (d32/30 = comes with reduction bushing). Custom sizes available upon request.
Cutting Material Cutting MaterialHSS M2 – 4 brazed inserts, 63–65 HRC, 6 mm insert | HW (K40) – 4 brazed inserts, 85–92 HRC, 3 mm insert – select variant
Construction Type Construction TypeBrazed profile tools, successively resharpenable; rebrazable upon advanced wear
Set Configuration Set Configuration2 paired profile router bits (profile + counterprofile)
Recommended Speed Speed6,000 – 9,000 RPM (marked on packaging box and tool body – adhere to indicated speed)
Country of Origin Country of OriginUkraine

✨ PROPERTIES AND ADVANTAGES:

  • Deep and Well-Defined Profiles: The calibrated working space for 20–24 mm allows for clear decorative reliefs, with a solid and elegant appearance – typical for quality furniture.
  • Dynamic CNC Balancing: The body of each router bit is machined on high-precision CNC machines, eliminating idle vibrations and protecting the spindle and bearings of the router machine.
  • Perfect Profile-Counterprofile Fit: The two router bits are paired and calibrated together — the joint of doors and frames results in a tight fit, without manual adjustments.
  • Long-Term Investment: The inserts can be successively resharpened at a specialized center, and in case of advanced wear, the tool body can be rebrazed.

🛠️ SELECTION GUIDE: HSS M2 vs. HW (K40)

The choice of material directly affects the finishing quality and tool lifespan (swipe left-right on mobile):

Processed Material HSS M2 ⭐
(High-Speed Steel) 		HW (K40) ⭐
(Tungsten Carbide)
Solid Wood
(Spruce, Fir, Beech, Oak) 		⭐ Optimal
Glossy finish, no sanding		 Recommended
Standard cut
Raw or Painted MDF / HDF Not recommended
Rapid wear		 ⭐ Optimal
Resistant to binders
Melamine Particleboard / Composites Strictly not recommended ⭐ Optimal
Prevents chipping
Cutting Edge Hardness 63–65 HRC 85–92 HRC

🦺 PRACTICAL MOUNTING AND OPERATION TIPS:

  1. Test on sacrificial material: Before serial production, perform a test cut on a piece of sacrificial wood to check for perfect right-angle profile matching.
  2. Spindle cleaning: Remove dust or resin deposits from the machine spindle before mounting — any residues can cause unwanted radial runout.
  3. Constant feed at 6,000–9,000 RPM: A uniform feed keeps the cutting edge cool and eliminates the risk of burns on materials with glues or tannins.

Delivery in 24–48 working hours for in-stock products, by courier (Fan Courier, Sameday, Cargus, DPD, GLS).

Free delivery in Romania for orders over 600 lei. We also ship to the EU, Moldova and Ukraine – the cost is calculated at checkout. Details in our Shipping policy.

This product is covered by the legal guarantee of conformity of at least 2 years, under EU and Romanian law. If the product does not match its description or does not work as intended, you are entitled to free repair or replacement and, in some cases, a price reduction or refund.

See the EU notice on the legal guarantee · europa.eu/youreurope – guarantees
