Set of 5 Interior Door Cutters, 60 Tenon | Profile 40 - 44 mm | Code 04.12C60 | HSS M2

€343,91 incl. VAT
Only 1 left
Limited stock
Material - Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

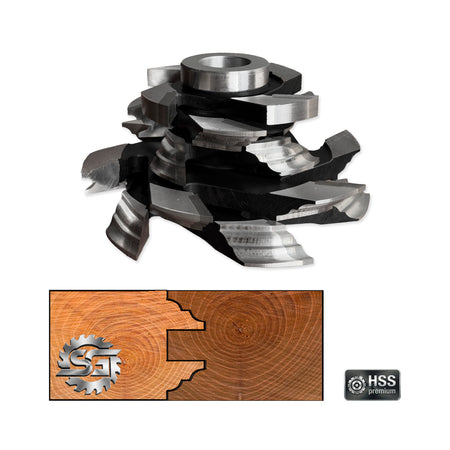

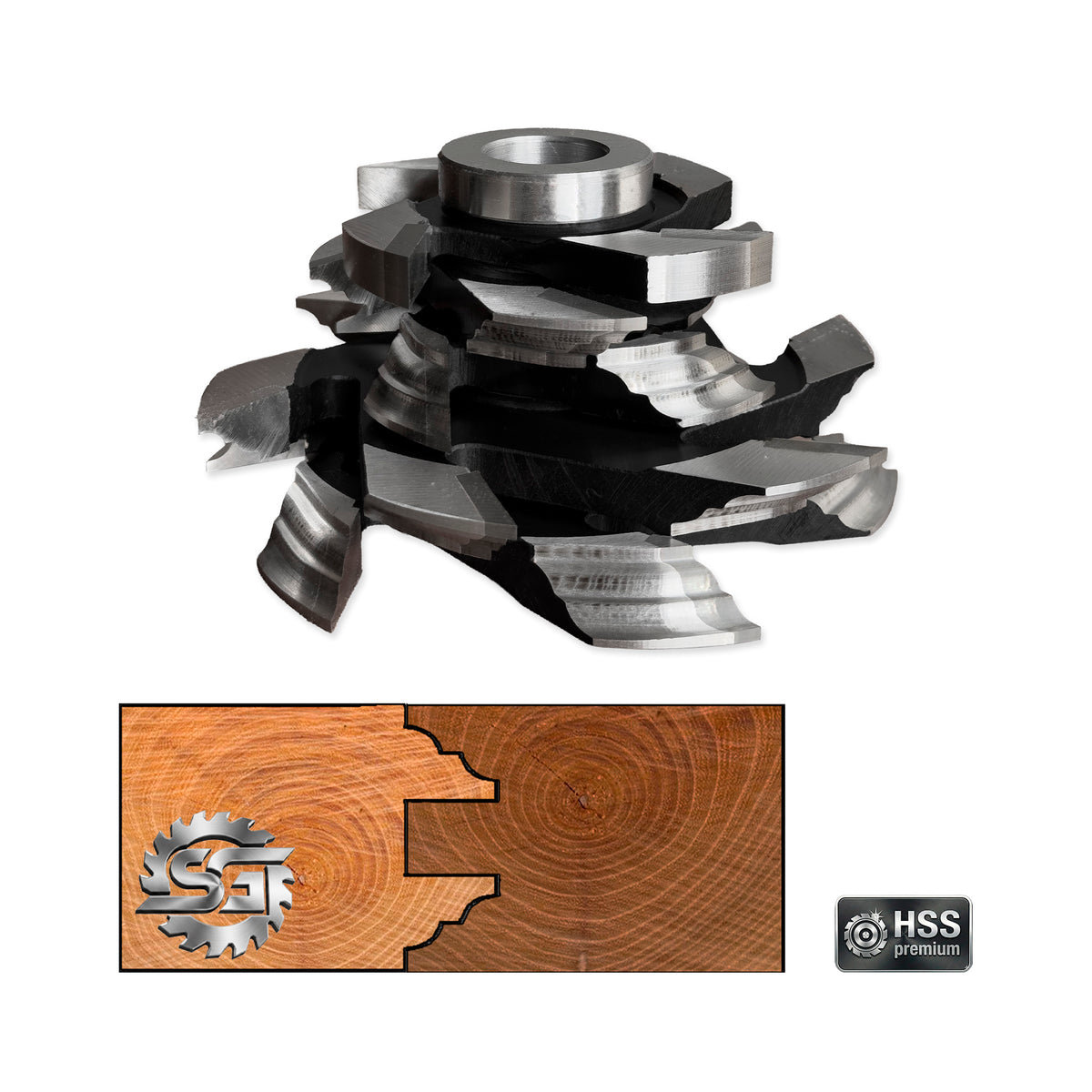

Profile-Counter Profile Cutter Set for Interior Doors (40 mm) – HSS M2 / T.C.T. Carbide

Active Working Thickness (B) Working Thickness (B)40 mm (finished element)
Blade Material Blade MaterialHSS M2 Premium (high-speed steel, 6.5% Tungsten, brazed with silver alloy Ag) | T.C.T. Carbide (metallic carbide, 85–92 HRC) – select option from menu
Construction Type Construction TypeBrazed profile tools (monoblock after brazing, no removable inserts)
Blade Hardness Blade HardnessHSS M2 – 64–66 HRC | T.C.T. Carbide – 85–92 HRC
Set Configuration Set Configuration3 profile cutters + 1 calibrated spacer ring
Arbor Bore (d) Arbor Bore (d)Ø32 mm (in stock) | Ø30, Ø35 mm / Ø40 mm available by pre-order
Recommended Speed Recommended Speed6,000 – 9,000 RPM (CNC / table router optimized)
Estimated Yield Estimated YieldUp to 3,000 linear meters (in softwoods, before first resharpening)

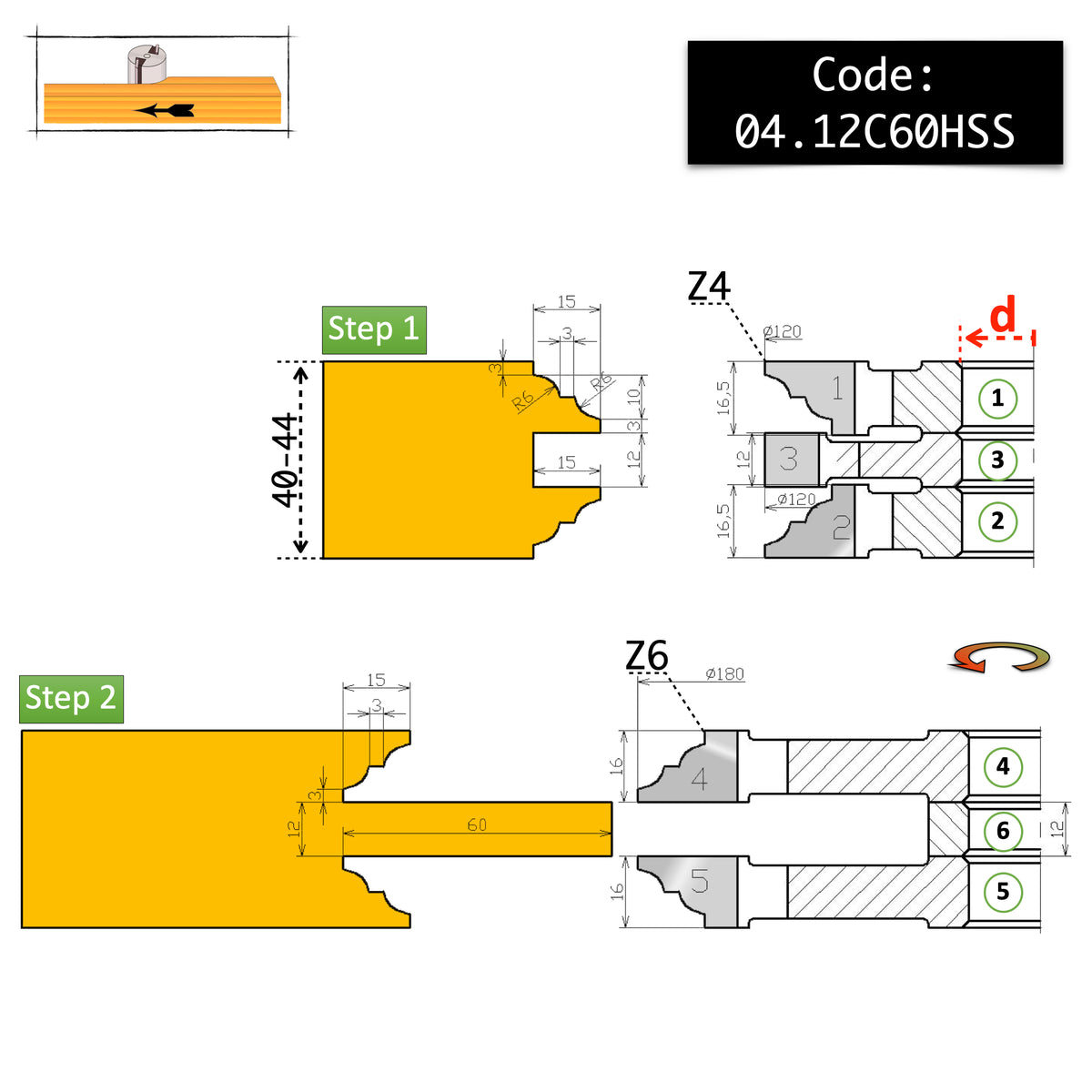

Outer Diameter Outer DiameterAccording to attached technical drawing
Country of Origin Country of OriginUkraine

🚀 DYNAMIC PROPERTIES AND PERFORMANCE:

  • Absolute Joining Precision: structurally optimized geometry for creating door frames and panels with a thickness of 40 mm, ensuring zero tolerance in profile-counter profile coupling.
  • High-Quality Brazed Blade: the inserts, regardless of the material chosen (HSS M2 or T.C.T. Carbide), are professionally brazed with silver alloy (Ag), guaranteeing high mechanical resistance to shocks and impeccable finishes, without fiber tear-out.
  • Calibrated Modular System: the set consisting of 3 cutters and the included spacer ring allows micrometric height adjustments, adapting perfectly to normal wear from successive resharpenings.
  • Dynamic Balancing Class G2.5: reduces vibrations on the machine's spindle, protecting the bearings of the drive assembly and ensuring a perfectly smooth surface (ready for painting or varnishing).
  • Mounting Versatility: Ø30 mm and Ø32 mm bores are standardized for immediate delivery, with the option of custom manufacturing for Ø35 mm or Ø40 mm.

⚠️ LIMITATIONS IN USE FOR HSS M2 VARIANT:

  • Wood Derivative Restriction: ❌ NOT recommended for use on chipboard, MDF, HDF or exotic wood! The synthetic binder in these materials will prematurely wear out the high-speed steel blade.
  • Alternative Solution: for composite panels or agglomerated wood, explicitly request the carbide insert variant T.C.T. Carbide.

🛠️ PROFESSIONAL SELECTION GUIDE: HSS vs. T.C.T. Carbide

Choosing the correct blade material directly influences the finish quality and tool life (swipe left-right on mobile to view the full table):

Material Processed HSS M2 Premium
(6.5% W / Р6М5) 		T.C.T. Carbide ⭐
(Metallic Carbides)
Softwood
(Spruce, Fir, Pine) 		⭐ 100%
(No Burns)		 ❌ Risk of burning
(Friction)
Hardwood
(Beech, Oak, Ash) 		80%
(Efficient)		 ⭐ 100%
(Resistant)
MDF / Chipboard / HDF / Laminated Not Recommended ⭐ 100%
(Optimal)
Composite & Exotic Materials Forbidden ⭐ 100%
(Maximum)
Active Insert Thickness 6 mm (Maximum) 3 mm
Number of Resharpenings Maximum (M2) Limited (3 mm)
Blade Material Hardness 64 – 66 HRC 85 – 92 HRC
💡 Conclusions for purchase:
  1. Working with Spruce, Fir or Pine? Stick with this HSS M2 Premium variant. It is the only material that guarantees an immaculate white finish on softwood, without burn marks.
  2. Working with Oak, Beech or laminated panels? Choose the T.C.T. Carbide variant, structurally optimized for dense wood species without rapid blade dulling.
  3. Arbor Bore Configuration: the Ø30 mm and Ø32 mm variants are delivered immediately from stock. For machines with Ø35 mm or Ø40 mm spindles, select the dedicated option or send a firm pre-order to the technical team.

🦺 SAFETY MEASURES FOR USE:

  • Mandatory protective equipment: safety glasses (against flying chips), mask or respirator filter (fine wood dust), and earmuffs for prolonged work.
  • Caution with hands and fingers: keep a safe distance from the cutting area and use feed/push devices where possible; do not manually intervene near moving cutters.
  • Respect the assembly order of the set: the 3 cutters and the spacer ring must be mounted exactly in the order indicated by the technical drawing – an incorrect order modifies the final profile and can unbalance the assembly.
  • Check the fastening of the entire package (cutters + ring) and the tightening of the spindle nut before starting the machine.
  • Respect the recommended speed of 6,000 – 9,000 RPM, to avoid vibrations or the risk of blade breakage.
  • Resharpening: we recommend resharpening at a specialized center to maintain the profile geometry and original rake angle.
