Stave Cutter Set for Hot Tubs and Saunas 22 - 46 mm | HSS M2

SKU: CS30-d30

€95,53 incl. VAT

-29% ~~€133,74~~ €95,53 incl. VAT

Only 3 left

Limited stock

Width (B) x Bore (d)

30 mm - d30 30 mm - d40 50 mm - d30 50 mm - d40 54 mm - d30 54 mm - d40

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Stave Milling Cutters (Concave-Convex Profile) 22 / 30 / 42 / 46 mm – HSS M2

Professional milling cutter set for making staves for hot tubs, tubs, saunas, barrels, rounded furniture, or solid wood boats (kayaks, canoes). The concave-convex profile is precisely calculated to ensure each stave perfectly interlocks with the next, eliminating gaps and leaks. Available in 4 thickness variants – 22, 30, 42, or 46 mm – to perfectly suit your project.

Stave Thickness (Available Variants)	Stave Thickness (Available Variants)22 mm / 30 mm / 42 mm / 46 mm (select variant)

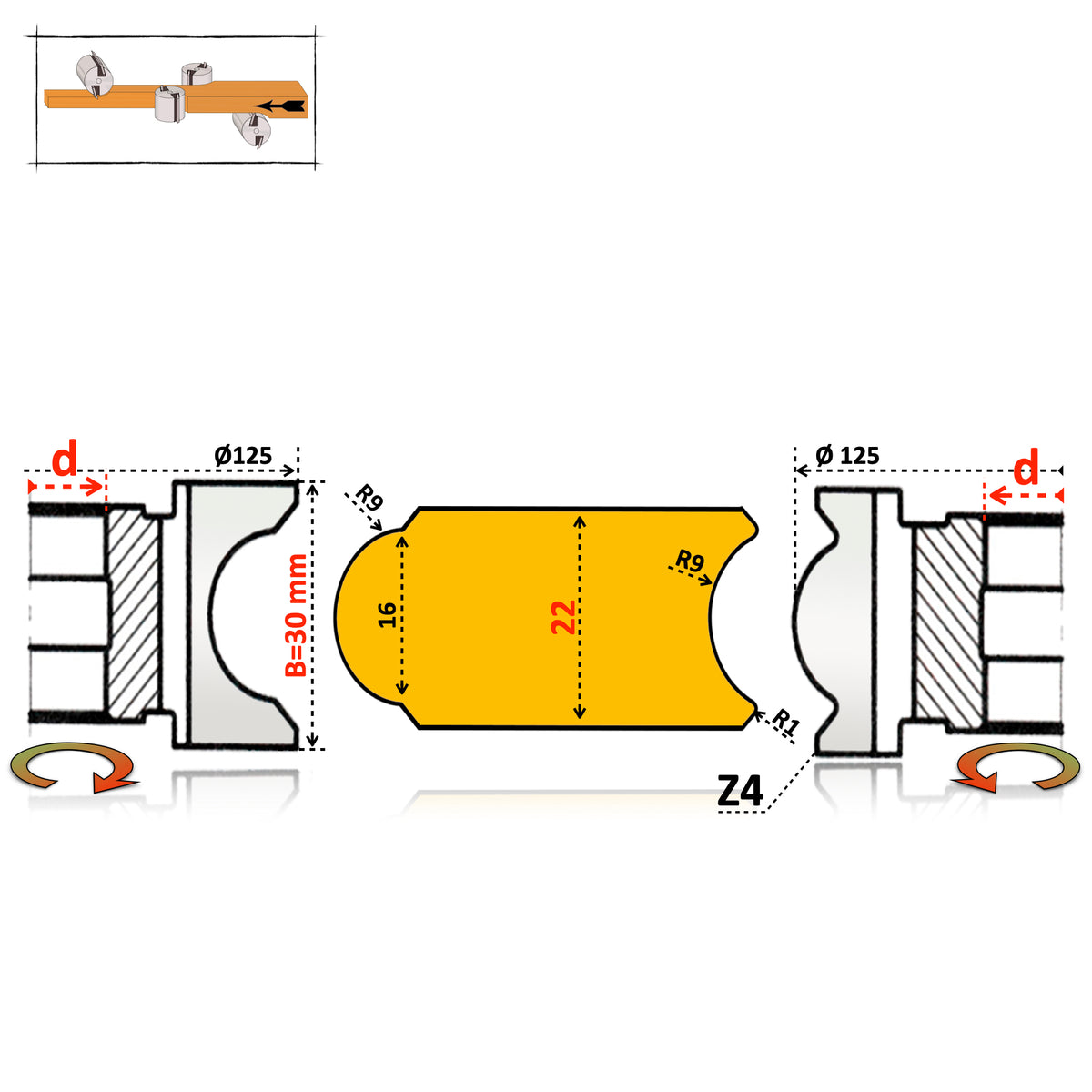

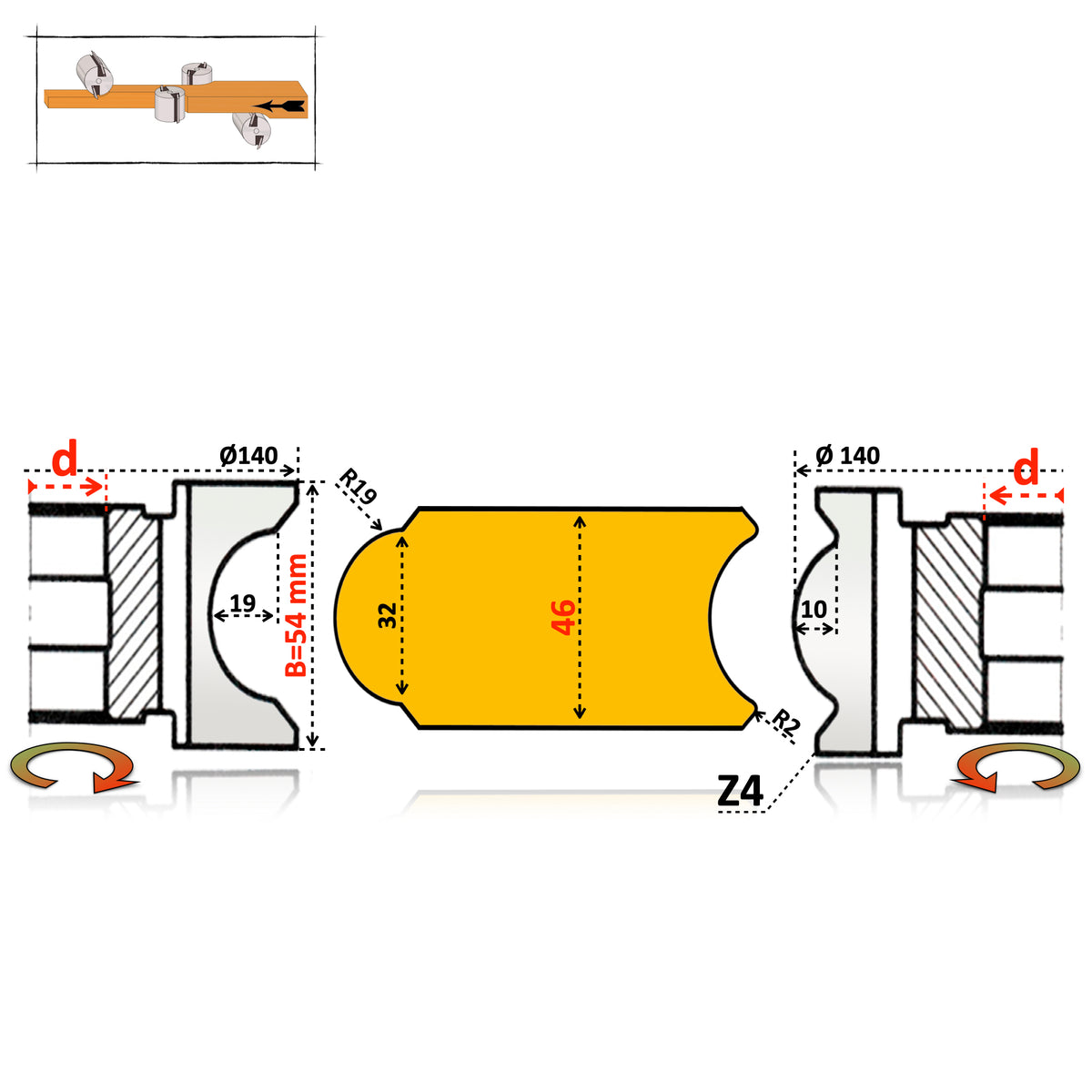

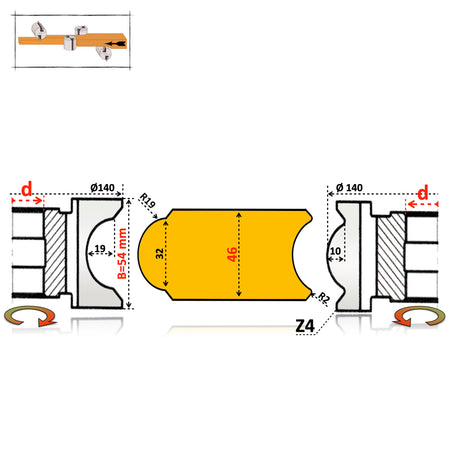

Outer Diameter	Outer DiameterAccording to the technical drawing of the selected variant
Arbor Bore (d)	Arbor Bore (d)Ø30 mm or Ø40 mm (choose variant when ordering)
Cutting Material	Cutting MaterialHSS M2 Premium (6.5% Tungsten), brazed with silver alloy (Ag)
Cutting Edge Hardness	Cutting Edge Hardness64 – 66 HRC

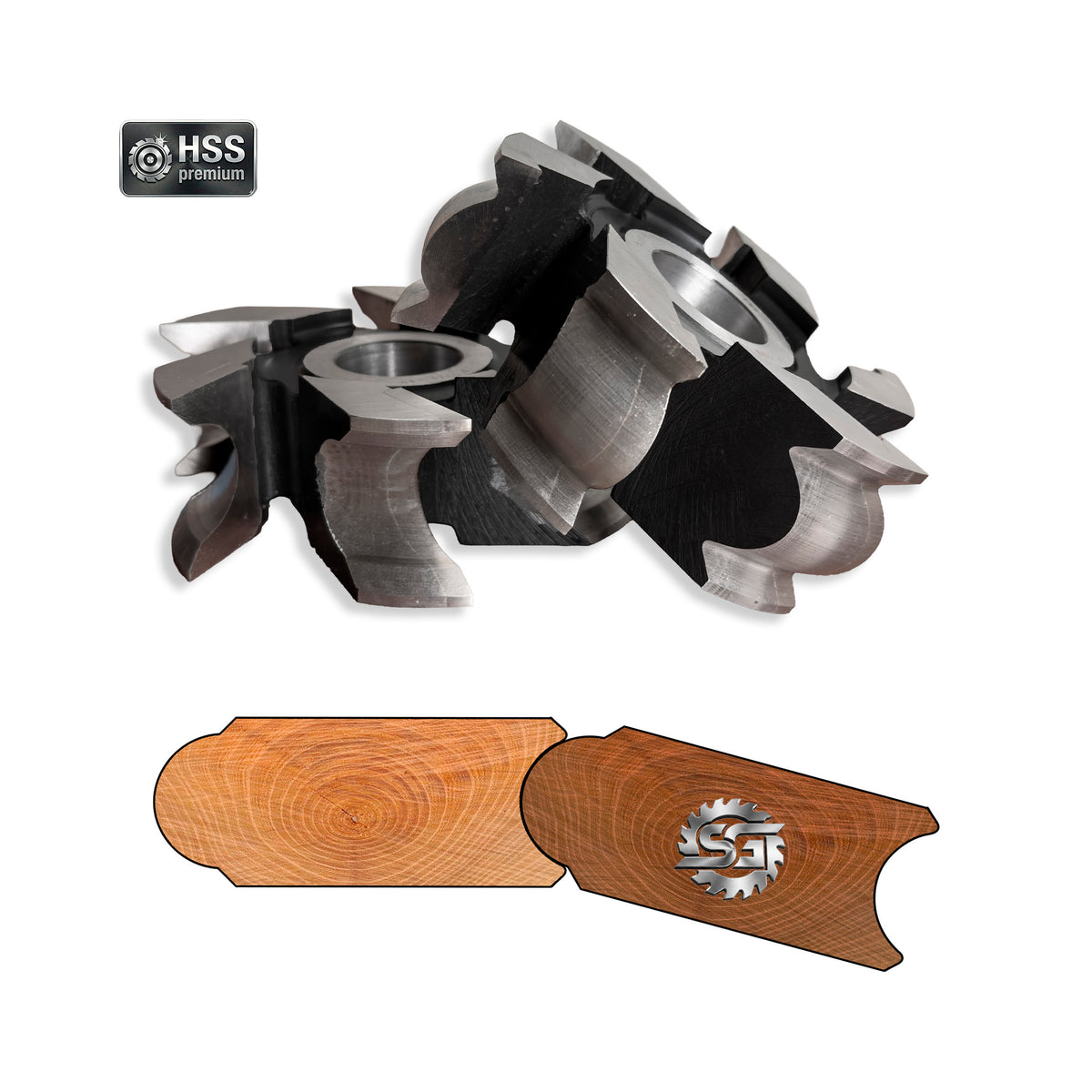

Set Configuration	Set Configuration2 cutters per variant (convex outer profile + concave inner profile), for complete stave jointing
Machine Compatibility	Machine CompatibilitySpindle moulder (single head) and 4-sided planing machines
Recommended RPM	Recommended RPM9,000 RPM
Estimated Lifespan	Estimated LifespanUp to 3,000 linear meters (in softwoods, before first resharpening)
Cutting Inserts	Cutting InsertsBrazed, successively resharpenable at a specialized center; in case of advanced wear, the cutter body can be re-brazed with new inserts
Country of Origin	Country of OriginUkraine

🛠️ WHY CHOOSE THIS SET:

Perfect Sealing: the concave-convex profile is precisely calculated so that each stave fits perfectly with its neighbor, eliminating gaps and leaks.
Durable Premium HSS M2: high-speed steel cutting edges resist intense wear and provide deep, clean cuts without burning the wood fiber.
Full Range of Thicknesses: 22, 30, 42, and 46 mm cover most projects, from curved furniture to large tubs and hot tubs.
Double Machine Compatibility: can be mounted on both spindle moulders (single head) and 4-sided machines, for flexible integration into your workshop.
Long-Term Investment: the inserts can be successively resharpened at a specialized center, and in case of advanced wear, the cutter body can be re-brazed with new inserts.

🔧 Recommended for: tubs and hot tubs for saunas/spas, sturdy barrels, curved furniture, as well as wooden boats (kayaks, canoes).

⚠️ USAGE LIMITATIONS:

Exclusive Purpose: this range is made exclusively from HSS M2 and is intended for processing natural solid wood (softwoods such as spruce, fir, pine, but also hardwoods).
Not Recommended for Composites: ❌ NOT recommended for use on chipboard, MDF, HDF, or other wood-based panels with abrasive adhesive. The synthetic binder prematurely wears out the high-speed steel cutting edge.
This range is not available in T.C.T. (Tungsten Carbide Tipped) variant. For applications on composite materials, please contact us to check the availability of other solutions.

📊 COMPATIBILITY LEVEL BY MATERIAL TYPE (HSS M2)

Softwood (Spruce, Fir, Pine) 100%

Excellent: deep and clean cut, no burning on the fiber.

Hardwood (Beech, Oak, Ash) 75%

Good: solid results, but the cutting edge wears out faster than on softwoods.

Chipboard / MDF / HDF / Laminate Not Recommended

The synthetic binder in these materials prematurely wears out the HSS cutting edge.

🦺 SAFETY MEASURES IN USE:

Mandatory protective equipment: safety glasses (against flying chips), mask or respirator (fine wood dust), and ear protection for prolonged work.
Beware of hands and fingers: maintain a safe distance from the cutting area and use push devices where possible; do not manually intervene near moving cutters.
Check the correct pair: before starting production, ensure that the convex and concave profile cutters correspond to the same thickness variant, for a tight stave joint.
Check the fastening of the cutters on the spindle (including any reduction bushings) before starting the machine.
Observe the recommended RPM of 9,000 RPM, to avoid vibrations or the risk of cutting edge breakage.

Order several variants

Variant	Quantity	Total
30 mm - d30 CS30-d30 Regular price €95,53 incl. VAT Regular price ~~€133,74~~ Sale price €95,53 incl. VAT	€0,00	Regular price €95,53 incl. VAT Regular price ~~€133,74~~ Sale price €95,53 incl. VAT	€0,00
30 mm - d40 CS30-d40 Regular price €114,06 incl. VAT Regular price ~~€133,74~~ Sale price €114,06 incl. VAT	€0,00	Regular price €114,06 incl. VAT Regular price ~~€133,74~~ Sale price €114,06 incl. VAT	€0,00
50 mm - d30 CS50-d30 Regular price €174,82 incl. VAT	€0,00	Regular price €174,82 incl. VAT	€0,00
50 mm - d40 CS50-d40 Regular price €319,07 incl. VAT	€0,00	Regular price €319,07 incl. VAT	€0,00
54 mm - d30 CS54-d30 Regular price €222,59 incl. VAT	€0,00	Regular price €222,59 incl. VAT	€0,00

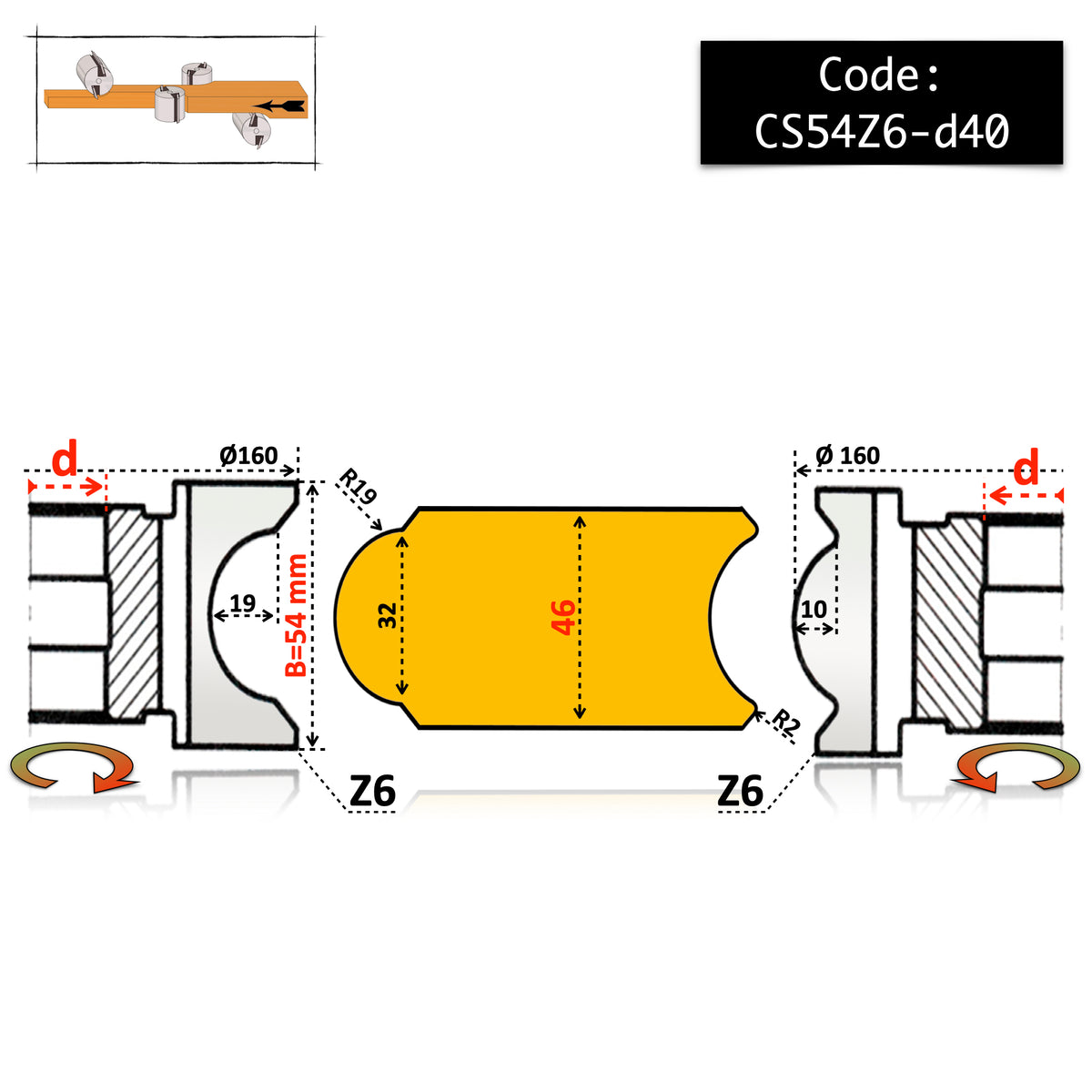

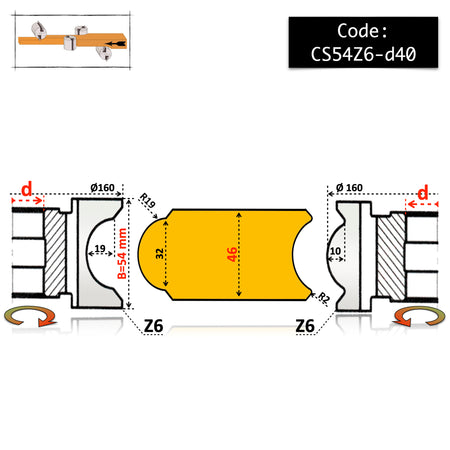

54 mm - d40 CS54Z6-d40 Regular price €319,07 incl. VAT	€0,00	Regular price €319,07 incl. VAT	€0,00
