Set 2 Freze cu Dinti pentru imbinare Grinda la Casute din Lemn sau Cabane cu grosimea de 40 - 45 mm

Set 2 Freze cu Dinti pentru imbinare Grinzilor la Case din Lemn sau Cabanute Forestiere cu grosimea de 40 - 45 mm

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Set of 2 Log Cabin Beam Cutter Bits 40-45 mm - HSS M2

Name: Set of 2 Log Cabin Beam Cutter Bits 40-45 mm - HSS M2
Brand: SolGrat
SKU: FAGL4045-d40
Price: 191.06 EUR
Availability: OutOfStock

SKU: FAGL4045-d40

€191,06 incl. VAT

-43% ~~€336,08~~ €191,06 incl. VAT

Out of stock

Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei

100% secure payments

Professional quality

Got questions?

Set of 2 Cutters for Block House Walls – HSS M2 Premium | d40 | 40–45 mm

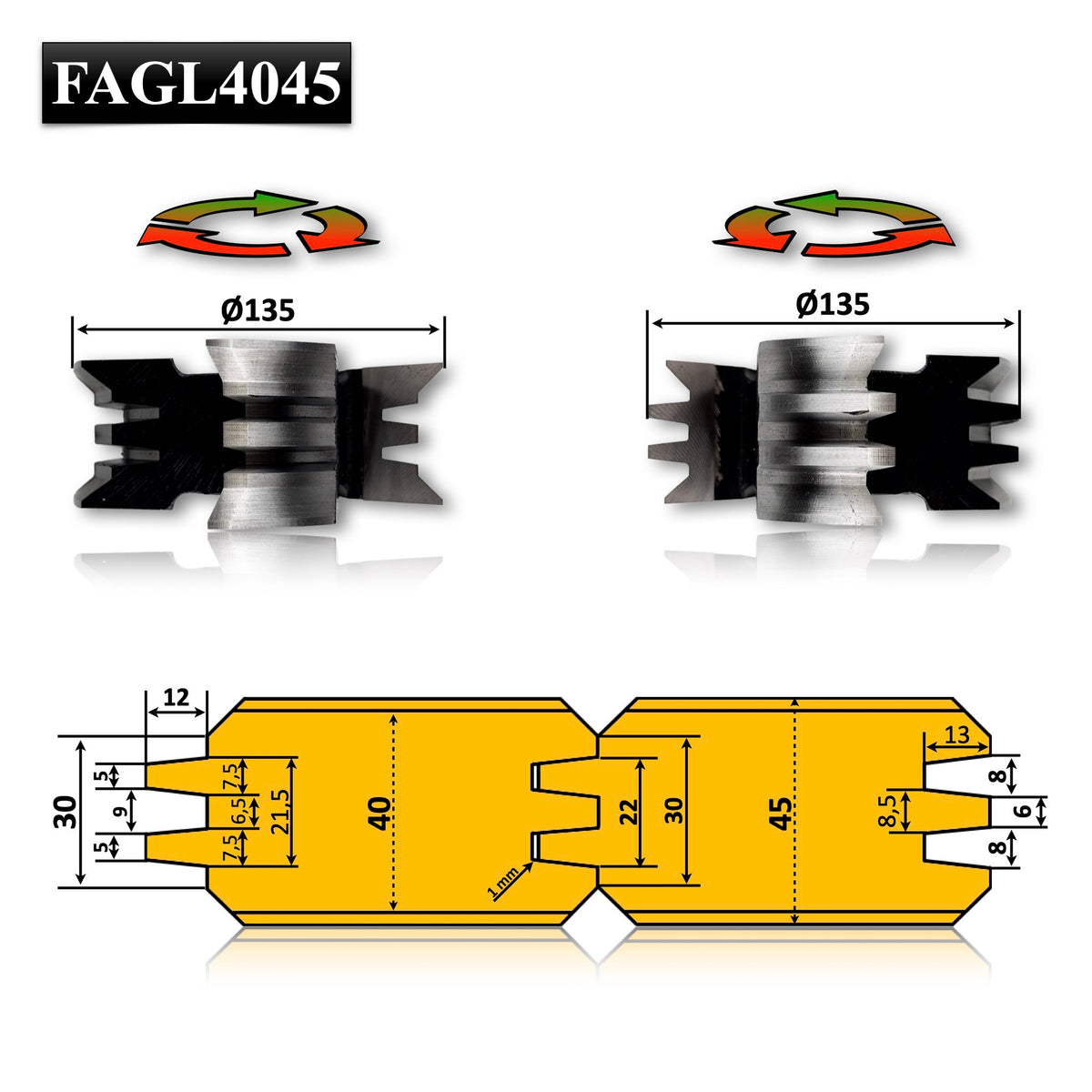

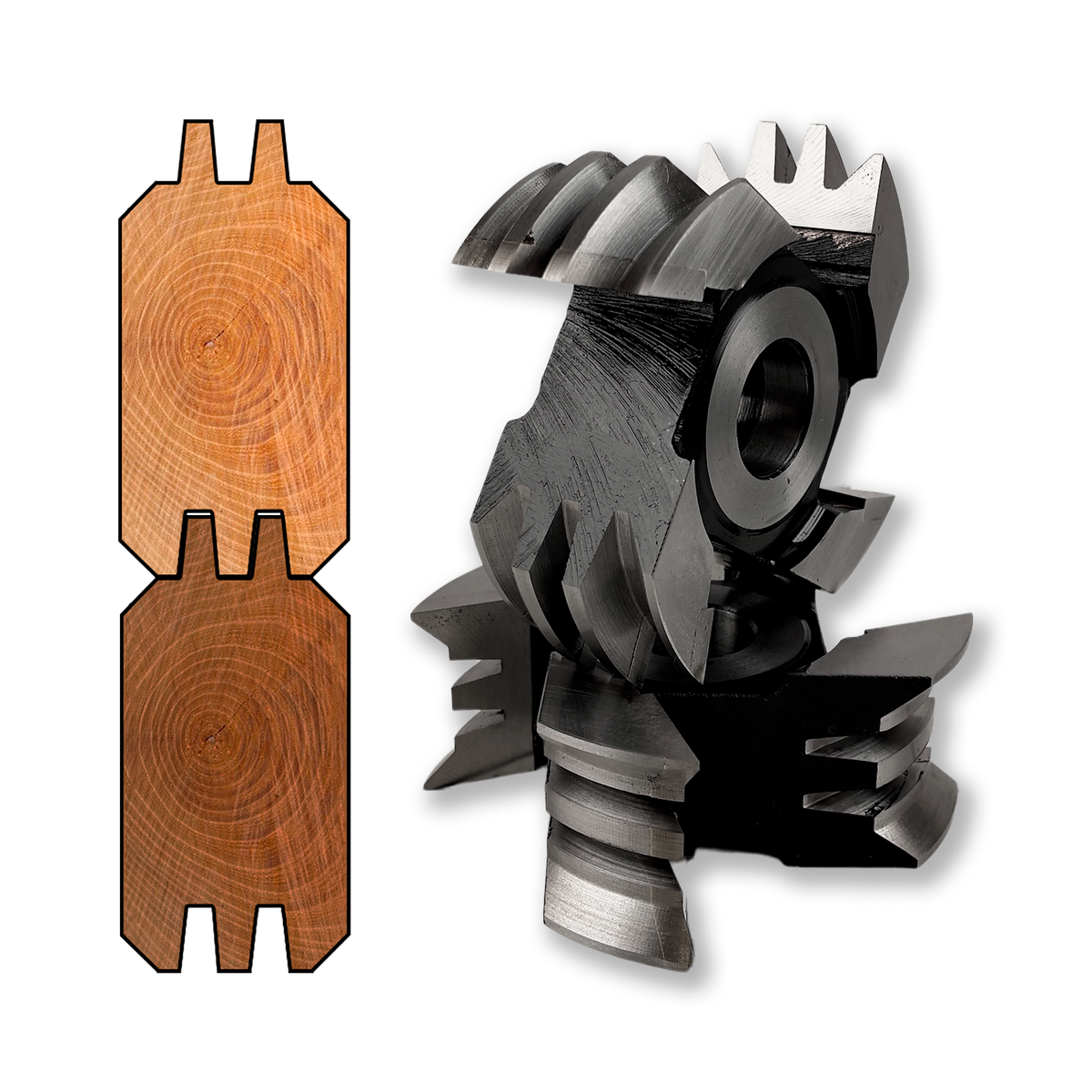

Set of 2 bore cutters made of HSS M2 high-speed steel for creating the complete Block House wall profile on industrial 4-sided machines. The cutters create a 2-tooth W-shaped lateral joint system (double tongue + double groove) – ensuring secure mechanical interlocking between boards, without gaps, specific to solid wood constructions for cabins and rustic houses. Board thickness 40–45 mm, standard bore Ø40 mm, outer diameter according to the attached technical drawing.

Outer Diameter (D)	Outer Diameter (D)According to the attached technical drawing
Bore (d)	Bore (d)Ø40 mm standard (industrial 4-sided machines) \| other sizes on request
Board Thickness (Working Space)	Board Thickness40–45 mm
Lateral Joint System	Joint System2 W-shaped teeth (double tongue + double groove) – secure mechanical interlocking between boards, no gaps
Set Configuration	Set Configuration2 structurally correlated cutters (male profile + female profile)
Blade Material	Blade MaterialHSS M2 Premium (6.5% Tungsten) \| silver alloy brazed (Ag) \| 64–66 HRC
Inserts	InsertsBrazed, successively resharpenable; re-brazeable in case of advanced wear
Recommended RPM	Recommended RPM9,000 RPM
Estimated Yield	Estimated YieldUp to 3,000 linear meters in softwoods, before the first resharpening
Machine Compatibility	Machine CompatibilityExclusively industrial 4-sided profiling machines, Ø40 mm arbor
Country of Origin	Country of OriginUkraine

✨ ADVANTAGES AND FEATURES:

Complete Joint in a Single Pass: the 4-sided machine creates the W-joint system on both sides of the board in a single pass — maximum productivity, constant precision along the entire length.
W-Joint with 2 Teeth – Superior Mechanical Locking: the double tongue and double groove system provides a more solid mechanical lock compared to simple straight or V-shaped tongue-and-groove. Boards cannot separate laterally and do not leave gaps due to expansion/contraction.
HSS M2 64–66 HRC – Finish Ready for Treatment: the high-speed steel blade at 9,000 RPM leaves surfaces smooth, without burns or fiber tear-out — including on boards with knots, specific to construction timber.
Long-Term Investment: inserts can be successively resharpened; in case of advanced wear, the cutter body can be re-brazed with new inserts.

⚠️ LIMITATIONS IN USE (HSS M2):

❌ Exclusively for natural solid wood – DO NOT use on chipboard, MDF, HDF, or very hard exotic wood. Synthetic binder prematurely wears out the high-speed steel blade.
❌ Exclusively for 4-sided machines, Ø40 mm bore – not compatible with classic table routers with Ø30 mm or Ø32 mm bore.
Maintain a constant and even feed rate — stopping the tool in the material generates burns on the flat surfaces of the profile, difficult to remedy without reprocessing.

📊 COMPATIBILITY WITH CONSTRUCTION WOOD TYPES

Softwood for Construction (Fir, Spruce, Pine) 100%

Excellent: standard essence for wooden cabins and houses — white finish, no burns, ready for varnishing or treatment.

Hardwood (Oak, Beech, Ash, Acacia) 80%

Good: efficient results, blade wear is faster compared to softwoods — more frequent resharpening needed.

Chipboard / MDF / HDF / Plywood Not Recommended

Synthetic binder prematurely wears out HSS blade. For engineered wood panels, choose T.C.T. carbide version.

🦺 SAFETY MEASURES IN USE:

Mandatory protective equipment: safety glasses, respiratory mask, and ear protection for prolonged work on 4-sided machines.
Check the cutters' fixation on the arbor and full tightening of nuts before starting — with thick boards of 40–45 mm, radial forces are significant.
Constant feed rate: do not stop the machine with the cutters in contact with the material — risk of burns on flat surfaces.
Resharpening: we recommend doing it at a specialized center to maintain the exact geometry of the W-joint profile.
