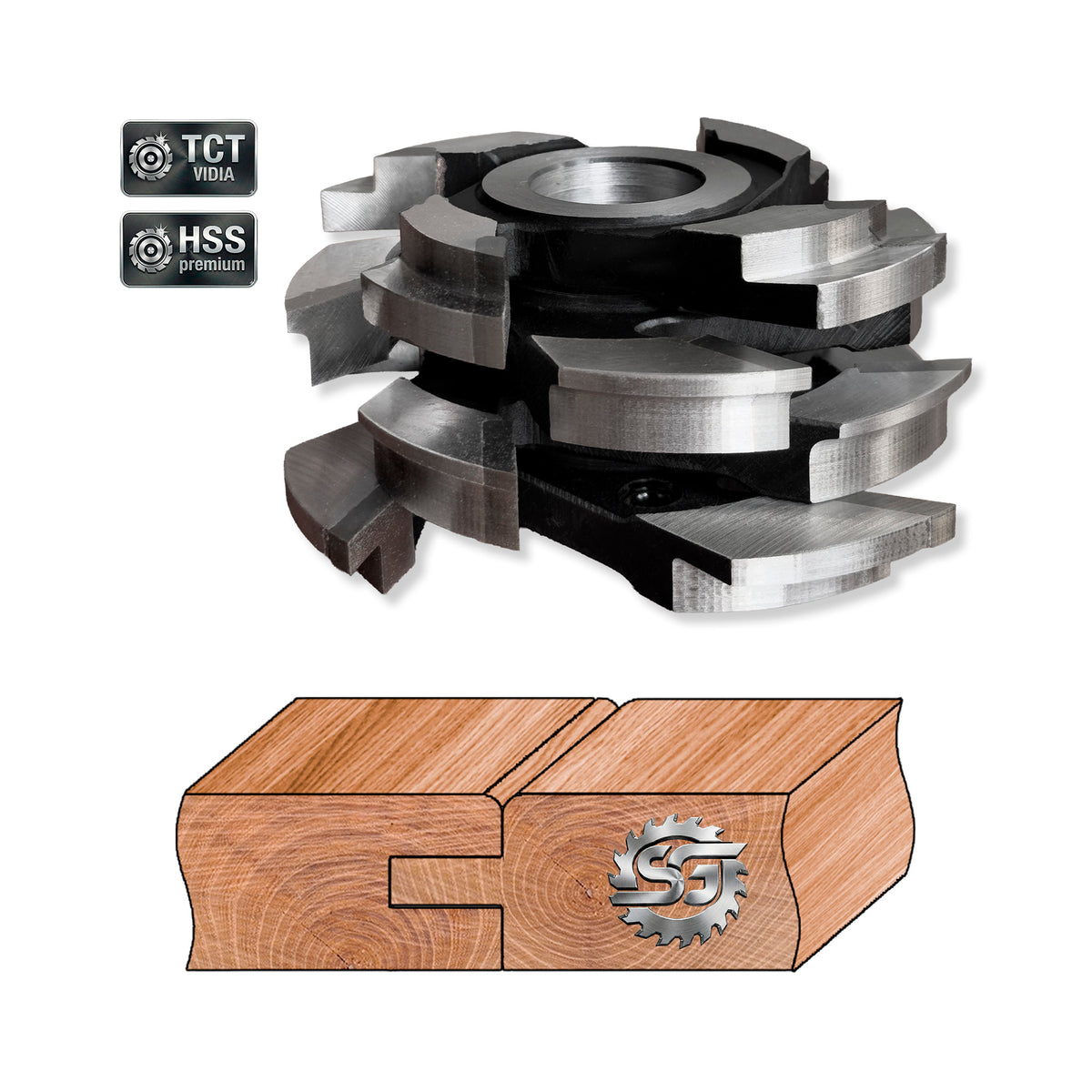

Set of 4 Softline Frame & Panel (Rail & Stile) Cutters 20–24 mm – HSS M2

Professional set of 4 matched cutters for rail-and-stile (profile / counter-profile) joints on furniture doors and frames, working thickness 20–24 mm. The cutter geometry forms a fine decorative V-groove at the finished joint, adding visual elegance to furniture fronts and effectively masking the natural expansion and shrinkage of the wood. Brazed with HSS M2 Premium tips — a version with HW (K40) carbide tips is available on pre-order.

Bore (d) Bore (d)Ø32 mm standard, reducing bushings for Ø30 mm included | Ø40 or Ø50 mm on special order
Working Thickness (B) Working Thickness20 – 24 mm
Joint Profile ProfileProfile / counter-profile (rail & stile) with an elegant decorative V-groove at the frame joint

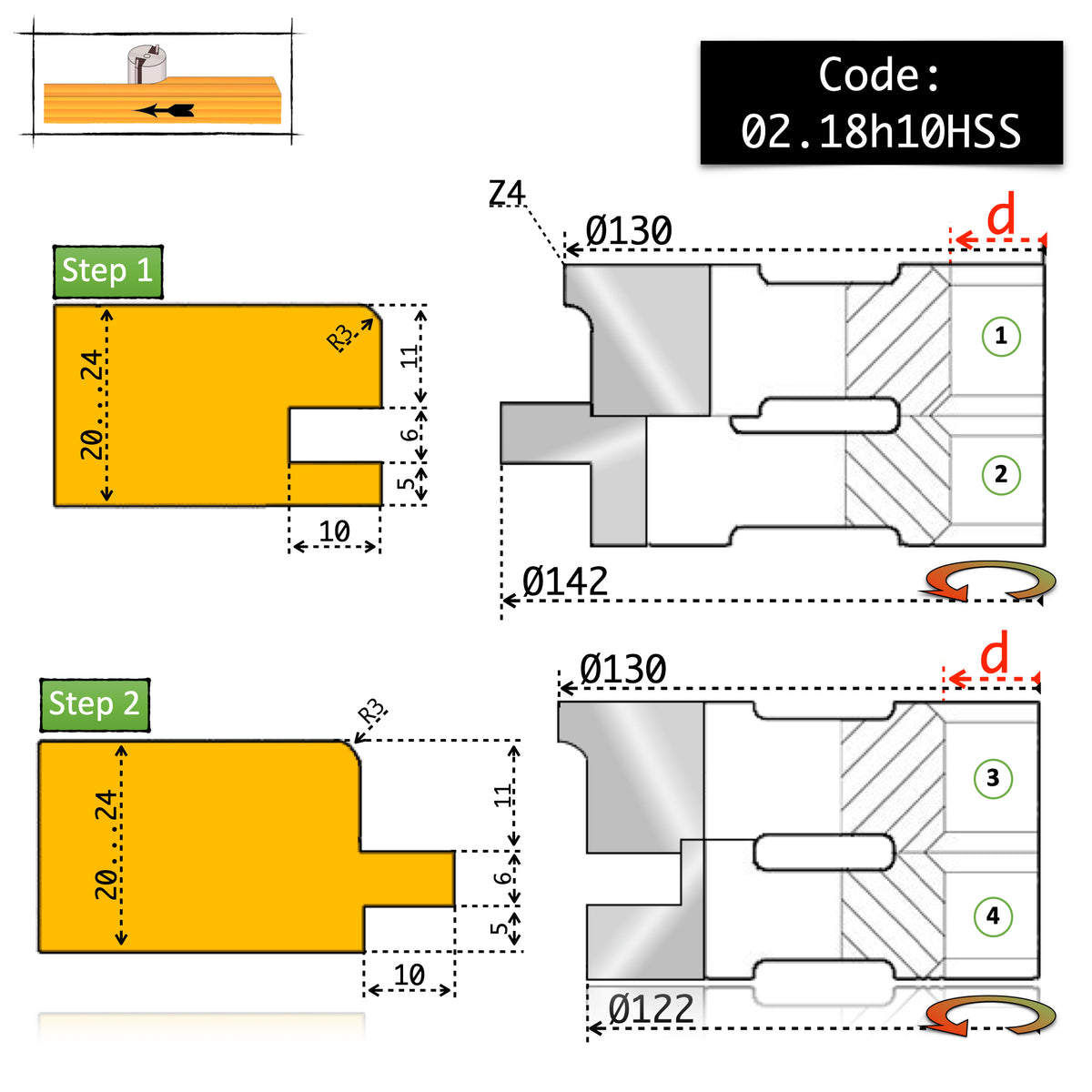

Outside Diameter (D) Outside Diameter (D)As per the attached technical drawing
Set Configuration Set Configuration4 matched profile cutters
Cutting Material Cutting MaterialHSS M2 Premium (in stock) | HW (K40) (pre-order)
Edge Hardness Edge HardnessHSS M2 – 63–65 HRC | HW (K40) – 86–87 HRA
Construction ConstructionProfiled tips industrially brazed with silver alloy (Ag) onto a structurally treated body
Recommended RPM Recommended RPM9,000 RPM
Country of Origin Country of OriginUkraine

✨ PROPERTIES AND PERFORMANCE:

  • High-Precision Modular Assembly: the 4 industrially calibrated cutters allow perfect machining and fitting of frames, furniture doors and panels, with strong structural joints and no axial play or geometric deviation.
  • Fine Decorative V-Groove: the cutter geometry forms a fine V-shaped decorative channel at the final joint — extra visual elegance and effective masking of the wood's natural movement.
  • Professional HSS M2 Cutting Edge: HSS M2 tips (6% W · 5% Mo) cut softwood and hardwood fibres cleanly, leaving perfectly smooth profiles. For abrasive materials (MDF), the set can be ordered in the HW (K40) version.
  • Bore with Bushings Included: Ø32 mm standard with Ø30 mm reducing bushings included — production flexibility, with custom Ø40 or Ø50 mm bores available for heavy joinery machines.

⚠️ CUTTING MATERIAL SELECTION GUIDE:

✅ HSS M2 Premium: recommended for natural wood (fir, spruce, oak, beech, linden) – flawless finish, no torn fibres.

✅ HW (K40): recommended for raw or painted MDF, laminated particle boards and other wood-based panels.

🛠️ Selection Guide: HSS M2 vs. HW (K40) for Furniture

Configure your tooling according to your workload and the materials processed in your workshop:

Workpiece Material HSS M2 Premium ⭐
(in stock) 		HW (K40)
(pre-order)
Solid Natural Wood
(Softwoods, Linden, Beech, Oak) 		⭐ Optimal (100%)
(No sanding needed)		 Recommended (85%)
(Impact-type cutting)
Raw or Painted MDF / HDF
(Milled door fronts) 		Not recommended
(Rapid wear)		 ⭐ Optimal (100%)
(Resistant to binders)
Melamine Chipboard / Composites Strictly forbidden ⭐ Optimal (100%)
(Prevents edge chipping)
Decorative V-Edge Finish Extremely sharp
(No chipping)		 Industrial standard
Hardness & Sharpening 63 – 65 HRC
(Easy to sharpen)		 86 – 87 HRA
(Requires a diamond wheel)

✅ Practical tips for setup and use:

  1. Workpiece thickness: the cutters adjust smoothly to cover the full 20–24 mm thickness range. Calibrate the machine carefully to keep the back of the doors perfectly flush.
  2. Fitting the reducing bushings: when using a Ø30 mm spindle, make sure the supplied bushings are clean and fully seated in the cutter bores to eliminate any radial runout.
  3. Constant cutting regime: keep a steady feed rate at 9,000 RPM. Do not let the tool dwell in the material, to avoid local burn marks on resinous or tannin-rich wood species.

🦺 SAFETY MEASURES:

  • Mandatory protective equipment: safety glasses, dust mask or respirator (fine wood dust) and hearing protection for prolonged work.
  • Follow the set's stacking order: the 4 cutters must be mounted exactly in the order shown on the technical drawing – the wrong order changes the final profile and can unbalance the stack.
  • Check the mounting of the whole stack and full tightening of the spindle nut before starting the machine.
  • Respect the recommended speed of 9,000 RPM to avoid vibration or risk of tip breakage.
  • Resharpening: we recommend a specialised service centre to preserve the profile geometry and the decorative V-groove.
