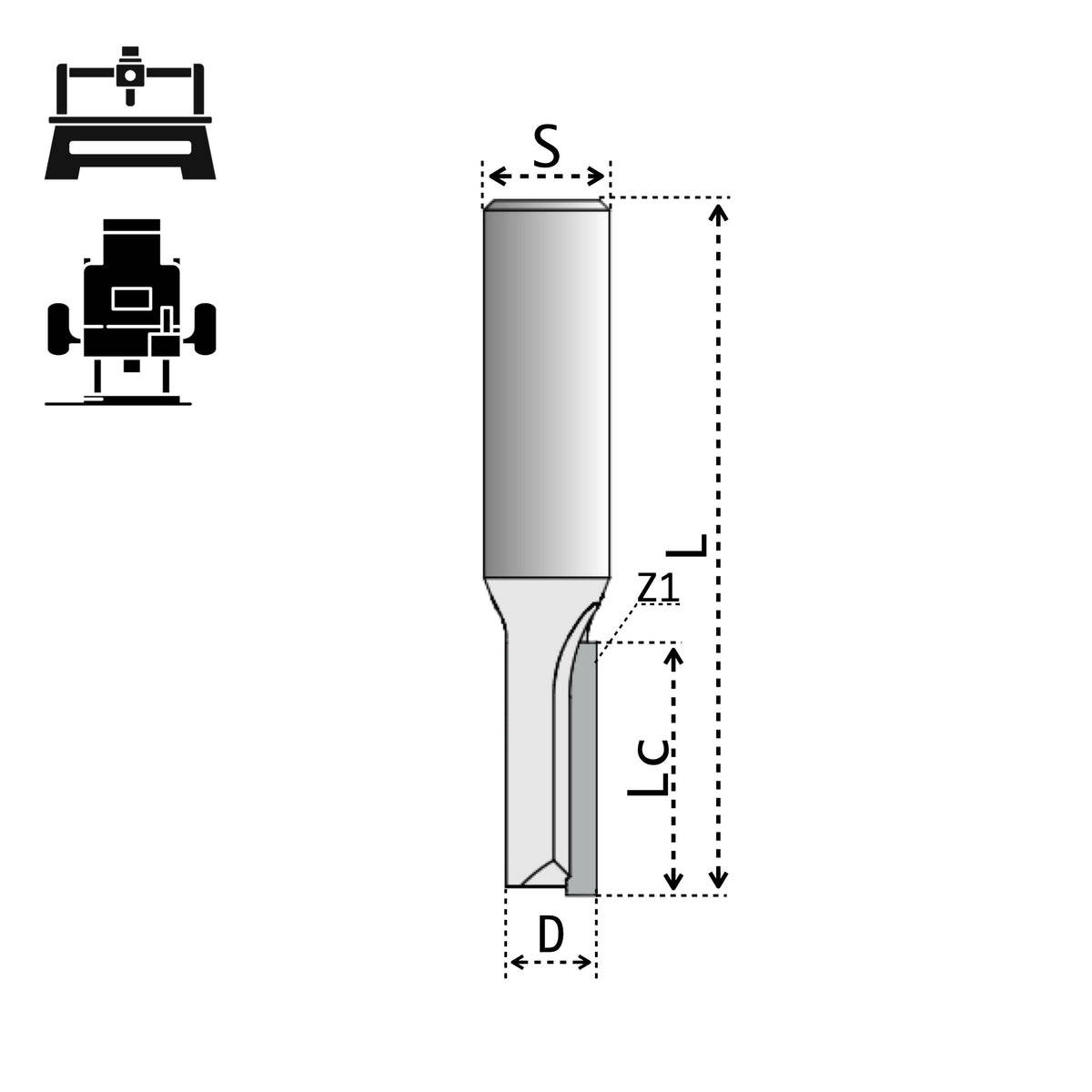

Z1 straight groove router bit, Ø6 / Ø8 mm shank – profile and dimensions, Code 1001

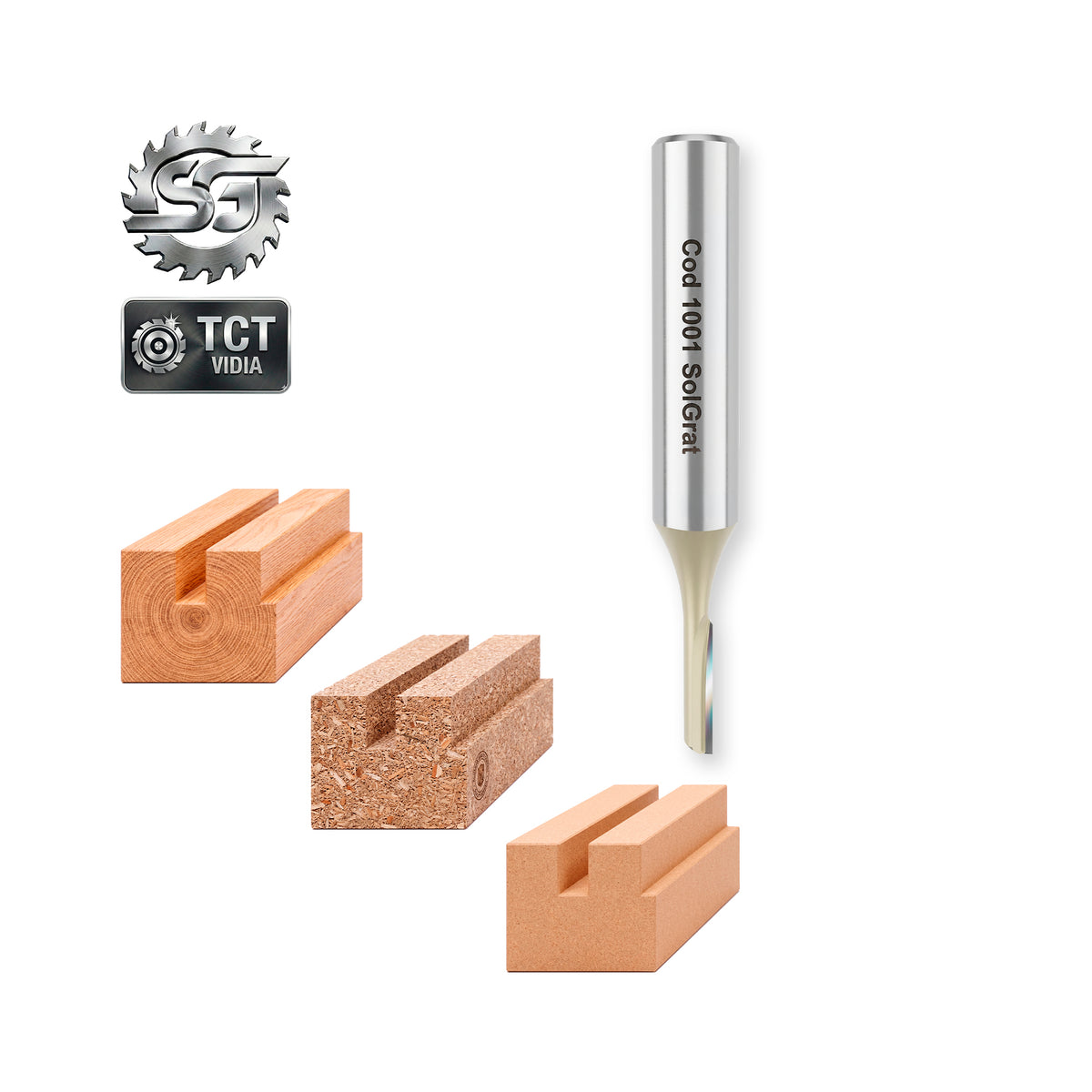

Straight groove router bit with shank, HW (K40), Z1, D3–D6 mm, Lc 12 mm – Code 1001
Z1 straight groove router bit, Ø6 / Ø8 mm shank – profile and dimensions, Code 1001
Straight groove router bit with shank, HW (K40), Z1, D3–D6 mm, Lc 12 mm – Code 1001

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

Globus

Straight Groove Router Bit with Shank D3 – D6 mm | Lc=12 mm | Z1 – HW (K40) | Code 1001

SKU: 1001-D3.S6
€8,02 incl. VAT
Only 2 left
Limited stock
Shank (S)
Diameter (D)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

Straight Groove Router Bit – HW (K40) | D3–D6 mm | Lc 12 mm | Z1

Shank router bit with an HW (K40) tungsten carbide edge and a single flute (Z1), for narrow grooves, hardware recesses and fine details in solid wood and wood-based panels. Available in 4 cutting diameters (D3, D4, D5, D6 mm), with a Ø6 mm shank (D3–D5) or Ø8 mm shank (D3–D6) – select the variant from the menu.

Cutting Diameter (D)Cutting Diameter (D)3 / 4 / 5 / 6 mm – select from the menu
Cutting Depth (Lc)Cutting Depth (Lc)12 mm
Shank Diameter (S)Shank Diameter (S)Ø6 mm (D3, D4, D5) or Ø8 mm (D3, D4, D5, D6)
Number of FlutesNumber of FlutesZ1 (single cutting edge)
Cutting Edge MaterialCutting Edge MaterialHW (K40) – tungsten carbide (VK15: 85% WC · 15% Co)
Edge HardnessEdge Hardness86–87 HRA
Machine CompatibilityMachine CompatibilityHand routers, router tables and CNC machines with a Ø6 / Ø8 mm collet
Package ContentsPackage Contents1 x Router bit (variant selected from the menu)

✨ TECHNICAL ADVANTAGES:

  • Z1 Flute – Fast Chip Evacuation: a single cutting edge leaves a large gullet for clearing material from the groove, reducing the risk of overheating at full depth.
  • HW (K40) – Maximum Versatility: the carbide edge handles solid wood (soft and hard) as well as wood-based panels (MDF, chipboard, plywood), without the rapid wear of high-speed steel.
  • Full Diameter Range (D3–D6 mm): from very fine grooves (hardware recesses, drawer bottoms) to wider slots, all with the same 12 mm cutting depth.
  • Two Shank Options: Ø6 mm (D3–D5) and Ø8 mm (D3–D6), to fit the standard collets of most routers and CNC machines.

⚠️ RECOMMENDATIONS AND LIMITATIONS:

  • Successive Passes on Small Diameters: on D3 and D4 mm, the small diameter-to-depth ratio (Lc 12 mm) makes the bit sensitive to side load — cut deep grooves in successive passes of 3–4 mm at a moderate feed rate to avoid breaking the bit.
  • D5 and D6 mm tolerate a firmer feed, but progressive passes to the full 12 mm depth are still recommended for a clean finish.
  • HW (K40) on softwood: requires a constant feed – letting the spinning bit dwell in one spot on resinous wood (fir, spruce) can cause local burn marks.
  • Not suitable for: full depth in a single pass or operations with heavy side load.

📊 COMPATIBILITY BY MATERIAL (HW K40)

MDF / Chipboard / HDF / Plywood (wood-based panels)100%
Optimal: withstands the abrasive wear of synthetic binders, clean and precise groove.
Hardwood (Beech, Oak, Ash)100%
Excellent: the carbide holds up in dense species, perfectly flat groove bottom.
Softwood (Fir, Spruce, Pine)80%
Good: works well, but needs a constant feed to avoid friction burns.
Exotic Species and Composites100%
Maximum: the recommended choice for demanding materials.

🦺 SAFETY:

  • Mandatory protective equipment: safety glasses (chips thrown at high speed), dust mask or respirator (fine MDF/wood dust) and hearing protection.
  • Successive passes: do not attempt the full 12 mm depth in one pass, especially with D3 and D4 mm – you risk breaking the bit and throwing fragments.
  • Check the collet grip: the shank must be fully inserted and correctly tightened before starting – a loosely held bit vibrates and can pull out of the collet during work.
  • Keep a constant feed and do not let the spinning bit dwell in one spot.
  • Protect your hands: on shank router bits the cutting zone is closer to your hands than on bore cutters – use fences and workpiece clamping devices.
