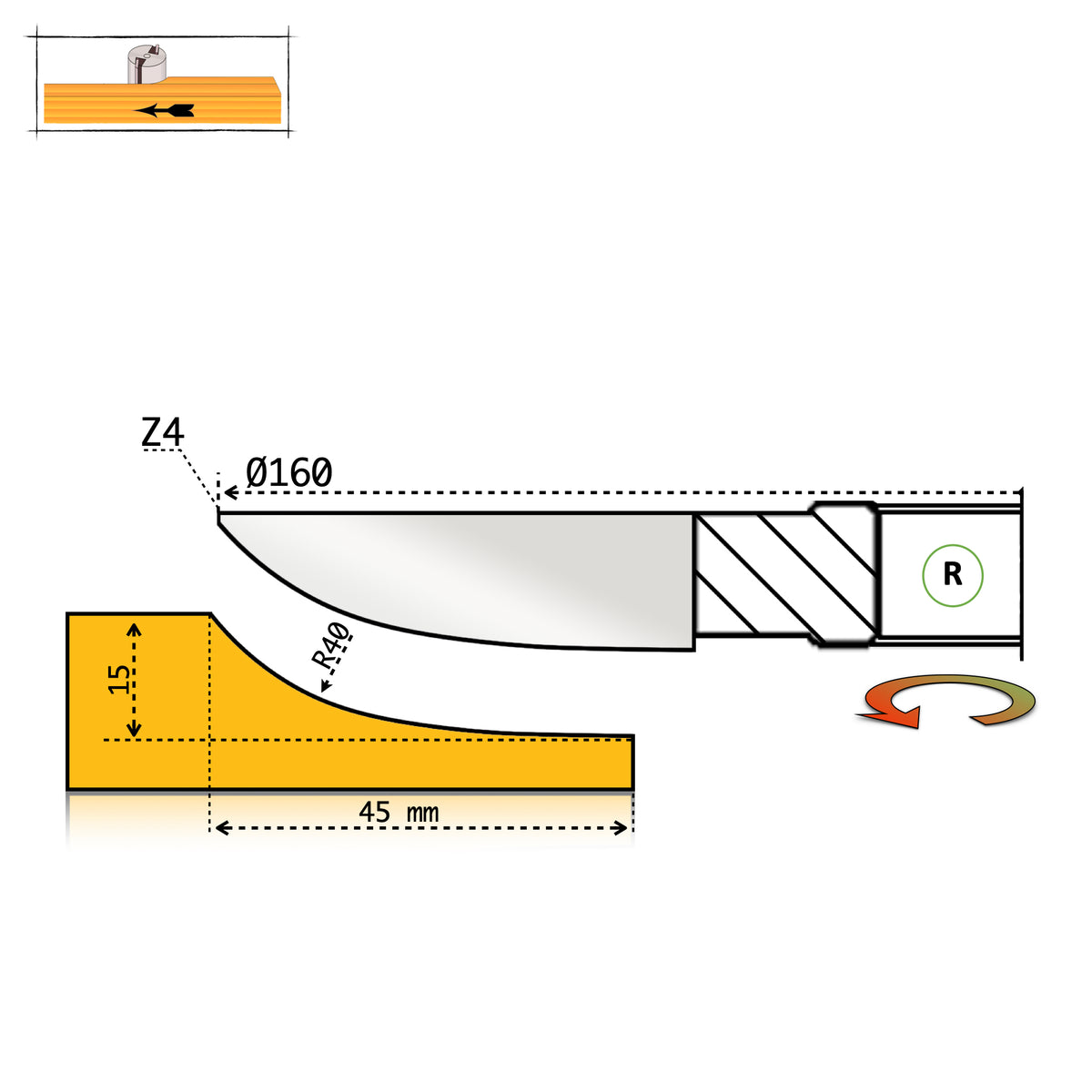

Technical drawing, P8 panel cutter D160 – above the workpiece (R)

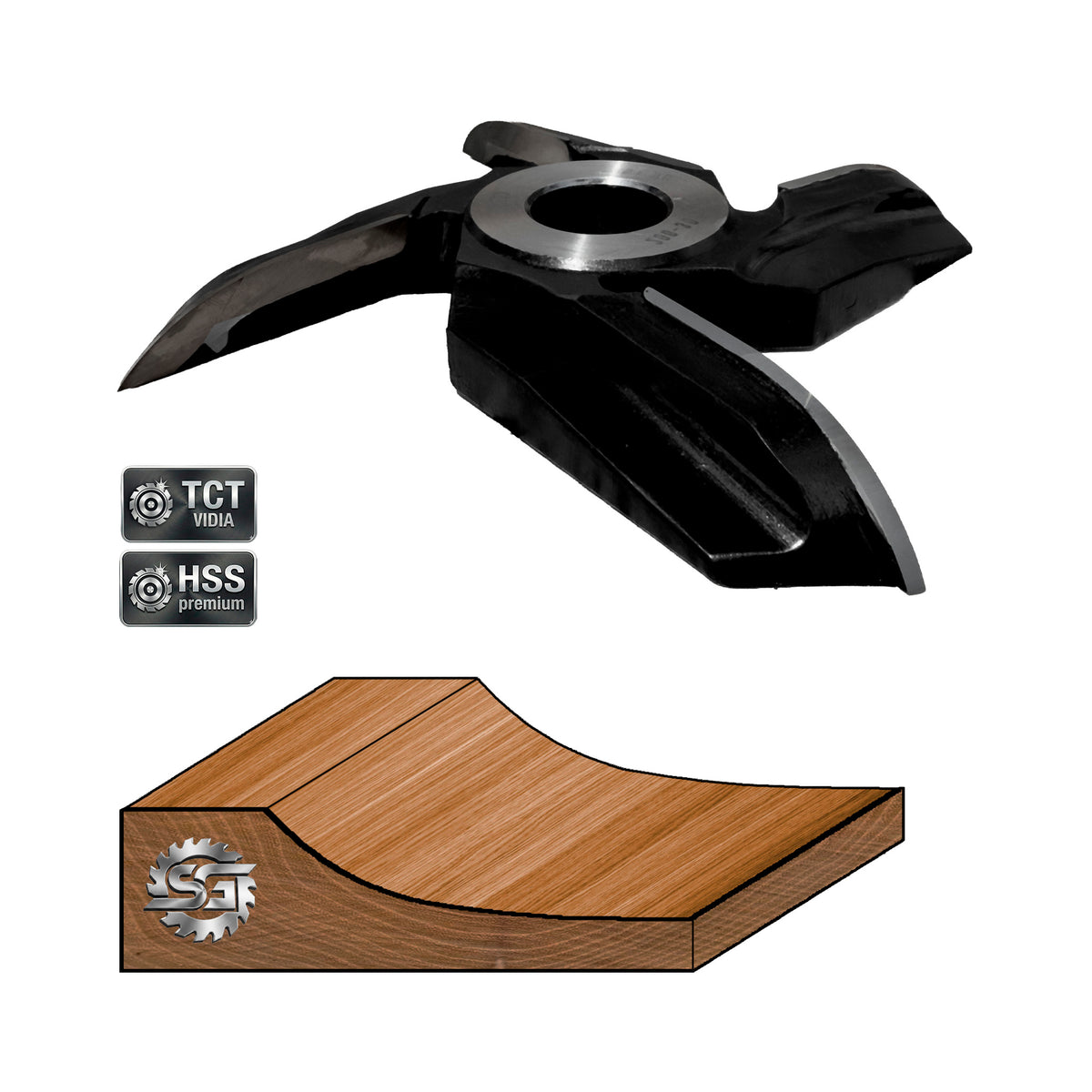

Panel raising shaper cutter, profile P8, D160–D200 mm, DS Steel, HSS M2 and HW (K40) options
Technical drawing, P8 panel cutter D160 – below the workpiece (L)

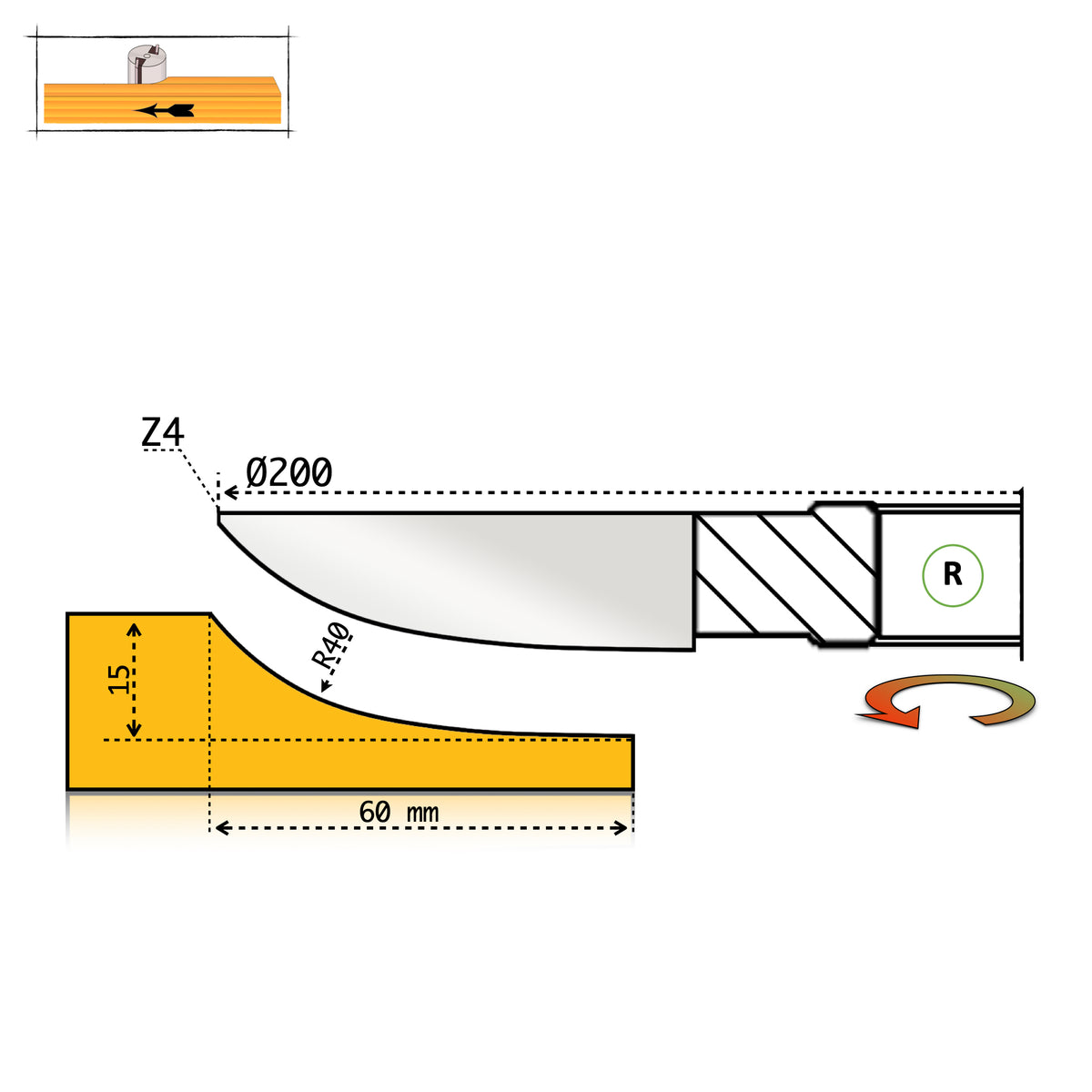

Technical drawing, P8 panel cutter D200 – above the workpiece (R)

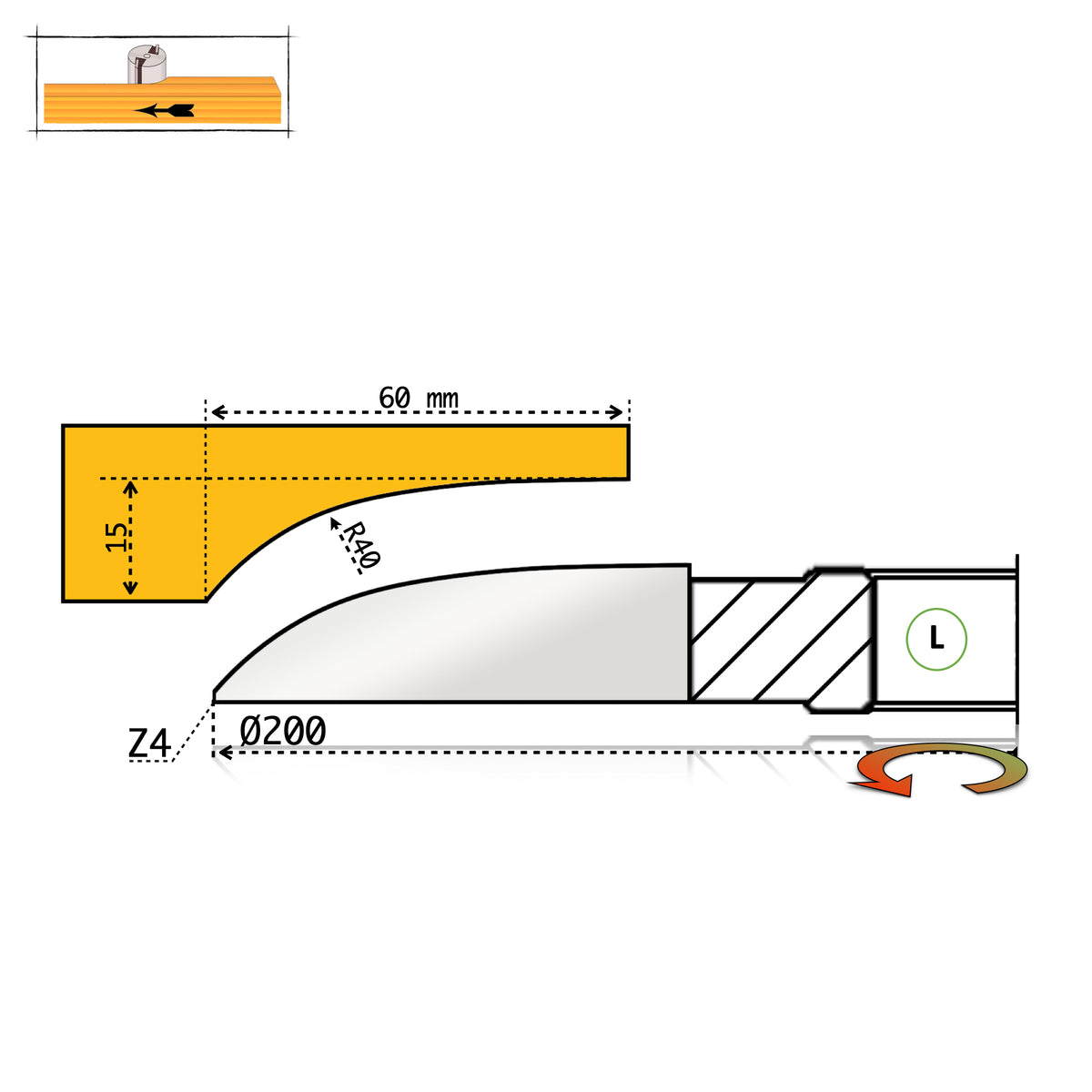

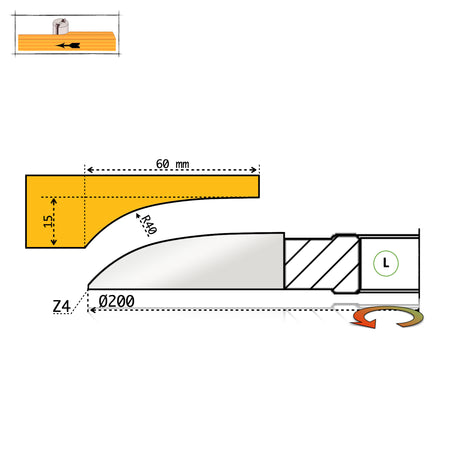

Technical drawing, P8 panel cutter D200 – below the workpiece (L)
Technical drawing, P8 panel cutter D160 – above the workpiece (R)
Panel raising shaper cutter, profile P8, D160–D200 mm, DS Steel, HSS M2 and HW (K40) options
Technical drawing, P8 panel cutter D160 – below the workpiece (L)
Technical drawing, P8 panel cutter D200 – above the workpiece (R)
Technical drawing, P8 panel cutter D200 – below the workpiece (L)

Note: actual product colours may vary slightly from the images, depending on monitor settings and photo lighting.

SolGrat

Panel Raising Shaper Cutter D160 – D200 | Profile Code P8 | DS, HSS or HW (K40)

SKU: SG-T160P8RDS
€66,87 incl. VAT
Only 1 left
Limited stock
Working Position
Material x Diameter (D) x Bore (d)
Free technical advice

Not sure which tool or accessory you need? Send us a photo, a sketch or your machine model – we'll help you choose.

Free delivery in Romania over 600 lei
100% secure payments
Professional quality

Got questions?

We're here to help

Ask a specialist!

Email +40 756 733 343

Panel Raising Shaper Cutter – DS Steel, HSS M2 or HW (K40) | D160 / D200 | Profile Code P8

Profiled shaper cutter with bore for producing raised panels on a stationary spindle moulder, available in two diameters (160 mm and 200 mm), three material options (DS Steel, HSS M2 or HW (K40) – tungsten carbide) and two working positions (above or below the workpiece) – all selectable from the menu. Commonly used for producing solid wood doors, panelled furniture and decorative wood elements.

Profile CodeProfile CodeP8
Outer Diameter (D)Outer Diameter (D)160 mm or 200 mm – select from the menu
Active Cutting HeightCutting HeightAccording to the technical drawing of the selected variant
Working PositionWorking PositionAbove the workpiece – the cutter cuts from below, upwards | Below the workpiece – the cutter cuts from above, downwards
Bore (d)Bore (d)Ø30 mm standard (HSS / HW) | Ø32/30 mm with bushing (DS variant) | other bore sizes on pre-order
Cutting Edge MaterialCutting Edge MaterialDS Steel – standard woodworking steel | HSS M2 – 4 brazed tips | HW (K40) – 4 brazed tungsten carbide (hard metal) tips, grade K40 (VK15 – 85% WC, 15% Co); a good balance of hardness and toughness, resistant to impact in knots and hardwood
Cutting Edge HardnessHardnessDS Steel – 58–61 HRC | HSS M2 – 63–65 HRC | HW (K40) – 86–87 HRA (VK15)
Recommended SpeedRecommended Speed6,000 RPM
Estimated Tool LifeTool LifeUp to 3,000 linear metres (in softwood, before first resharpening)
Cutting TipsCutting TipsBrazed, can be resharpened repeatedly at a specialised service centre; at advanced wear, the cutter body can be re-tipped
Package ContentsPackage Contents1 x Cutter (variant selected from the menu)
Country of OriginCountry of OriginUkraine

🚀 PROPERTIES AND PERFORMANCE:

  • Robust, Balanced Body: made of heat-treated steel, the cutter body minimises vibration, protecting the machine bearings and ensuring flat finishes.
  • Fine, Precise Cut: whichever material you choose, the brazed tips deliver a consistent cut and a finish straight off the cutter, ready for staining or lacquering.
  • Z4 Configuration: the 4 tips distribute the cutting load evenly, without tear-out.
  • 3 Investment Levels: DS Steel for low cost on softwood, HSS M2 for a performance–price balance, HW (K40) for industrial volume, hardwood and abrasive materials.
  • Long-Term Investment: the tips can be resharpened repeatedly at a specialised service centre, and at advanced wear the cutter body can be re-tipped.
  • Maximum Flexibility: 2 diameters × 3 materials × 2 working positions — select the exact combination for your machine and project.

💡 HOW TO CHOOSE THE WORKING POSITION:

– Above the workpiece – you can check the profile visually while cutting; recommended for manual work with feed controlled from above.
– Below the workpiece – shavings and chips are thrown straight down; the finished face stays protected while it slides on the moulder table.

⚠️ USAGE LIMITATIONS:

  • DS Steel variant: ❌ NOT recommended for particleboard, MDF, HDF or hard/exotic wood – intended for softwood only (conifers, lime).
  • HSS M2 variant: ❌ not recommended for particleboard, MDF, HDF or very hard exotic wood – synthetic binders wear the high-speed steel edge prematurely.
  • HW (K40) variant on softwood: requires a constant feed rate – letting the cutter dwell in resinous species can cause local burning.

🛠️ SELECTION GUIDE: DS STEEL vs. HSS M2 vs. HW (K40)

The cutting material directly affects finish quality, cost and tool life (swipe left-right on mobile to see the full table):

Workpiece Material DS Steel
(Economical)		 HSS M2 Premium
(6% W · 5% Mo)		 HW (K40) ⭐
(Tungsten carbide)
Softwood
(Fir, Spruce, Pine)		 90%
(Good / Economical)		 ⭐ 100%
(No Burning)		 ⚠️ Burning risk
(Constant feed required)
Hardwood
(Beech, Oak, Ash)		 40%
(Fast dulling)		 80%
(Efficient)		 ⭐ 100%
(Wear-resistant)
MDF / Particleboard / HDF / Laminated board Not recommended Not recommended ⭐ 100%
(Optimal)
Edge Hardness 58 – 61 HRC 63 – 65 HRC 86 – 87 HRA
💡 Buying recommendations:
  1. Tight budget, softwood only? Choose DS Steel – the lowest cost for fir, spruce or pine.
  2. Working fir, spruce or pine in medium volume? Choose HSS M2 – clean white finish, no burn marks, more durable than DS.
  3. Working oak, beech, MDF or particleboard? Choose HW (K40) – withstands the abrasive wear of hardwoods and synthetic binders.

🦺 SAFETY MEASURES:

  • Mandatory protective equipment: safety glasses (against flying chips), a respirator mask or filter (fine wood dust) and hearing protection for extended work.
  • Keep hands and fingers clear: always use a push stick or power feeder; never guide the workpiece by hand close to the cutter.
  • Check the cutter orientation before starting the machine – the “Above” and “Below” variants are not interchangeable; incorrect mounting produces a wrong profile.
  • Check the mounting of the cutter on the spindle and that the nut is fully tightened before starting.
  • Observe the recommended speed of 6,000 RPM.
